In tap manufacturing, thread accuracy is one of the most important factors affecting tool performance. A tap must produce an internal thread with the required pitch, angle, diameter, and tolerance, so the geometry of the tap itself must be controlled carefully. One of the machines used for this purpose is the single-line thread grinding machine.
A single-line thread grinder uses a narrow grinding wheel profile to grind the thread progressively while the tap blank rotates and moves axially in a synchronized motion. This process is especially suitable for producing precise thread forms on hardened tap blanks.
This article explains how single-line thread grinding works, where it fits into tap production, and which factors influence the quality of the finished tap.
1. What Is a Single-Line Thread Grinding Machine?
A single-line thread grinding machine grinds screw threads using a wheel that contacts a limited portion of the thread profile at one time.
Unlike multi-line grinding systems, which may grind several thread grooves simultaneously, a single-line system follows the thread helix progressively along the workpiece.

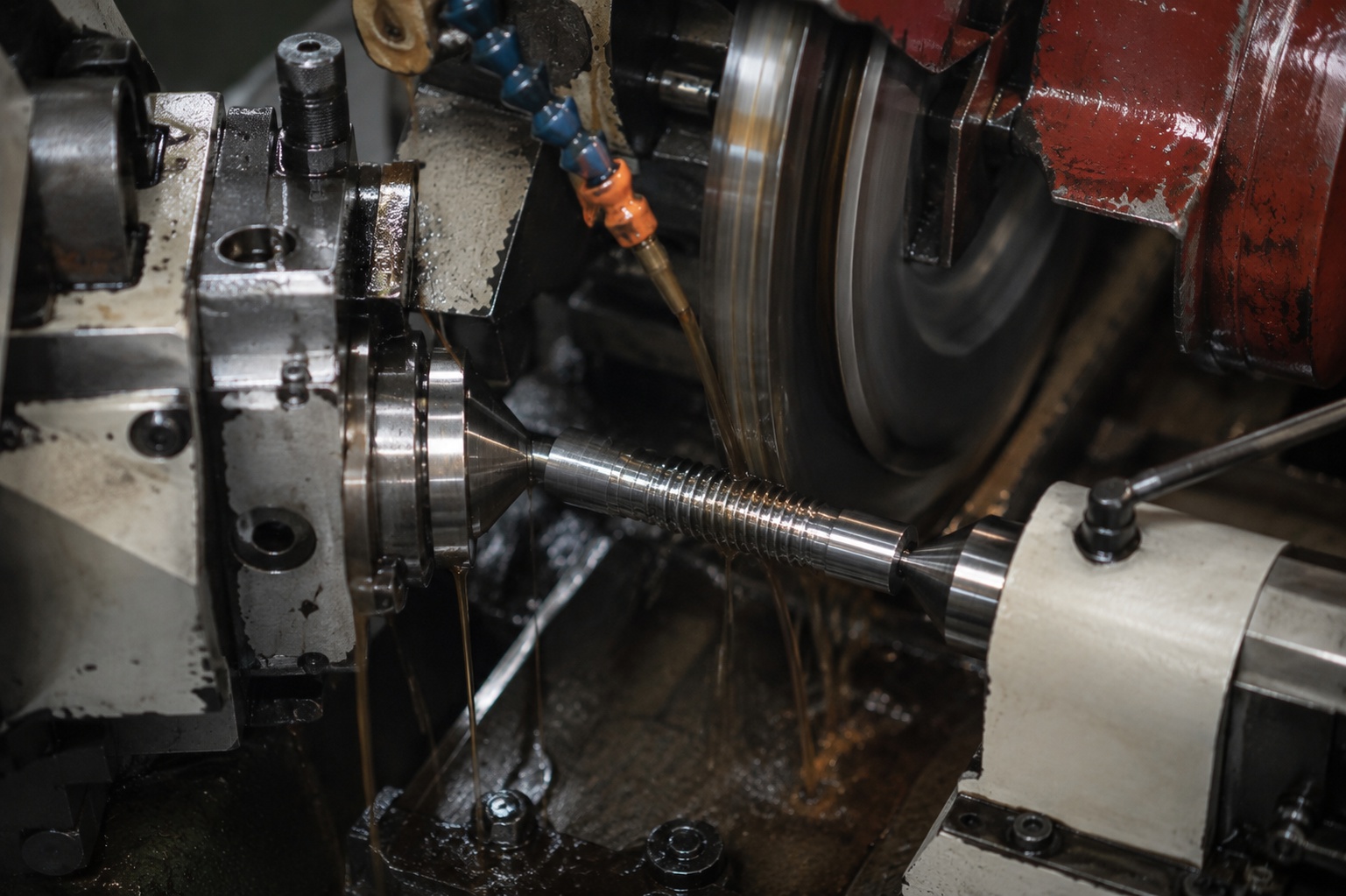

The tap blank rotates while the grinding wheel and workpiece move relative to each other according to the required pitch. The wheel removes material from the hardened blank and forms the thread flanks, roots, and related geometry.
Because the grinding action is concentrated on a small area, the process provides good control of thread form and lead.
2. Where Single-Line Grinding Fits in Tap Production
Single-line thread grinding is normally performed after the tap blank has been machined and heat-treated.
A simplified manufacturing sequence may be:
Raw material → Cutting → Turning → Square-end machining → Flute machining → Heat treatment → Single-line thread grinding → Relief grinding → Finishing → Inspection
The exact sequence depends on the manufacturer and tap design, but thread grinding is often one of the final precision operations.
Grinding after heat treatment is important because the tap has already reached high hardness. Conventional cutting becomes more difficult, while grinding can remove small amounts of hardened material with high dimensional accuracy.
3. How the Grinding Process Works
Before grinding begins, the tap blank is positioned in the machine using centers, collets, or another suitable holding system.
The grinding wheel is dressed to the required thread profile. The machine then synchronizes spindle rotation with axial movement so that the wheel follows the required helical path.
As the tap rotates, the wheel removes material and generates the thread groove. Several passes may be required. Rough grinding removes most of the stock, while finishing passes bring the thread to its final dimensions and improve surface quality.
The result depends on accurate synchronization between rotation, feed, wheel position, and dressing geometry.
4. Controlling Thread Pitch and Lead
Pitch is the axial distance between corresponding points on adjacent thread forms. Lead is the axial distance that the thread advances during one complete revolution.
For a standard single-start tap, pitch and lead are equal, but both still require precise control.
A synchronization error between the rotating tap and axial feed can cause lead error. This may result in an internal thread that does not properly match the specified gauge or mating part.
Single-line thread grinders therefore require accurate feed systems and stable machine mechanics.
5. Thread Profile Accuracy
The grinding wheel determines the shape of the thread profile.
For common metric and Unified threads, the thread form includes defined flank angles, crest conditions, and root geometry. Pipe taps and special-purpose taps may require different profiles.
Before grinding, the wheel must be dressed to the required shape. If the wheel profile is incorrect, the finished tap can have errors in flank angle, root form, or effective diameter even when the pitch is correct.
For this reason, wheel dressing is a critical part of the process.
6. Grinding Wheel Dressing
Grinding wheels wear during operation. Abrasive grains become dull, and the wheel profile may gradually lose accuracy.
Dressing restores the cutting surface and required geometry.
Depending on the machine, manufacturers may use diamond dressers, form dressers, rotary dressing tools, or CNC-controlled dressing systems.
Regular dressing helps maintain consistent cutting action and thread form across production batches.
7. Pitch Diameter Control
Pitch diameter is a critical dimension because it strongly influences the size of the internal thread produced by the tap.
During single-line grinding, wheel position and grinding depth must be controlled carefully.
If too much material is removed, the tap may become undersized. If too little is removed, the tap may fall outside the required tolerance.
Manufacturers therefore combine controlled grinding passes with dimensional inspection.
8. Advantages of Single-Line Thread Grinding
Single-line grinding offers strong flexibility and dimensional control.
Because the wheel follows the thread progressively, manufacturers can control thread form, lead, and diameter closely.
By changing machine settings and wheel dressing, the same system can often produce different pitches, diameters, and thread standards.
This makes single-line grinding useful for small and medium production quantities, specialized tap sizes, and applications where precision is more important than maximum production speed.
9. Single-Line vs. Multi-Line Thread Grinding
The main difference is the amount of thread profile engaged at one time.
A single-line wheel follows the thread along the workpiece, while a multi-line wheel has several ribs and can grind multiple grooves simultaneously.
Multi-line systems can provide higher productivity for large quantities of standardized taps. Single-line systems provide greater flexibility for different specifications and smaller batches.
The choice depends on production volume, required precision, tap size, thread specification, machine capability, and cost.
10. Coolant and Grinding Temperature
Thread grinding generates heat because the wheel contacts hardened tool steel at high speed.
Excessive heat may cause grinding burn, surface softening, microcracks, or dimensional changes.
Coolant helps remove heat, lubricate the contact area, and carry grinding debris away. The fluid must reach the grinding zone effectively.
A correctly dressed wheel and suitable grinding parameters also help reduce unnecessary heat generation.
11. Workholding and Concentricity
The tap blank must rotate accurately around its centerline during grinding.
If it is held eccentrically, the thread may not remain concentric with the shank. This can lead to runout, uneven cutting loads, and inconsistent performance.
Stable centers, collets, fixtures, and machine alignment are therefore essential.
The blank must also be turned accurately before heat treatment so that grinding begins from a consistent reference geometry.
12. Inspection After Thread Grinding
After single-line grinding, the tap should be inspected before final finishing or packaging.
Typical inspection items include thread pitch, pitch diameter, major diameter, thread profile, lead accuracy, flank angle, runout, and surface condition.
Manufacturers may use thread gauges, micrometers, optical systems, profile measuring equipment, or dedicated thread inspection instruments.
Inspection confirms whether the grinding process has achieved the required specification and tolerance.
Conclusion
Single-line thread grinding is an important precision process in tap manufacturing.
The machine uses a narrow-profile grinding wheel to progressively grind the thread along a hardened tap blank while rotation and axial feed are synchronized according to the required pitch.
This allows manufacturers to control thread profile, lead, pitch diameter, and surface quality with high accuracy.
Reliable results depend on correct wheel dressing, stable workholding, precise machine synchronization, effective coolant delivery, suitable grinding parameters, and careful inspection.
Although multi-line systems may provide higher productivity for some large-volume applications, single-line thread grinding remains valuable because of its flexibility and control over individual thread geometry.
For tap manufacturers, it is a key method for transforming a hardened blank into a precise threading tool capable of producing consistent internal threads in practical machining applications.
