Abrasive workpiece materials can shorten tap life quickly. Cast iron and high-silicon aluminum are two common examples. Both contain hard phases that wear cutting edges aggressively, but their machining behavior is different.
Cast iron usually produces short, brittle chips and places strong abrasive load on the cutting edges. High-silicon aluminum combines abrasive silicon particles with the tendency of aluminum to adhere to the tool. Tap material, flute geometry, coating, lubrication, and machine rigidity must therefore be selected carefully.
This guide explains how to choose taps for these two abrasive materials and improve tapping stability.
1. Why Abrasive Materials Are Hard on Taps
A tap works with several teeth engaged inside a confined hole. When the workpiece contains hard particles or structural constituents, these continuously wear the cutting edges and thread flanks.
Typical problems include rapid flank wear, higher tapping torque, poor thread finish, dimensional drift, and short tool life. In severe cases, excessive wear can lead to edge chipping or tap breakage before the planned tool-change interval.
2. Tapping Cast Iron
Cast iron is widely used in machine bases, pump housings, engine components, valves, and heavy industrial parts.
Compared with many steels, cast iron usually produces short, fragmented chips. This simplifies chip evacuation, but the material can still be highly abrasive.
Gray cast iron is generally easier to machine than some ductile or alloyed grades, but all cast irons require a tap with sufficient wear resistance and strong cutting edges.
3. Best Tap Geometry for Cast Iron
Straight flute taps are often a practical choice for cast iron.
Because the chips break naturally into small particles, there is usually less need for aggressive chip-lifting geometry. Straight flutes provide a rigid cutting structure and strong teeth.
For shallow blind holes and many through-hole applications, straight flute taps can provide stable performance. Spiral point taps may also be used for some through holes, but chip direction is usually less critical than in long-chipping steels.
The main priorities are edge strength, wear resistance, and stable thread dimensions.
4. Best Tap Materials for Cast Iron
HSS can be used for general cast-iron tapping at moderate speeds and lower production volumes.
HSS-Co offers improved hot hardness and wear resistance and is often better suited to longer production runs.
For high-volume CNC production, carbide taps can provide excellent resistance to abrasive wear. Their high hardness allows them to maintain cutting geometry for longer periods.
However, carbide is more brittle than HSS-Co. It requires rigid machines, accurate holders, low runout, and stable workholding. If vibration cannot be controlled well, HSS-Co may be the safer option.
5. Coatings for Cast Iron
Hard wear-resistant coatings can extend tap life in abrasive cast iron.
TiCN and TiAlN-type coatings may be useful depending on cutting temperature, tap substrate, and cast-iron grade.
However, coating alone cannot compensate for incorrect geometry, excessive runout, or unsuitable cutting speed. The substrate, coating, edge preparation, and machine setup should be considered together.
6. Tapping High-Silicon Aluminum
High-silicon aluminum is common in automotive castings, housings, engine parts, and lightweight mechanical components.
Silicon improves wear resistance and casting performance, but hard silicon particles are highly abrasive to taps. At the same time, the aluminum matrix may stick to the cutting edges.
The tap must therefore resist abrasive wear while keeping friction and built-up edge under control.
7. Best Tap Geometry for High-Silicon Aluminum
Sharp cutting edges and smooth chip flow are essential.
For through holes, spiral point taps can push chips forward and reduce flute congestion. For blind holes, spiral flute taps can pull chips back toward the entrance.
Polished flutes are particularly useful because they reduce friction and help prevent aluminum from sticking to the tool.
For high-volume production, taps designed specifically for aluminum alloys are usually preferable to general-purpose taps.
8. Tool Materials for High-Silicon Aluminum
HSS can handle lighter-duty tapping, but abrasive silicon can shorten its life quickly.
HSS-Co provides better wear resistance while maintaining good toughness.
Carbide is often the strongest option for highly abrasive high-silicon alloys when the CNC setup is rigid and stable. It can maintain a sharp cutting edge longer and reduce frequent tool changes.
The trade-off is breakage sensitivity. Poor alignment or vibration can chip carbide even before normal abrasive wear becomes severe.
9. Coatings for High-Silicon Aluminum
Coating selection differs from steel applications.
The coating must resist abrasive silicon while minimizing aluminum adhesion. Low-friction coatings such as DLC can be useful in suitable aluminum applications because they reduce sticking and material buildup.
Polished uncoated tools may also perform well in some conditions. The best choice should be confirmed through controlled production testing.
10. Hole Size, Coolant, and Cutting Parameters
Correct pre-drilled hole size is essential.
If the hole is too small, the tap removes excessive material, increasing torque, heat, and wear. If it is too large, thread engagement may be insufficient.
Lubrication is especially important in high-silicon aluminum because it reduces adhesion and friction.
For cast iron, coolant strategy depends on material grade and factory process. Some applications are run dry, while others use coolant for temperature or dust control.
Cutting speed should follow the tap manufacturer's recommendations and be adjusted according to actual wear and thread quality.
11. Monitor Wear Before Failure
Abrasive materials can cause rapid edge wear.
Monitor thread count, spindle load, tapping torque, gauge results, and cutting-edge condition.
Do not define tool life only by the moment the tap breaks. Replace the tool when thread quality or torque begins to move outside the acceptable range.
Planned replacement is usually cheaper than broken-tap removal, downtime, or scrapped components.
Conclusion

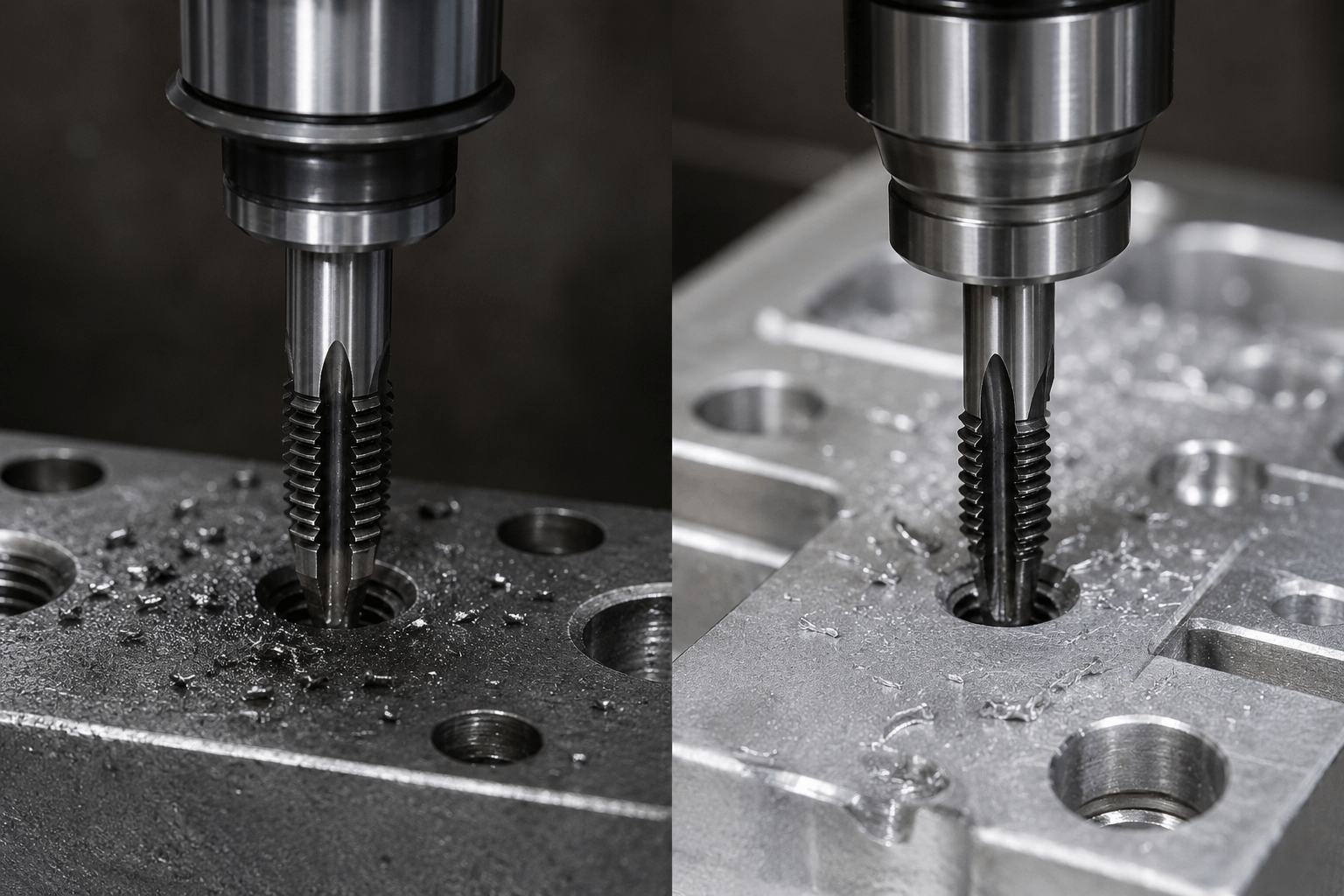

Cast iron and high-silicon aluminum are both abrasive, but they require different tapping strategies.
For cast iron, straight flute taps with strong cutting edges are often effective, while HSS-Co or carbide can improve wear resistance depending on production volume and machine rigidity.
For high-silicon aluminum, the tool must resist abrasive silicon while preventing aluminum adhesion. Sharp geometry, polished flutes, suitable chip direction, low-friction coatings, and carbide substrates can provide important advantages.
The best results come from combining the correct tap material, geometry, coating, hole size, lubrication, and machine setup. By matching the tap to the actual workpiece and monitoring wear carefully, manufacturers can reduce premature failures and achieve more predictable tool life.
