Titanium alloys and Inconel are widely used in aerospace, energy, medical, and high-performance engineering because of their strength and corrosion resistance. However, both materials are difficult to tap. They generate high cutting forces, retain heat near the cutting zone, and can quickly damage cutting edges if the tap geometry or machining parameters are not suitable.
Successful tapping requires careful control of tool material, flute design, cutting speed, lubrication, hole size, and machine rigidity. This guide explains practical solutions for tapping titanium and Inconel more reliably.
1. Why Titanium Is Difficult to Tap
Titanium has low thermal conductivity, so heat generated during tapping remains concentrated near the cutting edge. It also has a strong tendency to gall and adhere to the tool.
If the tap rubs instead of cutting cleanly, heat and torque can rise rapidly. Titanium can also spring back after the cutting edge passes, increasing friction on the thread flanks.
Common problems include built-up edge, high torque, rapid wear, thread tearing, and tap breakage.
2. Why Inconel Is Even More Demanding
Inconel is a nickel-based superalloy designed to retain strength at high temperatures. This same property makes it difficult to machine.
It work-hardens quickly, produces high cutting forces, and generates substantial heat. Once the surface becomes work-hardened, the next cutting pass becomes even more difficult.
Tap wear can accelerate quickly if the cutting edge becomes dull, so sharp geometry and stable process conditions are essential.

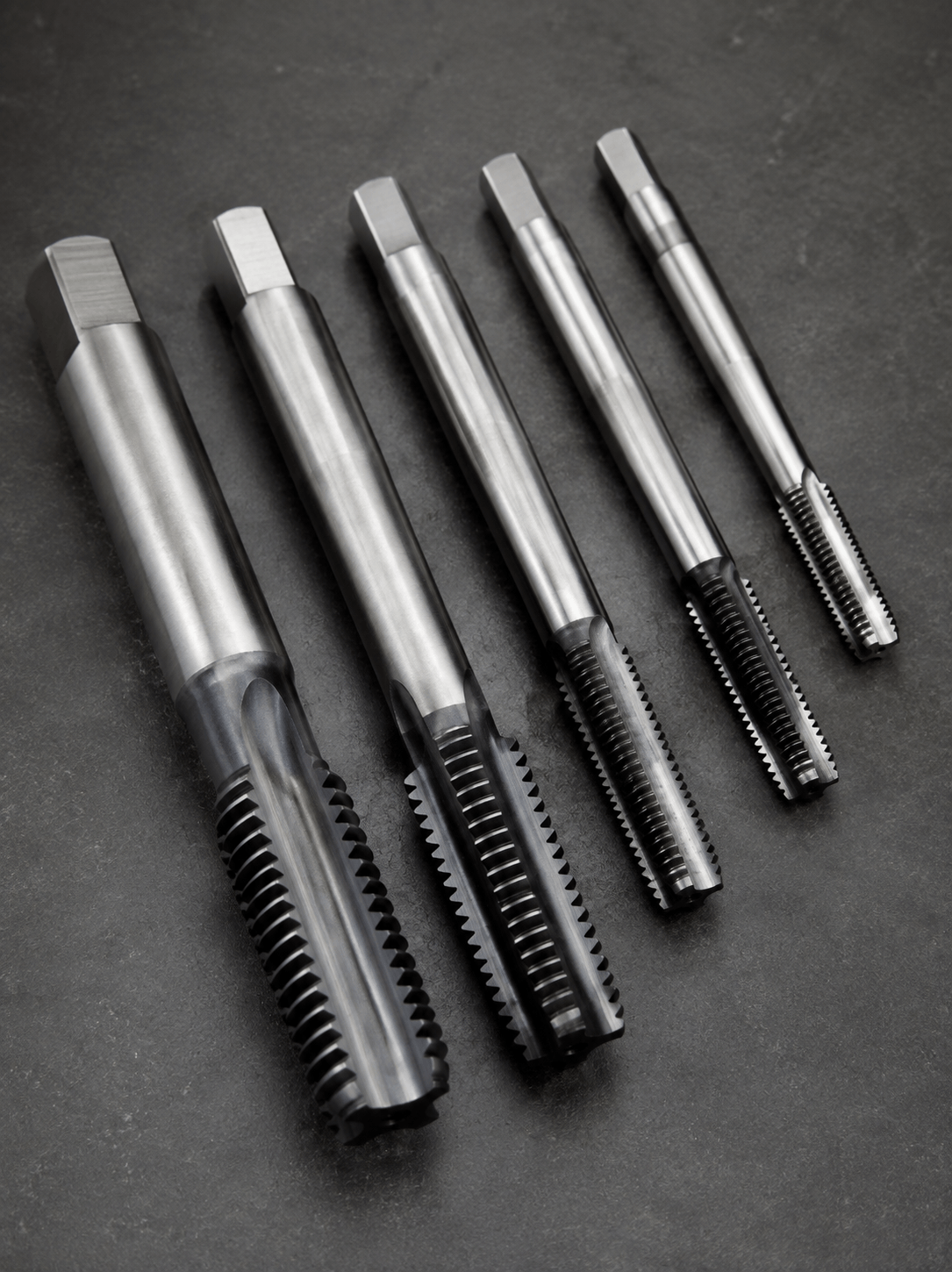

3. Choose the Right Tap Material
HSS-Co and powder metallurgy HSS are common choices for titanium and nickel-based alloys because they provide a good combination of toughness, hot hardness, and wear resistance.
PM-HSS can be useful because its fine, uniform structure improves edge strength and wear behavior.
Carbide taps may be used in highly rigid CNC machines, especially for repetitive production, but carbide is less tolerant of vibration, runout, and misalignment.
For many difficult applications, HSS-Co or PM-HSS provides a safer balance.
4. Use Strong but Sharp Cutting Geometry
The tap must have enough edge strength to resist chipping, but it must also remain sharp enough to cut rather than rub.
A positive cutting geometry can help reduce cutting forces in titanium, while excessive edge honing may increase rubbing and heat.
For Inconel, the edge should resist deformation and chipping under high cutting pressure. Application-specific rake angles, relief, and chamfer geometry are often preferable to general-purpose designs.
5. Spiral Point Taps for Through Holes
For through holes, spiral point taps are often a practical choice.
Their geometry pushes chips forward and away from the cutting area. This reduces chip congestion and can help stabilize torque.
In titanium and Inconel, reliable chip movement is important because trapped chips can quickly increase load and damage the cutting edges.

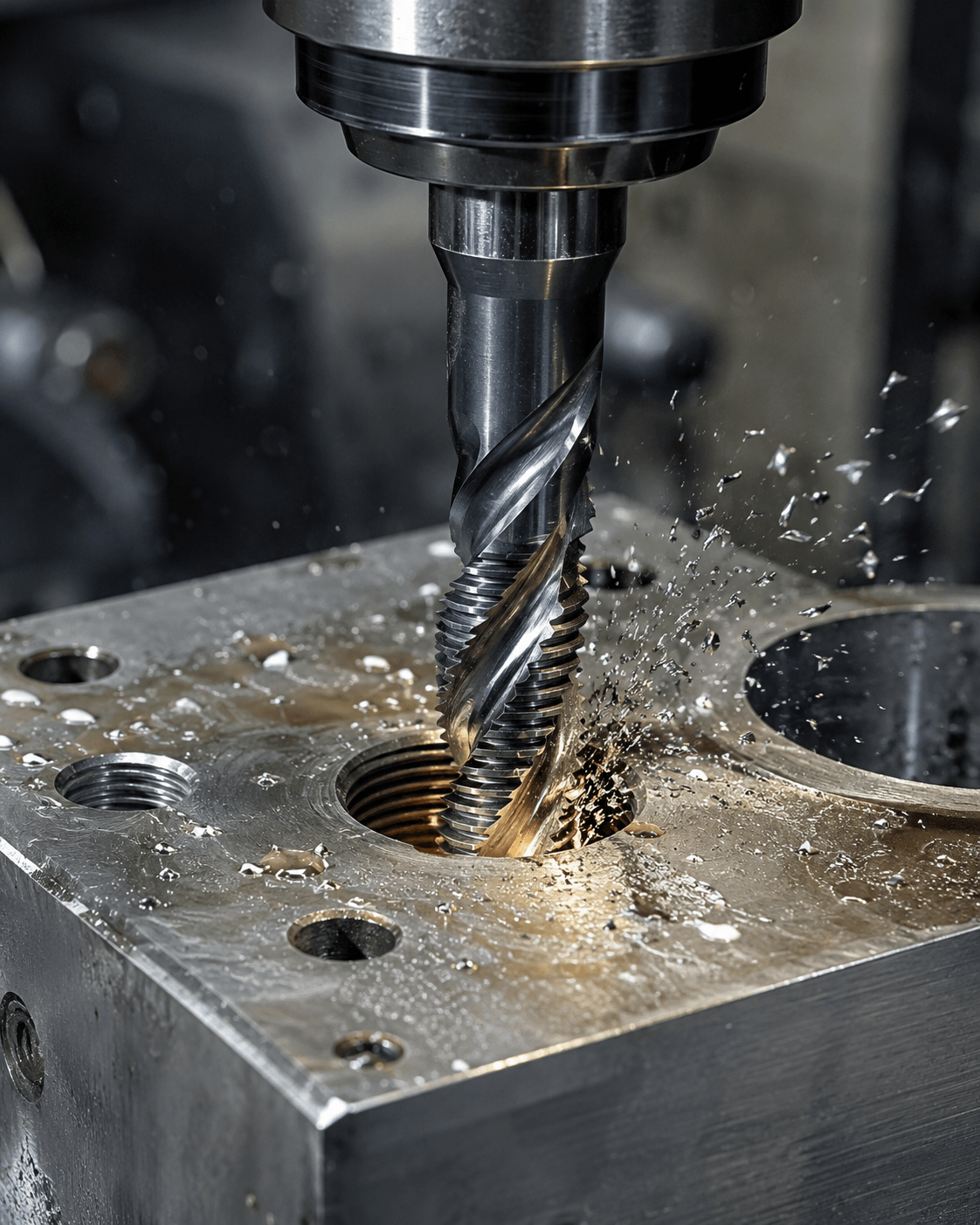

6. Spiral Flute Taps for Blind Holes
Blind holes require chips to move back toward the entrance.
Spiral flute taps are commonly used because their helical flutes lift chips away from the bottom of the hole.
For difficult alloys, flute geometry should provide reliable chip evacuation without weakening the tap excessively. Deep blind holes may also benefit from internal coolant delivery.
7. Use Conservative Cutting Speeds
Titanium and Inconel should generally be tapped at lower speeds than ordinary carbon steel or aluminum.
Excessive speed increases temperature and accelerates edge wear.
The exact cutting speed depends on alloy grade, tap material, coating, hole depth, coolant, and machine condition. Start with the tap manufacturer's recommended range and adjust based on torque, tool wear, and thread quality.
Stable cutting is more important than maximum spindle speed.
8. Lubrication and Coolant Are Critical
Effective lubrication is essential because both materials generate high friction.
A suitable tapping oil or high-performance coolant can reduce torque, limit galling, and protect the cutting edge.
For deep holes, coolant-thru taps can deliver fluid directly to the cutting zone, improving heat removal and chip movement.
Poor coolant delivery can cause unstable tool life in difficult alloys.
9. Control the Pre-Drilled Hole Size
The pre-drilled hole should be carefully controlled.
If the hole is too small, the tap removes excessive material and torque rises sharply. In titanium and Inconel, this can quickly lead to breakage.
Using a hole size toward the larger end of the permitted range may reduce cutting load while still meeting the required thread specification.
Always verify the actual hole diameter rather than relying only on the nominal drill size.
10. Minimize Runout and Misalignment
These materials leave little margin for setup errors.
Excessive runout causes uneven tooth loading, while misalignment introduces side forces and increases breakage risk.
Use accurate holders, clean collets, rigid fixtures, and well-maintained spindles. For CNC rigid tapping, ensure feed and spindle rotation are synchronized correctly.
Low runout is especially important with carbide taps.
11. Prevent Work Hardening
Both titanium and Inconel become more difficult to cut when the tool rubs instead of shearing material efficiently.
Avoid dwell, repeated partial cutting, dull tools, and interrupted feed whenever possible.
The tap should enter, cut, and reverse smoothly. Replace the tool before it becomes severely worn, because a dull tap can quickly create a work-hardened surface.
12. Monitor Tool Life by Torque and Thread Quality
Do not define tool life only by the moment the tap breaks.
Monitor spindle load, tapping torque, thread gauge results, surface finish, and cutting-edge condition.
A gradual increase in torque often indicates wear, lubrication problems, or chip evacuation issues.
Planned tool replacement is usually less expensive than removing a broken tap from a high-value superalloy component.
Conclusion
Tapping titanium and Inconel requires a carefully controlled process because both materials generate high cutting forces, heat, and rapid tool wear.
HSS-Co and PM-HSS taps are often strong choices, while carbide can perform well in rigid CNC systems. Spiral point taps are typically suited to through holes, and spiral flute taps are preferred for blind holes.
The best results come from conservative cutting speeds, effective lubrication, accurate hole size, low runout, sharp application-specific geometry, and reliable chip evacuation.
By controlling the entire tapping system rather than focusing on the tap alone, manufacturers can reduce breakage, improve thread quality, and achieve more predictable tool life in titanium and nickel-based superalloys.
