In tap manufacturing, cutting geometry and heat treatment are critical, but surface engineering can also strongly influence performance. After grinding and finishing, many taps receive a thin hard coating to improve wear resistance, reduce friction, and extend tool life. One common method is vacuum coating.

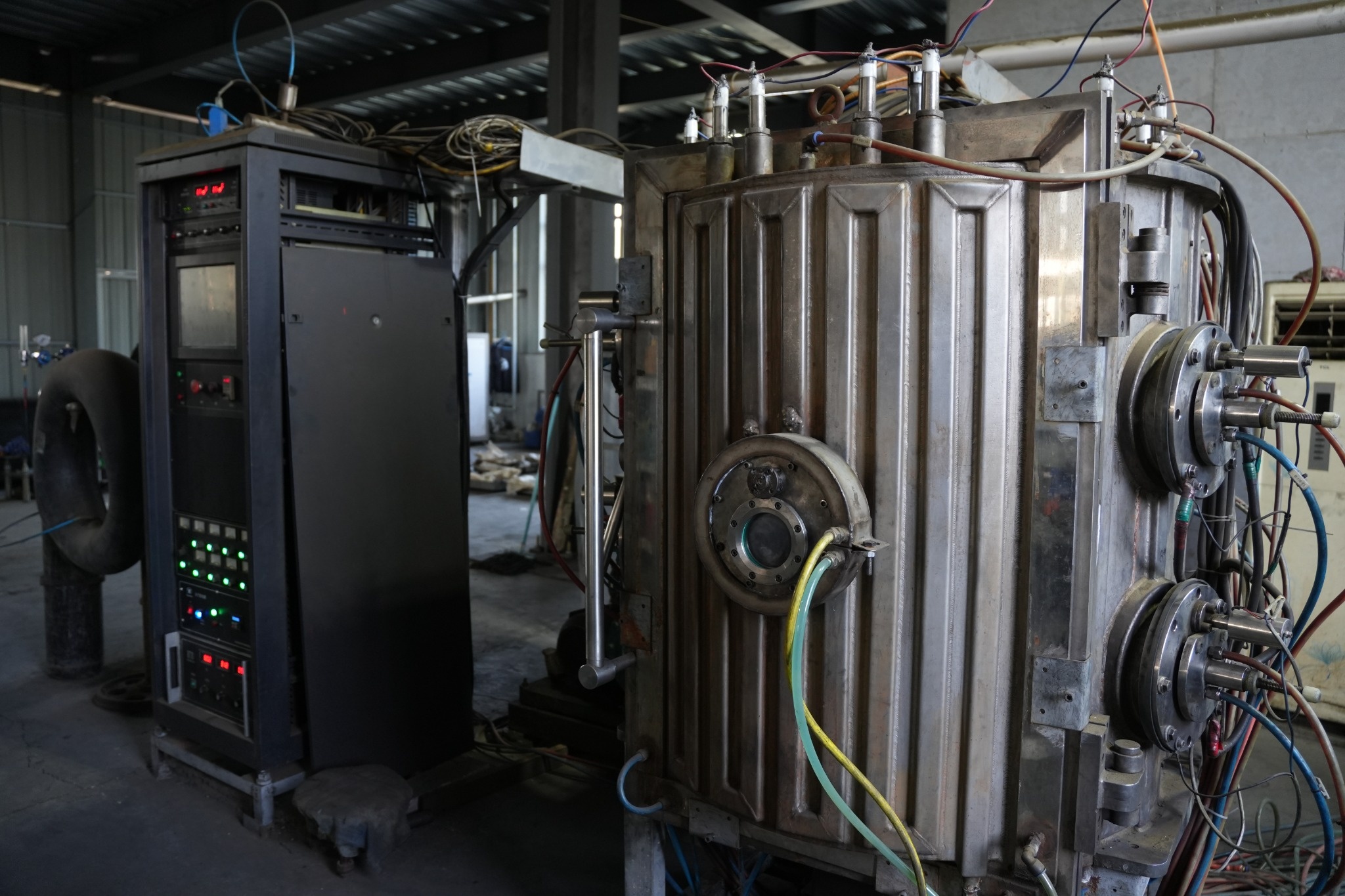

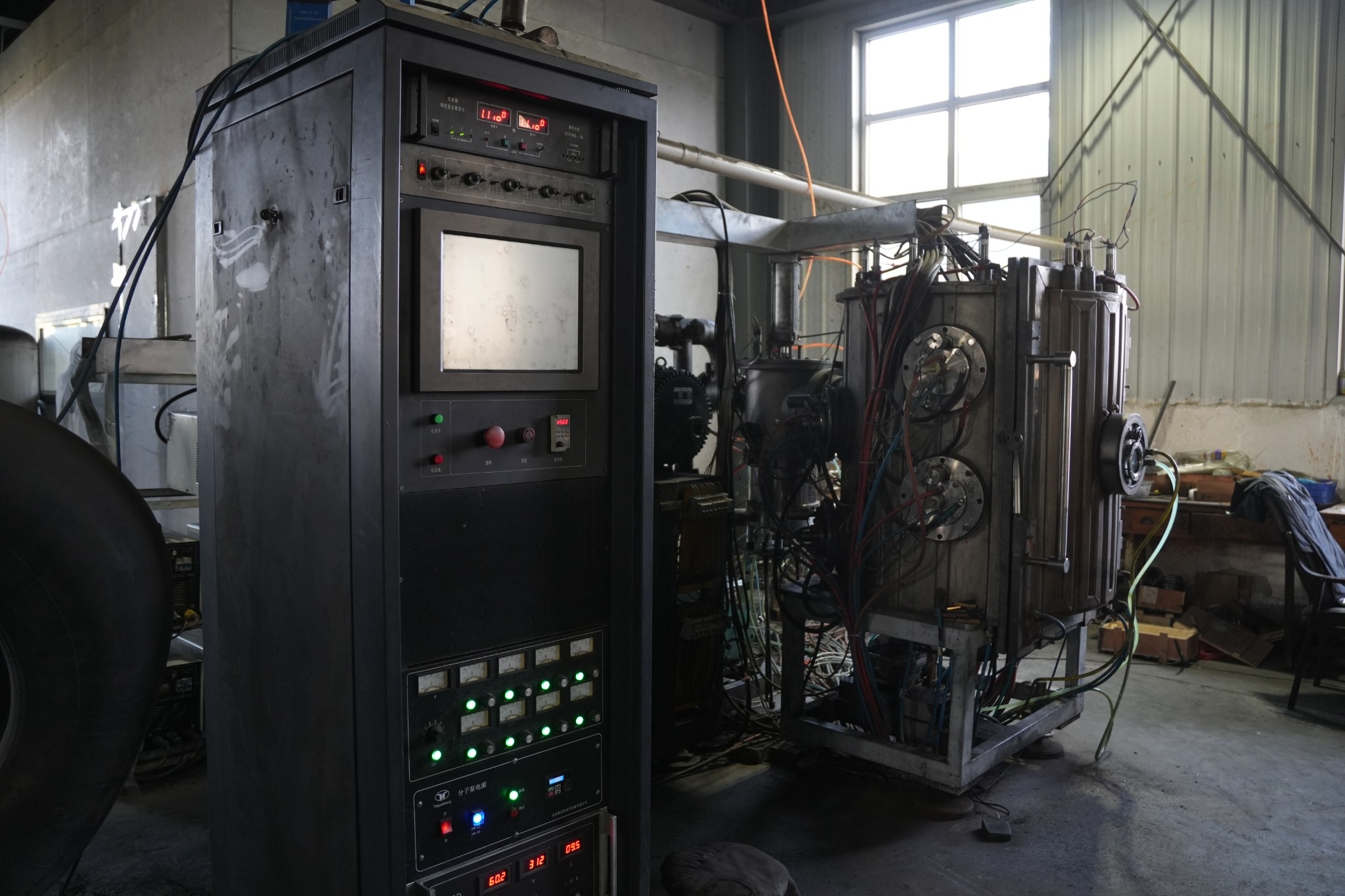

A titanium vacuum coating furnace is a vacuum chamber used to deposit titanium-based coatings such as TiN, TiCN, and TiAlN on finished taps. In modern production, this process is generally based on physical vapor deposition, or PVD.
This article explains how vacuum coating is used in tap manufacturing and which factors influence coating quality.
1. What Is a Titanium Vacuum Coating Furnace?
A titanium vacuum coating furnace is a sealed chamber that creates a low-pressure environment for depositing a thin coating onto a tool surface.
“Titanium coating” usually refers to titanium-based compounds rather than pure titanium. Common examples include titanium nitride, titanium carbonitride, and titanium aluminum nitride.
During PVD coating, material from a target or evaporation source becomes vapor or ionized particles inside the chamber. These particles react with process gases and condense on the tap surface, forming a thin, hard protective layer.
2. Where Coating Fits in Tap Production
Titanium-based coating is normally applied after the tap has completed its main machining and heat-treatment operations.
A simplified route may be:
Raw material → Turning → Flute machining → Heat treatment → Thread grinding → Relief and chamfer grinding → Cleaning → Vacuum coating → Final inspection
The tap must already have its final geometry because the coating follows the existing surface. It cannot correct an inaccurate thread profile or poor cutting edge.
Coating should therefore be viewed as a performance-enhancing step rather than a substitute for precision manufacturing.
3. Cleaning Before Vacuum Coating
Surface cleanliness is essential for coating quality.
Before taps enter the furnace, oil, grinding residue, fingerprints, and other contamination must be removed. Factories may use ultrasonic cleaning, alkaline cleaning, rinsing, and drying.
If contamination remains, the coating may not bond correctly. Poor adhesion can cause peeling or premature coating failure during tapping.
Good coating therefore begins with proper cleaning.
4. Loading Taps into the Vacuum Chamber
After cleaning, the taps are mounted on fixtures inside the chamber.
The fixtures hold the tools in controlled positions and may rotate during deposition. Rotation helps expose the thread flanks, cutting edges, chamfers, and flutes to the coating source.
Incorrect spacing or orientation can cause uneven coverage, so fixture design and loading arrangement are important for coating uniformity.
5. Creating the Vacuum Environment
Once the chamber is sealed, vacuum pumps remove air from the system.
The vacuum reduces contamination and allows coating particles to travel efficiently through the chamber. The exact pressure depends on the PVD process.
Before deposition, the taps may also undergo ion or plasma cleaning inside the chamber to remove residual contamination and improve coating adhesion.
6. How Titanium-Based PVD Coatings Are Deposited
Common PVD technologies include arc ion plating and magnetron sputtering.
In arc ion plating, an electric arc evaporates material from a solid target. The vaporized material becomes ionized and moves toward the tools.
In magnetron sputtering, energetic ions strike a target and eject atoms from its surface. These atoms travel through the vacuum chamber and deposit on the taps.
Reactive gases such as nitrogen may be introduced. Titanium reacting with nitrogen forms titanium nitride, or TiN. Other material and gas combinations can produce TiCN or TiAlN.
7. Common Titanium-Based Coatings for Taps
TiN is one of the most familiar cutting-tool coatings and is usually recognized by its gold color. It provides high surface hardness and can reduce friction, helping improve wear resistance in suitable applications.
TiCN offers high hardness and good resistance to abrasive wear. It may be selected for more demanding machining conditions.
TiAlN is commonly used where higher cutting temperatures are expected because it maintains useful properties under elevated thermal conditions.
The best coating depends on the workpiece material, cutting speed, lubrication, tap design, and production requirements. No single coating is ideal for every application.
8. Why Coating Thickness Must Be Controlled
PVD coatings are thin, but thickness still matters.
If a coating is too thin, it may provide insufficient wear protection. If it is excessively thick, it can affect cutting-edge sharpness, thread dimensions, and surface finish.
This is particularly important for taps because the thread geometry and tolerance have already been established before coating.
Manufacturers therefore control coating thickness carefully to protect the surface without significantly changing the functional geometry.
9. Temperature Control During Coating
The coating process operates at elevated temperature, but it must remain compatible with the heat-treated tap material.
Excessive temperature may affect hardness or dimensional stability. For this reason, coating temperature is controlled according to the substrate and coating system.
HSS and HSS-Co taps are generally suitable for many PVD processes when the process temperature is correctly managed.
10. How Coating Can Improve Tap Performance
A suitable titanium-based coating can increase surface hardness, reduce friction, and improve resistance to adhesive and abrasive wear.
During tapping, the cutting teeth operate in a confined hole where friction and chip movement can generate heat. A coating reduces direct contact between the tool steel and workpiece material, helping the cutting geometry remain effective for longer.
A smooth coating can also help reduce material adhesion on the flutes and support chip movement. However, chip evacuation still depends mainly on flute design, hole type, cutting parameters, lubrication, and workpiece material.
11. Inspection After Vacuum Coating
After coating, taps should be inspected before packaging or shipment.
Typical checks may include:
- Visual appearance
- Coating uniformity
- Thread dimensions
- Surface condition
- Coating thickness
- Adhesion
Abnormal color, peeling, uneven coverage, or contamination may indicate problems in cleaning, fixture loading, deposition, or process control.
For some applications, manufacturers may also perform cutting tests to compare coated tools with established production standards.
12. Coating Does Not Replace Good Tap Manufacturing
A high-quality coating cannot compensate for poor thread grinding, incorrect heat treatment, weak cutting edges, or inaccurate geometry.
The substrate must already be manufactured correctly.
The best results come from combining suitable tool steel, controlled heat treatment, accurate grinding, proper edge preparation, thorough cleaning, and a coating selected for the intended application.
Vacuum coating is therefore one part of a complete tap manufacturing and quality-control system.
Conclusion
Titanium vacuum coating furnaces play an important role in modern tap manufacturing by applying thin, hard PVD coatings to finished cutting tools.
Coatings such as TiN, TiCN, and TiAlN can improve wear resistance, reduce friction, protect cutting surfaces, and extend tool life when correctly matched to the application.
Reliable coating quality depends on careful cleaning, correct fixture loading, stable vacuum conditions, controlled deposition, suitable coating thickness, and proper temperature management.
For HSS and HSS-Co taps, vacuum coating is a valuable final processing step that enhances the surface properties of an accurately manufactured tool.
When combined with good material selection, heat treatment, grinding, and inspection, titanium-based PVD coating helps manufacturers produce taps with more stable cutting performance and longer service life in industrial threading operations.
