In tap manufacturing, dimensional accuracy is only one part of product quality. A tap may have the correct thread size, pitch, flute geometry, and shank dimensions, yet still perform poorly if the material structure or heat-treatment condition is unsuitable. For this reason, metallurgical inspection is important in many tap factories.
One of the key instruments used for this work is the metallurgical microscope, also called a metallographic microscope. It allows technicians to examine polished and etched metal samples at high magnification and evaluate features that cannot be seen with the naked eye.
For manufacturers of HSS and HSS-Co taps, metallurgical microscopy can help assess carbide distribution, decarburization, grain condition, heat-treatment consistency, and other microstructural characteristics. This article explains how the microscope is used in tap inspection and why proper sample preparation is essential.
1. What Is a Metallurgical Microscope?

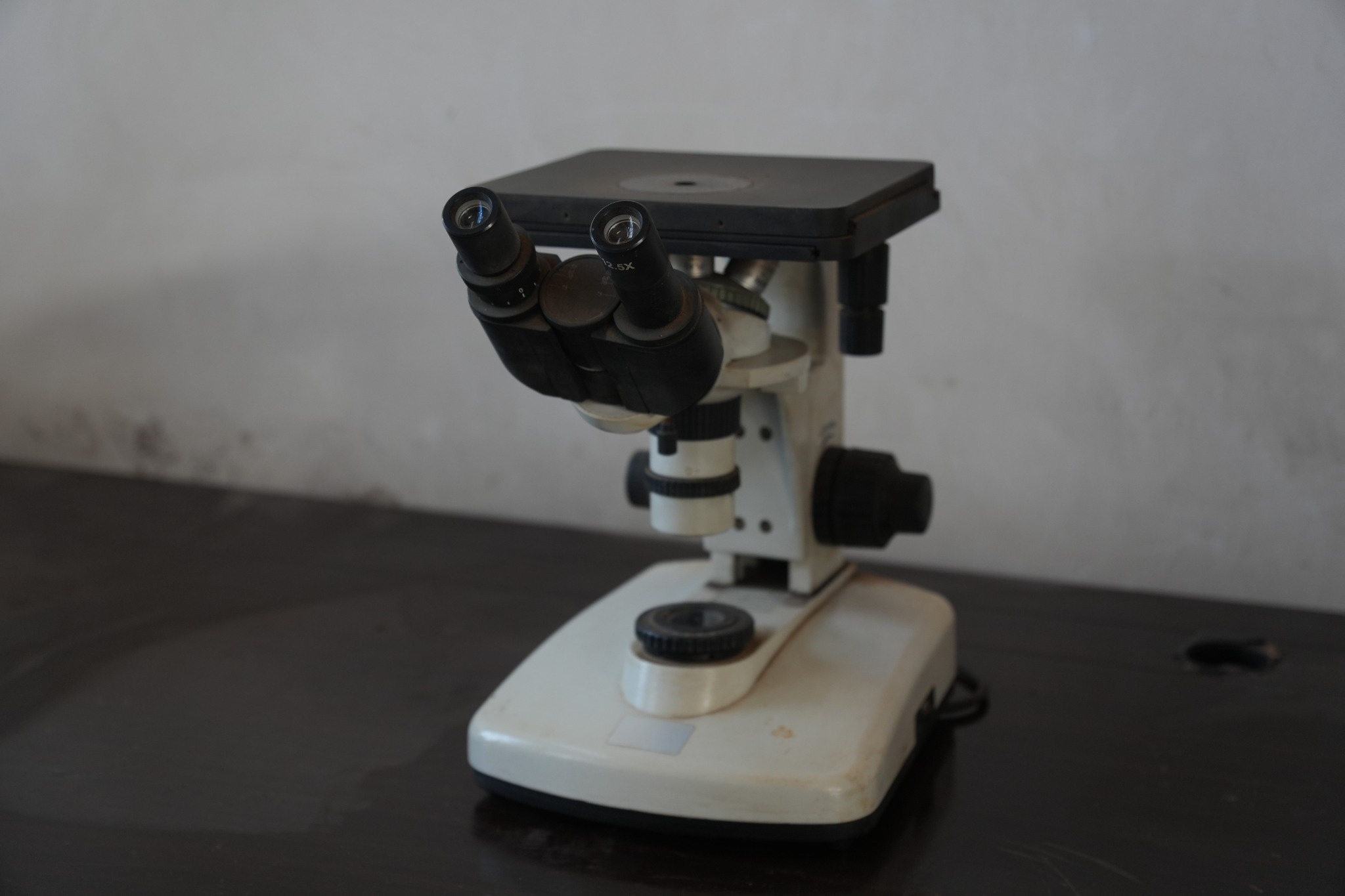

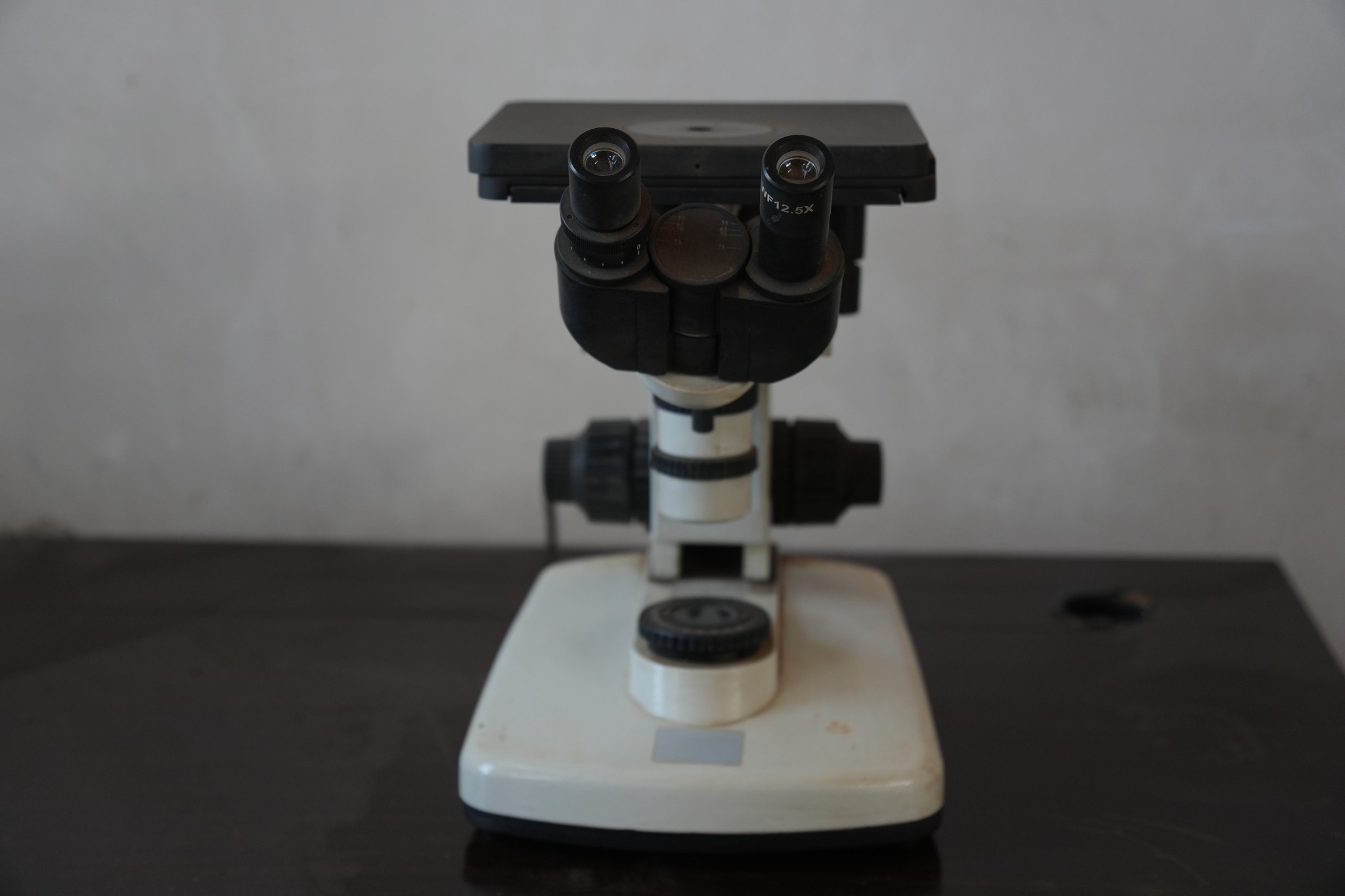

A metallurgical microscope is designed for examining opaque materials such as metals.
Unlike a biological microscope, which usually passes light through a transparent specimen, a metallurgical microscope normally uses reflected light. Light is directed onto the polished metal surface and reflected back through the objective lens.
This makes it suitable for examining steel, cast iron, carbide, coatings, and other engineering materials. In a tap factory, it is generally used in a quality laboratory rather than on the production line.
2. Where the Microscope Fits in the Inspection Process
Before a tap sample can be observed, it normally passes through several preparation stages:
Sample cutting → Mounting → Grinding → Polishing → Etching → Microscopic examination
A small section is cut from the tap or raw material and may be embedded in resin using a metallographic mounting machine.
The mounted sample is ground flat, polished to a smooth surface, and chemically etched so that the internal structure becomes visible. If the sample is poorly prepared, even a high-quality microscope may produce unclear or misleading results.
3. Why Microstructure Matters in Tap Manufacturing
Taps operate under demanding cutting conditions.
The cutting teeth are exposed to repeated contact, friction, heat, and torsional loading. Therefore, the steel must provide a suitable balance of hardness, wear resistance, toughness, and thermal stability.
These properties are strongly influenced by the internal microstructure. A tap can meet dimensional requirements and still have reduced service life if the heat treatment produces an unsuitable structure.
Metallurgical microscopy gives manufacturers a way to inspect these hidden characteristics.
4. Inspecting HSS and HSS-Co Taps
High-speed steel is widely used for hand taps and machine taps because it provides good hardness and toughness. HSS-Co contains cobalt and is often selected for more demanding cutting applications where better hot hardness is required.
For these materials, metallurgical inspection may be used to examine:
- Carbide size and distribution
- Matrix condition
- Grain structure
- Surface decarburization
- Abnormal inclusions
- Heat-treatment consistency
- Evidence of overheating
The exact features evaluated depend on the steel grade and inspection objective.
5. Checking Carbide Distribution
High-speed steel contains alloy carbides that contribute significantly to wear resistance.
Their size, shape, and distribution can affect the behavior of the finished tap. Under the microscope, technicians can evaluate whether the carbides appear reasonably uniform or whether there are areas of unusual concentration or segregation.
Severe carbide segregation may contribute to inconsistent performance or local weakness. Microscopic examination can therefore support material inspection, process validation, and failure analysis.
6. Detecting Decarburization
Decarburization occurs when carbon is lost from the surface of steel during heating. Because carbon contributes to hardness, excessive decarburization can reduce the wear resistance of the surface layer.
For taps, this is especially important near the thread teeth and cutting edges.
To inspect for decarburization, a cross-sectional sample is prepared so that the surface and material beneath it can be viewed together. The microscope can then help technicians identify differences between the surface layer and the core structure.
7. Evaluating Heat-Treatment Quality
Heat treatment is one of the most critical stages in tap manufacturing.
Hardening, quenching, and tempering determine the final hardness and toughness of the steel. If temperature, holding time, cooling, or tempering conditions are incorrect, the microstructure may not meet the intended condition.
Metallurgical microscopy helps manufacturers compare the observed structure with expected results.
This inspection is often used together with hardness testing. A hardness tester measures mechanical resistance to indentation, while the microscope shows the internal structure of the material.
8. Why Sample Preparation Is Critical
Accurate microscopic inspection depends heavily on sample preparation.
Grinding scratches, rounded edges, polishing damage, or incorrect etching can hide important features or create false indications.
Mounting keeps the small tap section stable. Grinding removes cutting damage and produces a flat surface. Polishing eliminates finer scratches, while etching reveals the microstructure.
Good preparation allows the microscope to provide a clearer representation of the actual material condition.
9. Magnification and Digital Image Analysis
Metallurgical microscopes are available with different objective lenses and magnification ranges.
Lower magnification is useful for larger structural features or surface layers, while higher magnification can reveal finer details.
Modern systems may include digital cameras and image-analysis software. These tools allow technicians to record images, compare samples, measure selected features, and create inspection records.
For tap manufacturers, digital documentation can support batch quality control, process development, customer reports, and traceability.
10. Using the Microscope for Failure Analysis
Metallurgical microscopy can also help investigate taps that fail unexpectedly.
A manufacturer may examine a broken or worn tap after problems such as premature breakage, cutting-edge chipping, unusual wear, or short tool life.
A sample from the failed tool can be cut, mounted, polished, etched, and observed under the microscope.
The findings can then be considered together with hardness, thread dimensions, workpiece material, cutting speed, lubrication, machine rigidity, and chip evacuation.
The microscope does not always identify the complete cause of failure, but it can provide useful evidence about the material condition.
11. Metallurgical Microscope vs. Other Inspection Equipment
A metallurgical microscope should not be confused with equipment used for dimensional inspection.
Thread gauges, micrometers, and profile measuring systems check dimensions and geometry. Hardness testers evaluate hardness. Mounting and polishing machines prepare samples.
The metallurgical microscope is specifically used to observe the prepared microstructure.
Reliable tap quality control normally combines several inspection methods rather than relying on a single machine.
12. What the Microscope Can Tell a Tap Buyer
For industrial customers evaluating a tap supplier, an in-house metallurgical microscope may indicate that the manufacturer can perform deeper material and heat-treatment inspection.
However, owning the equipment alone does not guarantee quality.
The factory should also have trained personnel, defined sample-preparation procedures, inspection standards, and records that connect metallurgical results with production control.
When these systems are used correctly, microscopy can provide valuable support for consistent tap manufacturing.
Conclusion
A metallurgical microscope is an important inspection instrument in tap manufacturing because it allows technicians to examine the internal structure of the steel rather than only the external dimensions of the finished tool.
For HSS and HSS-Co taps, it can help evaluate carbide distribution, decarburization, heat-treatment condition, grain structure, and other microstructural features.
Reliable results depend on proper sample cutting, mounting, grinding, polishing, etching, and observation.
Used together with hardness testing and dimensional inspection, metallurgical microscopy gives tap manufacturers a more complete understanding of material quality and process consistency.
Although the microscope does not directly manufacture or measure the thread geometry of a tap, it plays an important role in verifying the metallurgical condition that supports hardness, wear resistance, toughness, and dependable cutting performance.
