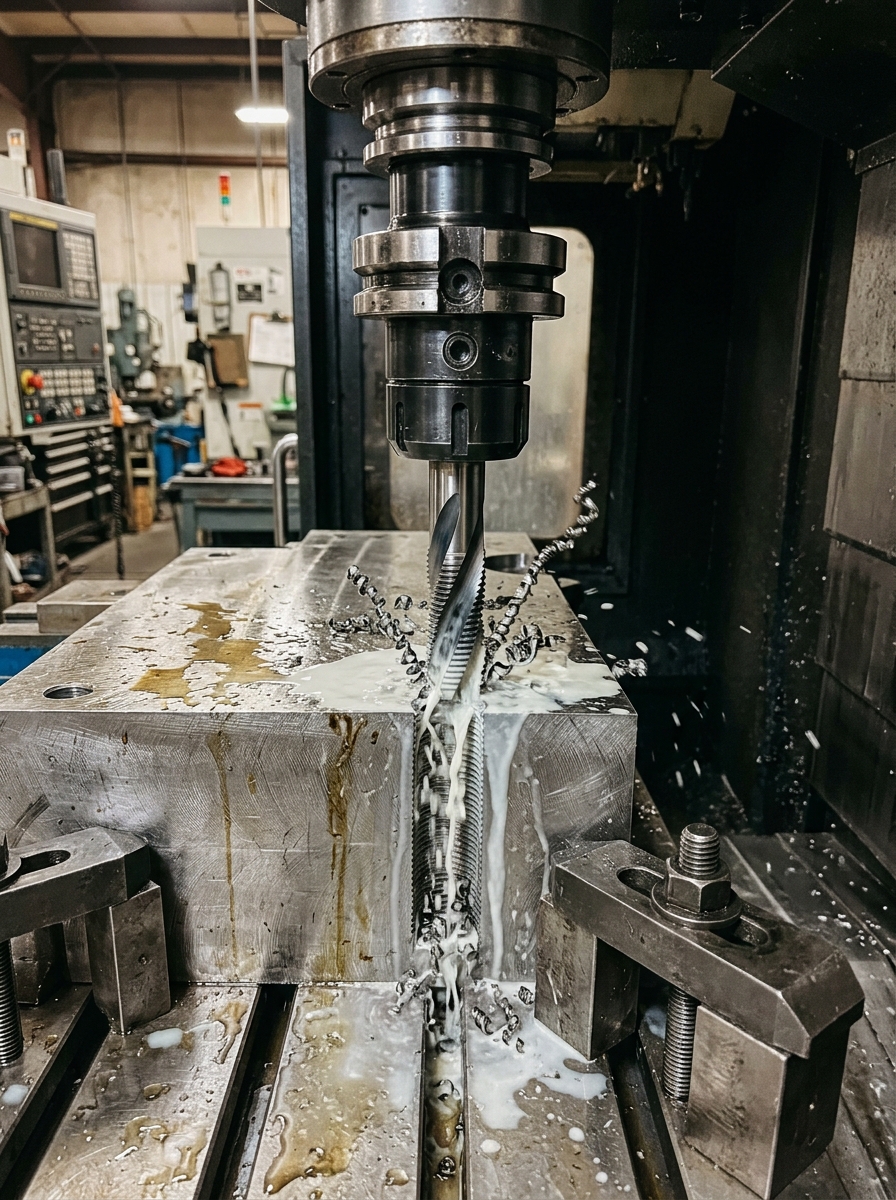

Deep hole tapping is one of the most demanding threading operations in CNC machining. As hole depth increases, chips become harder to remove, cutting heat rises, and external coolant may struggle to reach the cutting edges. These conditions can increase tapping torque and lead to premature tool failure.
Coolant-thru taps address this problem by delivering cutting fluid through internal passages directly to the cutting zone. This improves lubrication, heat removal, and chip evacuation where they are needed most.
This article explains why coolant-thru taps are valuable for deep hole tapping and how they can improve tool life, thread quality, and process stability.
1. Why Deep Hole Tapping Is Difficult
A tap cuts inside a confined hole, so the cutting teeth, chips, and coolant all share limited space.
In shallow holes, external coolant can often reach the cutting zone effectively. In deeper holes, the front of the tap becomes increasingly isolated from the coolant supply.
This can lead to chip packing, excessive heat, rising torque, poor surface finish, and tap breakage. Blind holes are especially difficult because chips cannot simply pass through the bottom of the workpiece.
2. What Is a Coolant-Thru Tap?

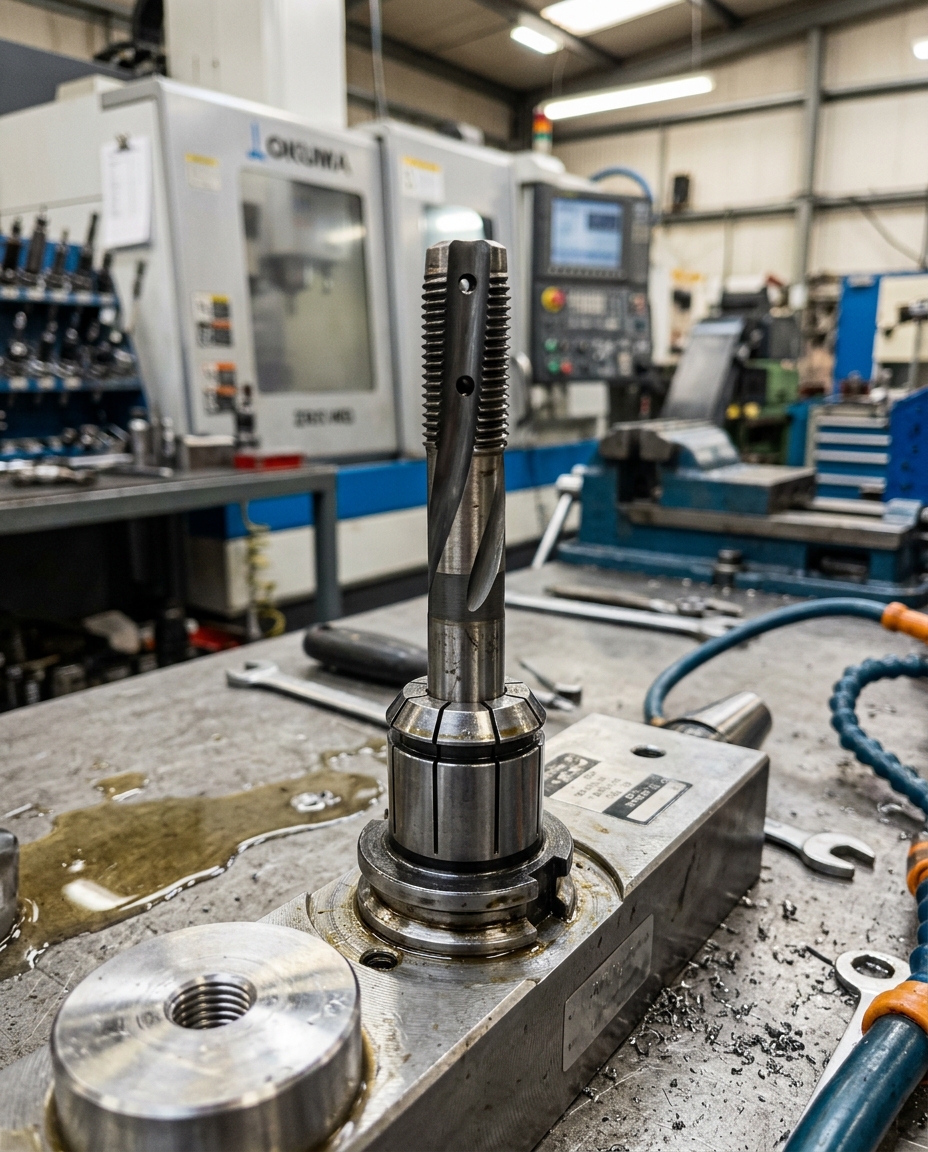

A coolant-thru tap contains one or more internal passages that carry cutting fluid through the body of the tool.
The coolant exits near the cutting section, allowing fluid to reach the tap teeth even when the tool is deep inside the hole. Depending on the design, coolant may be directed toward the chamfer, flutes, or chip evacuation area.
This differs from external flood coolant, which must travel from outside the hole to the cutting zone.
3. Better Lubrication at the Cutting Edge
Lubrication is essential during tapping because multiple teeth are engaged at the same time.
Without sufficient lubrication, friction rises between the tap and workpiece. This increases torque and accelerates cutting-edge wear.
Internal coolant reaches the cutting edge directly, helping maintain more consistent lubrication. This is especially useful when tapping stainless steel, alloy steel, and other materials that generate high friction or tend to work-harden.
4. Improved Heat Control
Tapping generates heat through cutting and friction.
In a deep hole, heat can become trapped because the cutting zone is surrounded by the workpiece. External coolant may cool the entrance while leaving the deepest part relatively hot.
Coolant-thru taps deliver fluid directly to the hottest area. Better temperature control can reduce edge softening, coating degradation, material adhesion, and thermal stress.
More stable temperatures can also support more predictable tool life.
5. More Reliable Chip Evacuation
Chip evacuation is one of the biggest advantages of internal coolant.
In deep holes, chips may accumulate in the flutes or become compressed near the bottom. This raises tapping torque and can cause the tap to jam.
Pressurized coolant helps move chips away from the cutting zone.
For blind holes, spiral flute taps are commonly used to pull chips backward toward the entrance. Internal coolant supports this action by reducing friction and helping chips flow through the flutes.
For through holes, coolant can support forward chip evacuation with spiral point geometry.
6. Lower Risk of Tap Breakage
Tap breakage often occurs after torque rises beyond a safe level.
Common causes include chip packing, poor lubrication, excessive heat, and material buildup on the cutting edges. These problems become more severe as hole depth increases.
By improving lubrication, cooling, and chip evacuation, coolant-thru taps help control torque more consistently. They do not eliminate breakage risk, but they can improve process stability when the setup is properly controlled.
7. Better Thread Surface Quality
Poor coolant delivery can affect more than tool life.
When friction rises or chips become trapped between the tap and thread surface, the finished thread may show tearing, scratches, or poor surface finish.
Internal coolant helps flush debris away and reduces direct friction between the tap and workpiece. This can support cleaner thread flanks and more consistent finished threads.
8. Why Coolant Pressure Matters
A coolant-thru tap only performs properly if the coolant system delivers sufficient pressure and flow.
Pressure must be high enough to move fluid through the internal passage and into the cutting zone. If pressure is too low, chip-clearing performance may be reduced.
The correct setting depends on tap size, hole depth, coolant viscosity, passage diameter, and machine capability.
9. Toolholding and Machine Requirements
The entire coolant path must remain sealed and aligned.
A coolant-thru tap may require a compatible holder, collet, or tapping chuck that allows fluid to pass through the spindle and toolholder.
Leaks, blocked passages, contaminated coolant, or an incorrect holder can reduce performance. Regular maintenance of filters and coolant lines is therefore important.
10. Choosing the Right Coolant-Thru Tap
Internal coolant alone does not determine tapping performance.
The tap must still match the workpiece material, thread size, hole type, and machine conditions.
For deep blind holes, a spiral flute coolant-thru tap is often a strong choice because it combines backward chip evacuation with direct coolant delivery. For through holes, spiral point designs may be used when forward chip flow is preferred.
Substrate, coating, flute geometry, and chamfer design should also match the application.
11. When Coolant-Thru Taps Provide the Most Value
Coolant-thru taps are particularly useful in deep holes, blind holes, high-volume CNC production, difficult materials, and applications where tap breakage is expensive.
They are also valuable when external coolant cannot reliably reach the cutting zone.
For shallow, easy-to-machine holes, a conventional tap with external coolant may be sufficient. The additional tooling cost should therefore be evaluated against tool life, scrap risk, and machine downtime.
Conclusion
Deep hole tapping creates serious challenges in lubrication, heat control, and chip evacuation.
Coolant-thru taps address these problems by delivering cutting fluid directly to the cutting zone through internal passages.
This can reduce friction, improve temperature control, support chip removal, lower tapping torque, improve thread surface quality, and reduce the risk of tap breakage.
The best results still depend on correct hole size, tap geometry, coolant pressure, machine rigidity, feed synchronization, and tool condition.
For demanding deep hole applications, especially blind holes and high-volume CNC production, coolant-thru taps can provide a major improvement in reliability and overall tapping performance.
