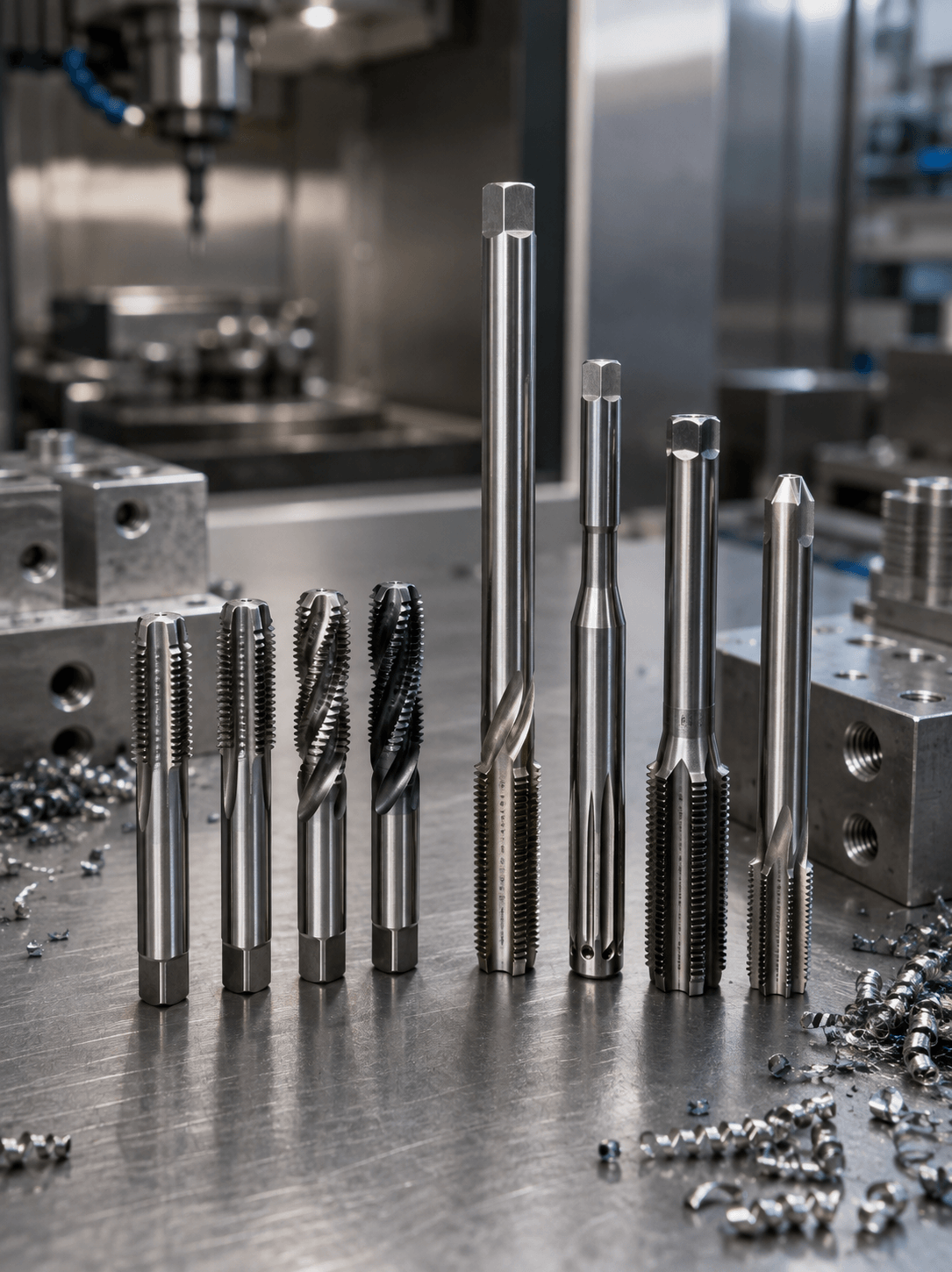

Choosing the right tap is not only about thread size. For manufacturers running repeated production, the decision between a standard tap and a custom tap can affect cycle time, tool life, thread quality, inventory cost, and process stability.
Standard taps are widely available and economical for common applications. Custom taps are designed for specific materials, thread forms, hole conditions, or production requirements. Neither option is automatically better. The correct choice depends on how demanding and repetitive the application is.
This article explains the main differences and how to decide which option fits your production line.
1. What Is a Standard Tap?
A standard tap is manufactured according to commonly used thread specifications.

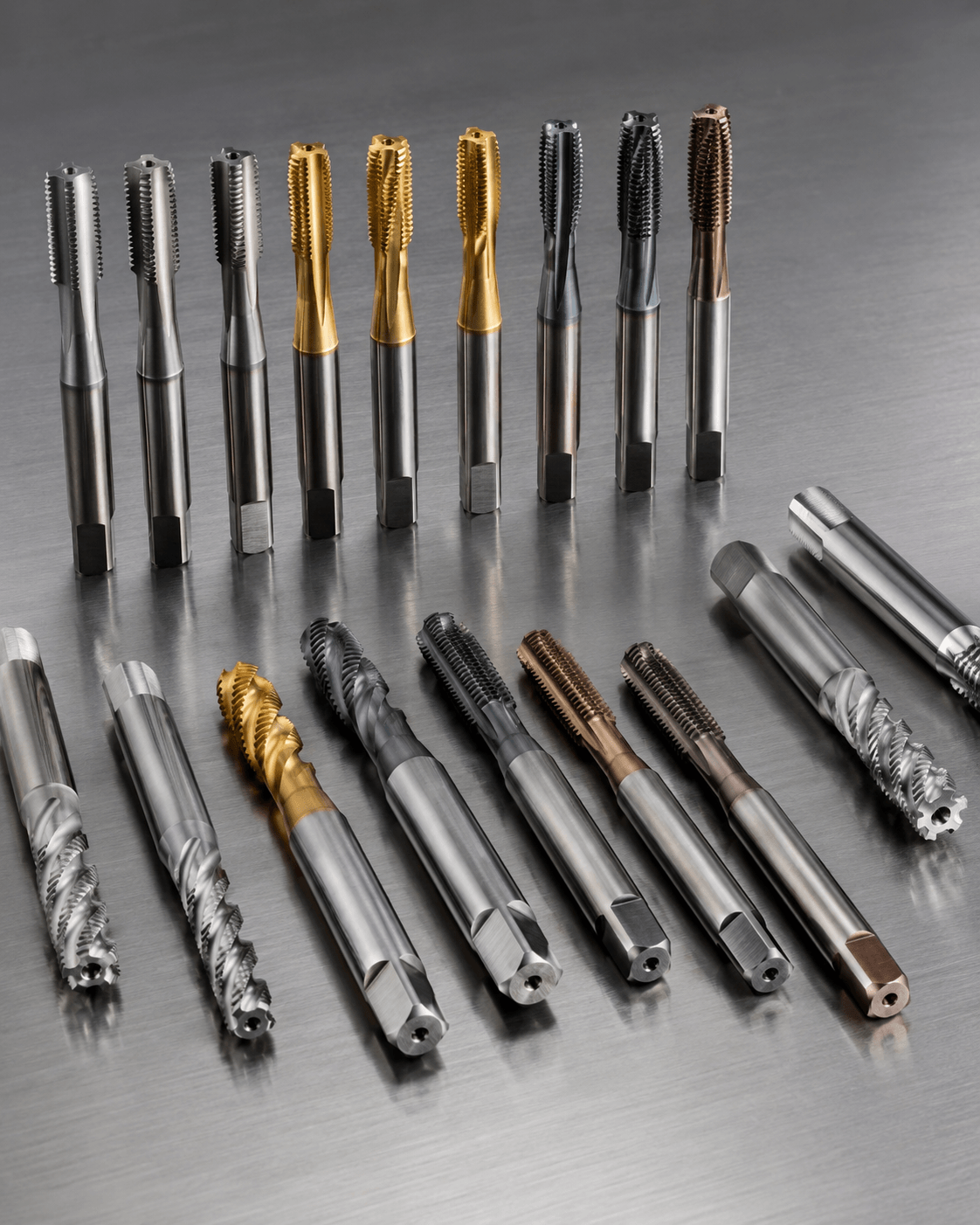

Typical examples include Metric, UNC, UNF, and NPT taps in standard sizes and tolerances. They are available in common geometries such as straight flute, spiral point, spiral flute, and forming taps.
Because standard taps are produced in larger quantities, they are usually easier to source and have shorter lead times.
For general machining, maintenance, low-volume production, and common materials, a standard tap is often the most practical choice.
2. What Is a Custom Tap?
A custom tap is designed or modified for an application that cannot be handled efficiently by a standard tool.
Customization may involve thread size, pitch, tolerance, chamfer length, flute geometry, overall length, shank diameter, coating, coolant channels, or special thread profiles.
A custom tap may also be optimized for a particular workpiece material or production cycle.
The goal is not simply to create a special tool, but to improve performance when standard tooling creates limitations.
3. Cost and Lead Time
Standard taps generally have a lower purchase price because they are mass-produced and require no dedicated engineering.
Custom taps usually cost more initially. The supplier may need to prepare drawings, create grinding programs, develop fixtures, or manufacture special tooling.
However, purchase price should not be the only factor. If a custom tap lasts longer, runs faster, reduces scrap, or eliminates a secondary operation, it may lower the total cost per threaded hole.
Lead time is also different. Standard taps are often available from stock, while custom taps require engineering, sampling, and production. Factories using custom taps should therefore maintain sufficient spare inventory.
4. Thread Geometry and Special Requirements
Standard taps work well when the thread follows a recognized specification.
Some components, however, use non-standard pitch, special diameter, modified thread profile, unusual tolerance, or proprietary connection geometry. In these cases, a custom tap may be necessary.
Custom tools can also be designed for extended reach, reduced shanks, unusual thread depths, or special chamfers.
5. Workpiece Material
Material is another major reason to consider customization.
A general-purpose tap may work well in carbon steel but perform poorly in stainless steel, cast iron, high-silicon aluminum, or hardened material.
A custom tap can use flute geometry, rake angle, relief, substrate, and coating selected for a specific material.
For abrasive cast iron, the design may emphasize edge strength and wear resistance. For aluminum, sharper geometry and polished surfaces may help reduce material adhesion.
6. Hole Type and Chip Control
Standard tap ranges already provide effective options for common hole types.
Spiral point taps are widely used for through holes because they push chips forward. Spiral flute taps are often selected for blind holes because they pull chips toward the entrance.
However, unusually deep holes, restricted chip space, or special coolant requirements may justify a custom design.
A modified flute angle, chamfer, or coolant passage can improve chip evacuation and reduce breakage risk.
7. Production Volume
Production volume is one of the most important factors in the decision.
For prototypes, occasional jobs, or small batches, the engineering cost of a custom tap may be difficult to justify.
For high-volume production, even a small improvement in tool life or cycle time can create significant savings. If a line produces thousands of identical threaded holes every week, a custom tap that lasts longer or runs faster may reduce total tooling cost.
The higher the production volume, the more valuable application-specific optimization can become.
8. Tool Life and Process Stability
Standard taps are designed to work across many general applications. This flexibility is useful, but it may not provide the best possible performance in a highly specific process.
Custom taps can be optimized around actual cutting conditions. Manufacturers may adjust geometry, coating, material, coolant delivery, and chamfer design to reduce torque and wear.
This is especially valuable on automated lines where tap breakage causes downtime or damages expensive components.
Predictable tool life is also important for production planning.
9. Quality and Tolerance Requirements
Some production lines require tighter control of thread size and consistency.
A standard tolerance is suitable for most applications, but special assemblies, post-machining coatings, or unusual material behavior may require a modified tap limit.
A custom tap can be produced to a specific tolerance range to compensate for actual process conditions.
This decision should be based on inspection data rather than simply selecting the tightest possible tolerance.
10. When to Choose Standard or Custom Taps
Choose a standard tap when the thread is common, production volume is moderate, the material is easy to machine, and existing tool life is acceptable. Standard tools are also preferable when fast replacement and low inventory cost are priorities.
Consider a custom tap when the thread specification is unusual, tool life is consistently poor, chip evacuation is unstable, the material is difficult, or production volume is high enough to justify optimization.
Before ordering a custom tool, collect data on current tap life, torque, cycle time, thread quality, and failure modes. This gives the manufacturer a better basis for tool design.
Conclusion
Standard and custom taps serve different production needs.
Standard taps provide lower cost, fast availability, and reliable performance for common thread sizes, materials, and hole conditions. They are usually the best choice for general machining and lower-volume production.
Custom taps require more planning and higher initial investment, but they can solve problems involving unusual threads, difficult materials, deep holes, special tolerances, or high-volume automated production.
The best decision should be based on total production cost rather than tool price alone.
By comparing tool life, cycle time, downtime, scrap, thread quality, and replacement availability, manufacturers can determine whether a standard tap is sufficient or whether a custom solution can provide better long-term value.
