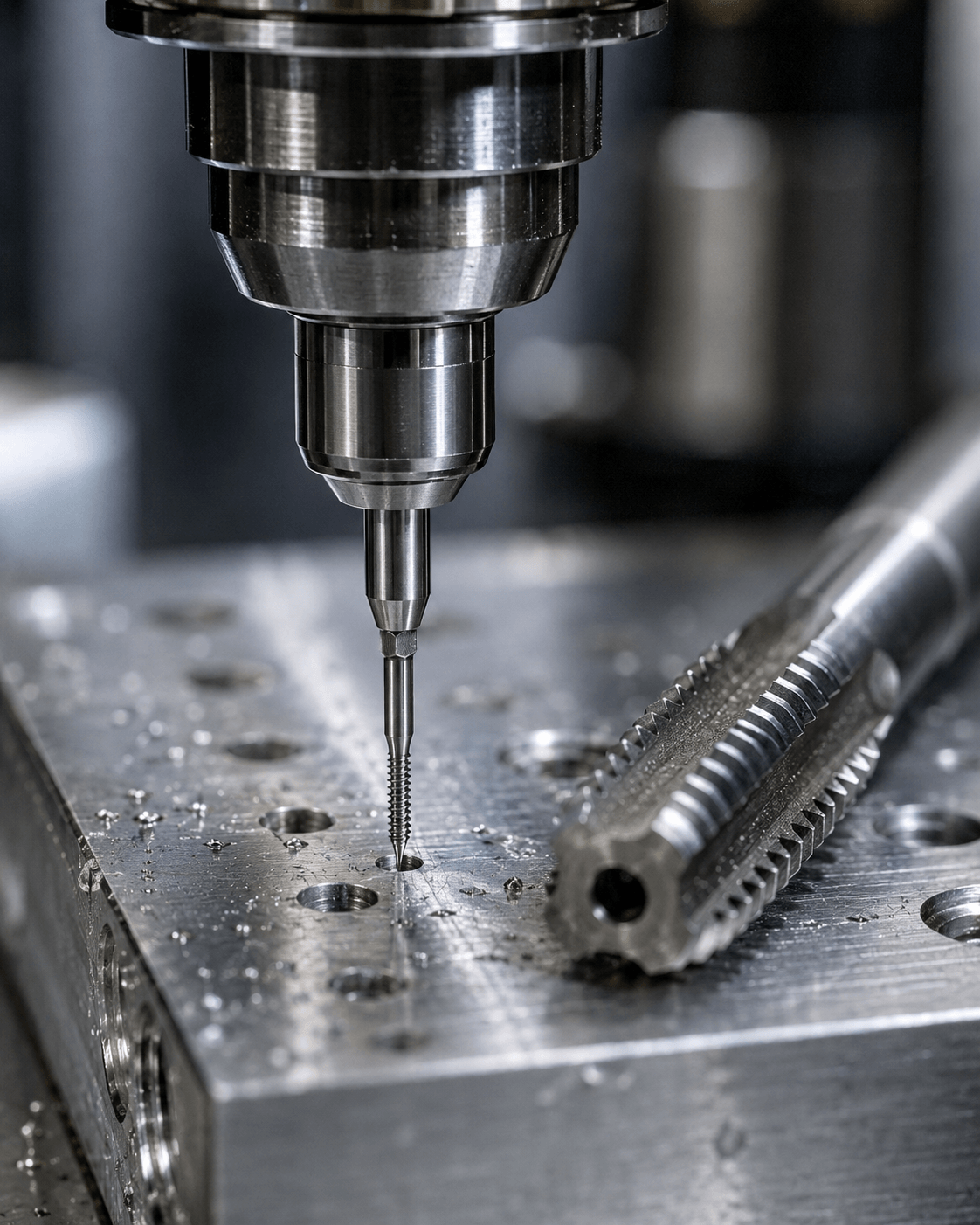

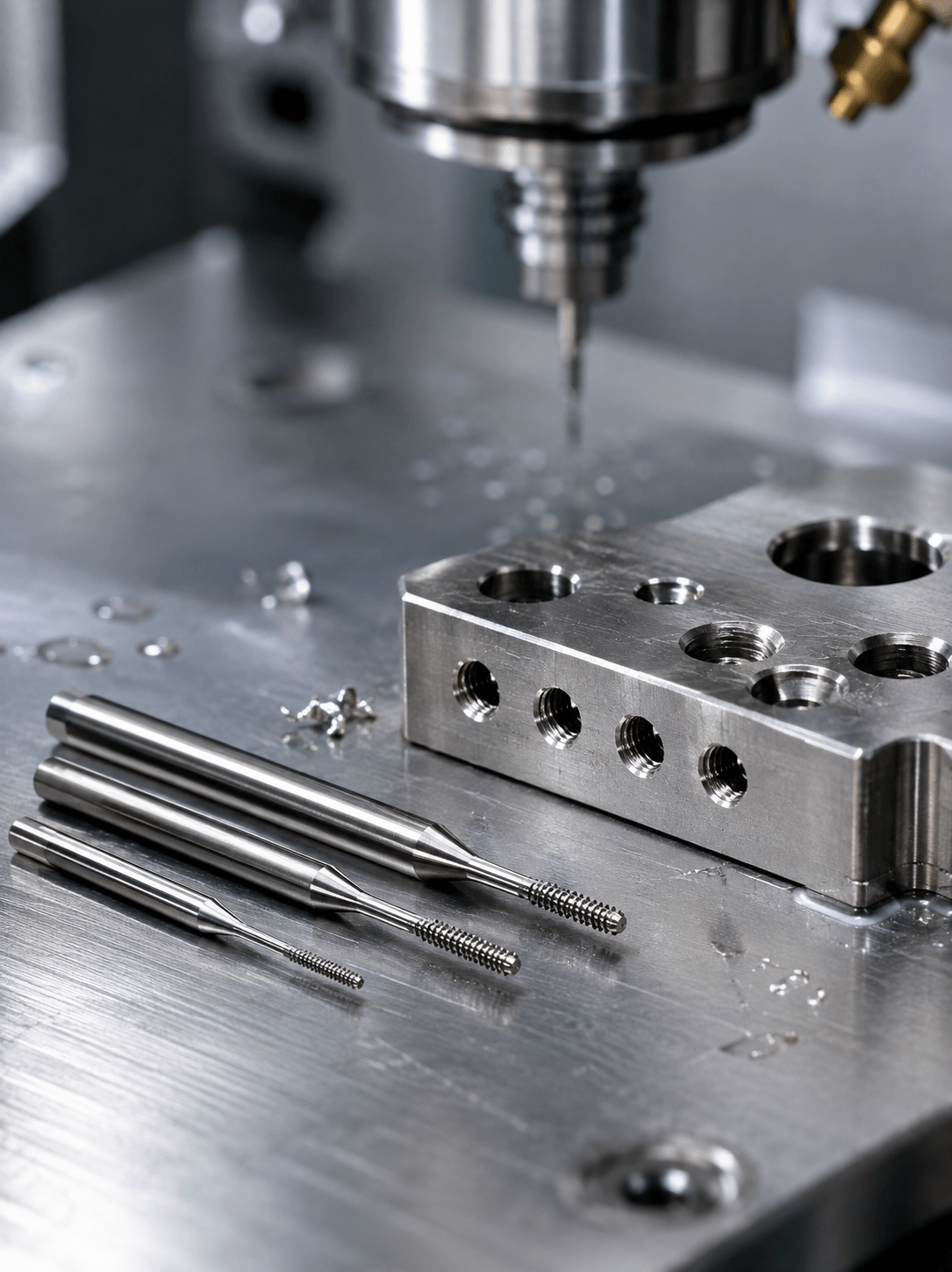

Micro tapping with M1-M3 taps is very different from tapping larger threads. The tools are extremely small, cutting edges are delicate, chip space is limited, and even minor runout or misalignment can cause breakage.
These taps are widely used in electronics, precision instruments, medical devices, connectors, and small mechanical assemblies. Successful micro tapping depends on careful control of hole size, toolholding, speed, lubrication, and chip evacuation.
This guide explains the most important best practices for reliable M1-M3 tapping.
1. Start with the Correct Pre-Drilled Hole
For micro taps, the pre-drilled hole diameter is one of the most critical variables.
If the hole is too small, tapping torque rises quickly and the tap can break almost instantly. If it is too large, the thread may have insufficient engagement.
Use the drill size recommended for the specific thread standard and material.
Because small drills also wear quickly, monitor drill condition and hole diameter during production.
2. Control Runout as Much as Possible
Small taps are highly sensitive to runout.
Even a small amount of eccentricity can create uneven cutting loads on the teeth. For an M1 or M1.6 tap, runout that would be acceptable on a larger tool may be enough to cause chipping or breakage.
Use accurate collets, clean toolholder interfaces, and rigid spindle systems. Check that the tap is straight and properly seated before starting production.
3. Use the Right Tap for the Hole Type
Chip direction is especially important in small holes because there is very little space for chip accumulation.
For through holes, spiral point taps are often preferred because they push chips forward and out of the hole.
For blind holes, spiral flute taps help pull chips back toward the entrance.
Straight flute taps may still be suitable for short-chipping materials such as cast iron or brass, but chip behavior must be predictable.
Selecting the correct geometry reduces the risk of chips jamming between the tap and workpiece.
4. Choose Tap Material Carefully
High-speed steel is commonly used for small taps because it provides a useful balance of hardness and toughness.
HSS-Co can provide improved wear resistance and hot hardness for more demanding materials such as stainless steel.
Carbide micro taps may provide excellent wear resistance in rigid, high-precision machines, but carbide is less tolerant of vibration, impact, and misalignment.
5. Use Conservative Cutting Parameters
Higher speed does not always mean higher productivity in micro tapping.
Small taps have limited cross-sectional strength, and excessive cutting speed can increase heat and accelerate wear. If the tap begins to dull, torque rises rapidly.
Start with the tap manufacturer's recommended speed for the actual workpiece material.
Smooth spindle acceleration and reversal are also important. Sudden changes in direction can shock the tool.
6. Maintain Accurate Feed Synchronization
In CNC tapping, axial feed must match the thread pitch exactly.
This is especially important for M1-M3 taps because they cannot tolerate much axial force. If the machine pushes or pulls the tap because of synchronization error, the tool may bend or break.
Rigid tapping is often a good solution when the CNC machine can synchronize spindle rotation and feed accurately.
A tension-compression or floating holder can help compensate for small feed errors when rigid tapping is unavailable.
7. Lubrication Is Essential
Micro taps operate in a very small cutting zone where heat and friction can build quickly.
Suitable cutting fluid reduces friction, lowers torque, improves surface finish, and helps prevent material from sticking to the cutting edges.
This is especially important when tapping stainless steel or aluminum.
Ensure that lubricant actually reaches the hole. In very small blind holes, simply flooding the general area may not provide effective lubrication at the cutting edge.
8. Keep Chips Under Control
Chip packing is one of the main causes of micro tap failure.
Because flute space is small, only a limited amount of chip material can be stored before torque begins to rise.
Use the correct flute geometry, avoid unnecessarily deep holes, and ensure that chips can leave the hole freely.
For deep blind holes, specialized taps and effective coolant delivery may be necessary.
Never continue tapping if chip evacuation is clearly unstable.
9. Avoid Excessive Thread Depth
Very deep threads are challenging with small taps.
As tapping depth increases, friction rises, chip evacuation becomes more difficult, and the tap experiences greater torsional load.
If the design does not require full thread engagement across the entire hole, avoid specifying unnecessary thread depth.
Reducing thread depth can significantly improve tool life and process reliability without affecting the strength of the final assembly in many applications.
10. Monitor Tool Wear Early
Micro taps can fail with very little warning.
A tool may move from normal cutting to sudden breakage after only a small increase in wear.
Monitor thread count, spindle load, tapping torque, and thread quality. If torque begins to increase or thread surfaces become rougher, replace the tap before catastrophic failure.
In high-volume production, planned replacement is often cheaper than removing a broken micro tap.
11. Inspect Threads Properly
Small threaded holes require suitable inspection methods.
Go/no-go thread gauges are commonly used when available. Optical inspection or microscopes may also be useful for very small parts.
Do not judge thread quality only by whether a screw can be inserted. Proper inspection helps detect dimensional drift before it becomes a production problem.
Conclusion
Micro tapping with M1-M3 taps requires much tighter process control than ordinary tapping.
The most important factors are correct pre-drilled hole size, low runout, suitable tap geometry, accurate feed synchronization, effective lubrication, and reliable chip evacuation.
Tool material should match the workpiece and machine conditions, while cutting parameters should be conservative enough to protect the small cutting edges.
Because micro taps are fragile and difficult to remove after breakage, prevention is far more valuable than recovery.
By controlling the complete process—from drilling and toolholding to lubrication and inspection—manufacturers can achieve more consistent small-diameter threads, longer tool life, and fewer unexpected tap failures.
