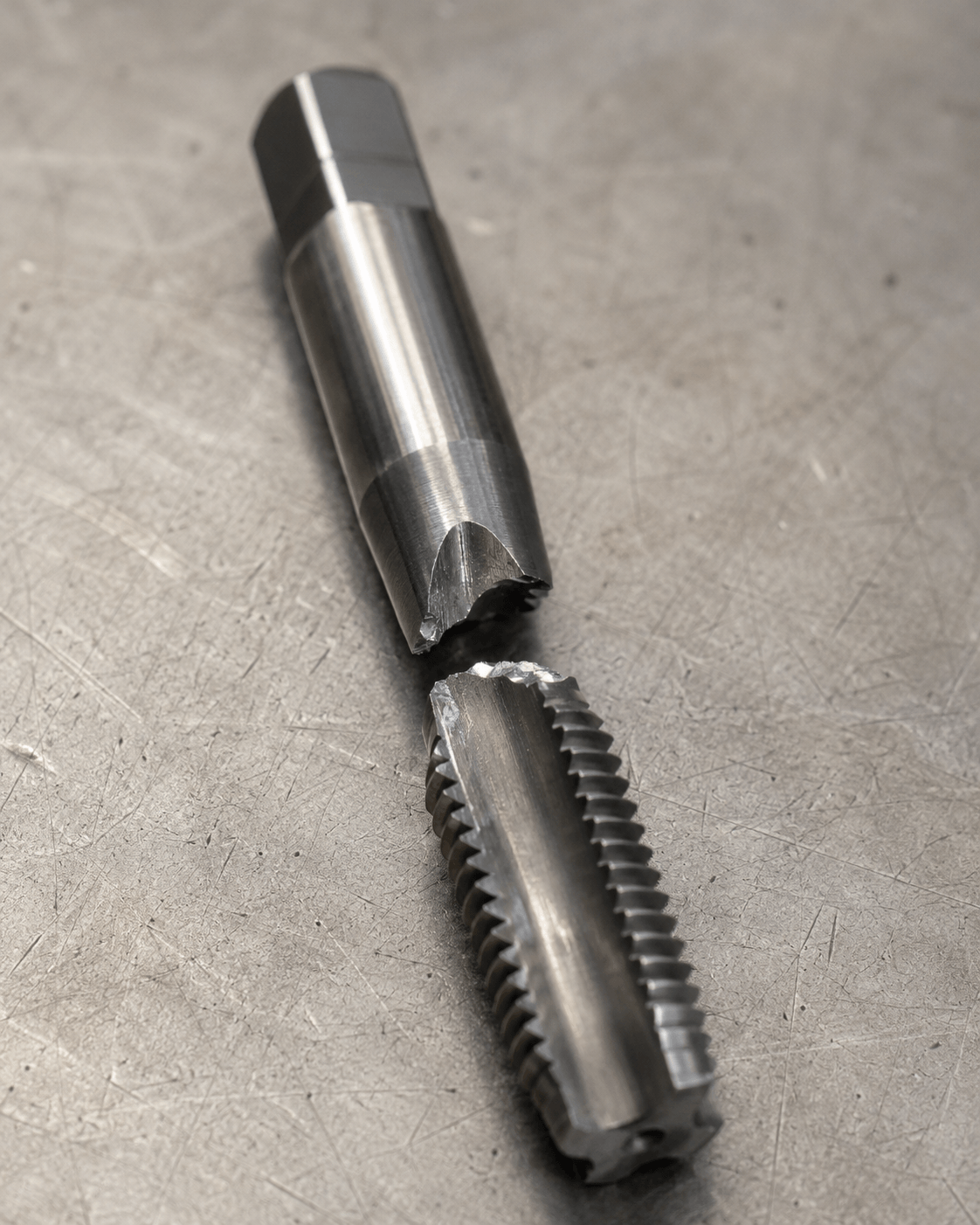

Tap breakage is one of the most frustrating problems in CNC machining. A broken tap can stop production, damage an expensive workpiece, increase scrap, and require difficult removal operations.
Most tap failures are not random. They are usually caused by a combination of incorrect hole preparation, poor chip control, unsuitable cutting conditions, tool misalignment, or excessive tool wear. Understanding these causes helps manufacturers improve process stability and extend tap life.
This article explains seven common reasons for tap breakage in CNC machining and how to prevent them.
1. Incorrect Pre-Drilled Hole Size
The pre-drilled hole diameter has a major influence on tapping torque.
If the hole is too small, the tap must remove more material than intended. Cutting forces rise rapidly, chip volume increases, and the risk of tap breakage becomes much higher.
If the hole is too large, the thread may not have enough engagement and may fail dimensional inspection.
Forming taps are especially sensitive because they displace material instead of cutting it.
To prevent problems, verify drill diameter regularly, monitor drill wear, and inspect holes before tapping when process stability is critical.
2. Poor Chip Evacuation
Chip packing is one of the most common causes of tap failure.
When chips cannot leave the cutting zone, they become trapped between the tap and workpiece. Torque rises, cutting edges may chip, and the tap can seize inside the hole.
Tap geometry should match the hole type.
For through holes, spiral point taps are commonly used because they push chips forward. For blind holes, spiral flute taps help pull chips back toward the hole entrance.
Proper chip evacuation reduces cutting resistance and helps maintain more stable tapping conditions.
3. Incorrect Cutting Speed
Running a tap too fast can generate excessive heat, accelerate cutting-edge wear, and reduce tool life.
High temperature is especially problematic when machining stainless steel, alloy steel, or other difficult materials. A worn tap requires more torque, making breakage more likely.
Cutting speed should be selected according to tap material, coating, workpiece material, hole depth, and coolant conditions.
Start with the tap manufacturer's recommended range and adjust based on tool wear, torque, and actual thread quality.
For difficult materials, a slightly more conservative speed can often improve process stability.
4. Tap Misalignment and Excessive Runout
The tap must enter the hole along the correct axis.
If the spindle, holder, tap, and hole are not aligned, the tool experiences uneven side loading. This can cause tooth chipping, excessive wear, poor thread quality, and sudden breakage.
Runout can come from worn holders, damaged collets, contaminated clamping surfaces, bent taps, or inaccurate machine setup.

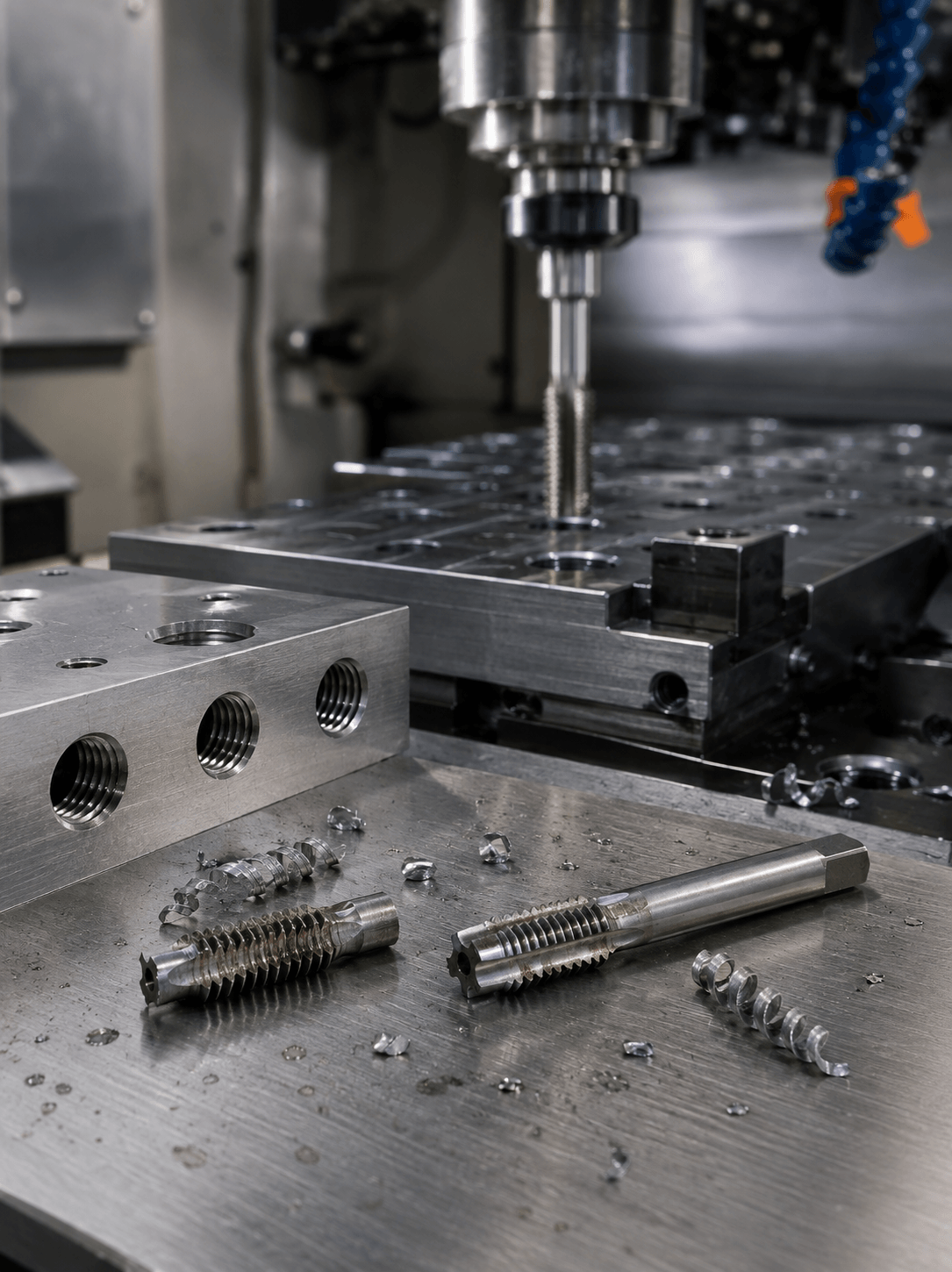

Rigid tapping requires particularly good alignment because the CNC machine directly synchronizes spindle rotation and feed.
Check toolholder condition regularly, clean clamping surfaces, measure runout when necessary, and ensure the drilled hole is positioned accurately.
5. Incorrect Feed Synchronization
During tapping, the axial feed must match the thread pitch.
For example, when the spindle completes one revolution, the tap must advance by exactly one thread lead for a standard single-start thread.
If feed and spindle rotation are not correctly synchronized, axial forces are applied to the tap. The tool may be pushed into or pulled out of the workpiece, causing excessive stress.
Tension-compression tapping holders can compensate for small synchronization errors on machines that do not provide ideal rigid tapping.
Correct CNC programming is therefore essential when changing thread pitch, spindle speed, or tapping cycle parameters.
6. Insufficient Lubrication or Coolant
Tapping creates significant friction because several cutting teeth are engaged inside a confined hole.
Poor lubrication increases friction, cutting temperature, torque, and edge wear. It can also cause workpiece material to adhere to the tap, especially when machining aluminum or stainless steel.
Coolant must reach the actual cutting zone. In deep blind holes, external coolant may not reach the front of the tap effectively. Internal coolant taps can provide an advantage in demanding applications.
Maintain correct coolant concentration, pressure, and flow, and keep the fluid free from excessive contamination.
7. Using a Worn or Incorrect Tap
A tap does not need to be completely damaged before it becomes dangerous to use.
As cutting edges wear, friction and torque gradually increase. Thread size may also change, and the tool becomes more likely to break.
Continuing to use a worn tap simply to maximize tool count can be expensive if it breaks inside a valuable component.
The wrong tap design can create similar problems. A tap intended for general steel may perform poorly in stainless steel, cast iron, or high-silicon aluminum.
Tap geometry, substrate, coating, flute style, and tolerance should match the actual application.
Monitor tool life by thread count, spindle load, torque, or inspection results, and replace taps before catastrophic failure occurs.
Additional Ways to Reduce Tap Breakage
Preventing breakage requires control of the complete tapping process rather than focusing on one variable.
During machining, monitor spindle load, coolant delivery, chip evacuation, and tool condition.
For new applications, test the process at conservative cutting parameters before increasing speed. This helps establish a stable baseline before pursuing higher productivity.
Regular thread inspection is also useful because dimensional changes can provide an early indication that the tap is wearing.
Conclusion
Tap breakage in CNC machining is usually caused by identifiable process problems rather than bad luck.
The seven most common causes include incorrect pre-drilled hole size, poor chip evacuation, unsuitable cutting speed, misalignment, feed synchronization errors, insufficient lubrication, and worn or incorrectly selected taps.
Each of these problems increases cutting torque or places abnormal stress on the tool.
The most effective prevention strategy is to treat tapping as a complete machining system. The tap, holder, machine, drilled hole, coolant, workpiece material, and CNC parameters must all work together.
By controlling these factors and replacing taps before excessive wear develops, manufacturers can reduce tool breakage, protect valuable workpieces, improve thread consistency, and achieve more reliable CNC tapping production.
