In tap manufacturing, dimensional inspection alone is not always enough to determine whether a tool has been produced correctly. A tap may meet its size requirements but still contain material or heat-treatment problems that affect hardness, wear resistance, toughness, and service life. For this reason, metallographic inspection is an important part of quality control in many cutting-tool factories.
One of the key pieces of equipment used in this process is the metallographic mounting machine. It does not inspect the tap directly. Instead, it prepares small metal samples so they can be ground, polished, etched, and examined under a metallurgical microscope.
This article explains how metallographic mounting machines are used in tap inspection, why sample preparation matters, and what information manufacturers can obtain from properly prepared specimens.
1. What Is a Metallographic Mounting Machine?

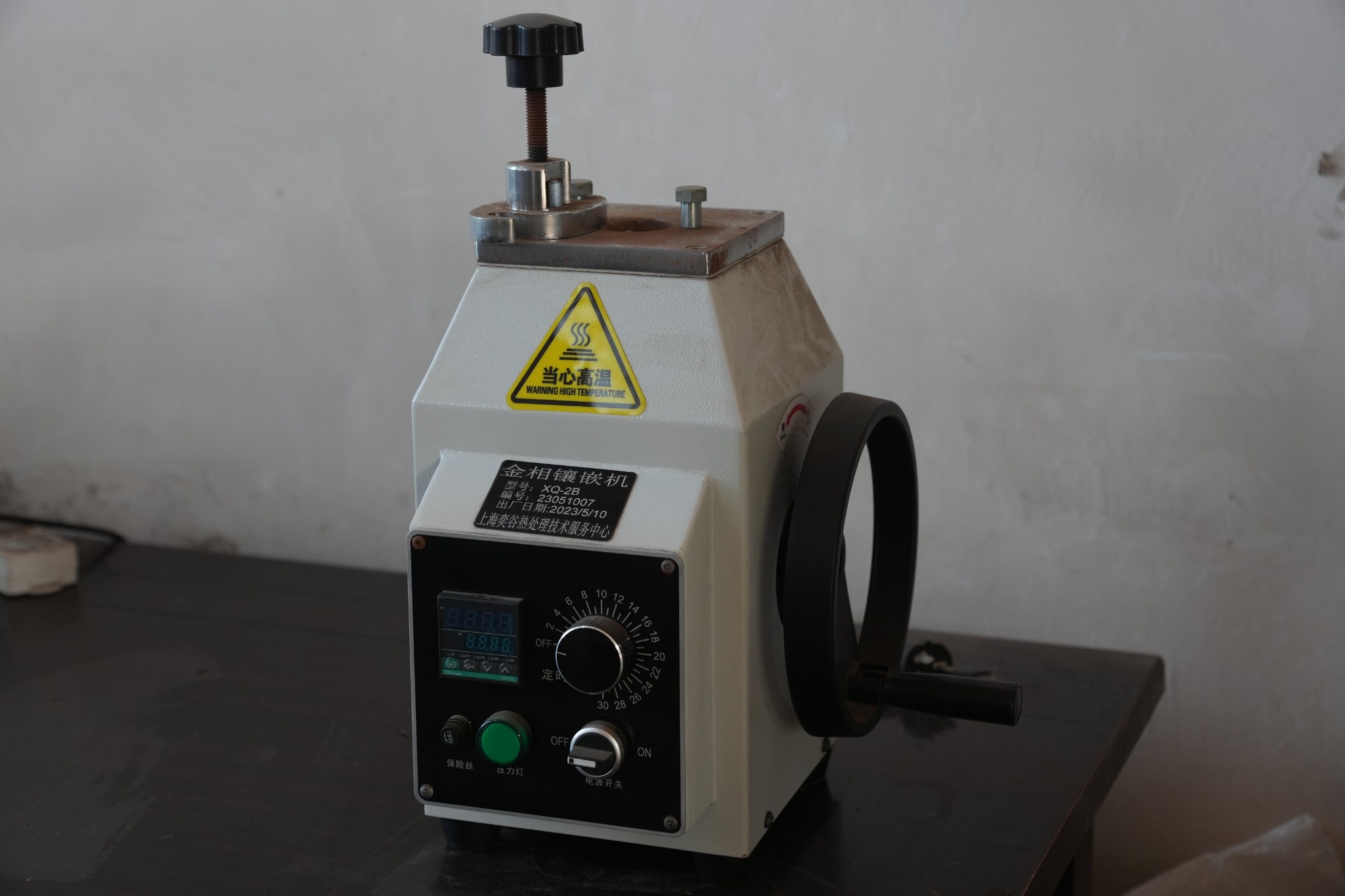

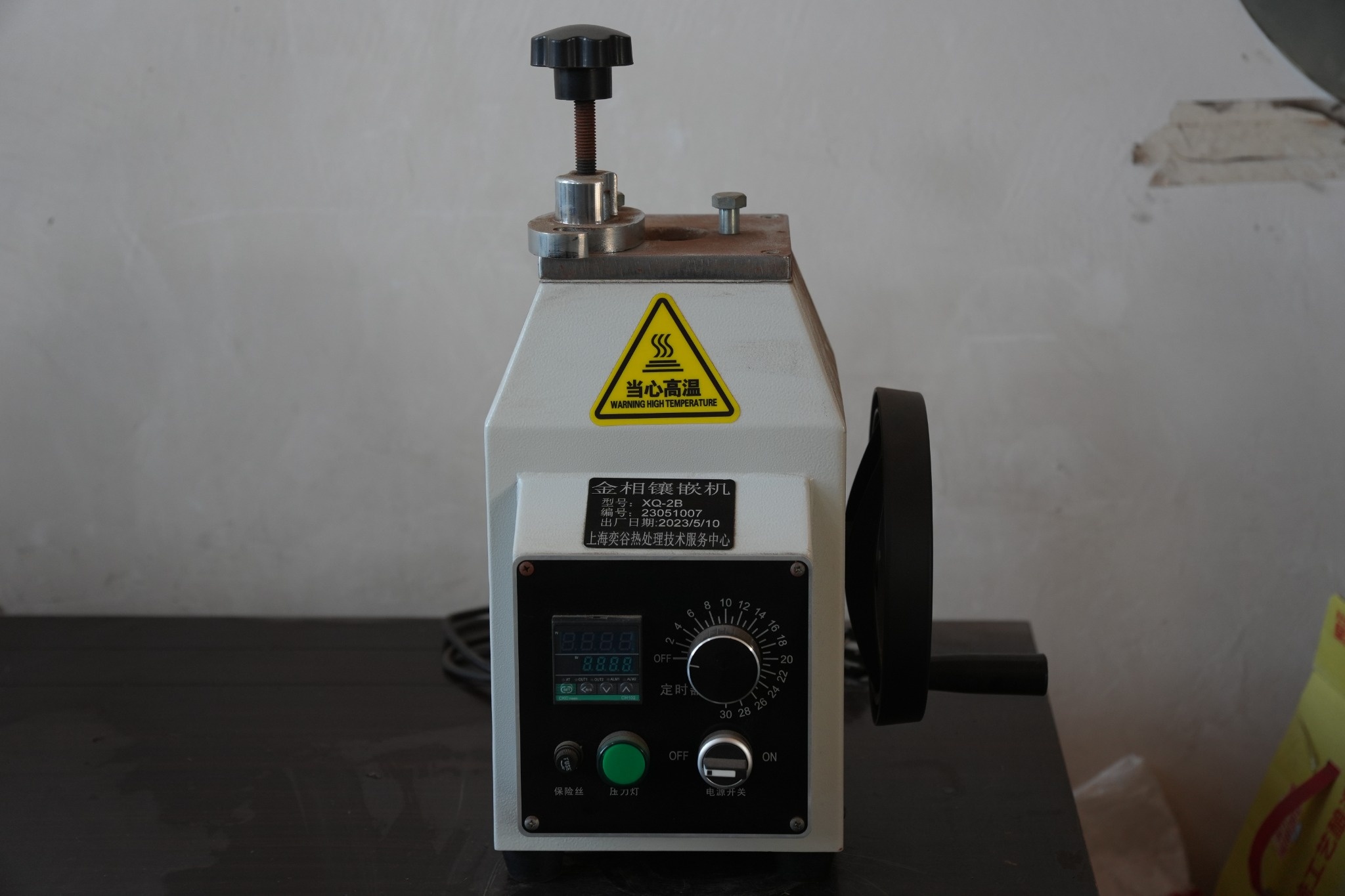

A metallographic mounting machine, also called a metallographic mounting press, embeds a small metal specimen inside resin or another mounting material.
The result is a compact sample with a regular shape that is easier to hold during grinding, polishing, and microscopic examination.
A typical preparation sequence is:
Tap sample cutting → Mounting → Grinding → Polishing → Etching → Microscopic inspection
The mounting step is especially useful because tap samples are often small, irregular, sharp, and difficult to hold securely.
2. Why Tap Samples Need to Be Mounted
A finished tap contains threads, flutes, cutting edges, a shank, and sometimes a square drive end. To examine the internal structure of the steel, the manufacturer first cuts a small section from a selected area.
The sample may come from the thread, cutting section, shank, or another location depending on the inspection purpose.
Without mounting, a small metal piece can be difficult to keep flat during grinding and polishing. Important edges may also be damaged.
Mounting provides several benefits:
- Easier handling
- Better edge protection
- Stable grinding and polishing
- Consistent sample orientation
- Easier identification and storage
- Better preparation repeatability
These advantages help create a clean surface for later microscopic analysis.
3. How the Mounting Process Works
The exact procedure depends on the equipment and mounting material, but hot compression mounting is commonly used for steel specimens.
First, the cut tap sample is placed inside the mounting chamber. Its orientation must be selected carefully so that the required cross-section will be exposed after grinding.
Next, mounting resin is added around the specimen. The machine applies controlled pressure and heat, forming a solid body around the metal sample.
After cooling, the specimen is removed. The result is usually a small cylindrical mount with the tap section securely fixed inside, ready for grinding and polishing.
4. Why Sample Orientation Matters
Correct orientation is essential.
If the manufacturer wants to inspect the surface condition of a tap thread, the specimen must be positioned so the relevant surface remains visible after preparation. If the goal is to study the internal structure, a transverse or longitudinal section may be required.
Typical inspection areas include:
- Thread cross-sections
- Cutting-edge areas
- Surface layers
- Core material
- Shank sections
Incorrect orientation can make the intended feature impossible to observe, even if the mounting process itself is performed correctly.
5. Grinding, Polishing, and Etching
Mounting is only one stage of specimen preparation.
The mounted sample is first ground to remove cutting damage and expose the required section. Grinding normally progresses from coarse to finer abrasives.
The specimen is then polished until the surface is smooth enough for microscopic examination. Poor polishing can hide important features or introduce scratches that may be mistaken for defects.
For many steel samples, the polished surface is then chemically etched. Etching helps reveal grain boundaries, carbides, phases, and other microstructural features.
The prepared sample can finally be examined under a metallurgical microscope.
6. What Can Be Inspected in HSS and HSS-Co Taps?
High-speed steel and cobalt-alloyed high-speed steel are widely used for taps because they provide a useful balance of hardness, toughness, and wear resistance.
Their performance depends heavily on raw material quality and heat treatment.
Metallographic examination may help evaluate:
- Carbide distribution
- Grain structure
- Surface decarburization
- Heat-treatment condition
- Microstructural uniformity
- Abnormal inclusions or defects
- Evidence of overheating
These characteristics cannot be evaluated reliably from external dimensions alone.
7. Checking Surface Decarburization
Decarburization is an important concern in heat-treated steel.
It occurs when carbon is lost from the surface during heating. Because carbon contributes to hardness, excessive decarburization can reduce surface performance.
For taps, this is particularly important near the threads and cutting edges, where hardness and wear resistance are critical.
A cross-sectional specimen can be mounted, polished, etched, and examined to determine whether a decarburized surface layer is present.
This makes metallographic preparation useful for monitoring heat-treatment quality.
8. Evaluating Carbide Distribution
High-speed steels contain alloy carbides that contribute to wear resistance.
Their size, distribution, and uniformity can influence the cutting performance of the finished tap.
Metallographic examination allows manufacturers to visually assess carbide condition within the steel. If unusual carbide patterns or severe segregation are observed, the factory may investigate the raw material, previous processing, or heat-treatment conditions.
Reliable evaluation requires a properly prepared surface, which begins with correct cutting, orientation, and mounting.
9. Supporting Heat-Treatment Quality Control
Heat treatment is one of the most important stages in tap manufacturing.
A tap may pass dimensional inspection but still perform poorly if hardening or tempering conditions are incorrect.
Metallographic examination is therefore often used together with other inspection methods.
A typical laboratory workflow may include:
Sample cutting → Mounting → Grinding and polishing → Etching → Microscopic analysis → Hardness testing
The mounting machine forms part of this broader quality-control system. It does not provide the final measurement itself, but it makes reliable microscopic examination possible.
10. The Mounting Machine Is a Sample-Preparation Device
It is important to distinguish between preparation equipment and measuring equipment.
A metallographic mounting machine does not directly measure hardness, thread dimensions, or microstructure. Its purpose is to prepare the specimen.
The metallurgical microscope is used to observe the microstructure, while a hardness tester measures hardness.
This distinction matters because good inspection results depend on the entire preparation process. Even an advanced microscope cannot compensate for a specimen that has been mounted incorrectly, polished poorly, or prepared in the wrong orientation.
11. Using Metallography for Tap Failure Analysis
Metallographic preparation can also support failure analysis.
If a tap shows premature breakage, edge chipping, abnormal wear, or inconsistent tool life, a manufacturer may cut a section from the failed tool and prepare it for microscopic examination.
The findings can then be considered together with hardness, thread geometry, workpiece material, cutting speed, lubrication, chip evacuation, and machine conditions.
Metallography does not always identify the complete cause of failure by itself, but it can provide valuable evidence about the material and heat-treatment condition.
Conclusion
A metallographic mounting machine plays an important supporting role in tap quality control.
It embeds small tap specimens in a stable mounting material so they can be accurately ground, polished, etched, and examined under a metallurgical microscope.
For HSS and HSS-Co taps, this process can help manufacturers evaluate carbide distribution, decarburization, microstructural consistency, and heat-treatment quality.
Although the mounting machine does not directly inspect or measure the tap, reliable metallographic analysis depends on proper sample preparation. Correct cutting, orientation, mounting, grinding, and polishing all influence the quality of the final observation.
For tap manufacturers, metallographic mounting is therefore an important laboratory process that helps connect material condition and heat-treatment control with the quality and performance of the finished threading tool.
