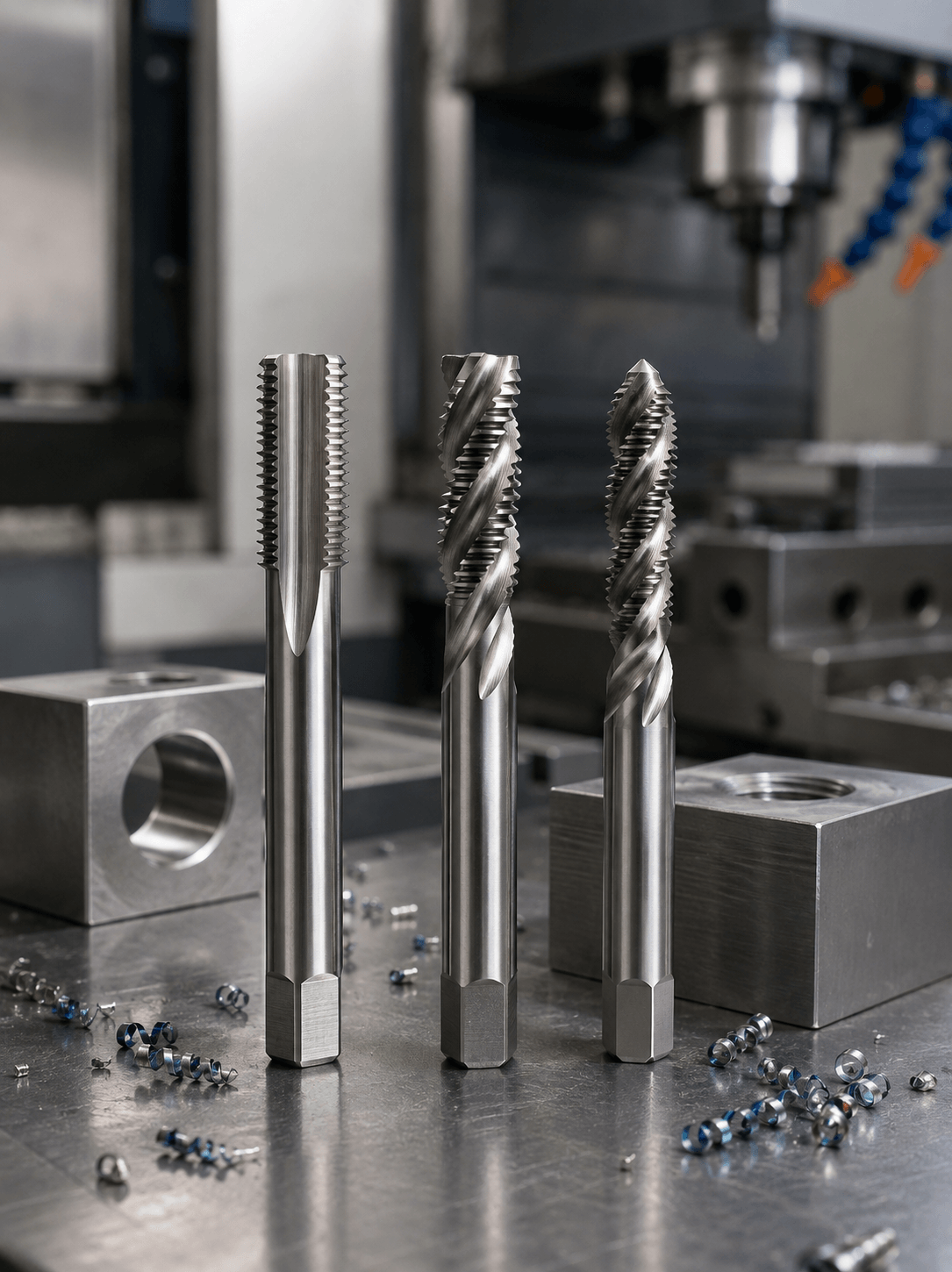

Selecting the correct tap geometry is essential for stable internal threading. Straight flute, spiral flute, and spiral point taps can all produce accurate threads, but they handle chips differently. The wrong choice can increase torque, cause chip packing, damage the thread, or break the tap.
The most important factors are hole type, workpiece material, chip behavior, thread depth, and machine conditions. This guide explains the differences between the three common tap styles and how to choose the right one for through and blind holes.
1. What Is a Straight Flute Tap?
A straight flute tap has flutes that run parallel to the axis of the tool. It is one of the simplest and most traditional tap designs.
Straight flutes provide space for cutting edges and chips but do not actively push chips forward or pull them backward. They are most suitable when chip evacuation is not difficult.
Straight flute taps are commonly used for short-chipping materials such as cast iron and brass. They are also widely used for manual tapping, repair work, and general-purpose applications. Their simple geometry provides good rigidity and cutting-edge strength.
2. What Is a Spiral Flute Tap?
A spiral flute tap has helical flutes similar to those of a twist drill.
The spiral geometry pulls chips backward toward the entrance of the hole as the tap cuts. This makes spiral flute taps particularly useful for blind holes, where chips cannot exit through the bottom.
Without effective chip removal, chips may collect at the bottom of a blind hole and become compressed between the tap and workpiece. This can cause excessive torque, damaged threads, or tool breakage.
Spiral flute taps are therefore widely used for blind-hole tapping in steel, stainless steel, aluminum, and other materials that produce continuous chips.
3. What Is a Spiral Point Tap?
A spiral point tap, often called a gun tap, normally has relatively straight flutes combined with angled cutting geometry near the chamfer.
Instead of pulling chips backward, the spiral point pushes them forward in the direction of tapping.
This makes the design highly effective for through holes. Chips are directed ahead of the tap and can exit through the opposite side of the workpiece.
Because chips do not need to travel back through the flutes, spiral point taps can provide efficient cutting and good strength for high-volume machine tapping.
4. Best Tap for Through Holes
For through holes in materials that produce continuous chips, a spiral point tap is often the preferred choice.
As the tap advances, chips are pushed forward and away from the cutting teeth. This reduces chip accumulation in the flutes and can support higher production speeds.
Spiral point taps are commonly used in carbon steel, alloy steel, stainless steel, and other ductile materials.
However, straight flute taps may still be suitable for short-chipping materials such as cast iron because the chips break naturally into small particles.
5. Best Tap for Blind Holes
Blind holes require a different chip-control strategy because there is no opening at the bottom.
Spiral flute taps are generally the best choice for materials that produce long or continuous chips. The helical flutes pull chips upward and out of the hole, reducing the risk of chips collecting below the tap.
The spiral angle should also match the material and hole depth. Higher helix angles can improve chip lifting in ductile materials, while lower helix angles may provide stronger cutting edges.
6. When to Use Straight Flute Taps
Straight flute taps remain useful because they are simple, rigid, and versatile.
They are often selected for cast iron, brass, bronze, and other short-chipping materials. They can also be used for shallow holes, manual tapping, and applications where production speed is not the main priority.
Because the flutes do not strongly control chip direction, they may be less suitable for deep blind holes in materials that generate long chips.

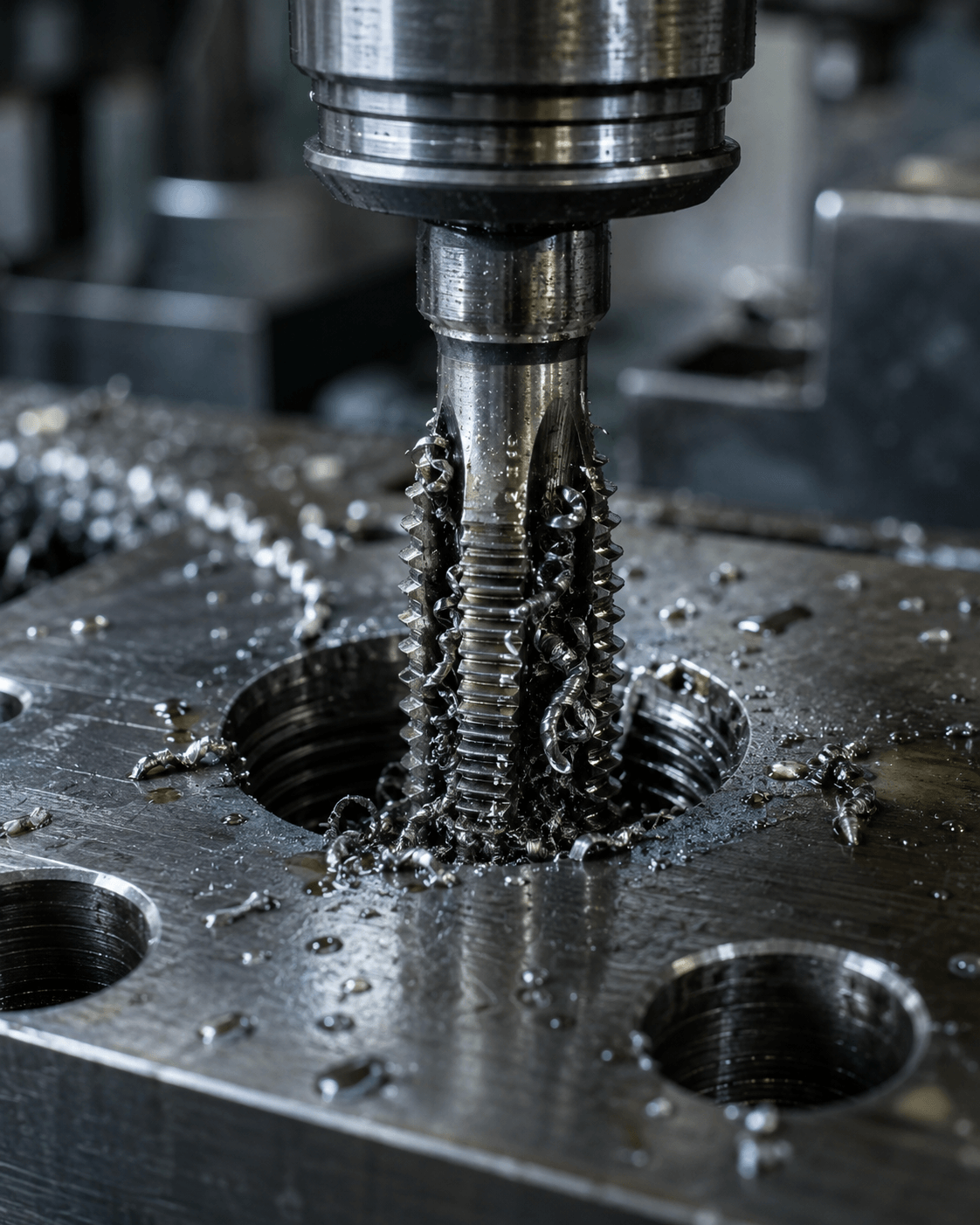

7. Chip Evacuation Is the Main Difference
The easiest way to compare these three tap designs is by chip direction.
Straight flute taps provide chip space but limited active chip direction.
Spiral flute taps pull chips backward toward the hole entrance.
Spiral point taps push chips forward toward the bottom and out of a through hole.
This difference has a major influence on tapping torque, thread quality, and tool life. Choosing a tap according to chip flow is often more important than choosing based only on thread size.
8. Workpiece Material Matters
Tap geometry should also match the material.
Steel and stainless steel often produce continuous chips, so spiral point taps are effective for through holes and spiral flute taps for blind holes.
Cast iron produces short, brittle chips and often works well with straight flute taps.
Aluminum can produce long or sticky chips. Sharp cutting edges, polished flutes, good lubrication, and suitable chip direction are important.
No flute design is universally best for every material.
9. Hole Depth, Lubrication, and Machine Conditions
As hole depth increases, chip evacuation becomes more difficult. Deep blind holes usually benefit from spiral flute taps, while through holes allow forward chip evacuation with spiral point taps.
Lubrication is also essential. Cutting fluid reduces friction, controls heat, and helps chips move through the flutes. For deep blind holes, coolant-thru taps can improve fluid delivery to the cutting zone.
Machine rigidity, runout, and feed synchronization also affect performance. Accurate holders and correct CNC feed help prevent uneven loading and tap breakage.
Conclusion
Straight flute, spiral flute, and spiral point taps are designed for different chip-control requirements.
For through holes in ductile materials, spiral point taps are usually the best choice because they push chips forward and out of the hole. For blind holes, spiral flute taps are generally preferred because they pull chips backward toward the entrance.
Straight flute taps remain effective for cast iron, brass, short-chipping materials, manual tapping, and many general-purpose applications.
The correct choice should consider hole type, workpiece material, chip behavior, hole depth, lubrication, and machine conditions.
By matching tap geometry to the actual application, manufacturers can improve chip evacuation, reduce tapping torque, prevent tool breakage, and achieve more consistent internal thread quality.
