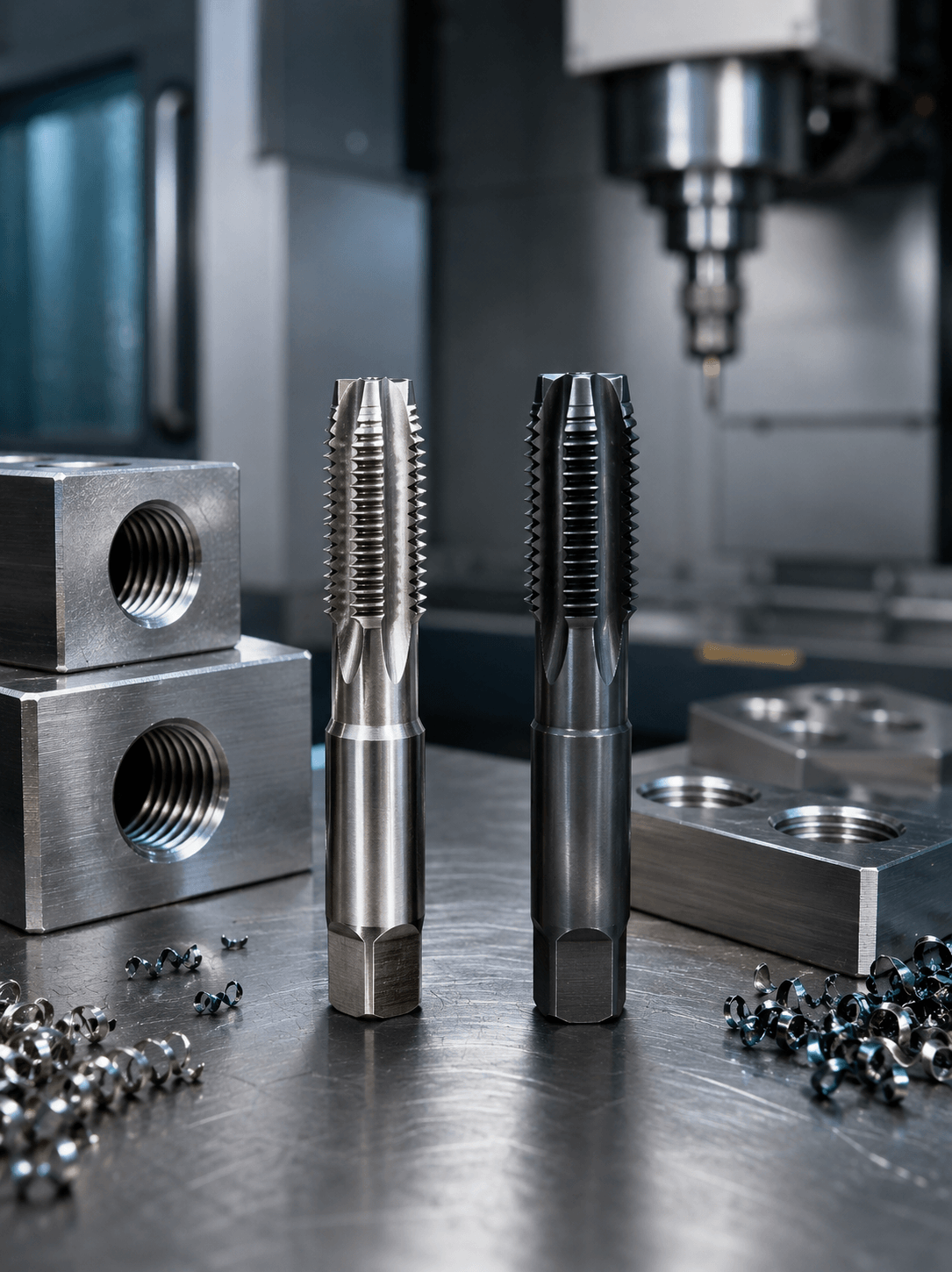

Selecting the right tap material is critical for thread quality, tool life, production stability, and total machining cost. Two common choices for demanding tapping applications are HSS-Co and carbide taps. Both can perform well, but they are designed for different cutting conditions.
HSS-Co taps combine toughness with improved hot hardness, while carbide taps offer higher hardness and wear resistance. The better option depends on workpiece material, machine rigidity, production volume, cutting speed, and breakage risk.
This guide compares HSS-Co and carbide taps from both technical and cost-efficiency perspectives.

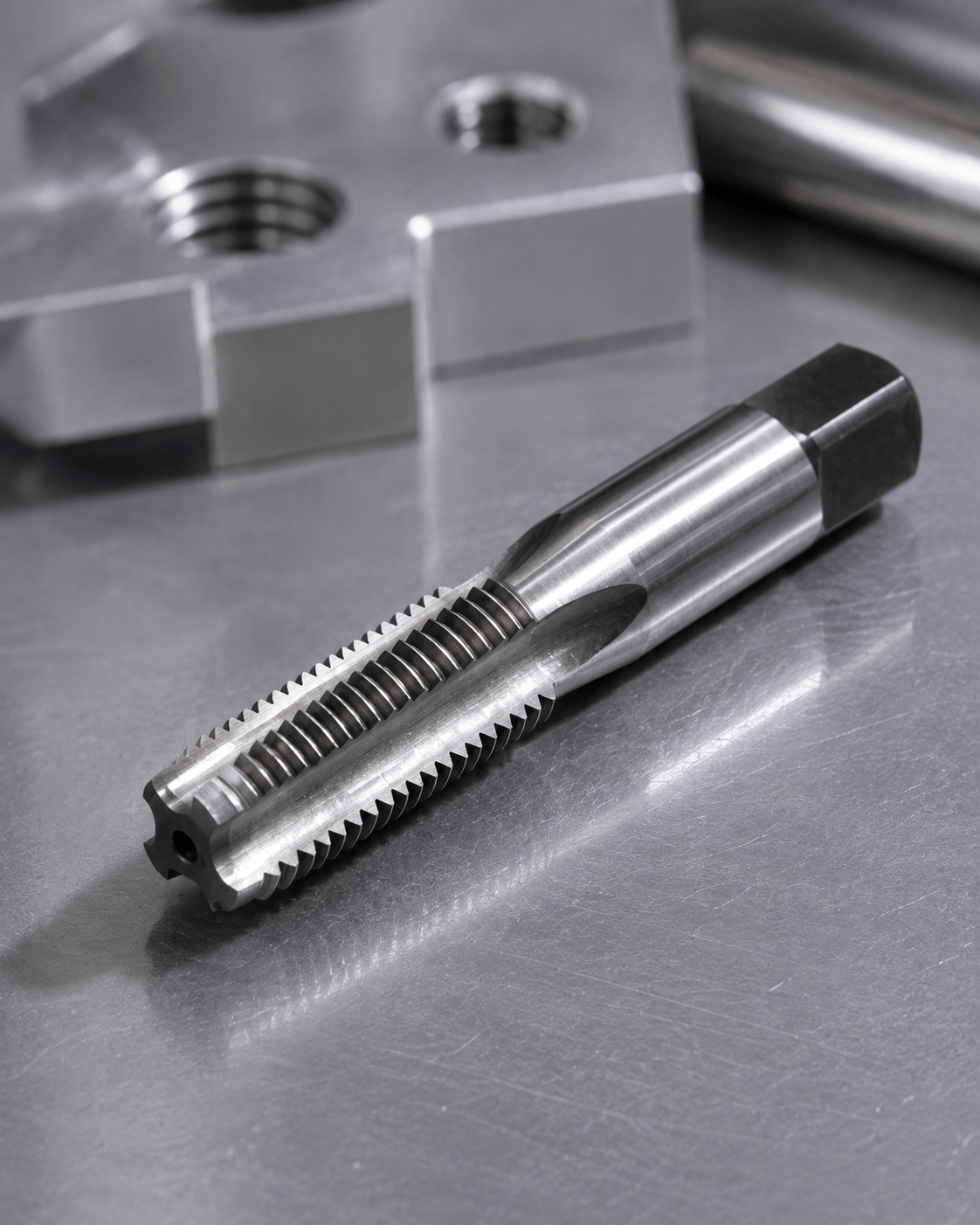

1. What Is HSS-Co?
HSS-Co is cobalt-alloyed high-speed steel. Compared with conventional HSS, cobalt improves hot hardness and helps the cutting edge maintain strength at elevated temperatures.
HSS-Co taps are commonly used for stainless steel, alloy steel, tougher carbon steels, and other materials that generate more heat or wear than ordinary applications.
Their main advantage is balance. They provide better wear resistance than standard HSS while retaining enough toughness to tolerate moderate vibration and slight misalignment.

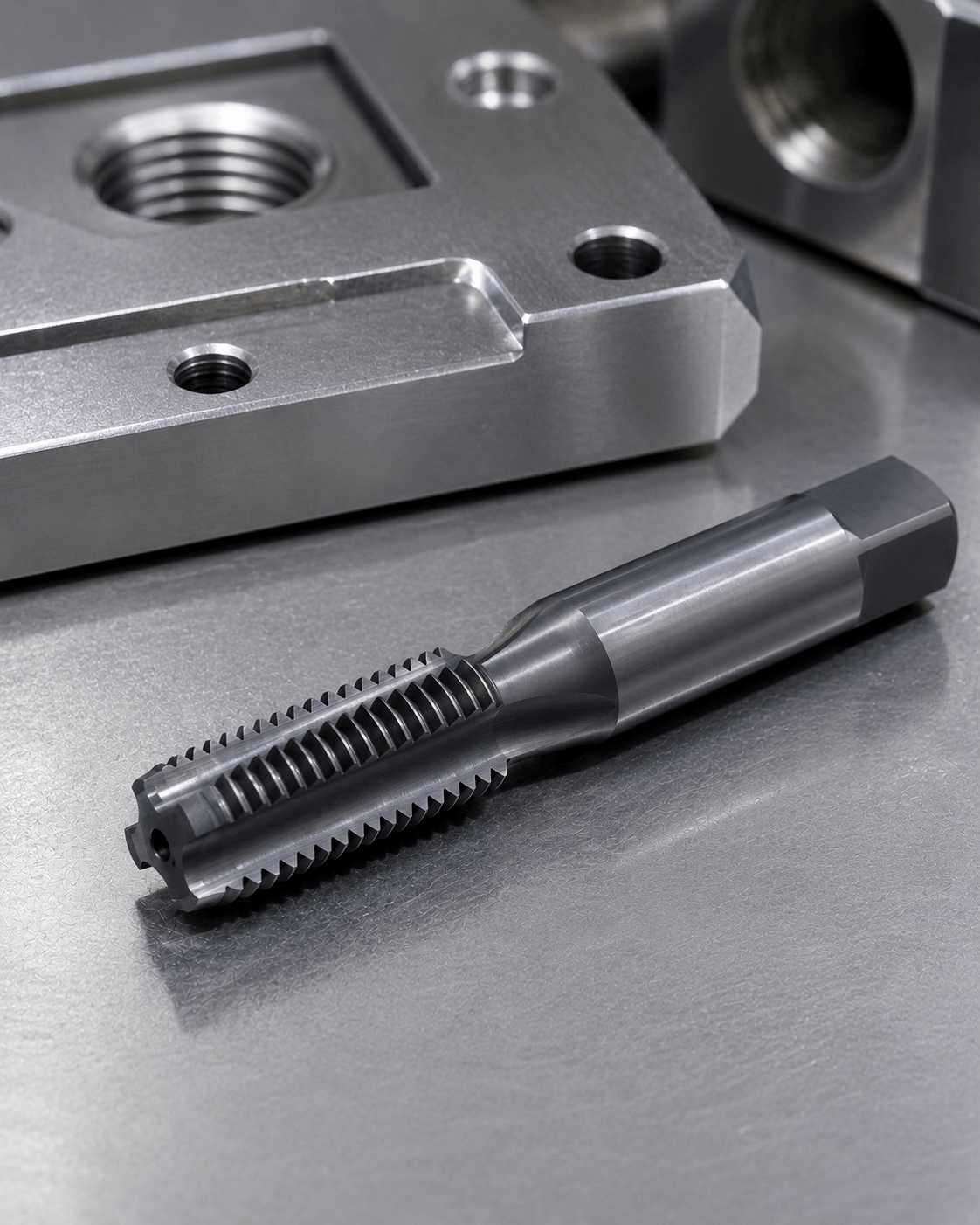

2. What Is a Carbide Tap?
Carbide taps are made from cemented carbide, a very hard tool material with excellent resistance to abrasion and heat.
Compared with HSS-Co, carbide can maintain a sharp cutting edge longer in many abrasive or hardened materials and can support higher cutting speeds under stable conditions.
However, carbide is more brittle. It does not tolerate impact, runout, misalignment, or unstable workholding as well as HSS-Co.
For this reason, carbide taps are best suited to rigid CNC machines, accurate holders, and controlled production environments.
3. Hardness and Wear Resistance
Carbide has a clear advantage in hardness and abrasive wear resistance.
When tapping cast iron, high-silicon aluminum, hardened steels, or other abrasive materials, carbide can often maintain its cutting geometry longer than HSS-Co.
HSS-Co still provides good wear resistance, especially with suitable coatings, but it generally wears faster in highly abrasive conditions.
If tool wear is the main limitation in a stable process, carbide may provide a significant tool-life advantage.
4. Toughness and Breakage Resistance
HSS-Co has the advantage in toughness.
Tapping can generate sudden torque changes, side loading, or chip-related shocks. HSS-Co is more forgiving when these conditions occur.
Carbide can chip or break if the tool experiences vibration, excessive runout, feed synchronization errors, or interrupted cutting.
This matters when machine condition is not ideal. A carbide tap with excellent wear resistance may still be less economical if it breaks before reaching its normal wear limit.
5. Cutting Speed and Productivity
Carbide taps can often operate at higher cutting speeds than HSS-Co taps when the machine and workpiece are stable.
This can reduce cycle time in high-volume production.
For a factory producing thousands of identical threaded holes, even a small reduction in tapping time can improve productivity.
HSS-Co is generally used at more moderate speeds but provides greater process tolerance.
6. Workpiece Material Selection
HSS-Co is a strong general-purpose option for stainless steel, alloy steel, carbon steel, and many other difficult-to-machine materials.
Carbide is attractive for abrasive materials such as cast iron and high-silicon aluminum, as well as selected hardened steels and high-volume applications.
The workpiece material alone does not determine the best tool. Hole depth, thread size, chip behavior, lubrication, and machine rigidity must also be considered.
7. Machine Rigidity and Runout
Machine condition is one of the biggest factors in the HSS-Co vs. carbide decision.
Carbide taps require low runout, accurate alignment, rigid fixtures, and stable spindle control. If the tap enters the hole off-axis, the brittle cutting edges may fail quickly.
HSS-Co tolerates small alignment errors and machine vibration better.
For older equipment or less rigid setups, HSS-Co is often the safer choice. For modern CNC machines with rigid tapping and high-quality holders, carbide becomes much more practical.
8. Coatings and Surface Treatment
Both HSS-Co and carbide taps can use coatings such as TiN, TiCN, or TiAlN to improve wear resistance or high-temperature performance. DLC may be suitable for some non-ferrous applications.
Coating selection should match both the tap substrate and workpiece material.
9. Tool Price vs. Cost per Hole
Carbide taps usually cost more than HSS-Co taps.
However, purchase price alone is not a reliable measure of cost efficiency.
A better calculation is:
Cost per threaded hole = Tap cost ÷ Number of acceptable holes produced
If a carbide tap costs twice as much but produces four times as many acceptable threads, it may be the more economical choice.
If carbide taps frequently chip because the machine lacks rigidity, HSS-Co may deliver a lower real production cost.
10. The Cost of Tap Breakage
Tap breakage can be more expensive than the tool itself.
A broken tap may stop the machine, damage the workpiece, require EDM removal, or cause scrap.
For expensive workpieces or unstable setups, the greater toughness of HSS-Co can reduce financial risk, while carbide can provide better economics in highly stable automated production.
11. When to Choose HSS-Co
Choose HSS-Co when machine rigidity is moderate, workpiece conditions vary, toughness is important, or the process has some risk of vibration or misalignment.
It is also a strong choice for stainless steel and general alloy-steel tapping where a balance of tool life, cost, and reliability is required.
For many job shops and medium-volume production lines, HSS-Co offers practical overall value.
12. When to Choose Carbide
Choose carbide when the workpiece is highly abrasive, production volume is high, machine rigidity is excellent, and low runout can be maintained.
Carbide is especially attractive when longer tool life and higher cutting speed can offset the higher purchase price.
It is most cost-effective when the process is stable enough for the tool to reach its expected wear life rather than failing from chipping or breakage.
Conclusion
HSS-Co and carbide taps serve different production needs.
HSS-Co offers a strong balance of toughness, wear resistance, and cost. It performs well across a wide range of materials and is more tolerant of vibration and changing machining conditions.
Carbide provides superior hardness, wear resistance, and potential cutting speed, making it valuable for abrasive materials and high-volume CNC production. However, it requires a rigid and accurately controlled machining system.
The best decision should be based on cost per acceptable threaded hole, not tool price alone.
By considering workpiece material, machine rigidity, runout, production volume, tool life, and breakage risk, manufacturers can select the tap material that provides the best combination of performance and cost efficiency.
