Tapping hardened steel above HRC 45 is one of the most demanding internal-threading operations in metalworking. At this hardness level, conventional HSS taps may wear quickly, lose cutting-edge sharpness, or fail under high torque. Carbide taps can provide a better solution because of their high hardness and resistance to abrasive wear.
However, carbide is less tolerant of impact, runout, and vibration than HSS. Successful tapping therefore depends on more than tool selection. Machine rigidity, hole preparation, lubrication, toolholding, and cutting parameters must all be controlled carefully.
This article explains how to select carbide taps for hardened steel and how to improve process reliability.
1. Why Hardened Steel Is Difficult to Tap
As steel hardness increases, cutting resistance and tool wear rise significantly. Hardened surfaces can abrade the tap rapidly, while high cutting forces increase the risk of tooth chipping or complete tool breakage.
Typical problems include high tapping torque, rapid flank wear, poor thread finish, edge chipping, and short or unpredictable tool life.
These conditions make both tool selection and process control especially important.
2. Why Carbide Taps Are Used
Carbide has much higher hardness and wear resistance than conventional high-speed steel. This allows the cutting edge to remain sharp longer when machining hardened materials.
Carbide taps can therefore be useful for repetitive CNC production where tool life and thread consistency are important.
Their disadvantage is brittleness. Sudden side loads, misalignment, unstable workholding, or interrupted cutting can damage the cutting edges. Carbide taps perform best in rigid machines with accurate spindle control and low runout.
3. Selecting the Right Carbide Tap Geometry
Tap geometry should match the hole type and chip behavior.
For through holes, spiral point carbide taps can push chips forward and out of the hole. For blind holes, spiral flute taps may pull chips back toward the entrance.
In hardened materials that produce shorter chips, straight flute carbide taps may offer greater rigidity.
The best design depends on material hardness, hole depth, thread size, and machine conditions. A stronger geometry is often preferable when the setup is demanding.
4. Coating Selection for Hardened Steel
Coatings can improve wear resistance and thermal stability.
TiAlN and AlTiN-type coatings are often considered for hard machining because they maintain useful properties at elevated temperatures. Other coatings may also be suitable depending on the steel grade and tapping conditions.
The coating should complement the carbide substrate. It cannot compensate for incorrect geometry, poor alignment, or unstable machining.
5. Pre-Drilled Hole Size Is Critical
The pre-drilled hole must be controlled carefully.
If the hole is too small, the tap removes too much material and torque rises sharply. This is especially dangerous with carbide because excessive load can lead to sudden fracture.
If the hole is too large, thread engagement may be insufficient.
Accurate drilling, boring, or interpolation before tapping helps reduce unnecessary cutting load while maintaining the specified thread requirement.
6. Machine Rigidity and Runout
Carbide taps require a rigid machining system.
The spindle, holder, fixture, and workpiece should remain stable throughout the tapping cycle. Excessive runout causes uneven tooth loading and can quickly chip carbide cutting edges.
High-quality collets, tapping holders, and clean tool interfaces help maintain concentricity. For demanding applications, checking runout before production can prevent expensive failures.

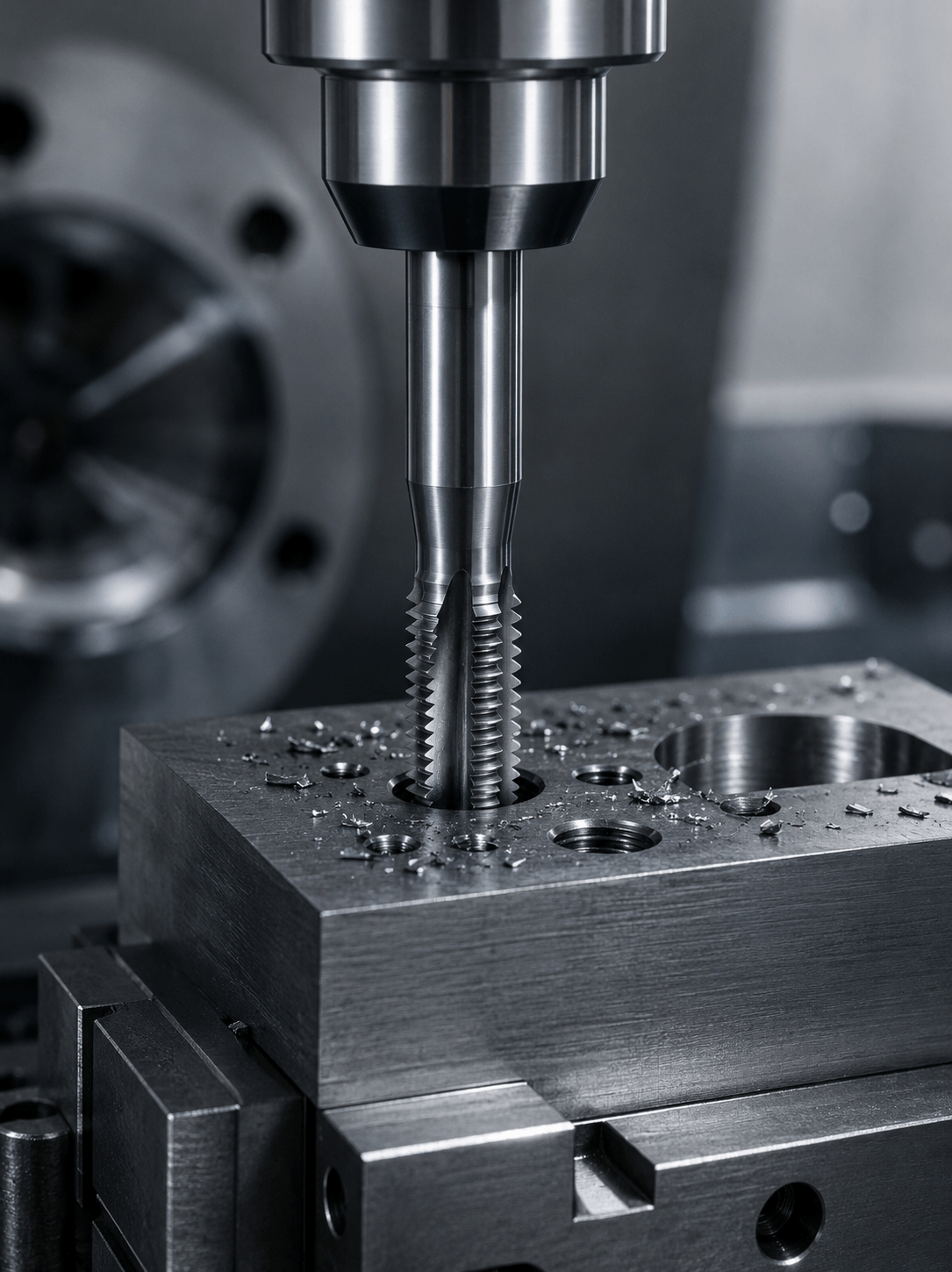

7. Use Controlled CNC Tapping
Rigid tapping is generally preferred for hardened steel.
The CNC machine synchronizes spindle rotation with axial feed according to thread pitch, reducing unwanted axial stress on the tool.
Acceleration, deceleration, and reversal should also be smooth. Aggressive reversal can shock the carbide tap and increase breakage risk.
Stable tapping conditions are usually more valuable than maximum spindle speed.
8. Cutting Speed and Lubrication
Cutting speeds for hardened steel are normally more conservative than those used for softer materials.
The correct speed depends on hardness, carbide grade, coating, thread size, coolant, and tap geometry. Starting with the tool manufacturer's recommended data is the safest approach.

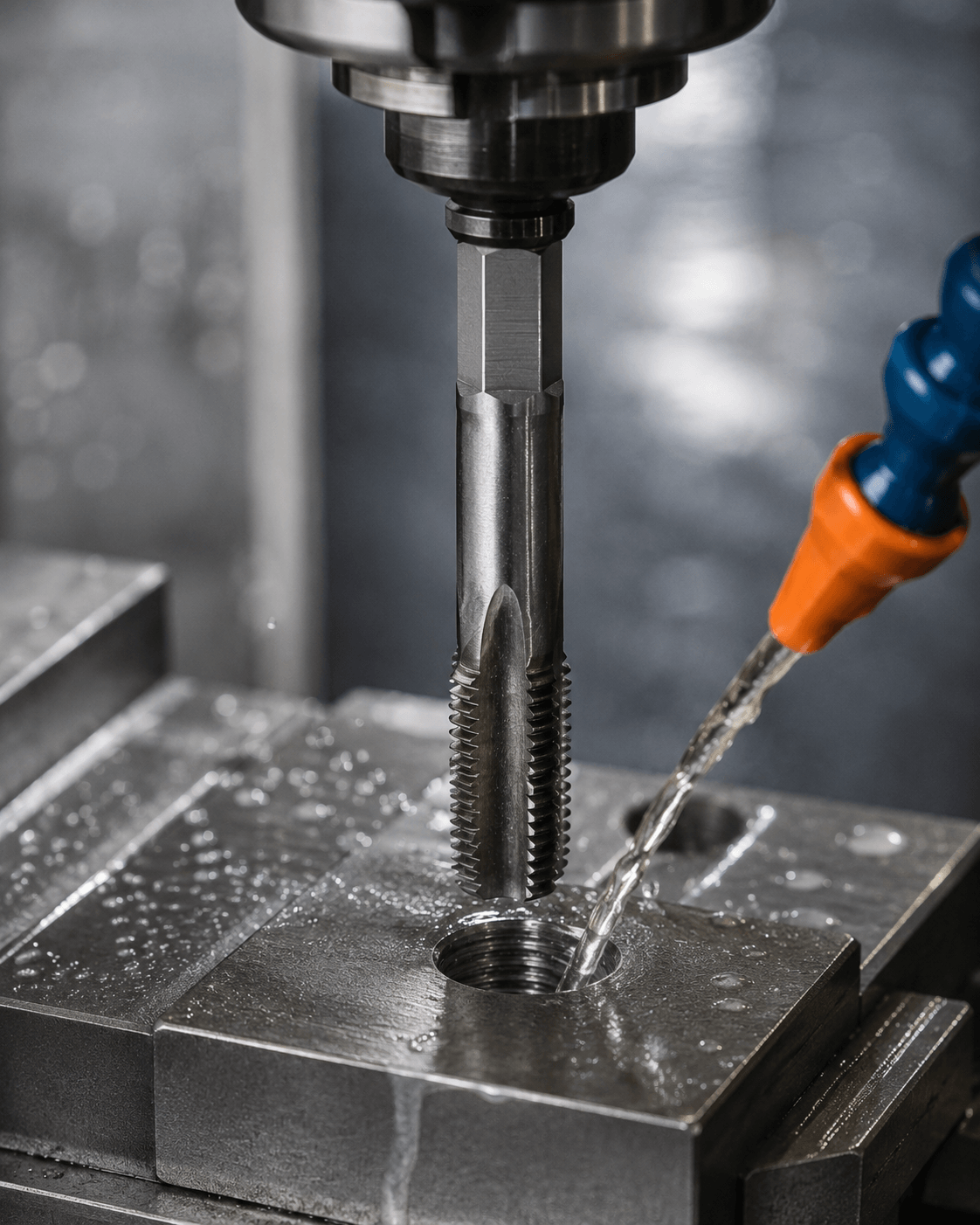

Effective lubrication reduces friction, heat, and tapping torque. Coolant should reach the cutting zone reliably, especially in blind or deeper holes.
Internal coolant taps may provide an advantage by delivering fluid directly to the cutting area.
9. Chip Control Still Matters
Even with the correct carbide tap, trapped chips can quickly cause failure.
Through-hole taps should direct chips forward when possible, while blind-hole taps need reliable backward evacuation.
Chip packing increases torque and can damage both the cutting edges and the finished thread.
Hole depth, flute geometry, coolant flow, and material behavior should therefore be considered together when selecting the tap.
10. Monitor Tool Wear Before Failure
Carbide taps can fail suddenly if used beyond their safe wear limit.
Manufacturers should monitor thread count, spindle load, tapping torque, thread dimensions, and cutting-edge condition.
A gradual increase in torque may indicate wear, poor lubrication, or chip-control problems.
Replacing a worn tap before catastrophic failure is often much less expensive than removing a broken carbide tool from a high-value hardened component.
11. When Carbide Tapping May Not Be the Best Choice
Not every hardened-steel thread should be produced by tapping.
For very high hardness, unstable setups, large thread sizes, or expensive components, thread milling may offer lower breakage risk and greater process control.
The decision should consider production volume, hole depth, machine capability, thread size, and tooling cost.
Carbide tapping is most effective when the process is rigid, repetitive, and well controlled.
Conclusion
Tapping hardened steel above HRC 45 requires a different approach from general-purpose threading.
Carbide taps provide the hardness and wear resistance needed for demanding materials, but their lower toughness means that machine rigidity, alignment, hole size, lubrication, and CNC synchronization must be tightly controlled.
Selecting the correct tap geometry and coating is only the starting point. Reliable production also depends on minimizing runout, using suitable cutting speeds, maintaining coolant delivery, controlling chips, and replacing tools before excessive wear develops.
When these factors are managed correctly, carbide taps can produce accurate internal threads in hardened steel with more consistent tool life and dependable CNC machining performance.
