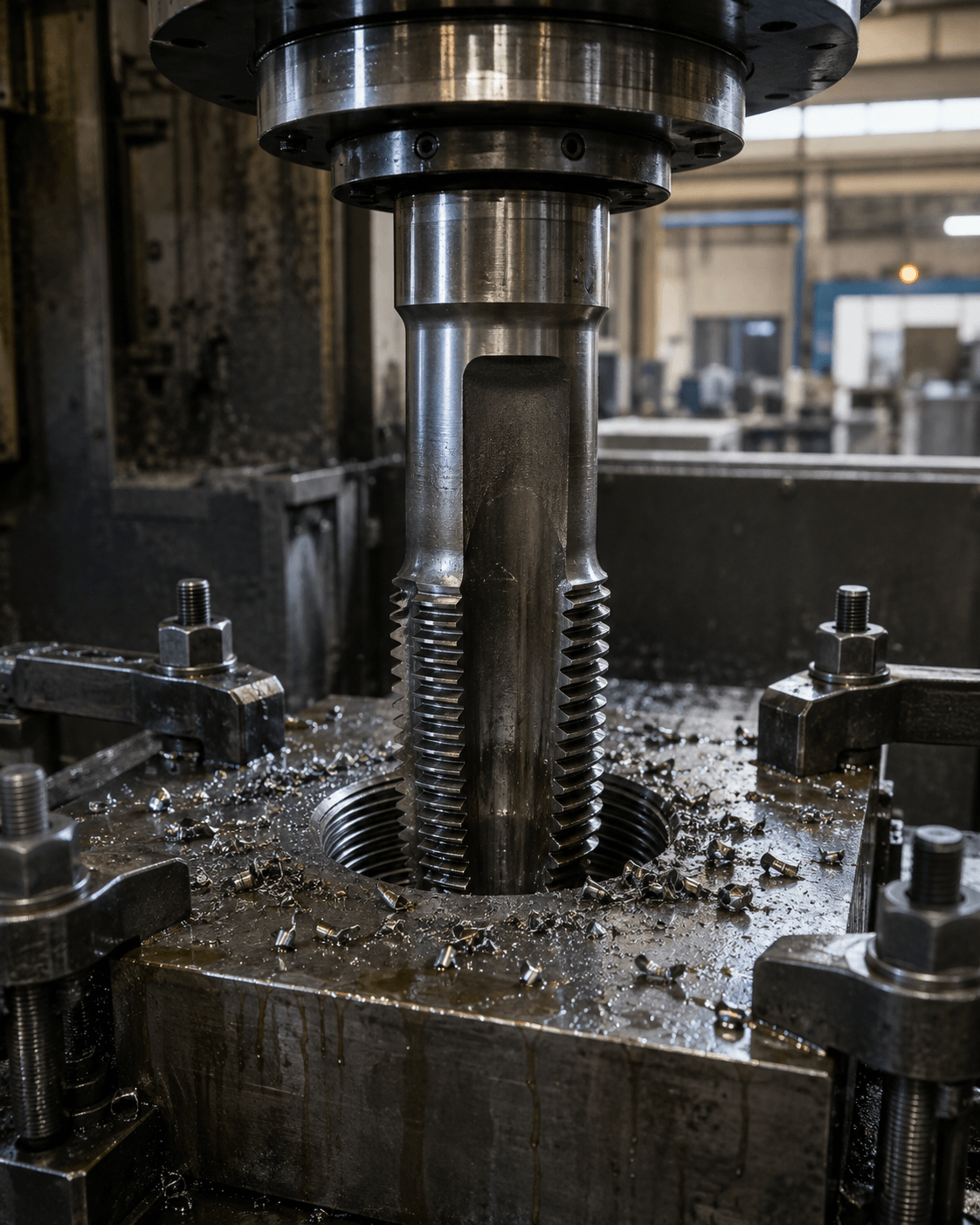

Large-diameter tapping above M30 is common in heavy machinery, construction equipment, energy systems, large valves, mining equipment, industrial presses, and other applications where high-strength threaded connections are required. Compared with smaller taps, M30+ tools generate much higher cutting torque and place greater demands on machine rigidity, hole preparation, lubrication, chip evacuation, and toolholding.
Selecting the correct tap is therefore not only a matter of thread size. Manufacturers must consider workpiece material, hole type, production volume, thread depth, machine power, and the cost of tool failure.
1. Why Large-Diameter Tapping Is More Demanding
As tap diameter increases, more cutting teeth engage the workpiece and the total cutting load rises. A large tap also removes more material per revolution, creating higher torque and greater heat.
Typical problems include excessive spindle load, chip packing, tool chipping, poor thread finish, and difficulty reversing the tap from the hole.
Because large workpieces can be expensive, a broken M30+ tap may also create significant downtime and repair cost.
2. Common Applications in Heavy Machinery
Large-diameter threads are widely used in machine frames, hydraulic cylinders, gear housings, structural joints, large pumps, valves, wind-power equipment, mining machines, and construction equipment.
Heavy machinery often uses carbon steel, alloy steel, cast iron, and other strong materials, so the tap must provide both cutting strength and wear resistance.
3. Select the Tap According to Hole Type
Hole type has a major influence on large-tap geometry.
For through holes, spiral point taps can push chips forward and out of the opposite side. This reduces chip accumulation and is useful when the material produces continuous chips.
For blind holes, spiral flute taps can pull chips backward toward the entrance. However, large spiral flute taps may require careful geometry because high helix angles can reduce tooth strength.
Straight flute taps remain practical for short-chipping materials such as cast iron and for many traditional heavy-machinery applications.
4. HSS, HSS-Co, and Other Tap Materials
HSS is still widely used for large taps because it combines toughness, manufacturability, and reasonable cost.
HSS-Co offers improved hot hardness and wear resistance and can be useful for alloy steels and more demanding production.
PM-HSS can provide a more uniform structure and improved wear behavior in higher-performance applications.
Carbide large-diameter taps are less common in unstable heavy-machinery environments because carbide is more sensitive to impact, vibration, and misalignment. They may be suitable when the machine and fixture are exceptionally rigid.
5. Consider Replaceable-Blade or Chaser-Type Taps
For very large threads, a solid tap can become expensive because of the amount of tool steel required.
Replaceable-blade taps, sometimes called chaser-type taps, use a reusable tap body fitted with replaceable cutting blades.
When the cutting edges wear, only the blades are replaced rather than the complete tool.
This can reduce long-term tooling cost in suitable high-volume or large-diameter applications. The insert seats and blade positioning must be accurate to maintain thread size and runout.
6. Machine Power and Torque Capacity
Before selecting an M30+ tap, confirm that the machine can provide sufficient spindle torque at the required tapping speed.
A machine may have enough power at high RPM but insufficient torque at the lower speeds used for large taps.
The spindle, gearbox, toolholder, and tapping cycle should therefore be evaluated together.
Torque monitoring is useful because a sudden increase can indicate chip packing, tool wear, poor lubrication, or an undersized hole.
7. Pre-Drilled Hole Size
Correct hole diameter is essential for controlling tapping load.
An undersized hole forces the tap to remove excessive material and can increase torque dramatically. With a large-diameter tap, even a relatively small hole-size error can produce a substantial increase in load.
An oversized hole may reduce thread engagement below the required level.
For production, measure the actual hole diameter after drilling or boring rather than relying only on the nominal tool size.
8. Lubrication and Coolant Delivery
Large taps have a broad cutting area and can generate significant heat and friction.
Effective lubrication reduces torque, protects the cutting edges, and improves thread finish.
Deep holes may require high-volume coolant or internal coolant delivery to reach the cutting zone.
The coolant system should also help move chips away before they become compressed between the tap and thread.
9. Toolholding and Alignment
Misalignment is dangerous with large taps because side loads increase rapidly with tool diameter.
The tap should enter the hole along the correct axis, and the holder must transmit high torque without slipping.

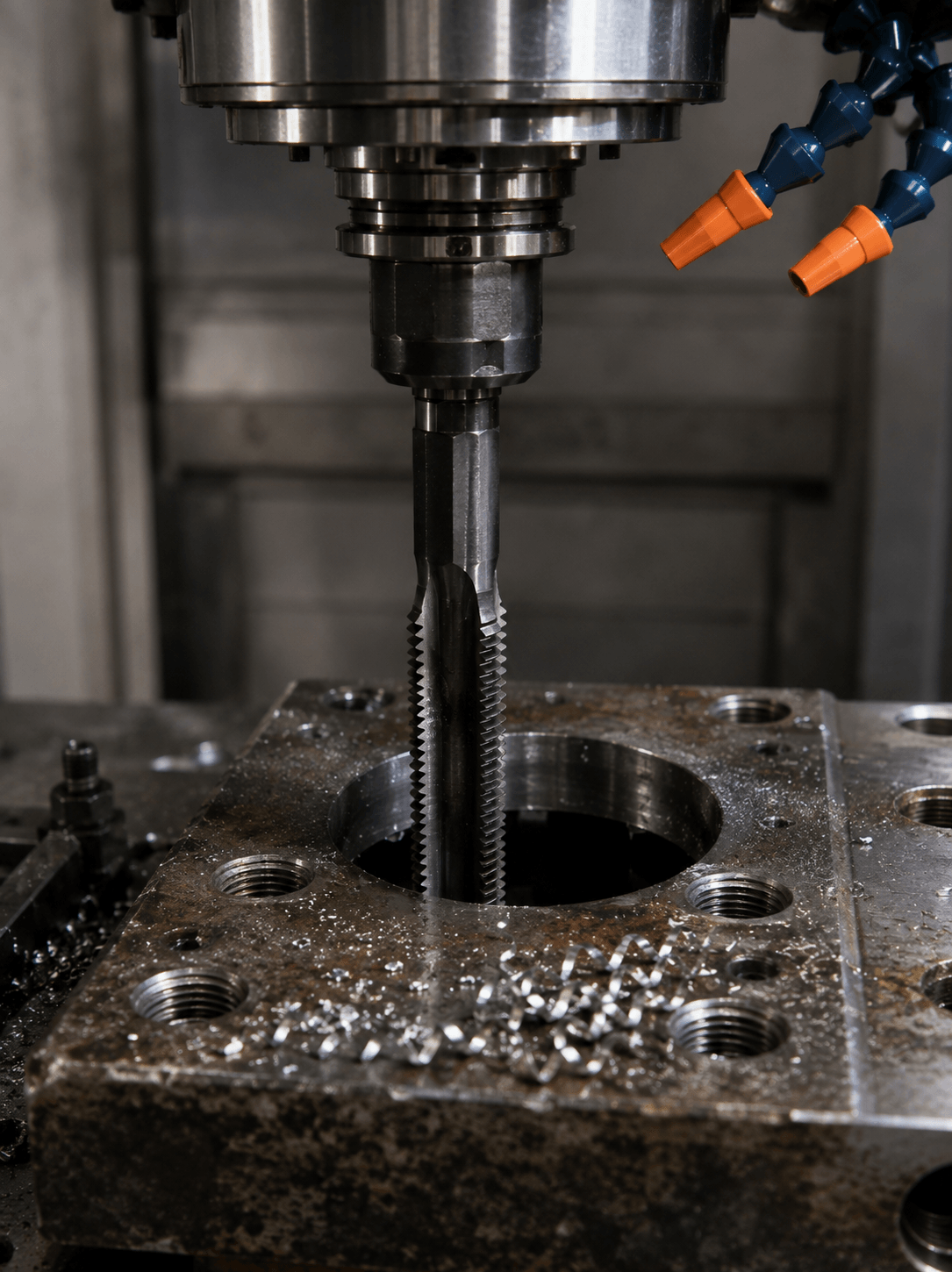

Rigid tapping systems can provide accurate feed synchronization on suitable CNC machines. Tension-compression holders may be useful when small synchronization errors must be compensated.
For very large taps, some manufacturers use dedicated tapping machines or radial drilling machines designed to handle high torque.
10. Cutting Speed and Reversal
Large taps normally operate at lower spindle speeds than small taps because of their greater diameter and cutting load.
Cutting speed should be selected according to the tap material, workpiece grade, coating, coolant, and thread depth.
Reversal also deserves attention. Sudden direction changes can place shock loads on the tap and spindle.
A controlled deceleration and reversal cycle can improve tool life and reduce edge damage.
11. Inspection and Tool-Life Management
Large threads should be checked with suitable thread gauges or dimensional measuring equipment.
Monitor pitch diameter, thread form, surface quality, spindle load, and tap wear.
Do not continue using the tool until it breaks. Planned replacement based on thread count, torque trend, and gauge results is usually more economical.
For expensive workpieces, preventing a single broken tap can justify careful tool-life monitoring.
Conclusion
Large-diameter tapping above M30 requires a complete process approach.
The tap geometry must match the hole type and material, while the substrate should provide the right balance of toughness and wear resistance. Straight flute, spiral point, spiral flute, and replaceable-blade designs each have suitable applications.
Machine torque, hole diameter, lubrication, alignment, feed synchronization, and reversal control are equally important.
For heavy-machinery manufacturers, the best tap is the tool that produces consistent threads at an acceptable cost while minimizing downtime, breakage risk, and tool replacement.
By evaluating the entire tapping system before production, manufacturers can improve thread quality, extend tool life, and make M30+ tapping more reliable in demanding heavy-industry applications.
