RC. NPT Tap Cha Ser Body

GB/T 7306-2000
REGARDING PRODUCTS
It is used for processing conical internal threads sealed with threads, and is used in conjunction with pipe thread inserts and chamfers.
  • Thread Forming Accuracy
    4
  • Wear-Resistance & Durability
    4.1
  • Chip Evacuation Performance
    4.7
  • Machining Stability
    4.3
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

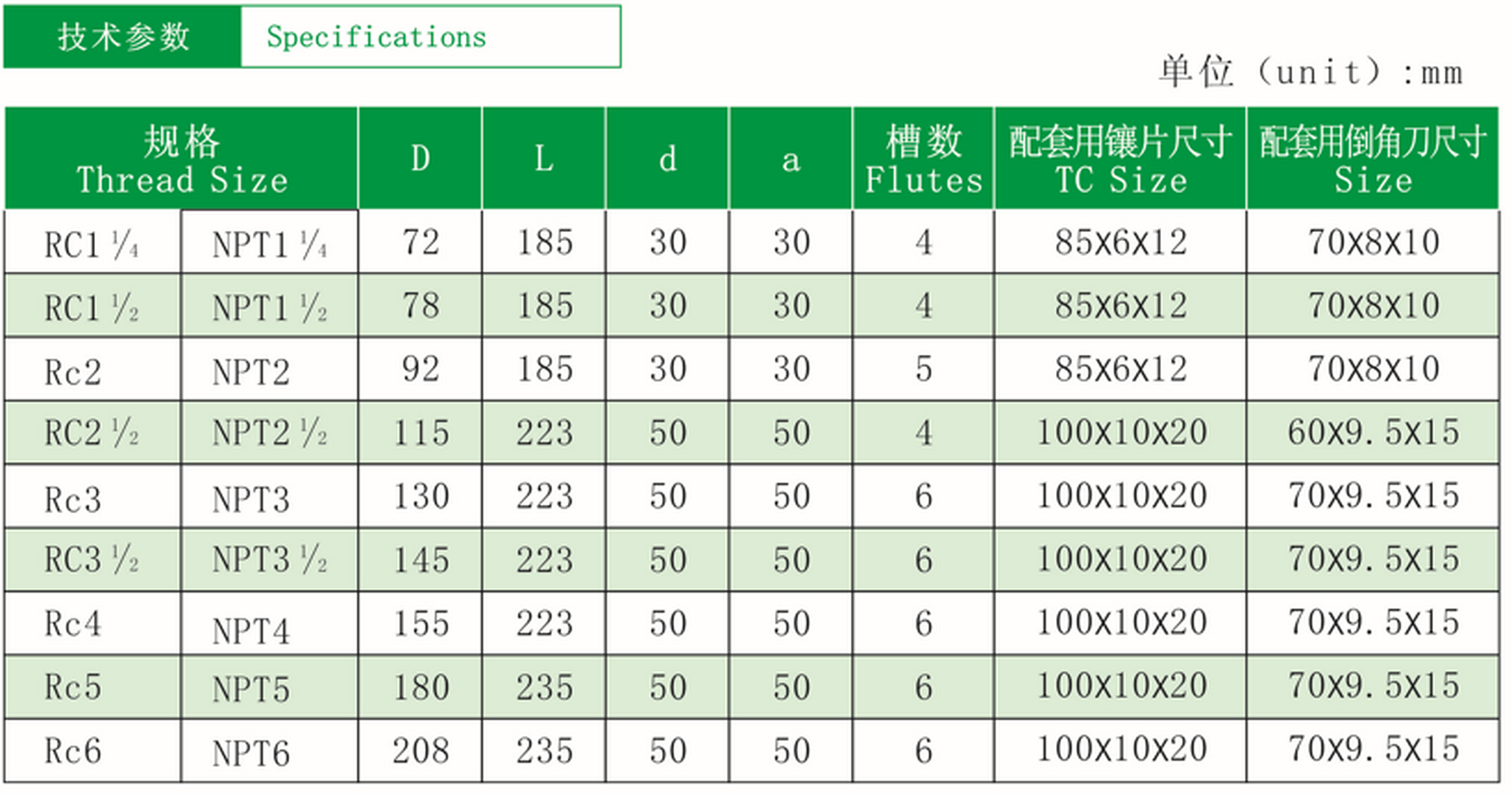

Technical Specifications
  • Tool Type
    Chaser Holder
  • Tool Material
    45#Quality Carbon Structural Steel
  • Coating
    /
  • Standard
    GB/T 7306-2000 ASME B1.20.1-1983
  • Thread Size
    RC11/4-Rc6
  • Workpiece Material
    It is used for processing conical internal threads sealed with threads, and is used in conjunction with pipe thread inserts and chamfers.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

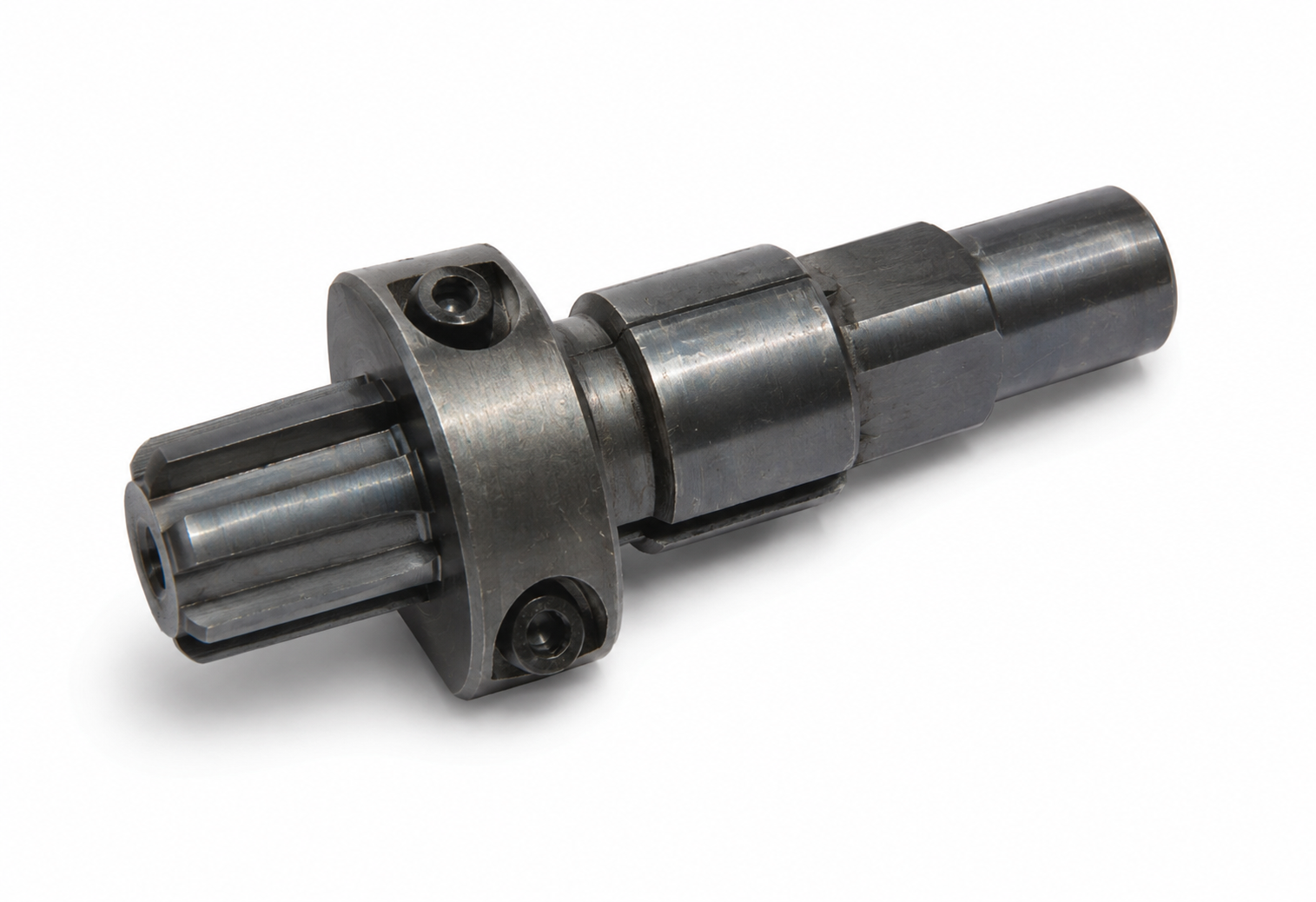

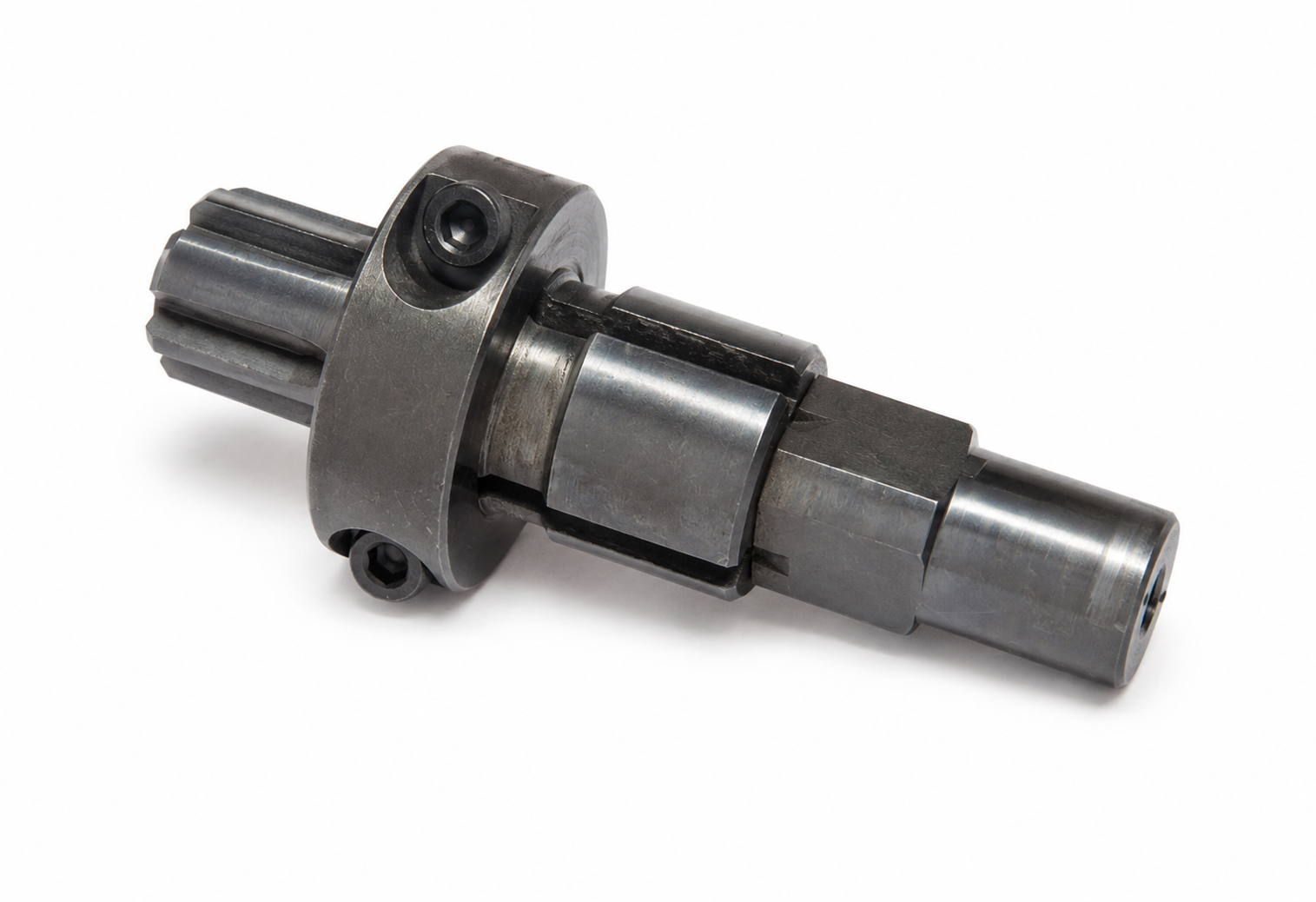

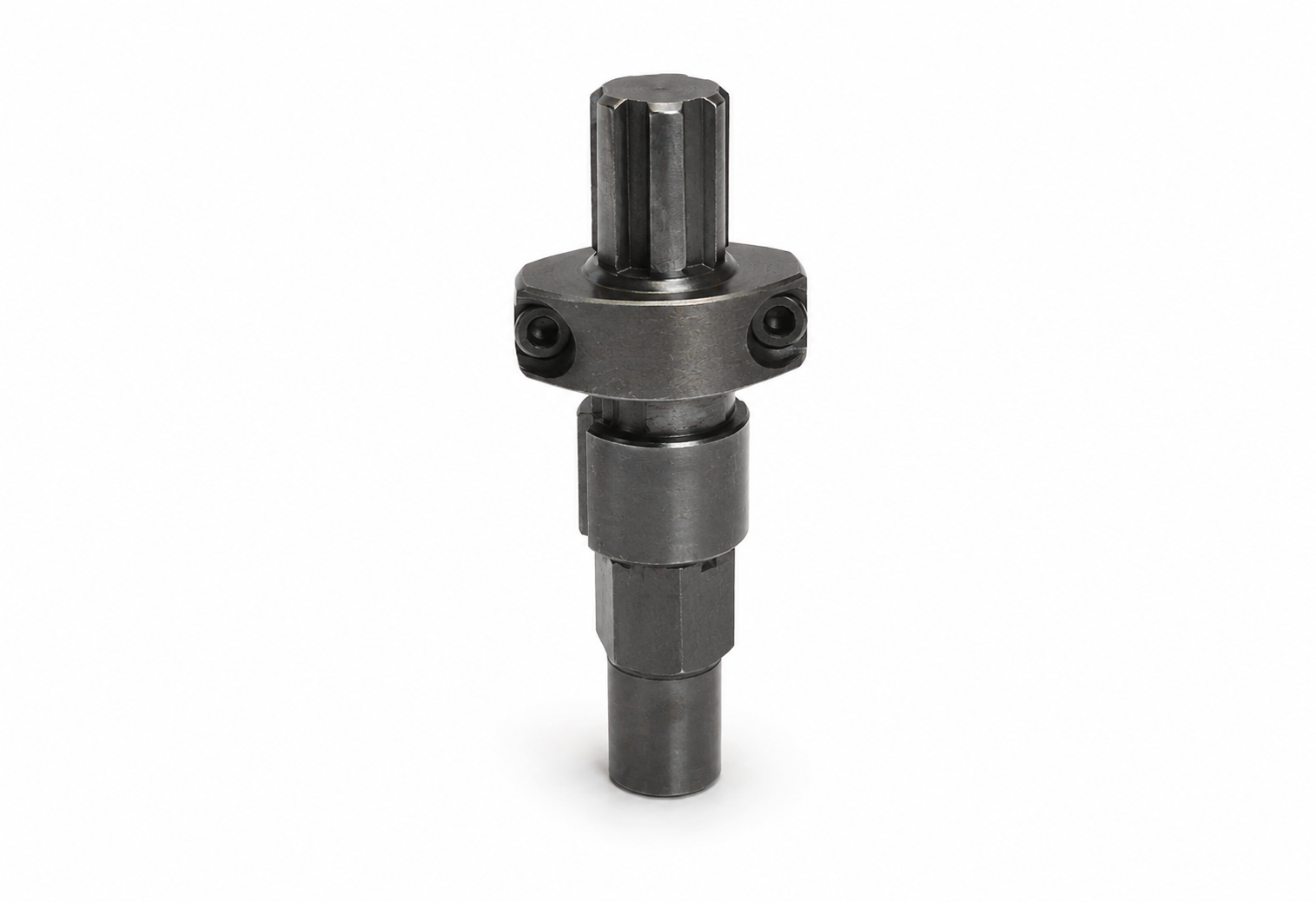

RC.NPT Tap Chaser Body

Product Overview

RC.NPT Tap Chaser Body is applied for machining thread‑sealed conical internal pipe threads. It works together with pipe‑thread insert blades and chamfering tools. Complies with GB/T 7306.2‑2000 and ASME B1.20.1‑1983 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ASME B1.20.1‑1983

Product Features

  1. Dual‑standard compatibility: Supports both 55° RC and 60° NPT taper pipe internal threads.

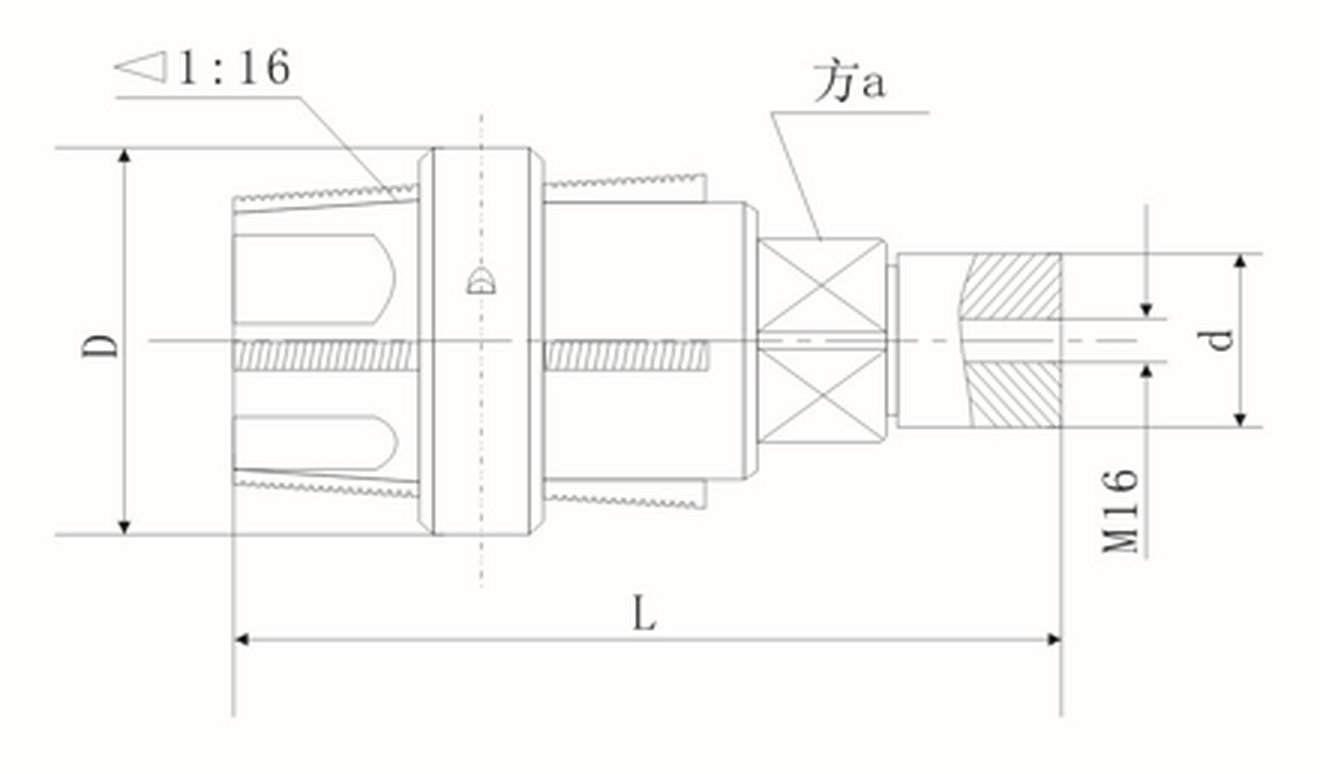

  2. 1:16 taper design: Integrated with insert blade and chamfer tool, realizes internal thread processing and end‑face chamfering in one setup.
  3. Multi‑flute structure: Flute count from 4‑6, matches different thread sizes for stable cutting.
  4. High‑rigidity tool body: Sturdy structure, suitable for heavy‑duty pipe internal‑thread turning.
