R.Die Chaser Body

GB/T 7306.2-2000
REGARDING PRODUCTS
It is used for screw tap combination joints, chip insert taps and other supporting applications, and is used for pipe fitting thread end face chamfering.
  • Thread Forming Accuracy
    4.7
  • Wear-Resistance & Durability
    4
  • Chip Evacuation Performance
    4.8
  • Machining Stability
    4.2
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

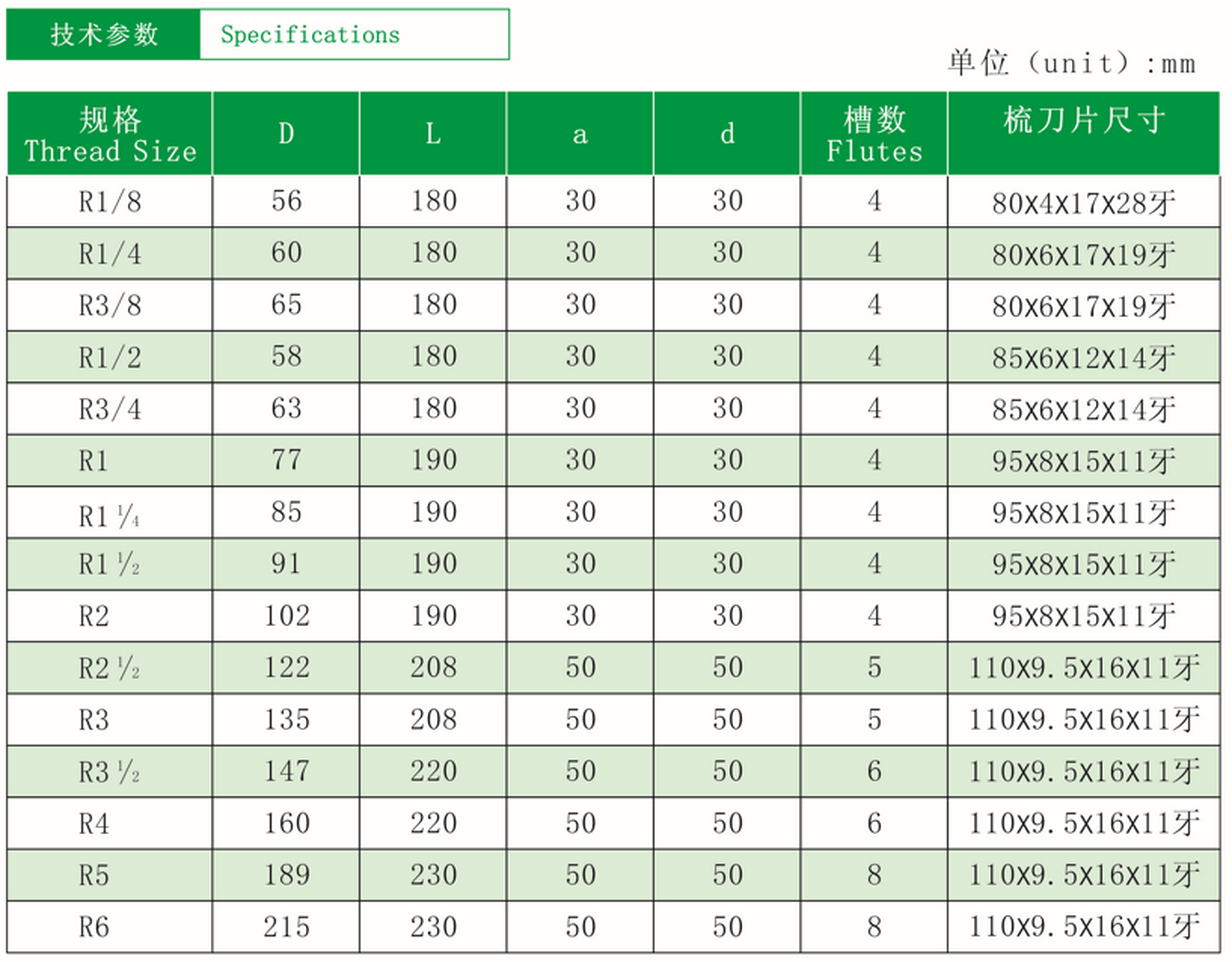

Technical Specifications
  • Tool Type
    Chaser Holder
  • Tool Material
    45#Quality Carbon Structural Steel
  • Coating
    /
  • Standard
    GB/T 7306.2-2000 IS07-1:1994
  • Thread Size
    R1/8-R6
  • Workpiece Material
    It is used for screw tap combination joints, chip insert taps and other supporting applications, and is used for pipe fitting thread end face chamfering.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

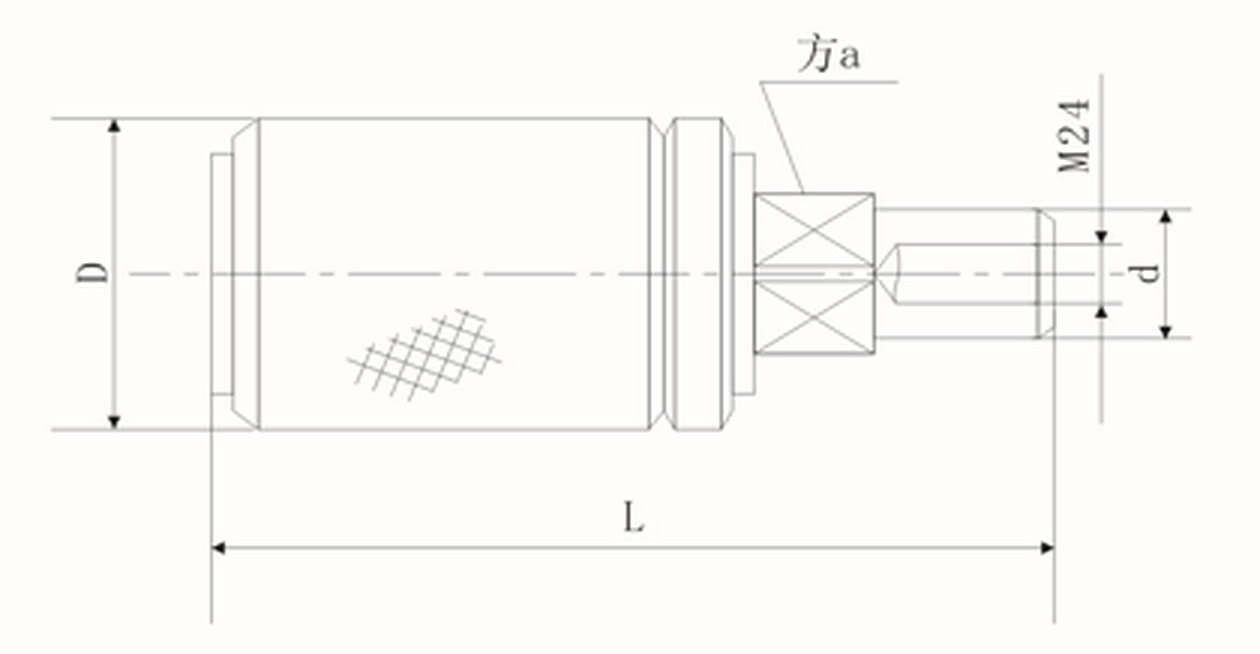

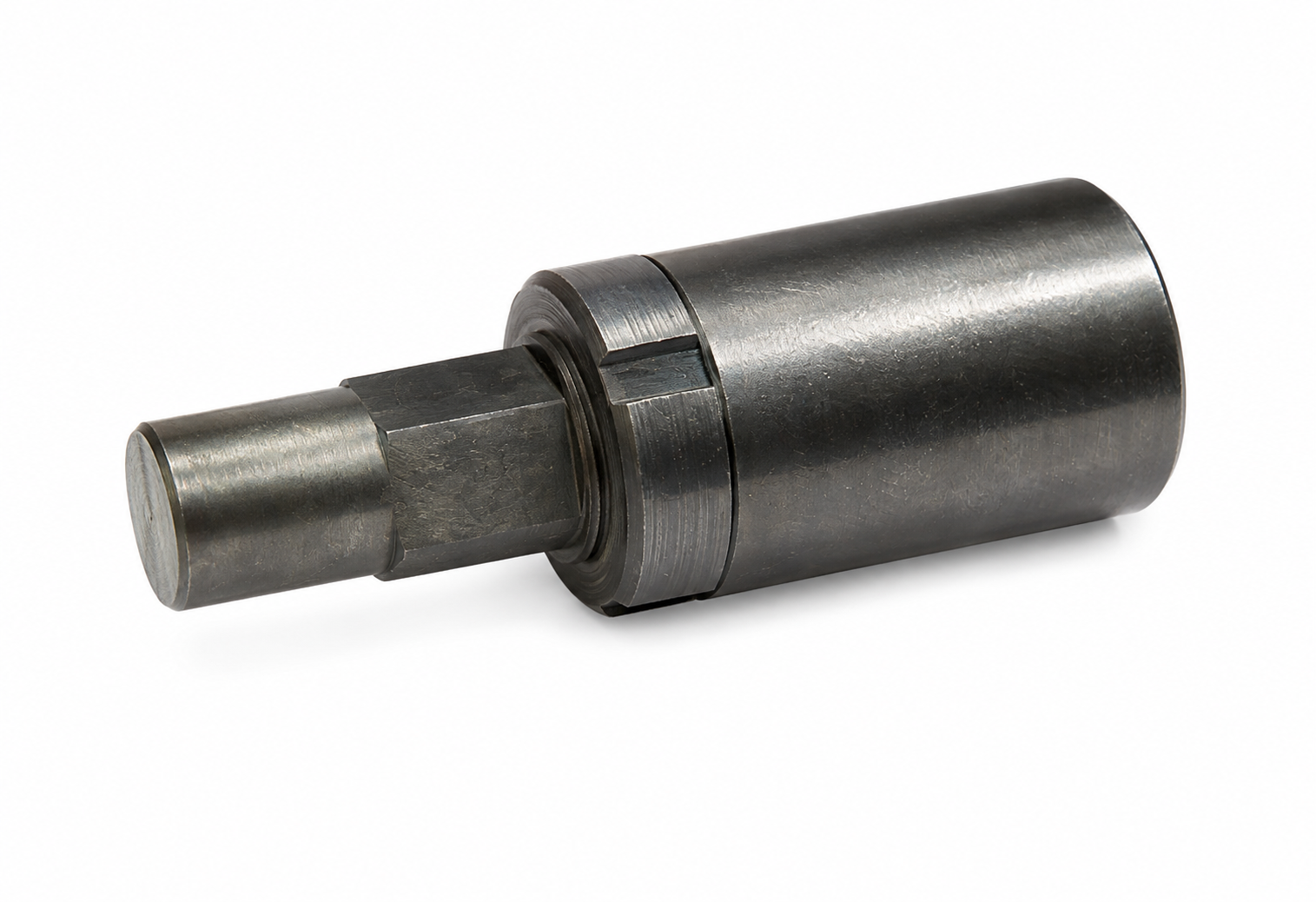

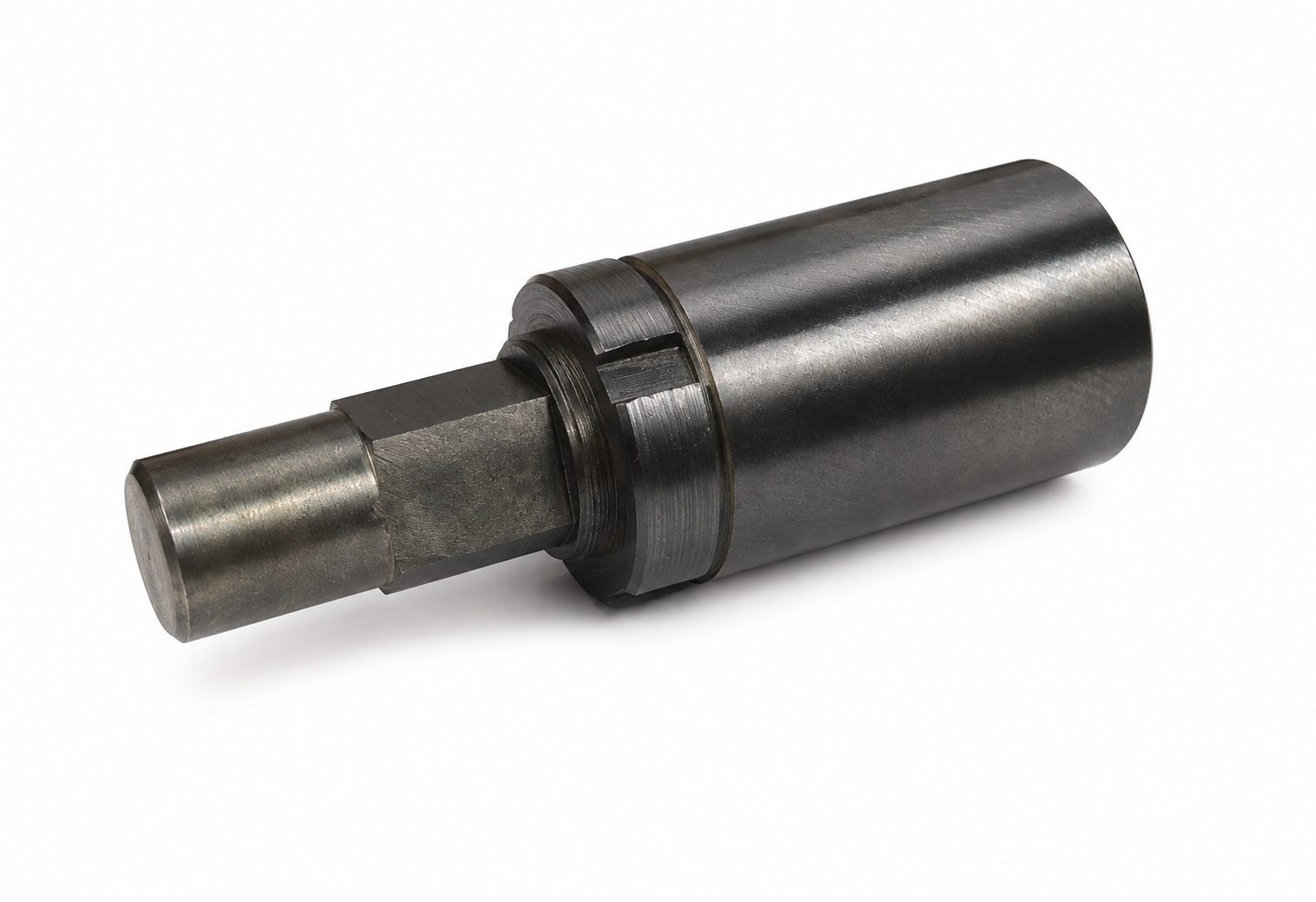

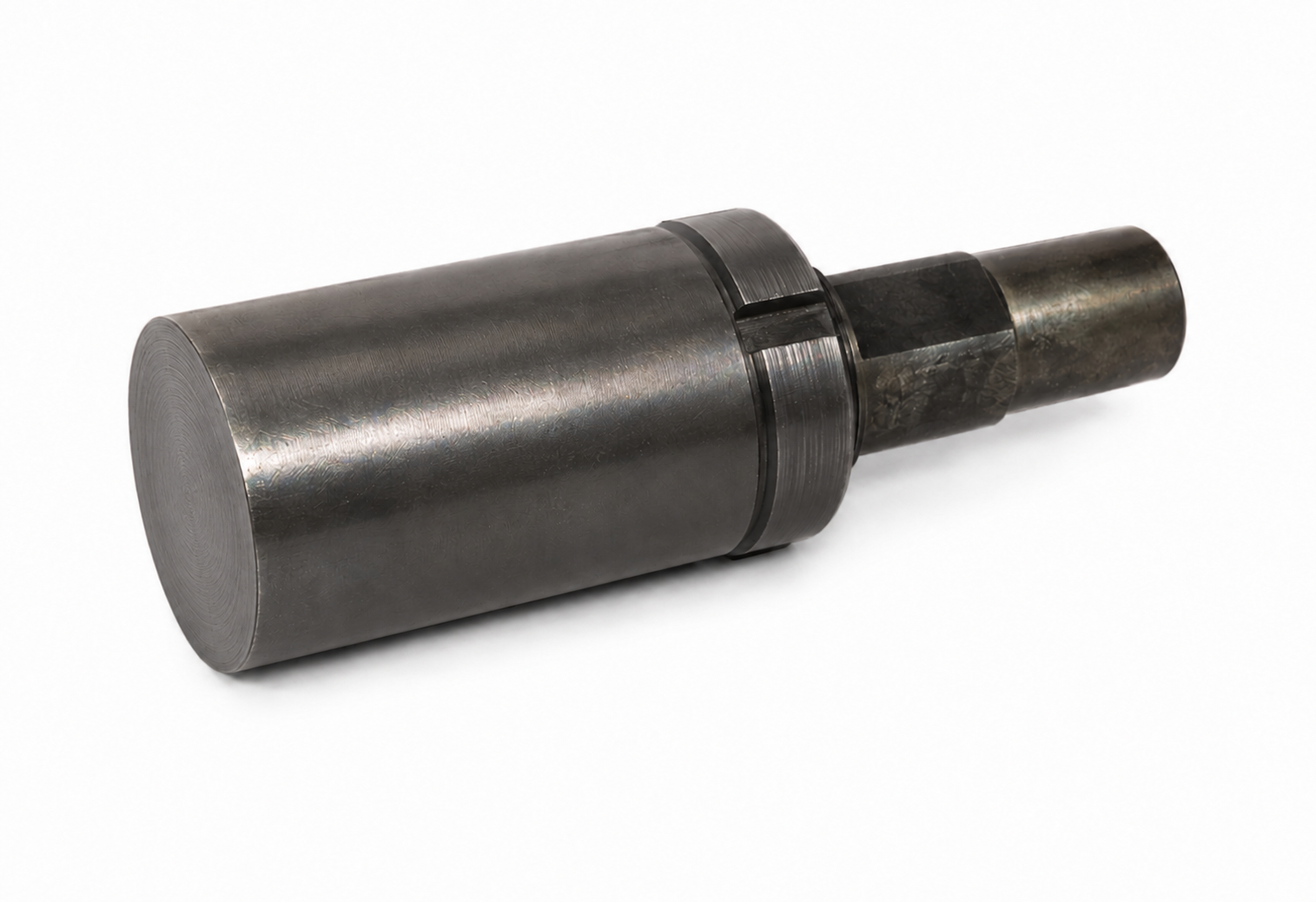

R.Die Chaser Body

Product Overview

R‑Die Chaser Body is designed for machining external taper pipe threads with thread‑sealed performance. It is used in conjunction with R‑series comb blades. Complies with GB/T 7306.2‑2000 and ISO 7‑1:1994 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ISO 7‑1:1994

Product Features

  1. Dedicated for 55° R taper pipe thread: Matches R‑series comb blades to process sealed external pipe threads.
  2. Multi‑flute design: Flute quantity varies from 4‑8, adapts to different thread sizes for stable cutting.
  3. Full size coverage: Covers R1/8‑R6, complete specification range for various pipe‑thread processing.
  4. Rigid structure: High structural rigidity, suitable for heavy‑load turning of pipe external threads.
