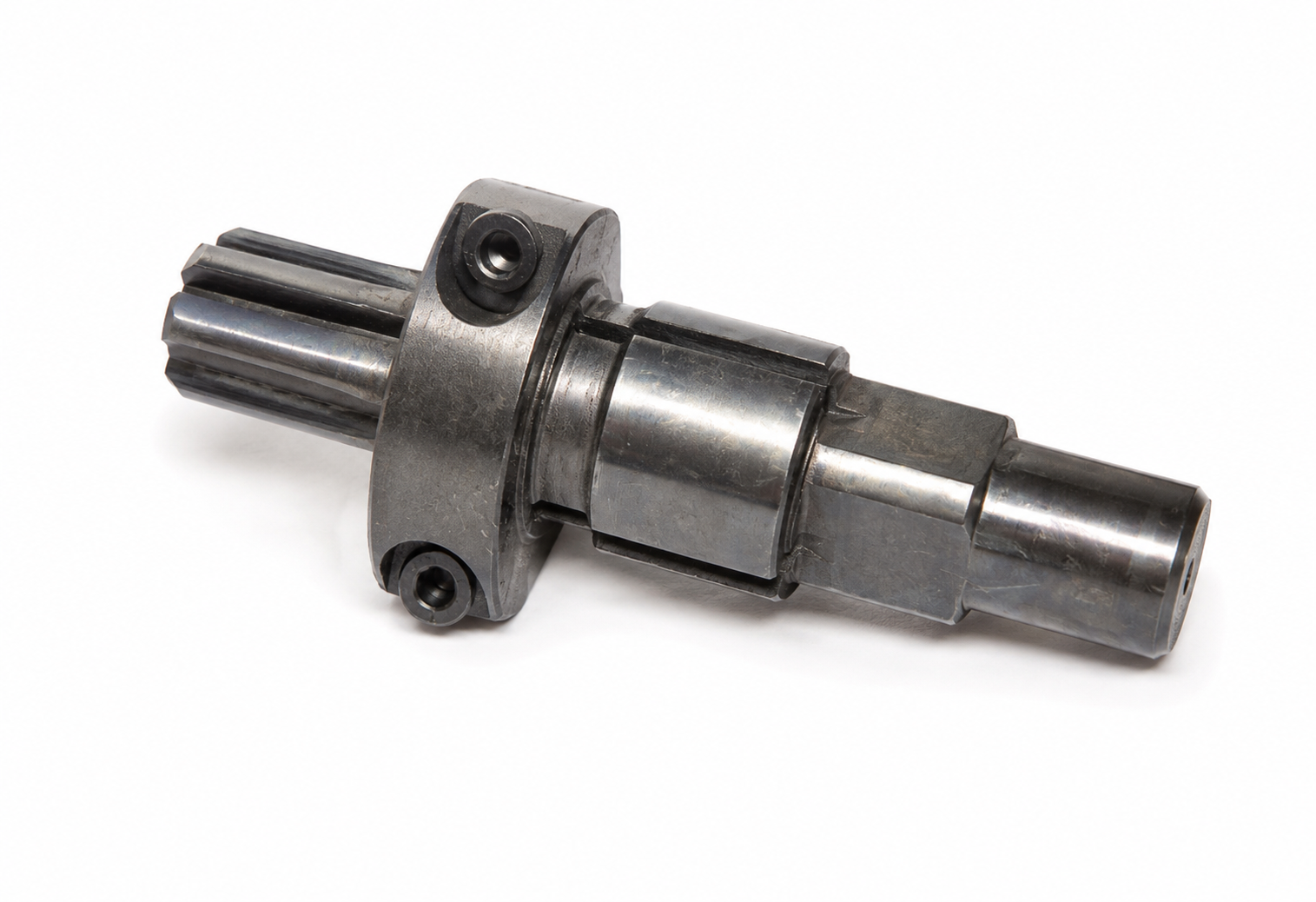

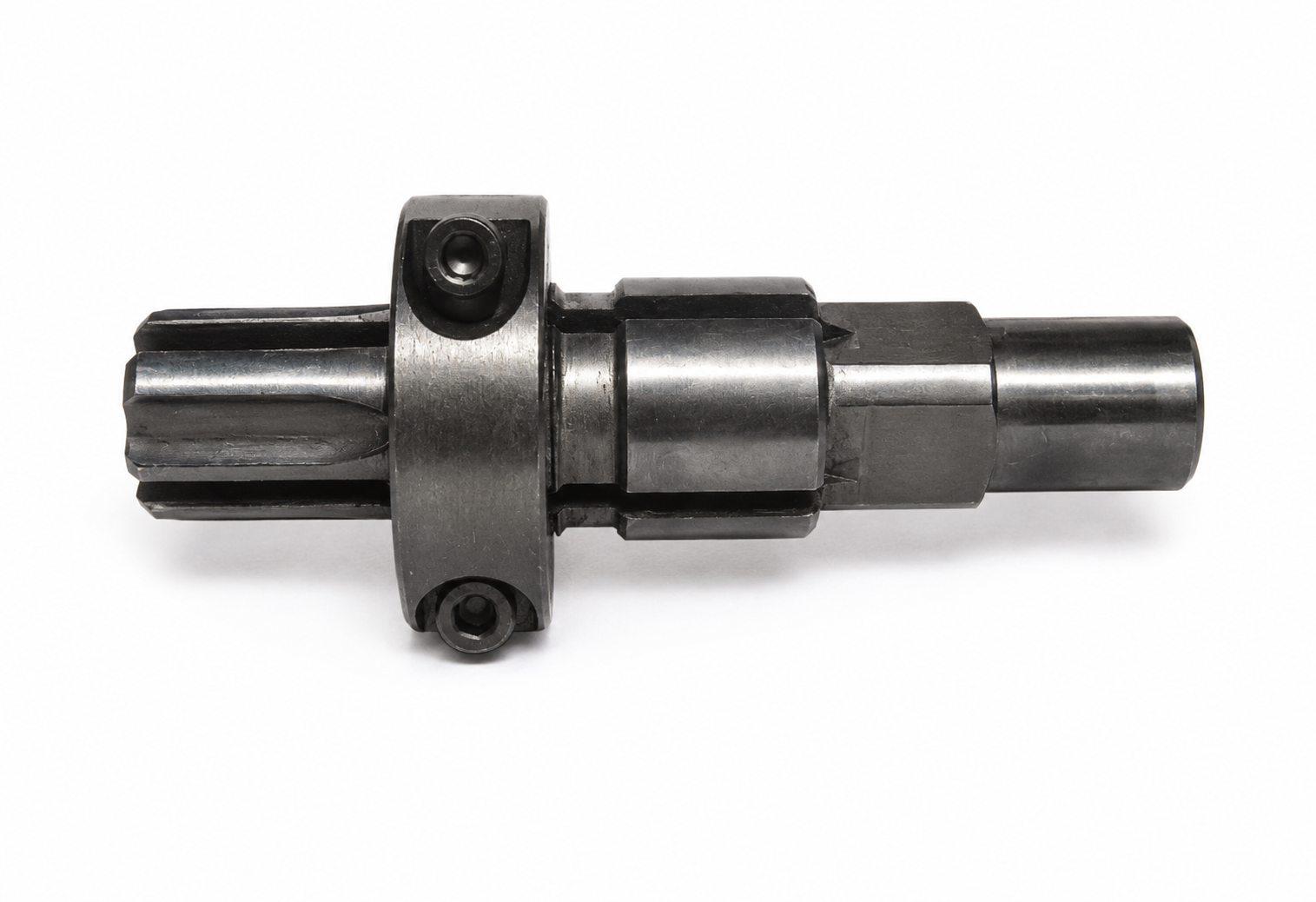

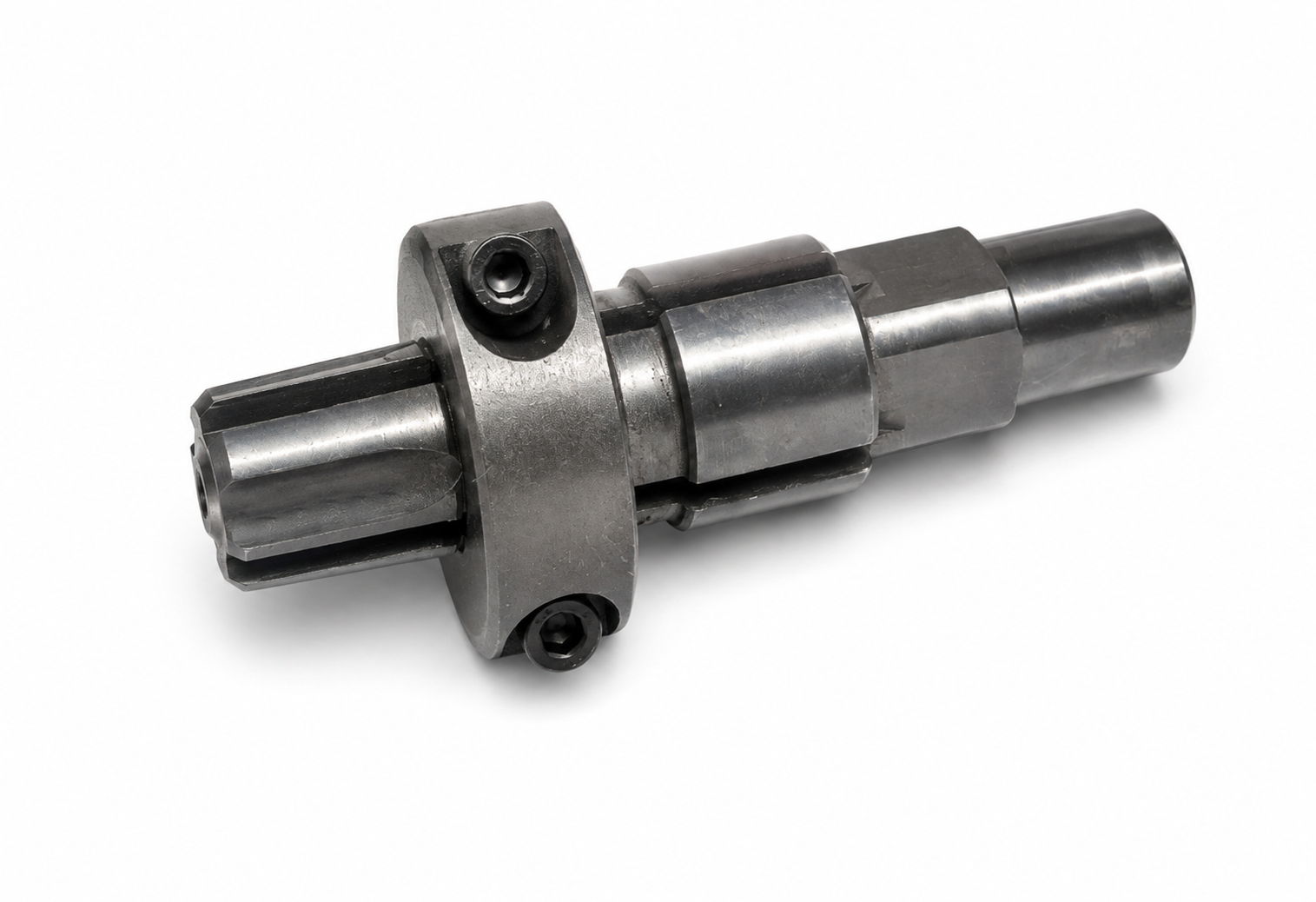

RC.NPT Tap Chaser Body

RC.NPT Tap Chaser Body

Product Overview

RC.NPT Tap Chaser Body is used for machining thread‑sealed conical internal pipe threads. It works together with pipe‑thread insert blades. Complies with GB/T 7306.2‑2000 and ASME B1.20.1‑1983 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ASME B1.20.1‑1983

Product Features

1. Dual‑standard compatibility: Supports both 55° RC and 60° NPT taper pipe internal threads.
2. 1:16 taper design: Matches pipe thread insert blades for stable internal thread cutting.
3. Multi‑flute structure: Flute count from 4‑8, adapts to different thread sizes.
4. Robust tool body: High rigidity for heavy‑duty internal pipe‑thread machining.
