Combined Tap Holder with Cylioder Shank

REGARDING PRODUCTS
It is used for clamping round handle link taps, and chamfering cutters can be installed.
  • Thread Forming Accuracy
    4.5
  • Wear-Resistance & Durability
    3.8
  • Chip Evacuation Performance
    4.2
  • Machining Stability
    3.5
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

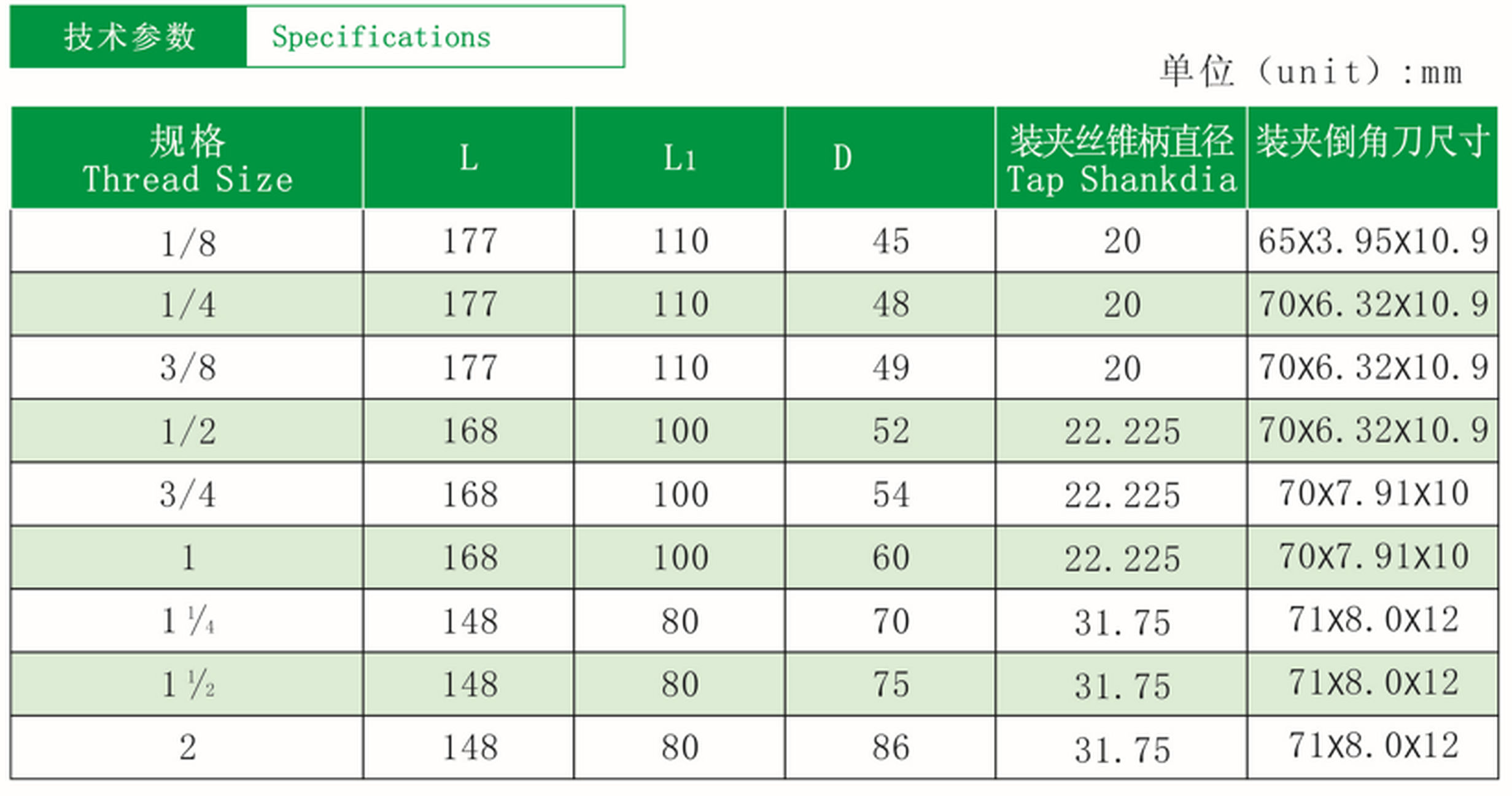

Technical Specifications
  • Tool Type
    Chaser Holder
  • Tool Material
    45#Quality Carbon Structural Steel
  • Coating
    /
  • Standard
    /
  • Thread Size
    1/8-2
  • Workpiece Material
    It is used for clamping round handle link taps, and chamfering cutters can be installed.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

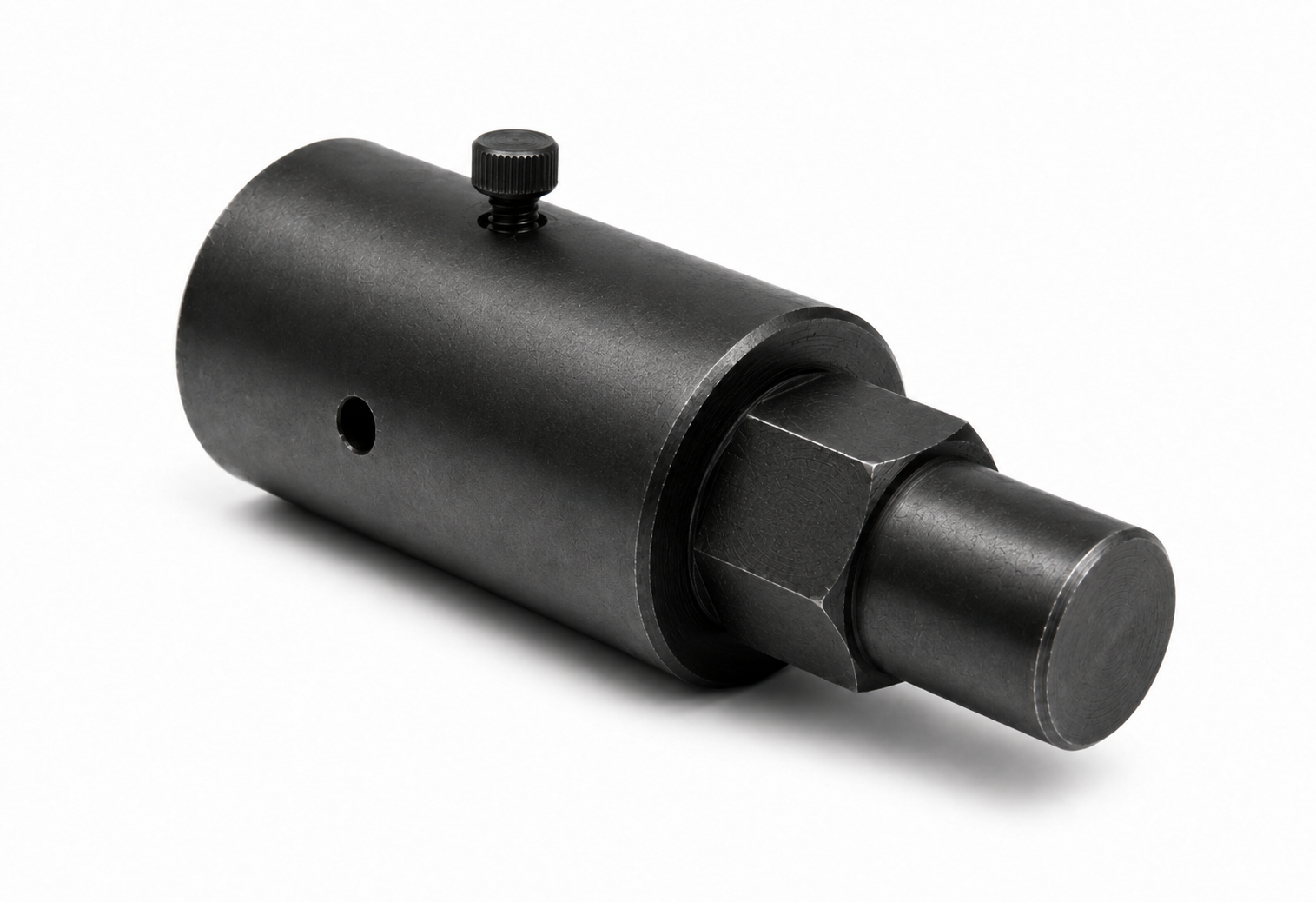

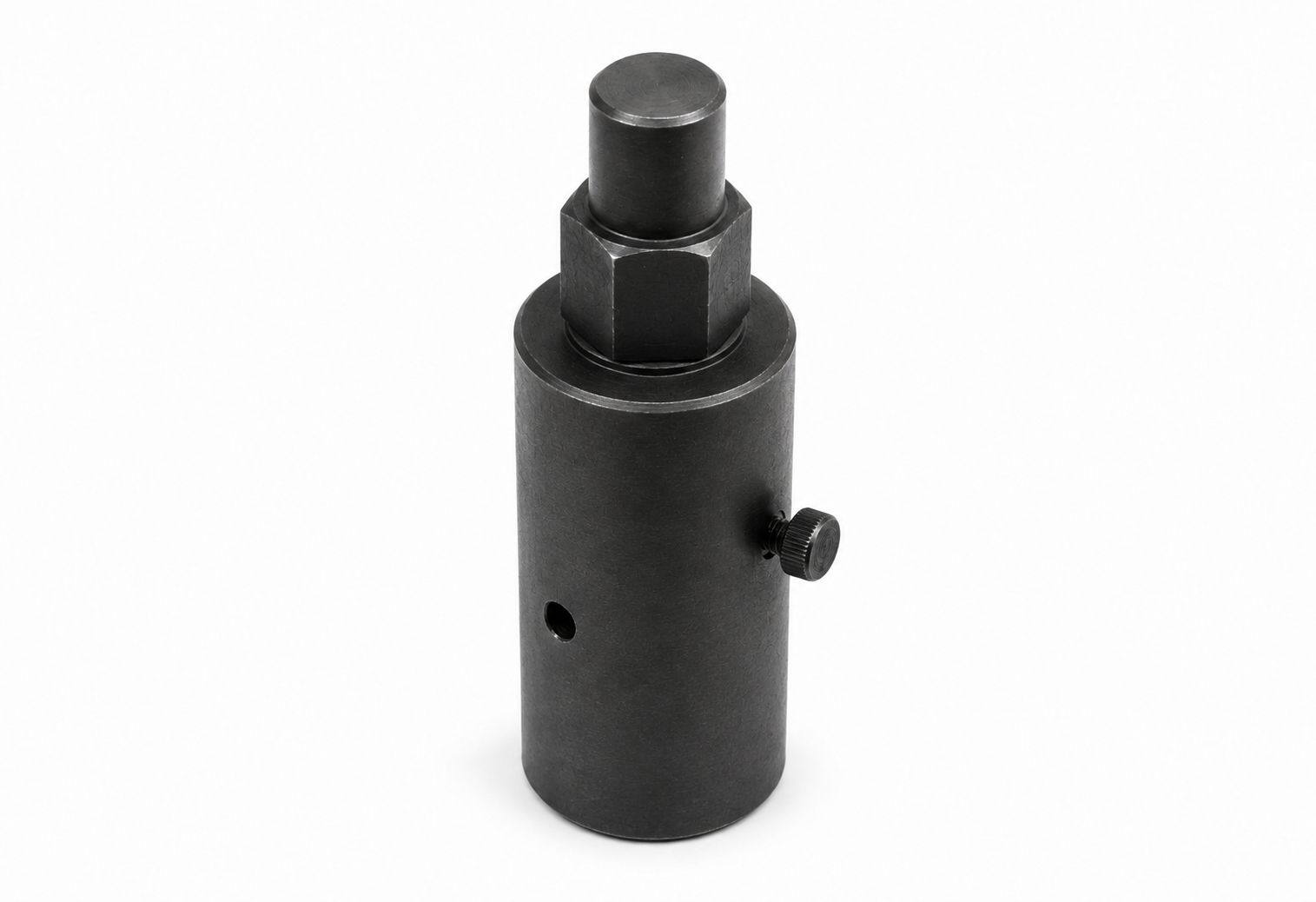

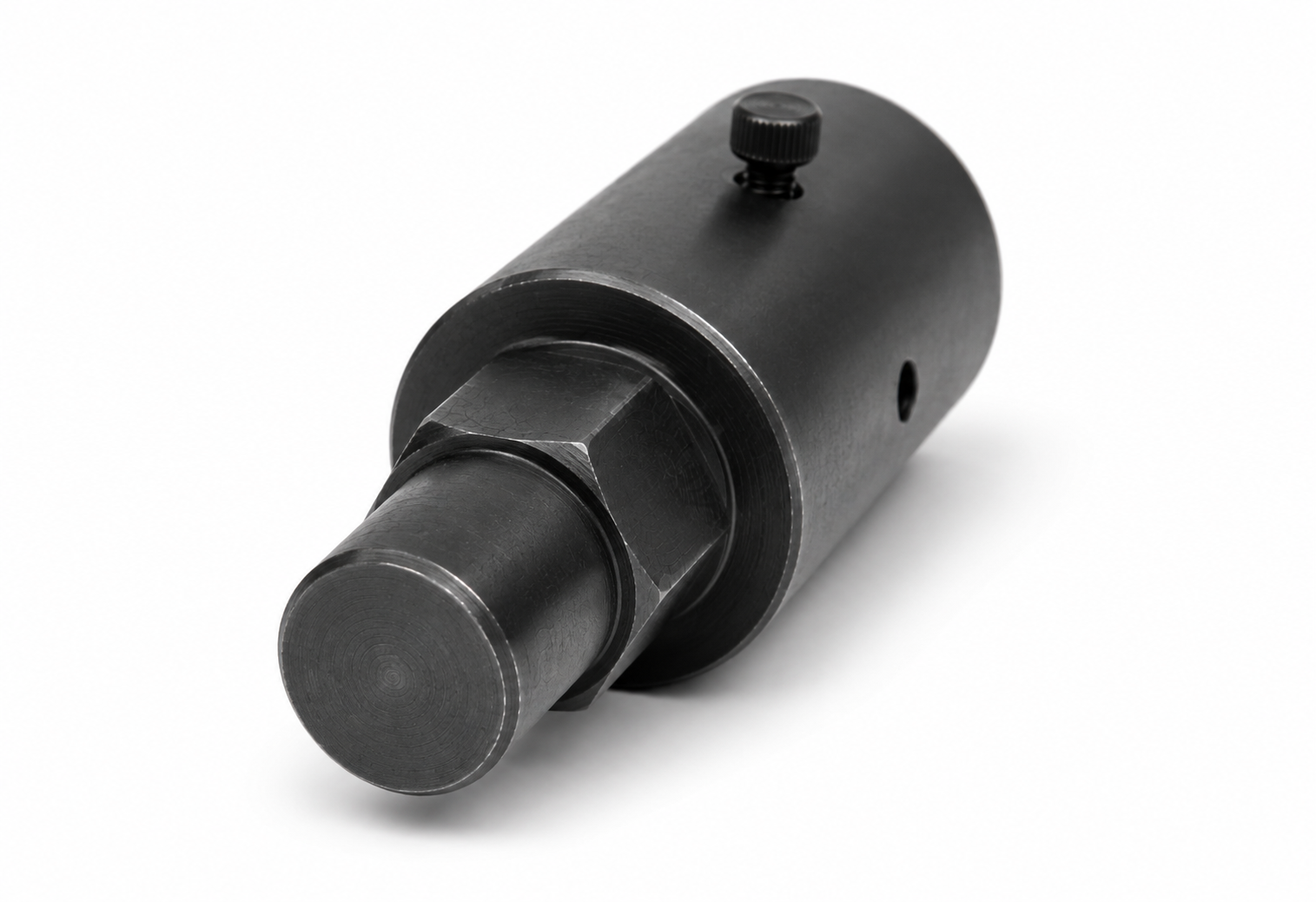

Combined Tap Holder with Cylinder Shank

Product Overview

Combined Tap Holder with Cylinder Shank is designed for clamping round‑shank link taps. It can be fitted with chamfering cutters to realize tapping and chamfering in one machining step.

Product Features

  1. Multi‑purpose design: Clamps round‑shank link taps and supports chamfering cutter installation, completing tapping and end‑face chamfering in single setup.
  2. Stable clamping performance: Reliable torque transmission for lathe pipe‑thread tapping.
  3. Complete size range: Covers 1/8‑2, matching different tap shank diameters and chamfer cutter dimensions.
  4. High‑rigidity tool body: Solid structure, easy tool change to improve processing efficiency.
