60° Taper Pipe Thread Comb Blade

GB/T12716-2002

REGARDING PRODUCTS

It is used for external thread processing of American system external thread seal,and is used together with American system conical management thread comb body.

Thread Forming Accuracy

4.1
Wear-Resistance & Durability

4.6
Chip Evacuation Performance

4.4
Machining Stability

4.2

REGARDING PRODUCTS

Support product research and development improvement Support packaging design Support logo design

Special Note

Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

Technical Specifications

Tool Type

Thread Chaser
Tool Material

HSS High‑Speed Tool Steel W6Mo5Cr4V2
Coating

TiN Titanium Nitride
Standard

GB/T12716-2002 ASME B1.20.1-1983

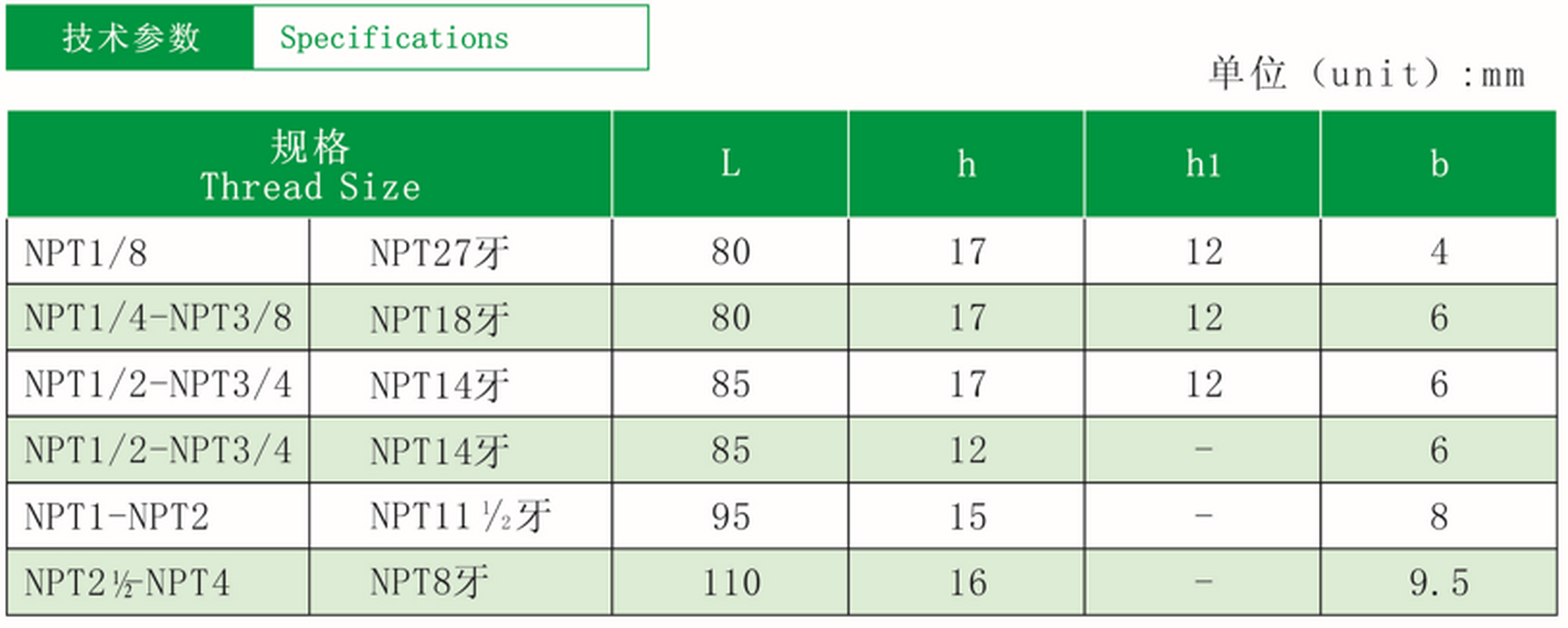

Thread Size

NPT1/8-NPT21/2-NPT4
Workpiece Material

It is used for external thread processing of American system external thread seal,and is used together with American system conical management thread comb body.
Machining Type

Through Hole / Blind Hole
Packaging Options

Paper Box / Custom Packaging

Product Introduction

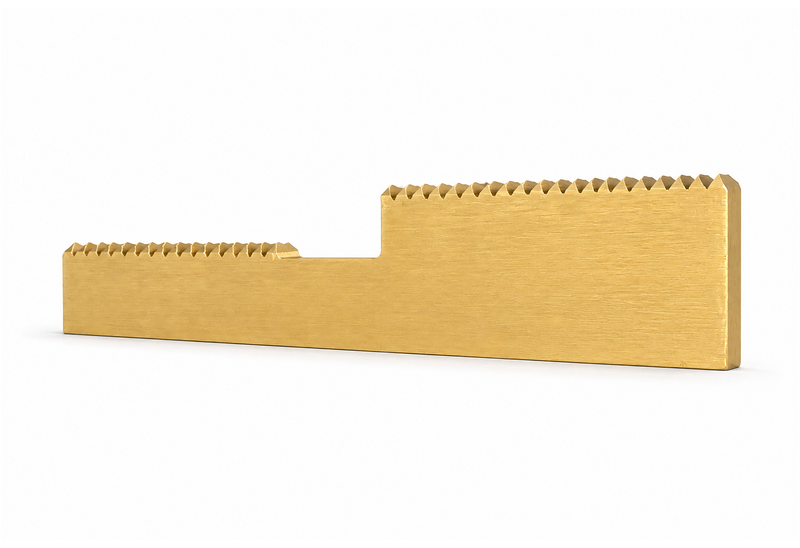

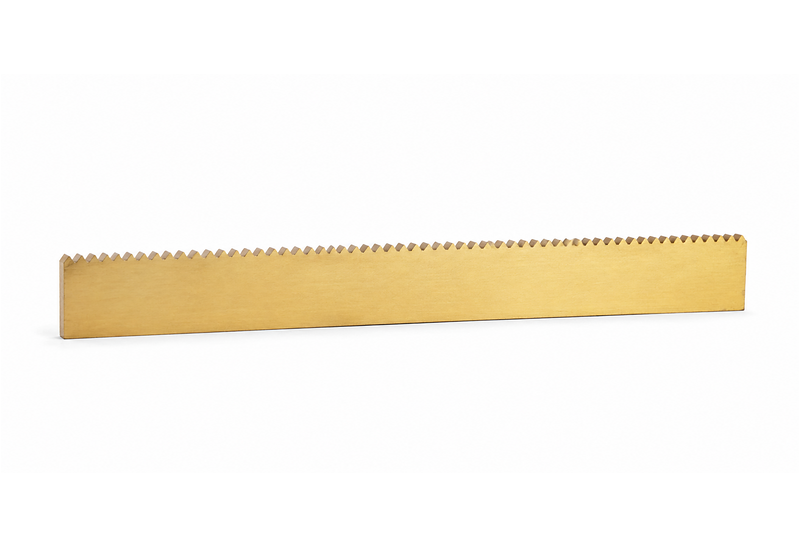

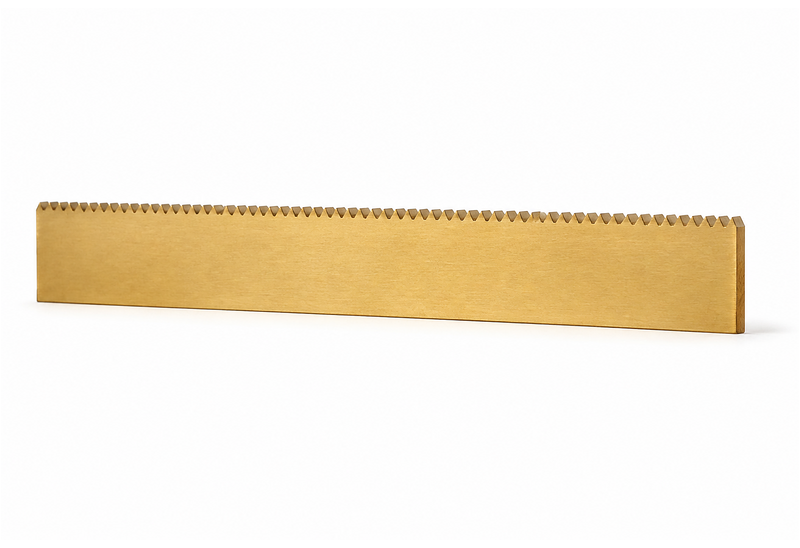

60°Taper Pipe Thread Comb Blade

Product Overview

60°Taper Pipe Thread Comb Blade is applied for machining American‑system sealed external pipe threads. It is used together with American‑system taper pipe thread comb body. Complies with GB/T 12716‑2002 and ASME B1.20.1‑1983 standards.

Compliance Standards

‑ GB/T 12716‑2002
‑ ASME B1.20.1‑1983

Product Features

60° NPT taper pipe thread profile: Special for NPT series American‑standard sealed external pipe thread turning.
Matching American‑system comb body: Designed to work with American‑system taper pipe thread comb body.
Complete NPT size range: Covers NPT1/8‑NPT4, multiple tooth‑form options for different processing requirements.
High‑precision tooth shape: Stable cutting performance for sealed NPT external thread production.
