55°Taper Pipe Thread Comb Blade

GB/T 7306.2-2000
REGARDING PRODUCTS
It is used for processing external threads sealed with threads, and is used together with the taper management thread comb body.
  • Thread Forming Accuracy
    3.8
  • Wear-Resistance & Durability
    4.1
  • Chip Evacuation Performance
    3.9
  • Machining Stability
    4
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

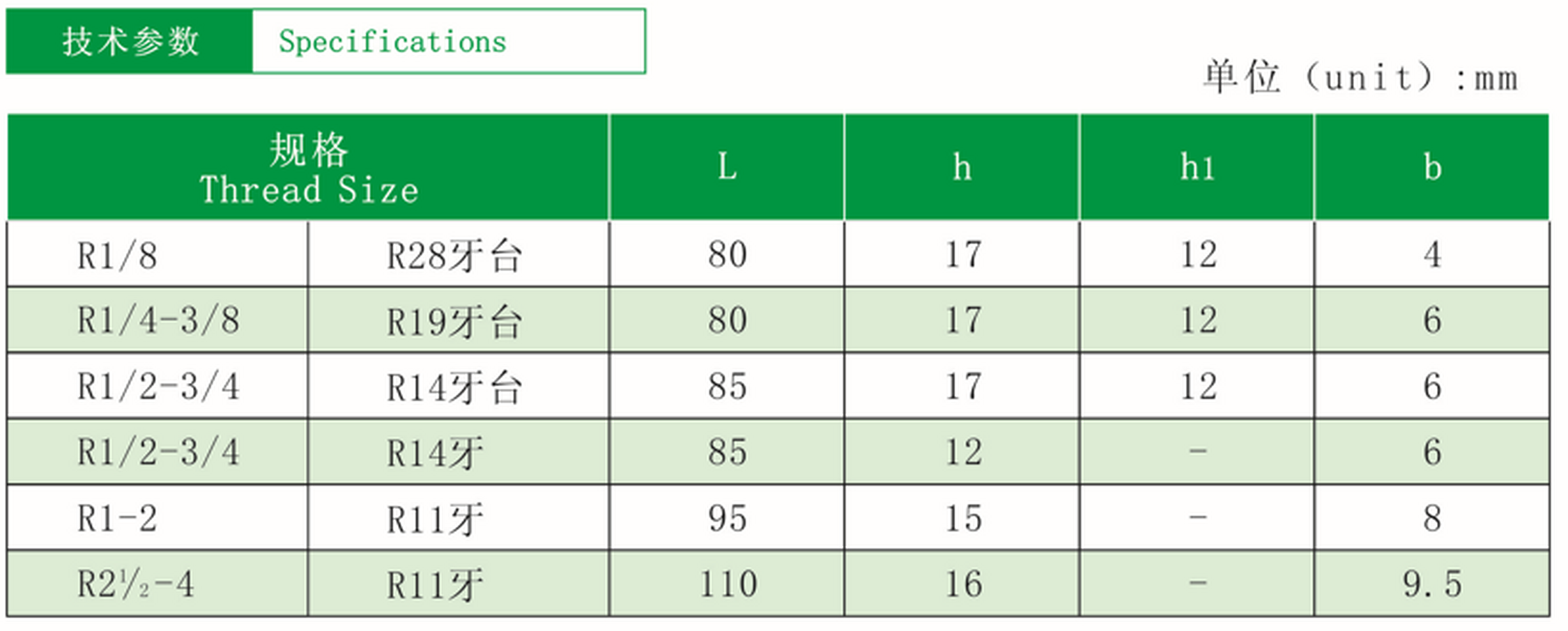

Technical Specifications
  • Tool Type
    Thread Chaser
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    GB/T 7306.2-2000 ISO 7-1:1994
  • Thread Size
    R1/8-R21/2-4
  • Workpiece Material
    It is used for processing external threads sealed with threads, and is used together with the taper management thread comb body.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

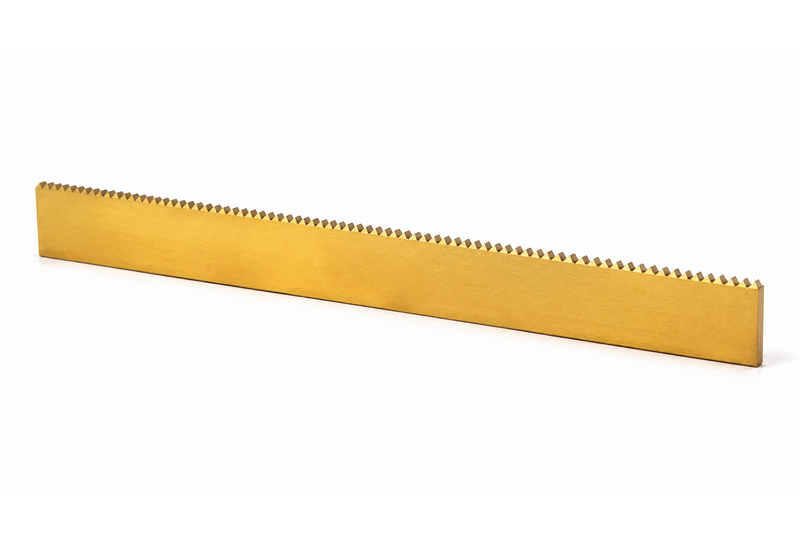

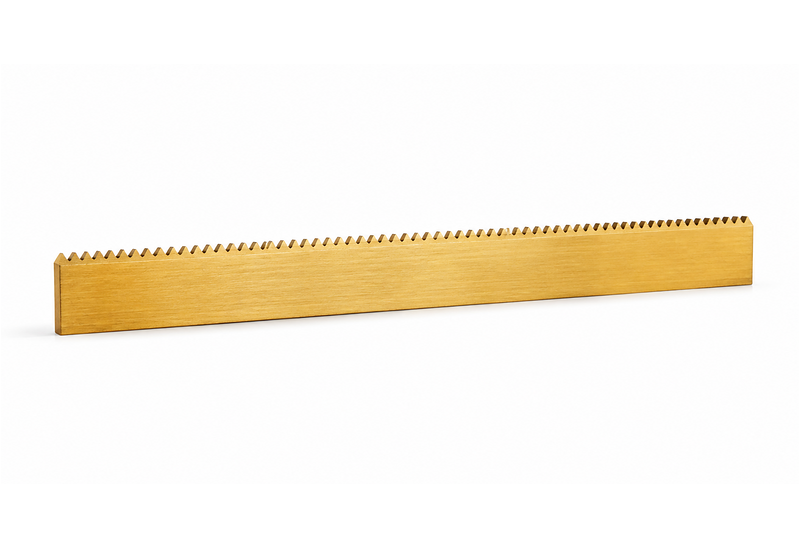

55°Taper Pipe Thread Comb Blade

Product Overview

55°Taper Pipe Thread Comb Blade is used for machining thread‑sealed external threads. It must be used in conjunction with the taper pipe thread comb body. Complies with GB/T 7306.2‑2000 and ISO 7‑1:1994 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ISO 7‑1:1994

Product Features

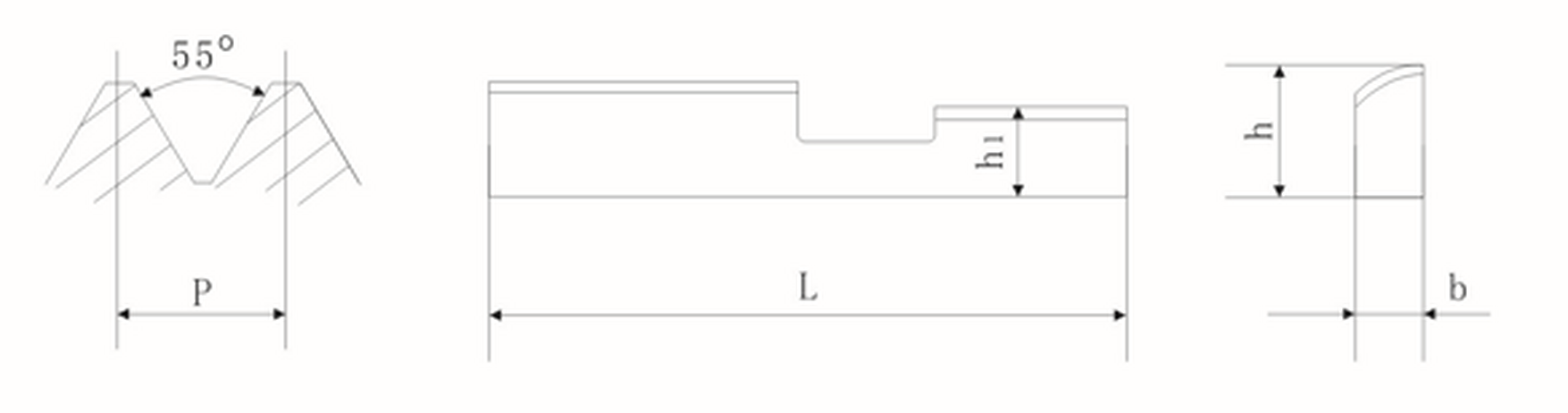

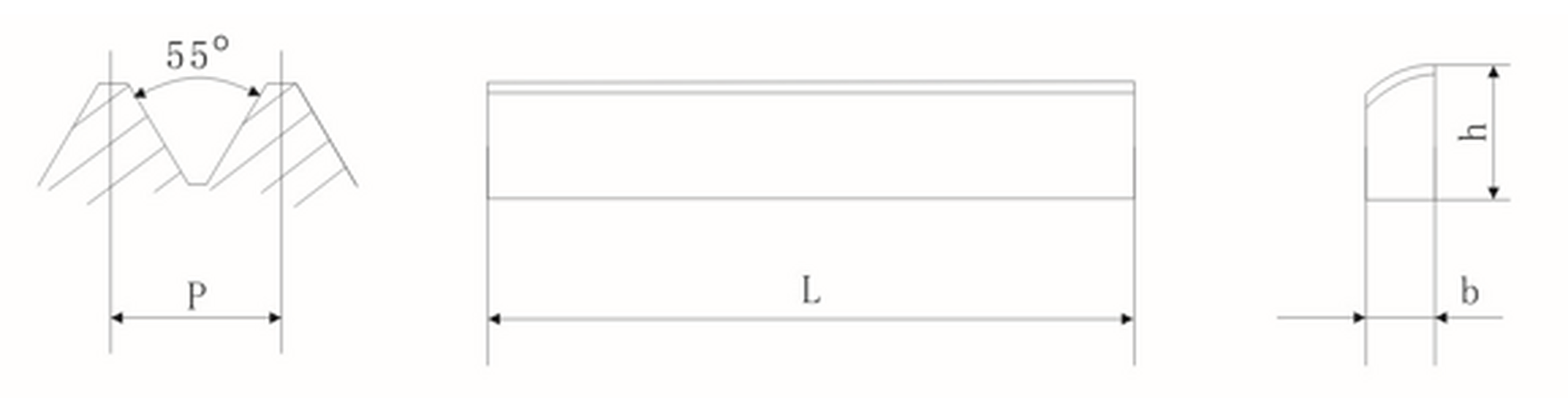

  1. 55° taper pipe thread profile: Designed for turning R‑series sealed external pipe threads.
  2. Dedicated matching: Matches taper pipe thread comb body for pipe thread turning.

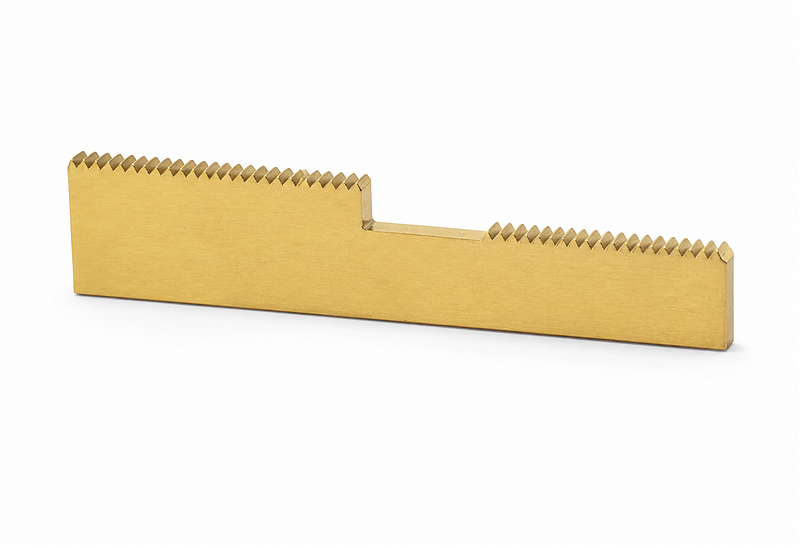

  3. Complete R‑series size range: Covers R1/8‑R2½‑4, with multiple tooth‑platform options for different processing scenarios.
  4. High‑precision tooth form: Stable cutting performance for manufacturing sealed external pipe threads.
