Tap Chaser for Exporting

GB/T 7306.2-2000
REGARDING PRODUCTS
It is used for processing internal threads sealed with threads, and is used together with the inlay body.
  • Thread Forming Accuracy
    3.9
  • Wear-Resistance & Durability
    4.5
  • Chip Evacuation Performance
    4.2
  • Machining Stability
    4.1
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.
Technical Specifications
  • Tool Type
    Thread Chaser
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    GB/T 7306.2-2000 ASME B1.20.1-1983

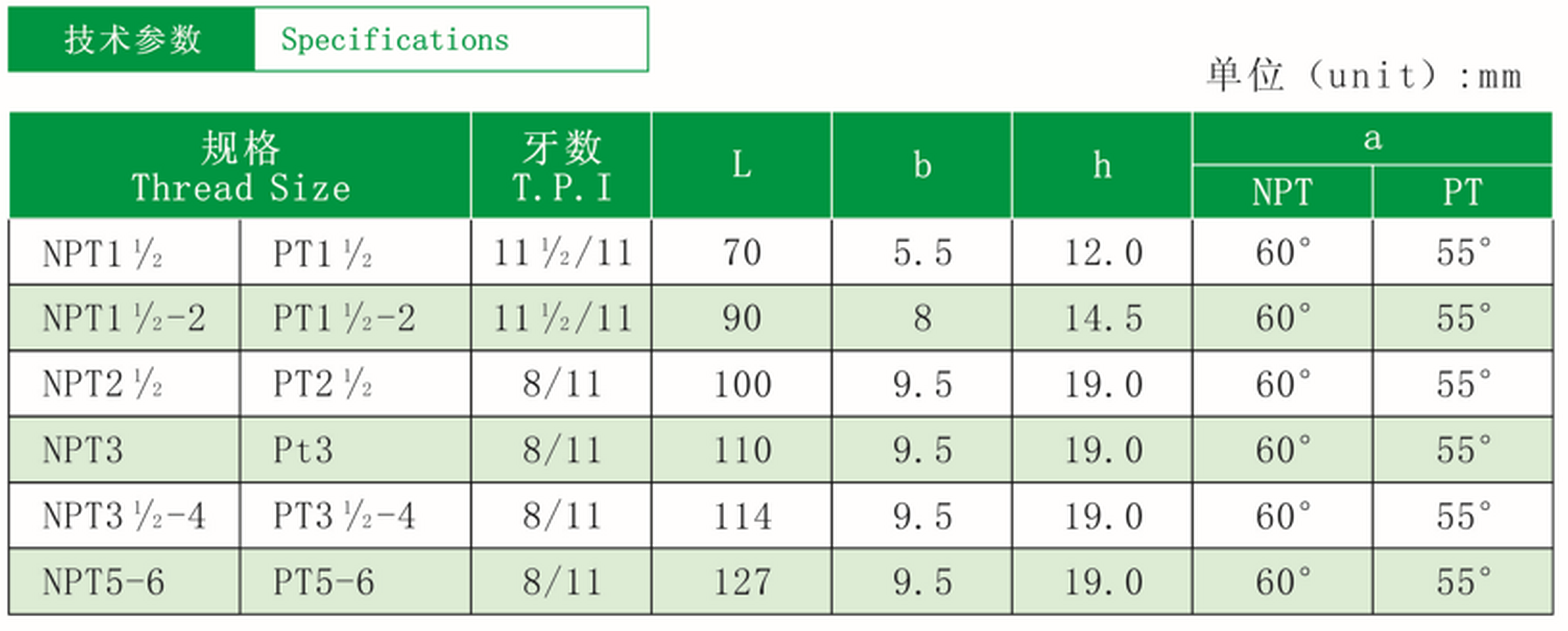

  • Thread Size
    NPT11/2-NPT5-6，PT11/2-PT5-6
  • Workpiece Material
    It is used for processing internal threads sealed with threads, and is used together with the inlay body.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

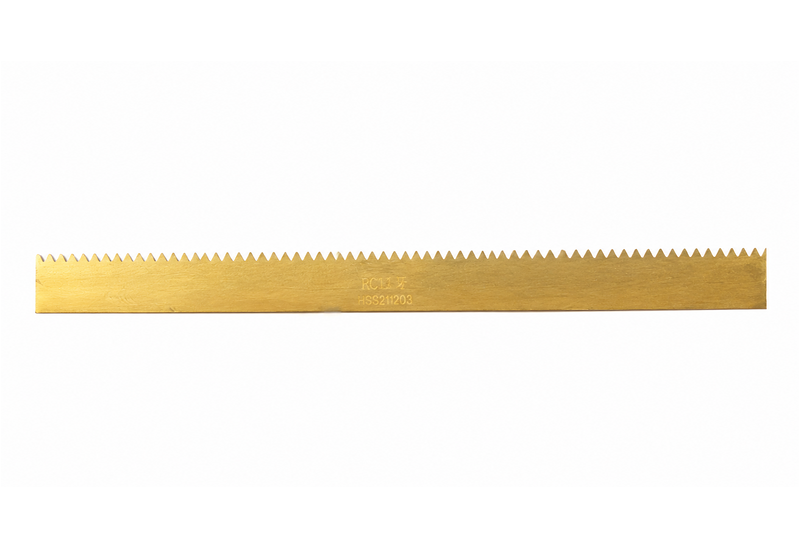

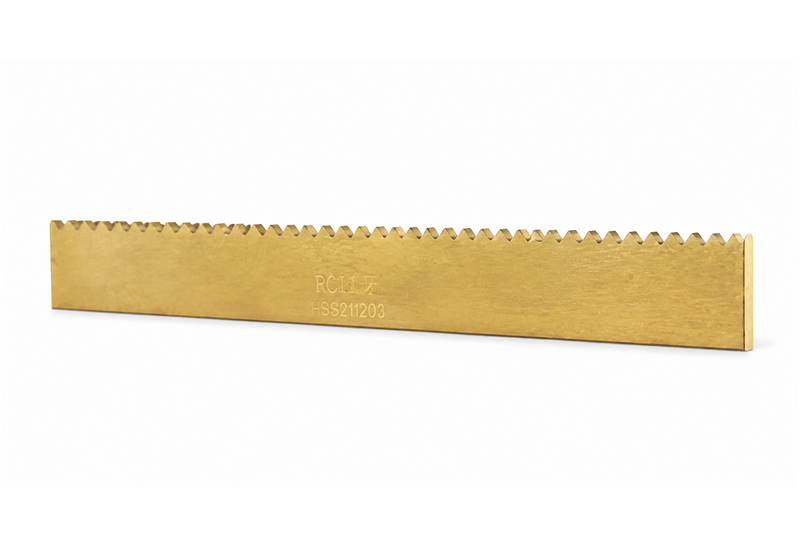

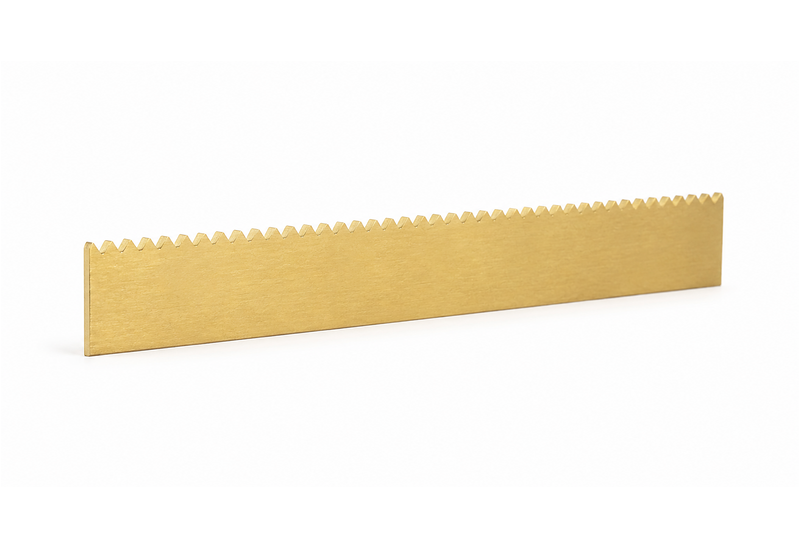

Tap Chaser for Exporting

Product Overview

Tap Chaser for Exporting is designed for machining thread‑sealed internal threads. It is used together with the inlay body. Complies with GB/T 7306.2‑2000 and ASME B1.20.1‑1983 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ASME B1.20.1‑1983

Product Features

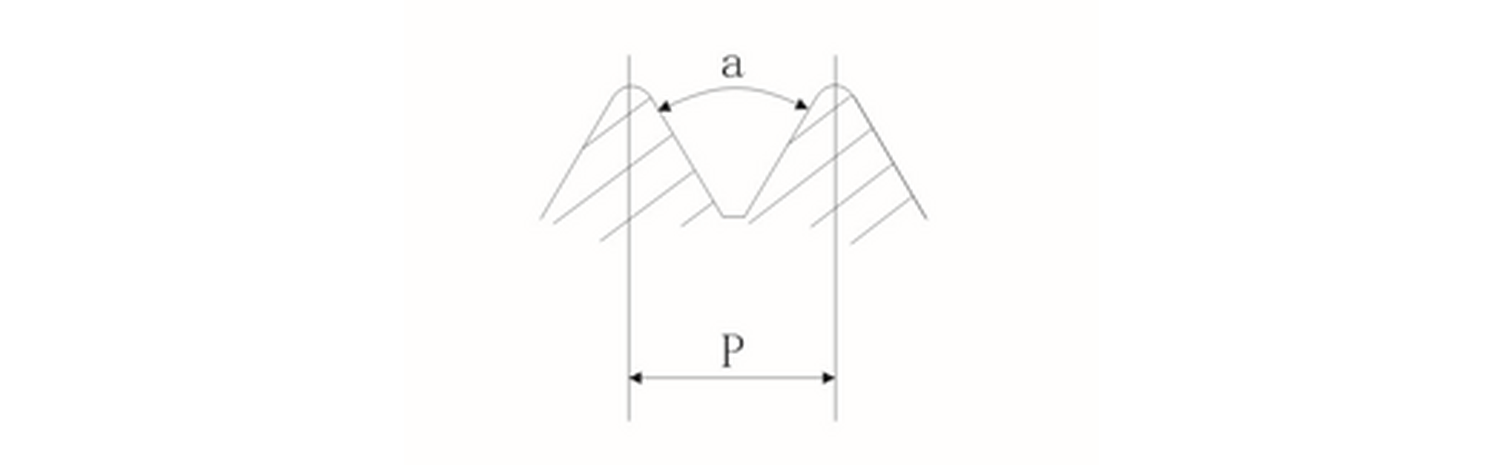

  1. Dual‑standard tooth profile: Supports 55°PT and 60°NPT sealed internal pipe thread processing.
  2. Matching inlay body: Special‑purpose blade for internal pipe thread turning, paired with inlay body.
  3. Wide size coverage: Covers NPT1½‑NPT6 / PT1½‑PT6, meeting different pipe internal thread processing demands.
  4. Precision tooth form: Stable cutting performance for sealed internal pipe thread manufacturing.
