Chamfering Tools for Exporting

GB/T 7306.2-2000
REGARDING PRODUCTS
It is used with round shank pipe thread taps and used for chamfering the end face of pipe fittings.
  • Thread Forming Accuracy
    4.8
  • Wear-Resistance & Durability
    4.7
  • Chip Evacuation Performance
    4.6
  • Machining Stability
    4
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

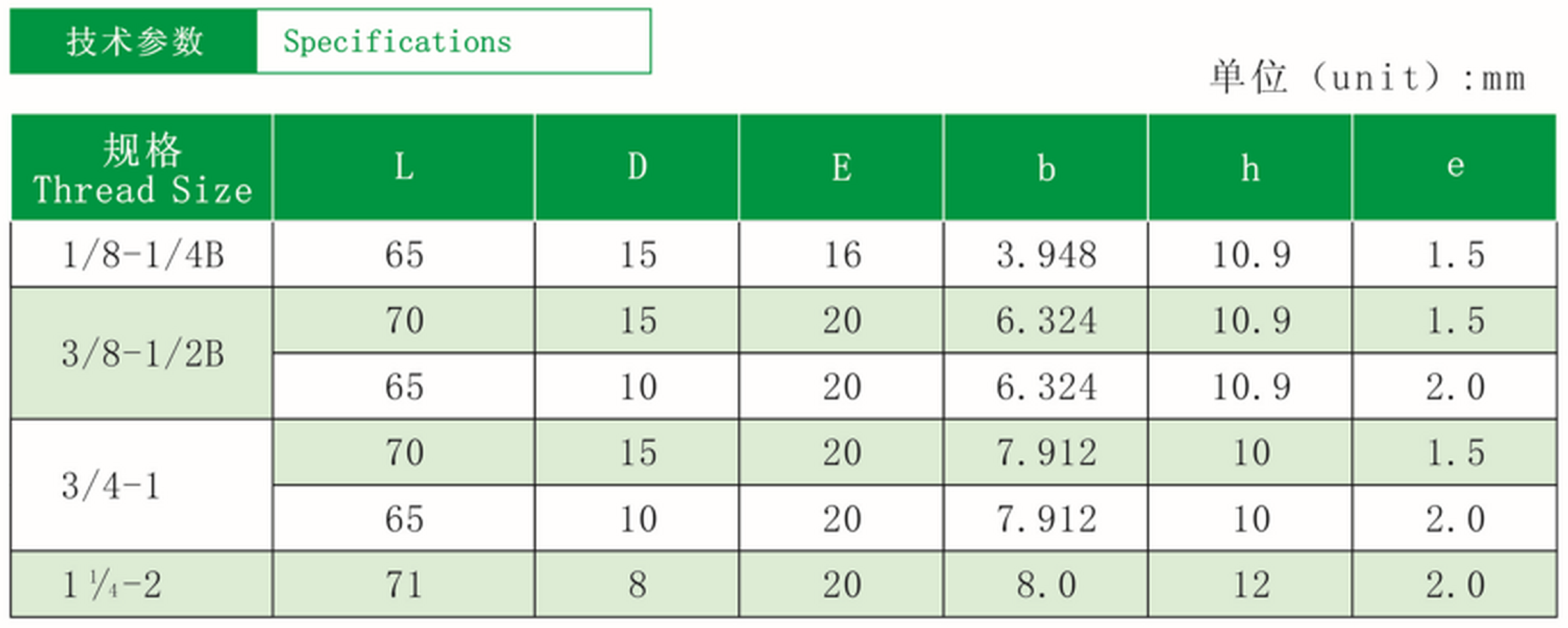

Technical Specifications
  • Tool Type
    Thread Chaser
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    /
  • Standard
    GB/T 7306.2-2000 ASME B1. 20.1-1983
  • Thread Size
    1/8-1/4B-11/4-2
  • Workpiece Material
    It is used with round shank pipe thread taps and used for chamfering the end face of pipe fittings.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

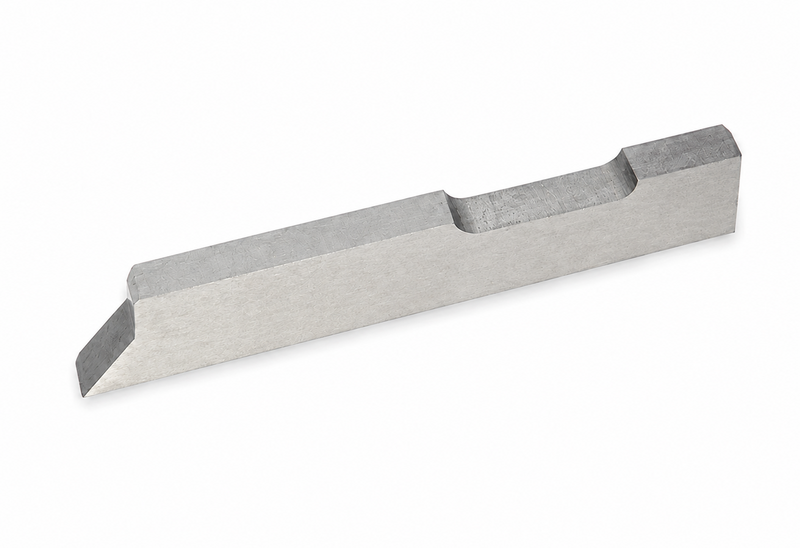

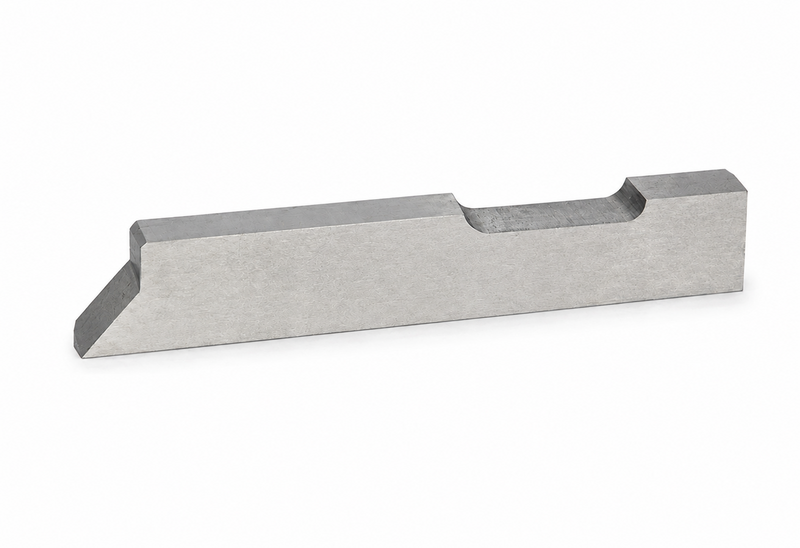

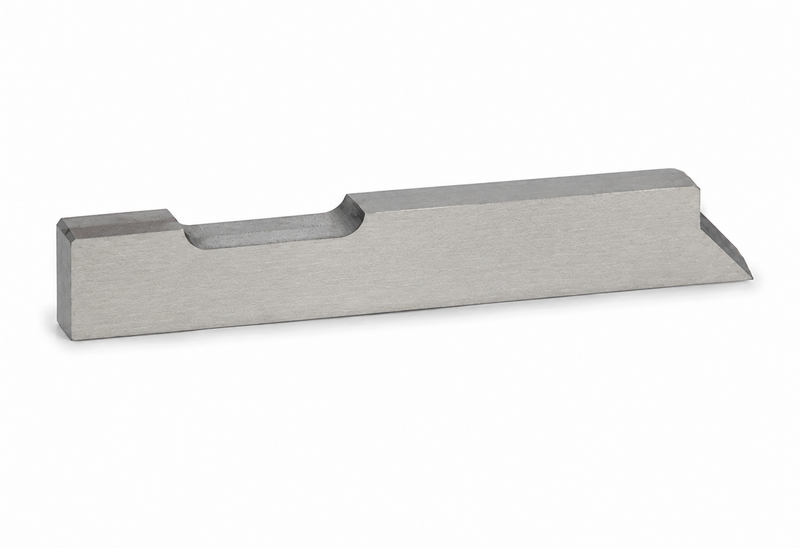

Chamfering Tools for Exporting

Product Overview

Chamfering Tools for Exporting is used together with round‑shank pipe thread taps, for chamfering the end face of pipe fittings. Complies with GB/T 7306.2‑2000 and ASME B1.20.1‑1983 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ASME B1.20.1‑1983

Product Features

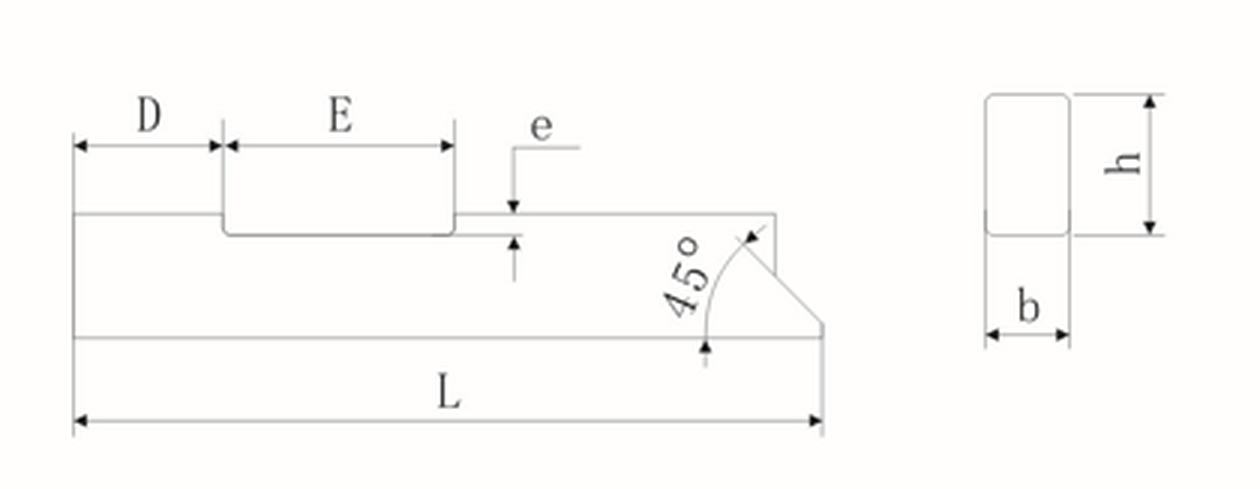

  1. 45° chamfer angle: Specialized for pipe fitting end‑face chamfering before thread processing.
  2. Matching round‑shank pipe thread taps: Used in coordination with round shank pipe thread taps.
  3. Complete size series: Covers 1/8‑1/4B ~ 1¼‑2, suitable for different pipe fitting specifications.
  4. High‑hardness material: Stable cutting performance for pipe end face processing.
