Chamfering Tool

REGARDING PRODUCTS
It is used for screw tap combination joints, chip insert taps and other supporting applications, and is used for pipe fitting thread end face chamfering.
  • Thread Forming Accuracy
    4.8
  • Wear-Resistance & Durability
    4
  • Chip Evacuation Performance
    4.3
  • Machining Stability
    4.7
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

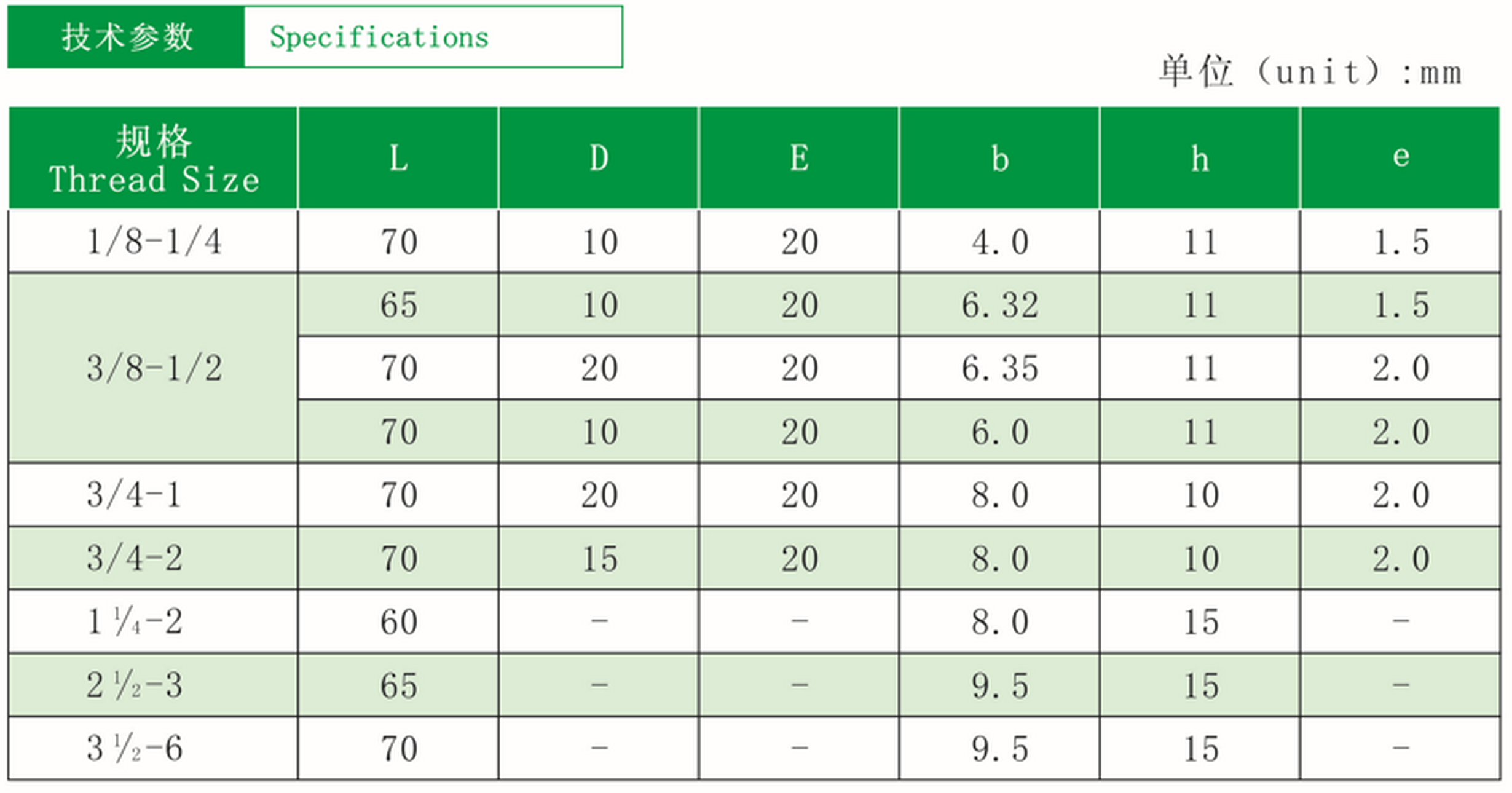

Technical Specifications
  • Tool Type
    Thread Chaser
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    /
  • Standard
    /
  • Thread Size
    1/8-1/4-31/2-6
  • Workpiece Material
    It is used for screw tap combination joints, chip insert taps and other supporting applications, and is used for pipe fitting thread end face chamfering.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

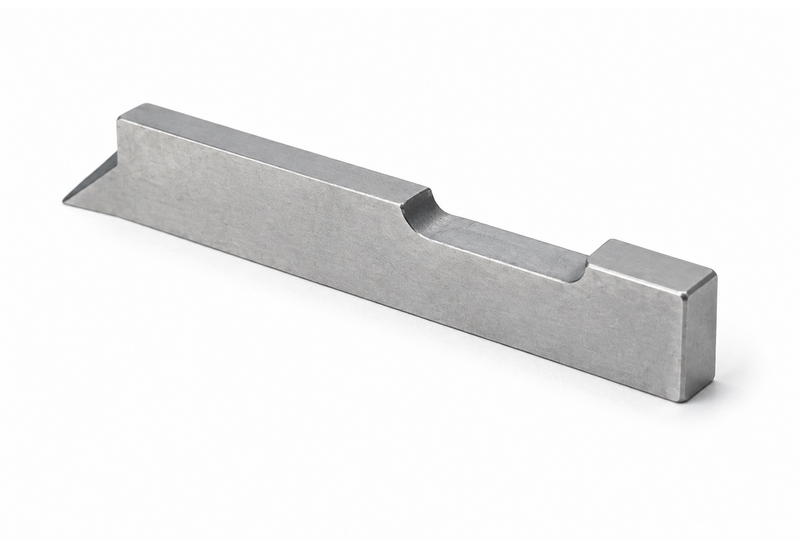

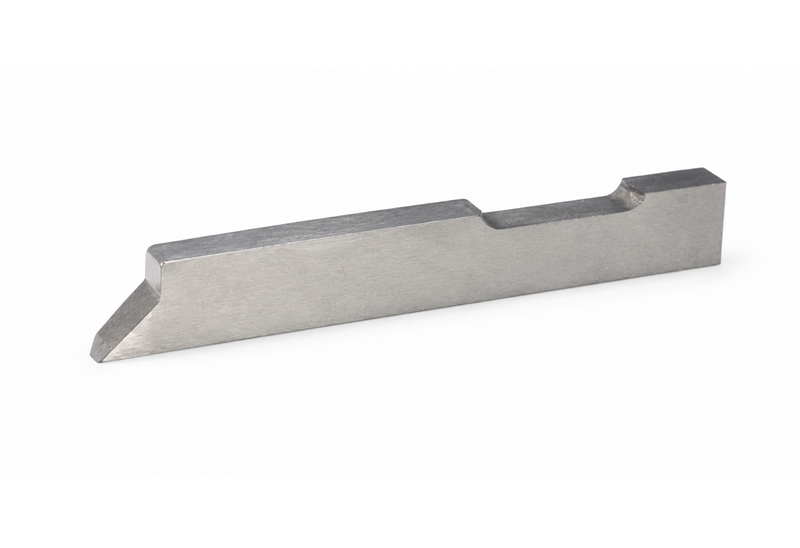

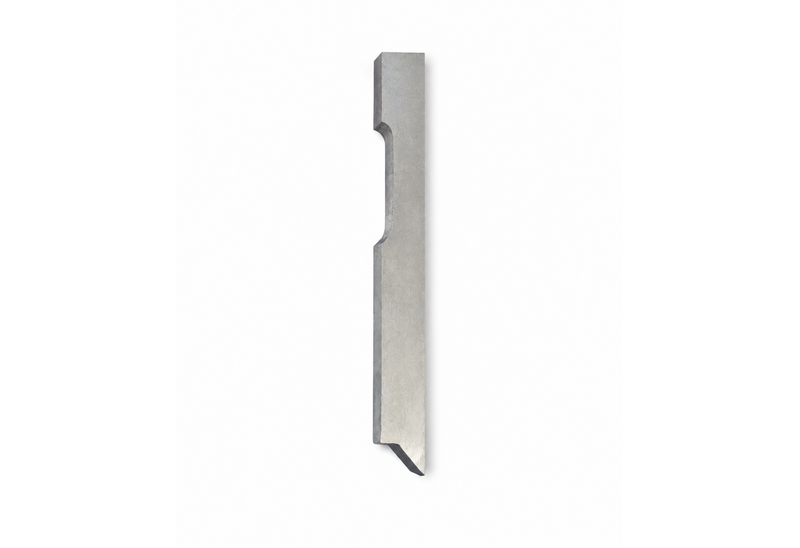

Chamfering Tool

Product Overview

Chamfering Tool is applied for pipe fitting thread end‑face chamfering. It is used together with tap combination joints, chip‑insert taps and other matching accessories. Complies with GB/T 7306.2‑2000 and ASME B1.20.1‑1983 standards.

Compliance Standards

‑ GB/T 7306.2‑2000
‑ ASME B1.20.1‑1983

Product Features

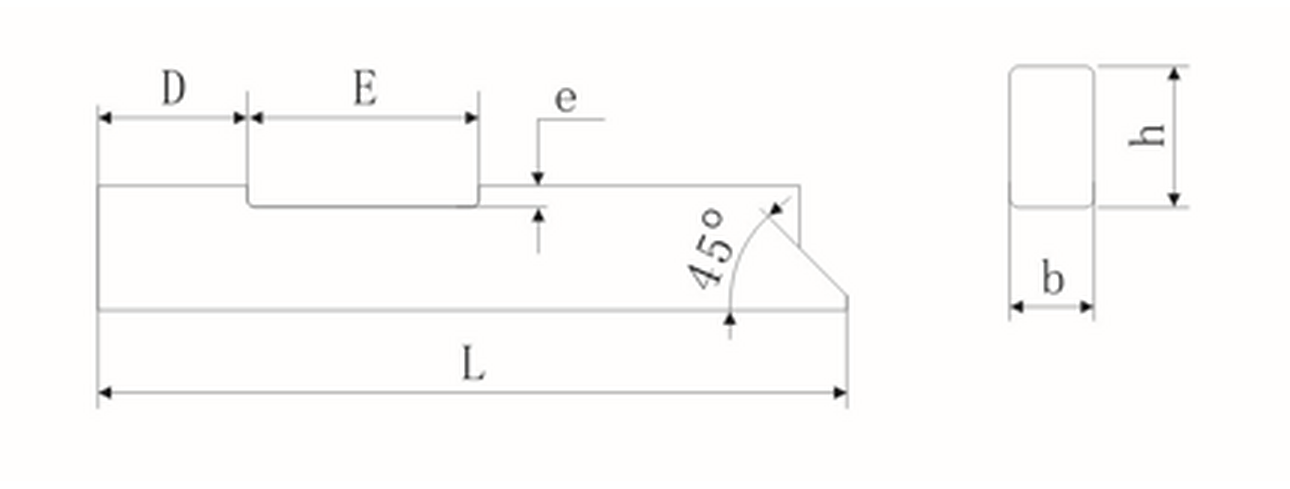

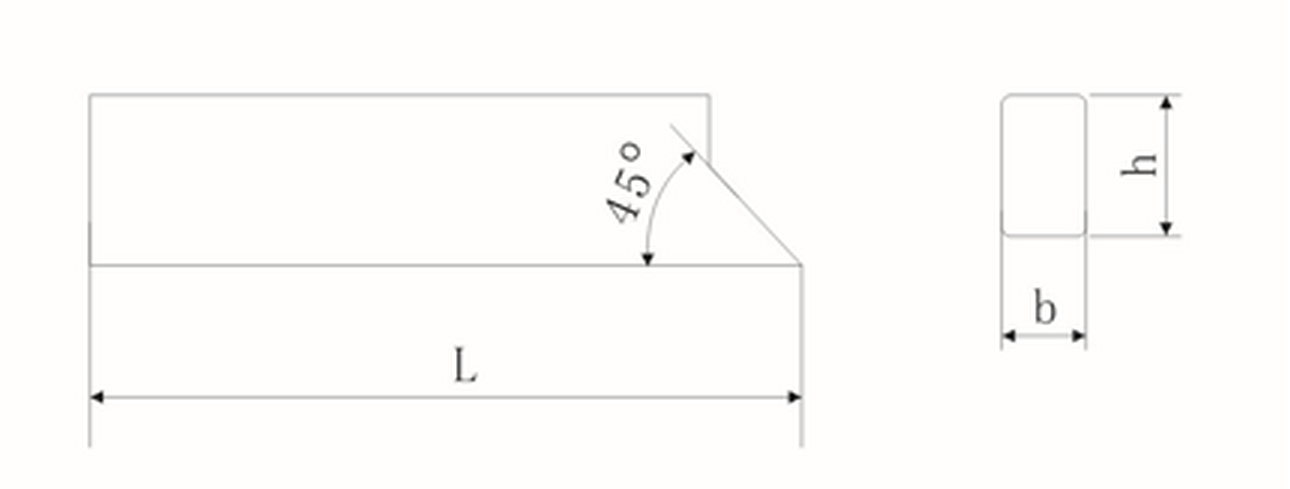

  1. 45° chamfer angle: Specialized for chamfering pipe fitting thread end faces before thread machining.
  2. Wide compatibility: Matches tap combination joints, chip‑insert taps and other supporting components.
  3. Complete size range: Covers 1/8‑1/4 ~ 3½‑6, adapts to various pipe fitting specifications.
  4. High‑hardness material: Stable cutting performance for pipe end‑face processing.

Worry-free Service
  • Formulation & Laboratory Analysis
    Conduct laboratory analysis of material and cutting performance, with professional testing and evaluation for raw materials, heat treatment and cutting parameters.
  • Product Development
    Custom R&D is available according to actual working conditions of customers.
  • Brand Logo Design
    Provide exclusive brand logo design to build your unique brand image for tap products.
  • End‑to‑End Quality Control
    Covering raw materials, processing and finished‑goods inspection to guarantee consistent product quality.
