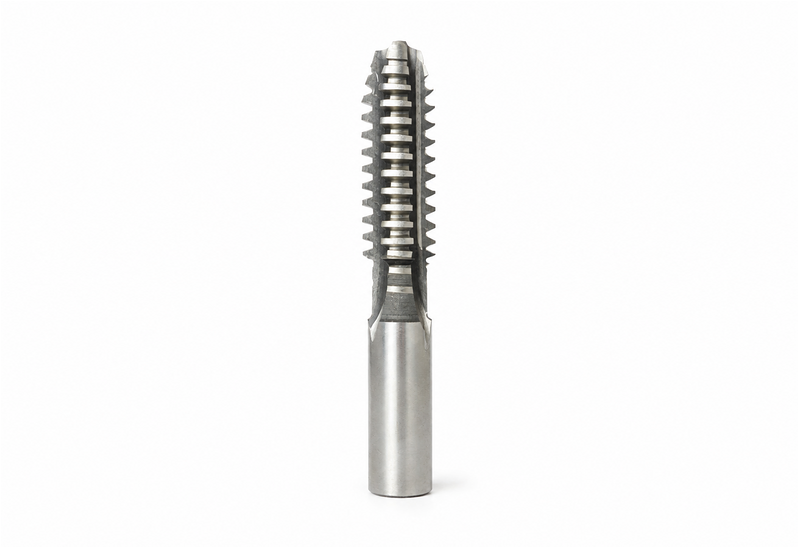

Trapezoidal Thread Tap (Short Series)

GB5796-2005
REGARDING PRODUCTS
It is used for processing trapezoidal internal threads on low-pressure valves, cold water nozzles and other products.Tap is divided into left-hand and right-hand.
  • Thread Forming Accuracy
    4.6
  • Wear-Resistance & Durability
    3.7
  • Chip Evacuation Performance
    4.1
  • Machining Stability
    4.3
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

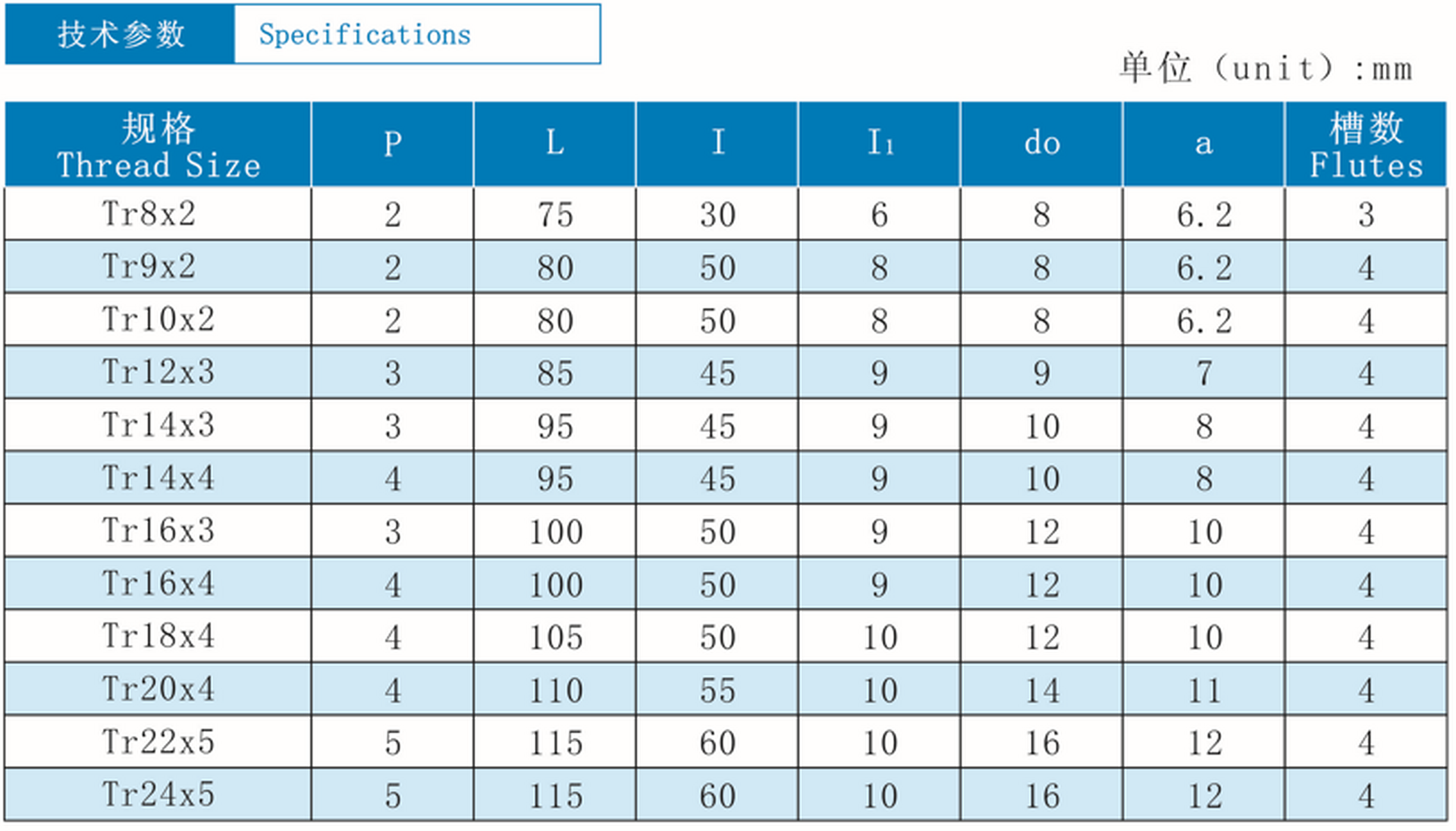

Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    /
  • Standard
    GB5796-2005
  • Thread Size
    Tr8x2-Tr24x5
  • Workpiece Material
    It is used for processing trapezoidal internal threads on low-pressure valves, cold water nozzles and other products.Tap is divided into left-hand and right-hand.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

Trapezoidal Thread Tap (Short Series)

Product Overview

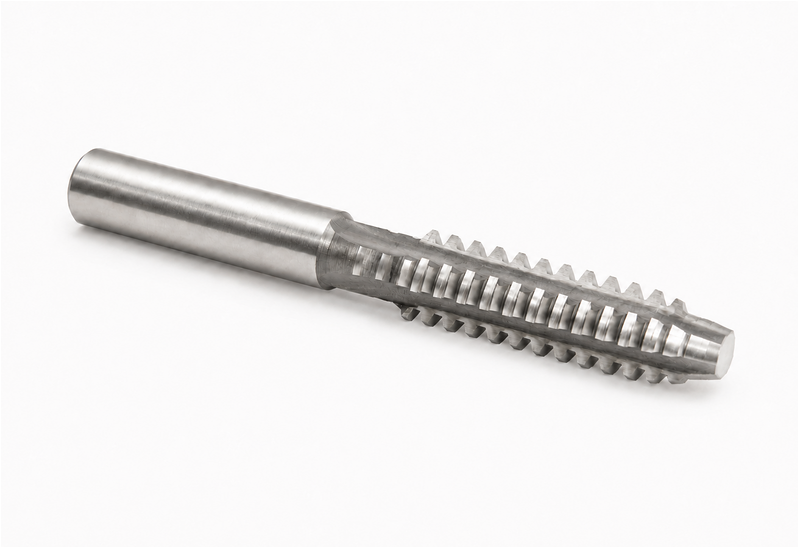

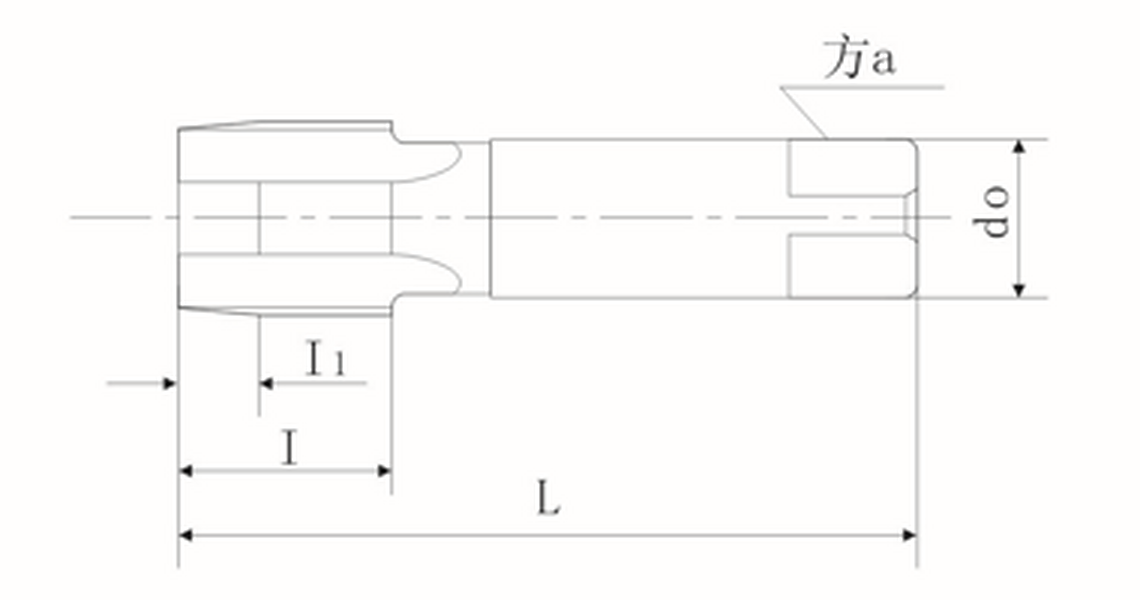

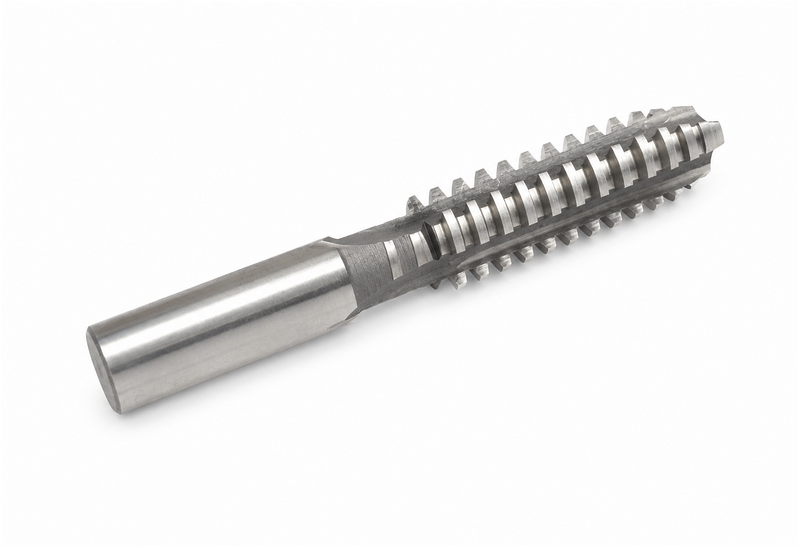

Trapezoidal Thread Tap (Short Series) complies with GB 5796‑2005 standard. Square‑shank tap, for machining trapezoidal internal threads on low‑pressure valves, cold‑water nozzles and other products. Available in left‑hand and right‑hand versions.

Compliance Standards

‑ GB 5796‑2005

Product Features

1.Square shank structure: Supports both manual and machine tapping.

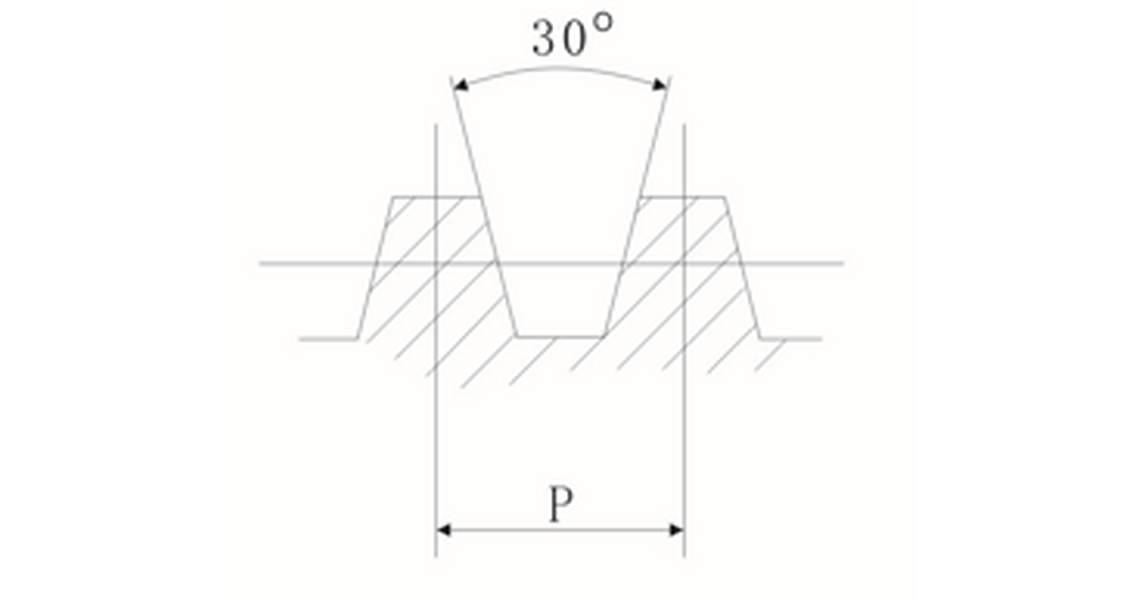

2.30° trapezoidal thread profile: Meets GB 5796‑2005 trapezoidal thread standard.

3.3‑flute / 4‑flute design: Good chip evacuation for trapezoidal thread cutting.

4.Left‑hand & right‑hand options: Can meet different rotation‑direction processing requirements.

5.Complete short‑series sizes: Covers Tr8×2‑Tr24×5, suitable for low‑pressure valves, cold‑water nozzles and related parts.
