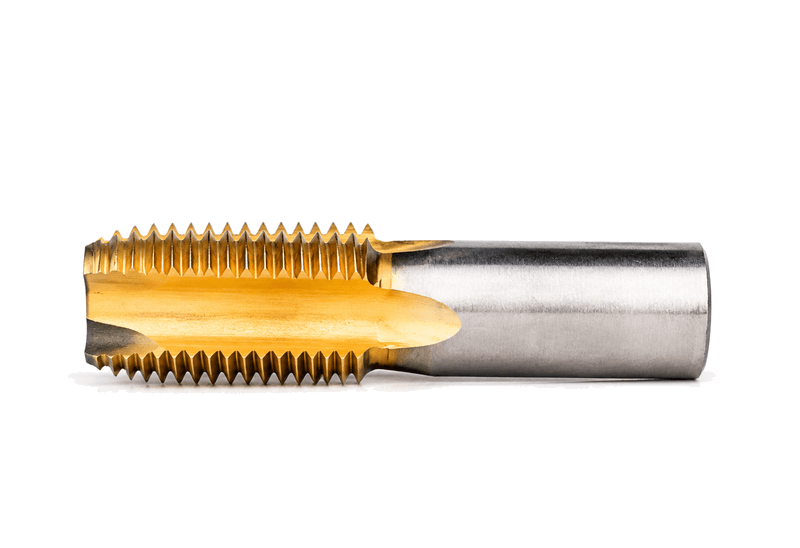

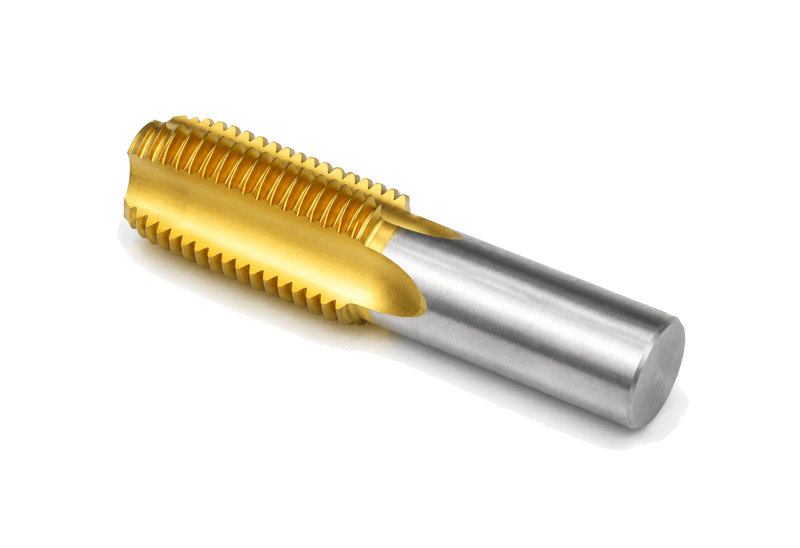

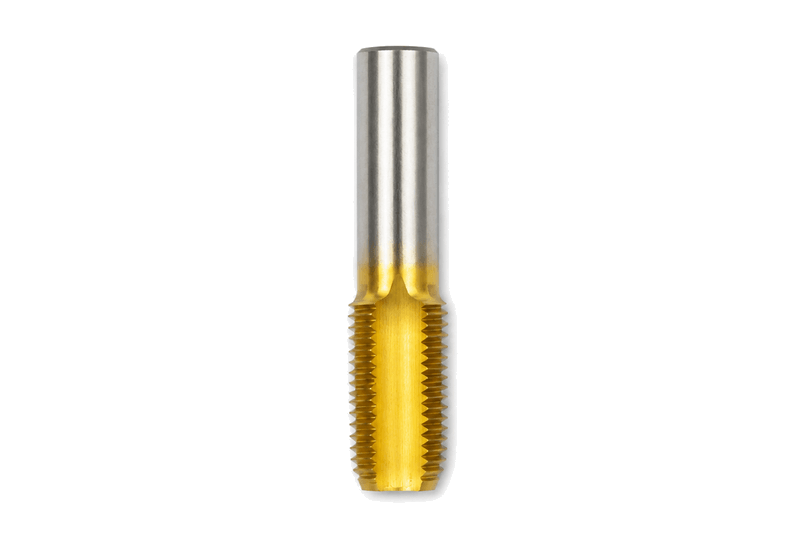

PS Straight Pipe Thread Taps with Key‑Slot

Product Overview

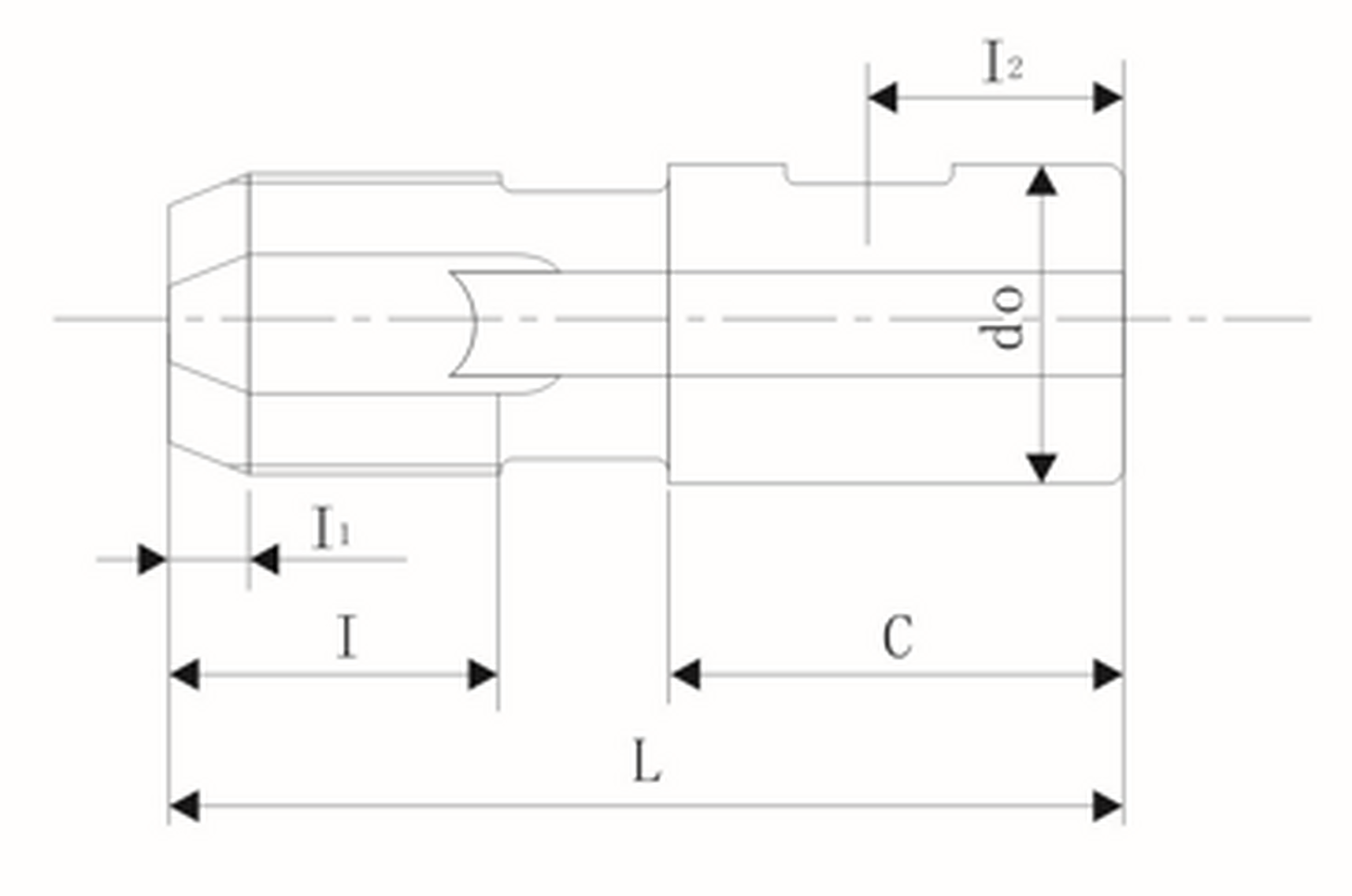

PS straight pipe thread taps with key‑slot adopt cylindrical shank with key‑slot structure. It is designed for machining internal threads of thread‑sealed pipe connectors. The key‑slot shank ensures stable torque transmission when working with special machine tool holders, avoiding slipping during high‑torque tapping operations.

Product Features

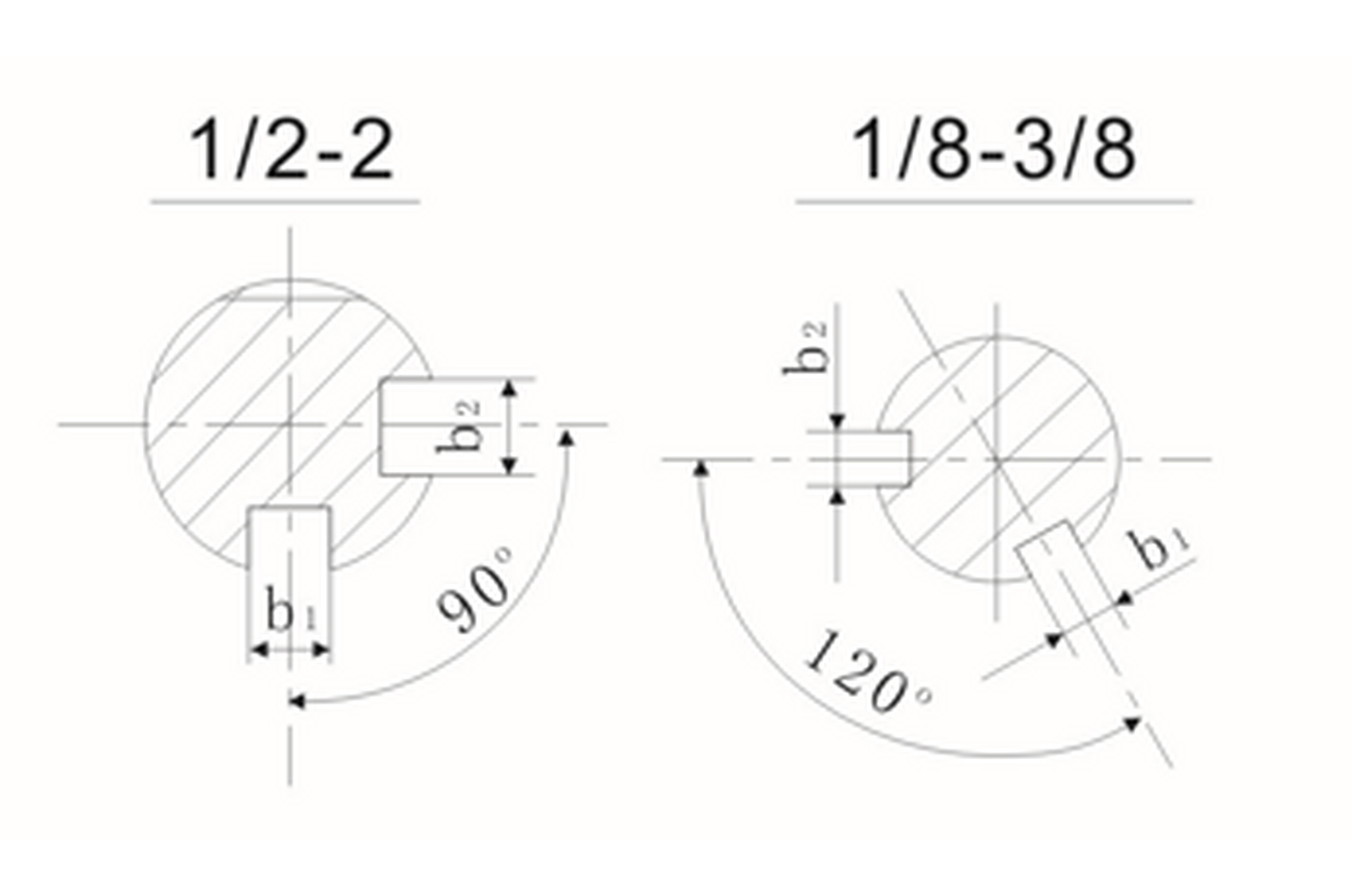

1. Cylindrical shank with key‑slot: Reliable torque transmission, anti‑slip performance, perfectly matched with dedicated machine tool holders for stable mass production.

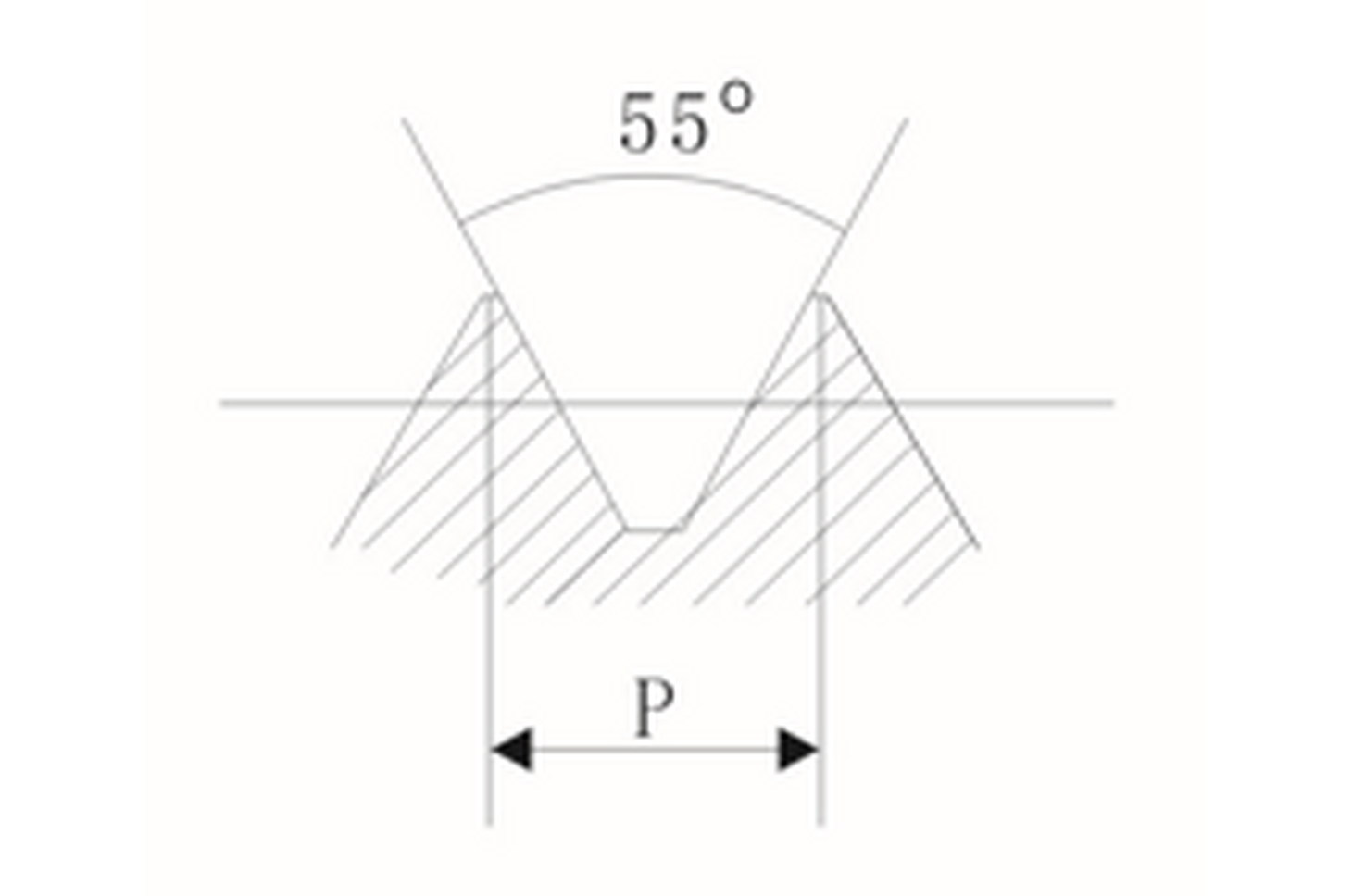

2. 55° thread profile: For PS parallel straight pipe thread, stable thread forming for pipe joint sealing requirements.
3. Multi‑flute options: 3‑flute,4‑flute,6‑flute designs, smooth chip removal for pipe fitting production.

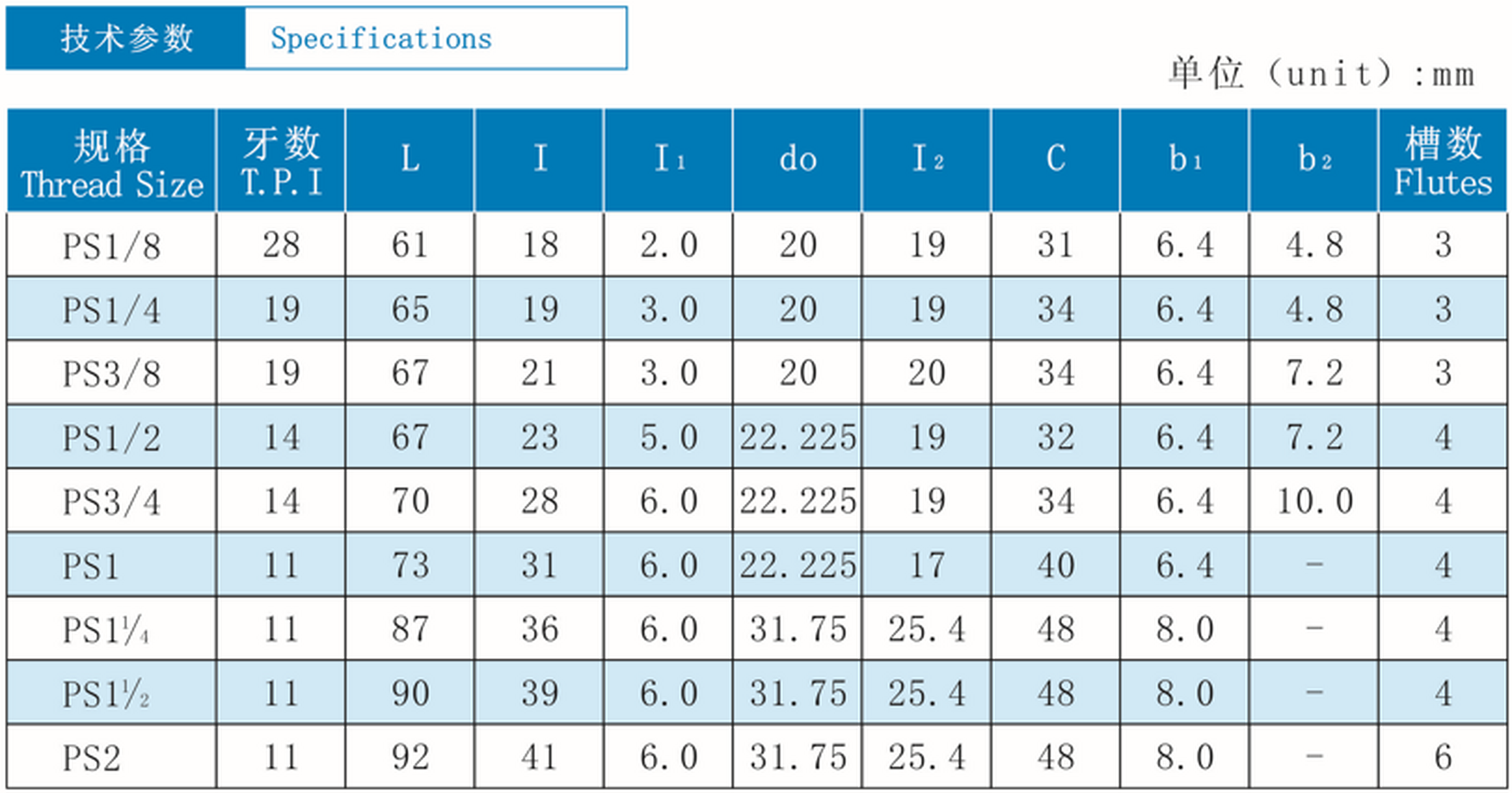

4. Complete size coverage: PS1/8 ~ PS2, covers mainstream straight pipe thread specifications.
