Radiator Tap

ZB J41013-09
REGARDING PRODUCTS
It is used for machining left and right interna threads on radiators
  • Thread Forming Accuracy
    4.3
  • Wear-Resistance & Durability
    4.1
  • Chip Evacuation Performance
    4.3
  • Machining Stability
    4.5
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.
Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    ZB J41013-09
  • Thread Size
    G1-G11/2-LH
  • Workpiece Material
    It is used for machining left and right interna threads on radiators
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

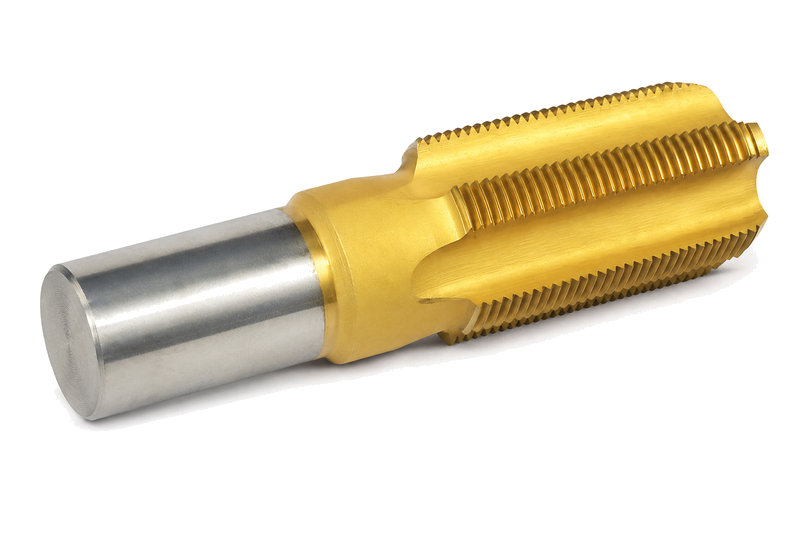

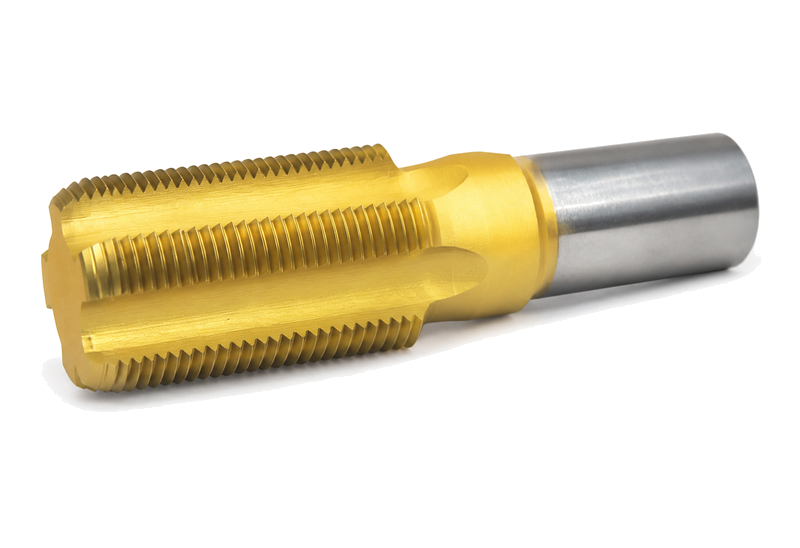

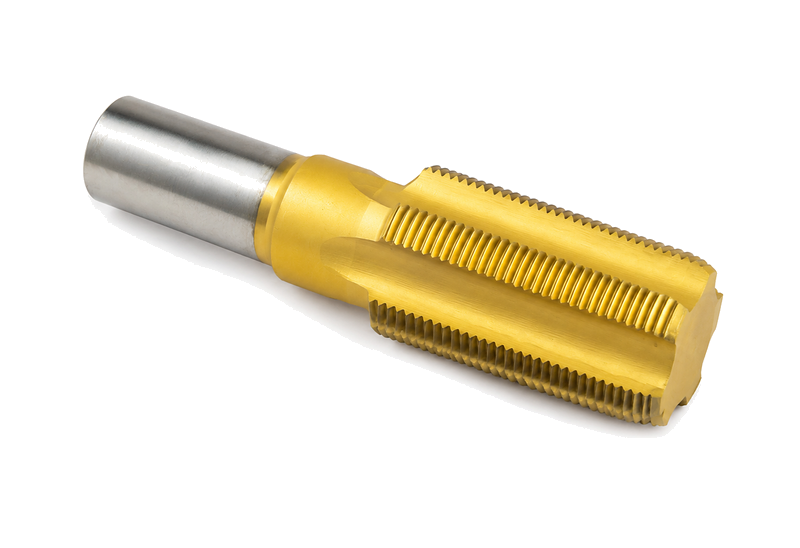

Radiator Tap

Product Overview

Radiator Taps comply with ZB J41013‑09 standard. Equipped with Morse taper No.4 shank, they are specially designed for machining left‑hand and right‑hand internal threads on radiator workpieces. Available in both right‑hand and left‑hand thread versions for radiator production.

Compliance Standards

‑ ZB J41013‑09

Product Features

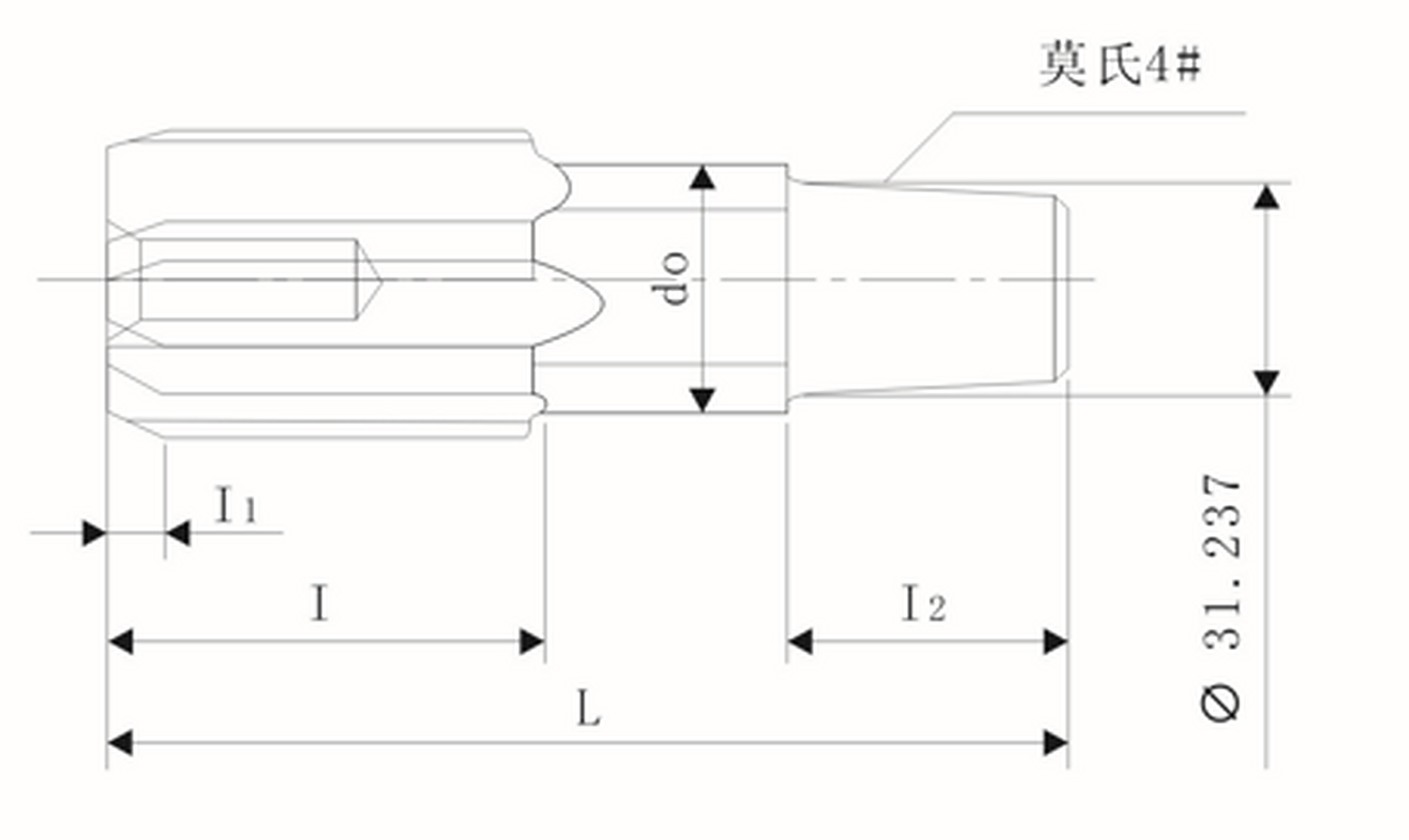

  1. Morse 4# taper shank: Fits machine tool spindle, stable clamping for high‑volume radiator tapping production.
  2. Right‑hand & left‑hand options: Support both RH and LH internal thread processing for radiator components.
  3. 4‑flute / 6‑flute design: Optimized chip evacuation for radiator thread machining.

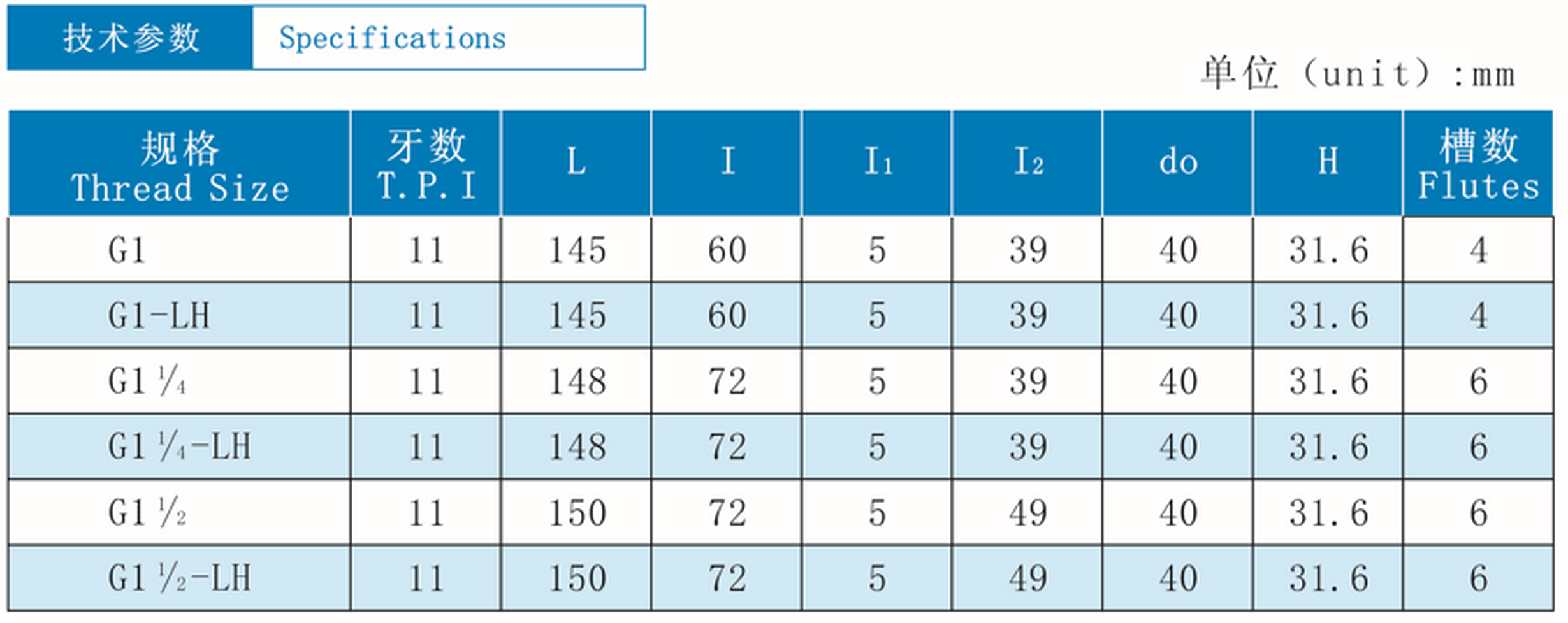

  4. Complete size selection: G1, G1¼, G1½, with corresponding left‑hand variants.
