Building Sleeves Joint Tap

Product Overview

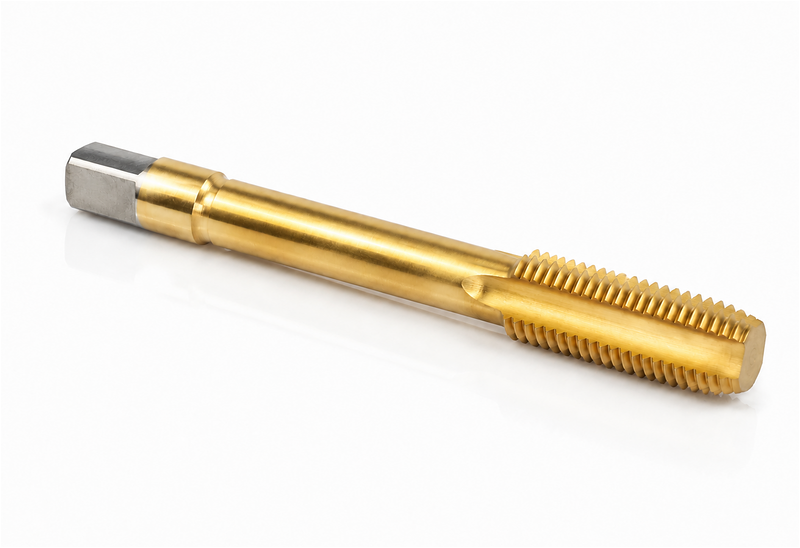

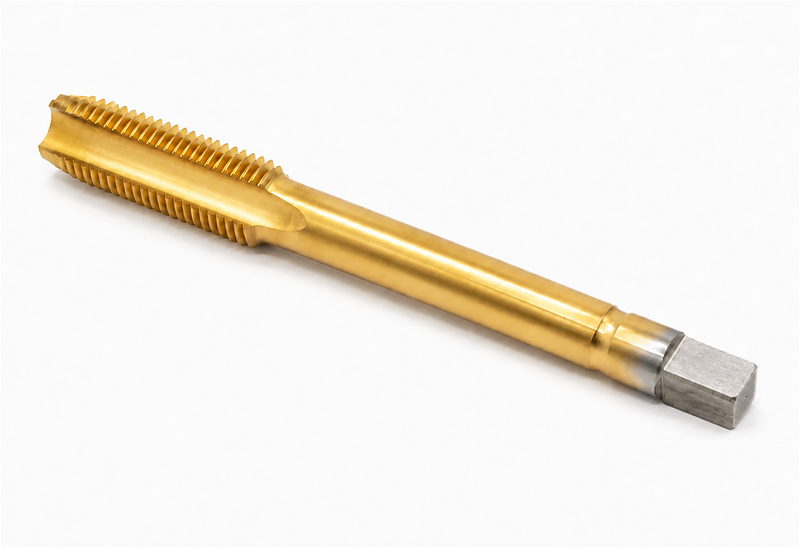

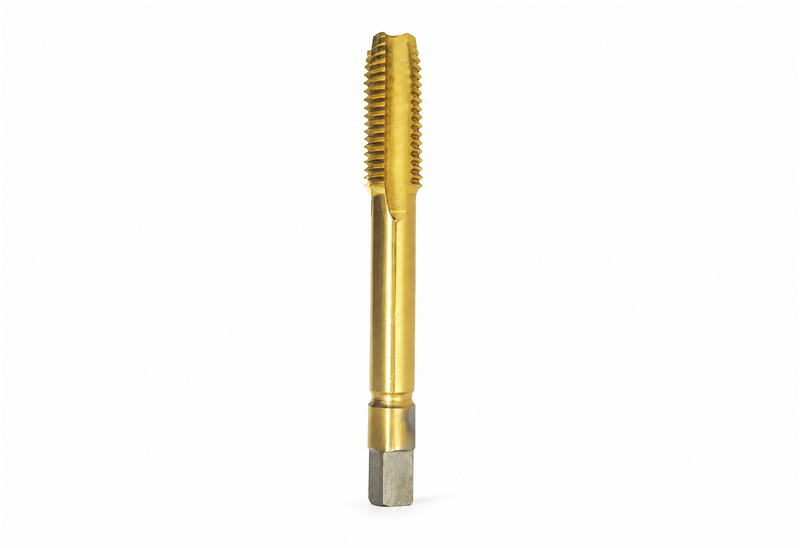

Building Sleeves Joint Taps are custom‑designed according to market and customer requirements. With square‑shank structure, they are specially used for machining internal threads of construction casing pipe connectors. Suitable for hand‑operated and machine‑tool tapping for building sleeve joint components.

Design Basis

‑ Custom‑designed per market user requirements

Product Features

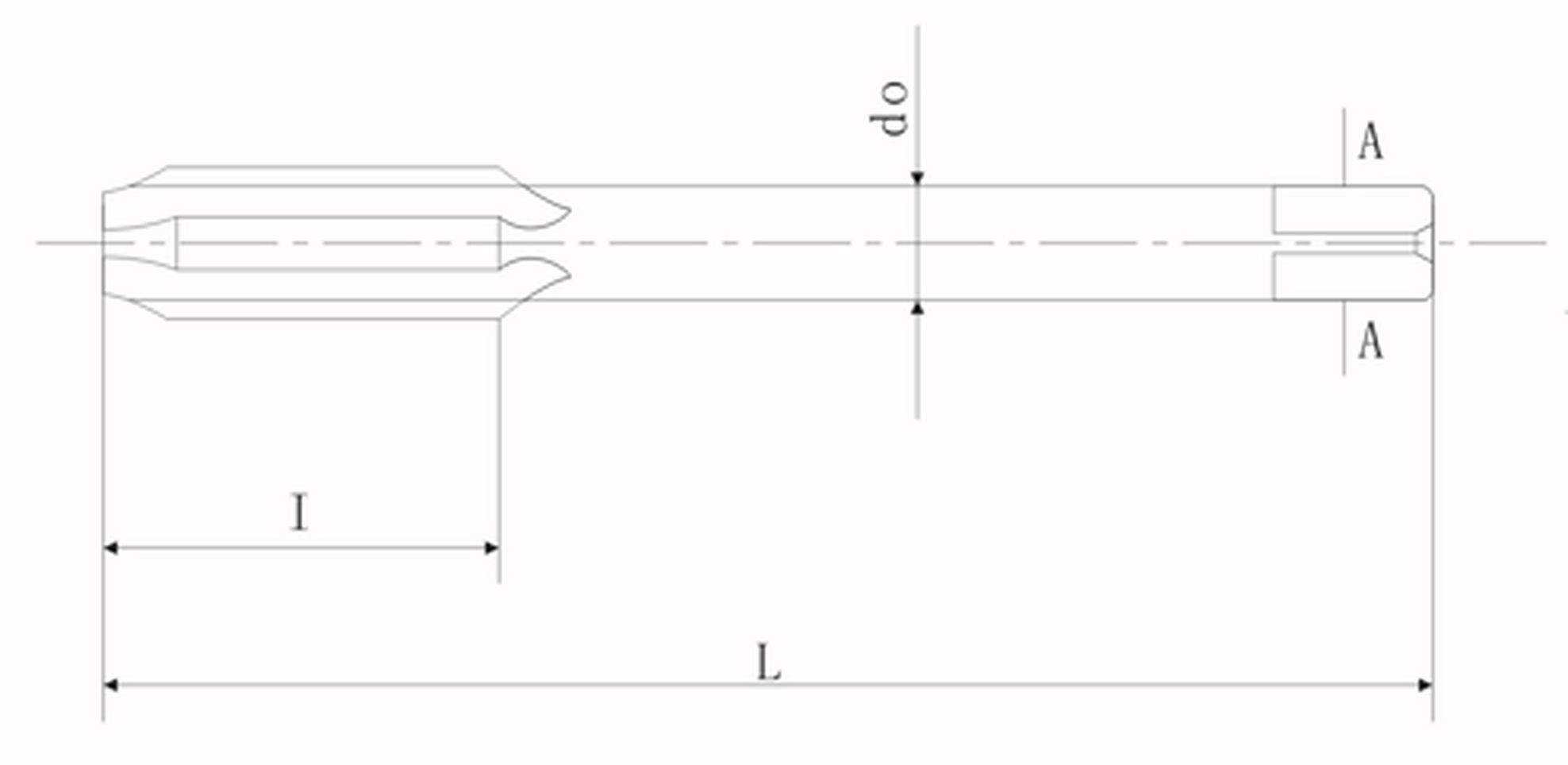

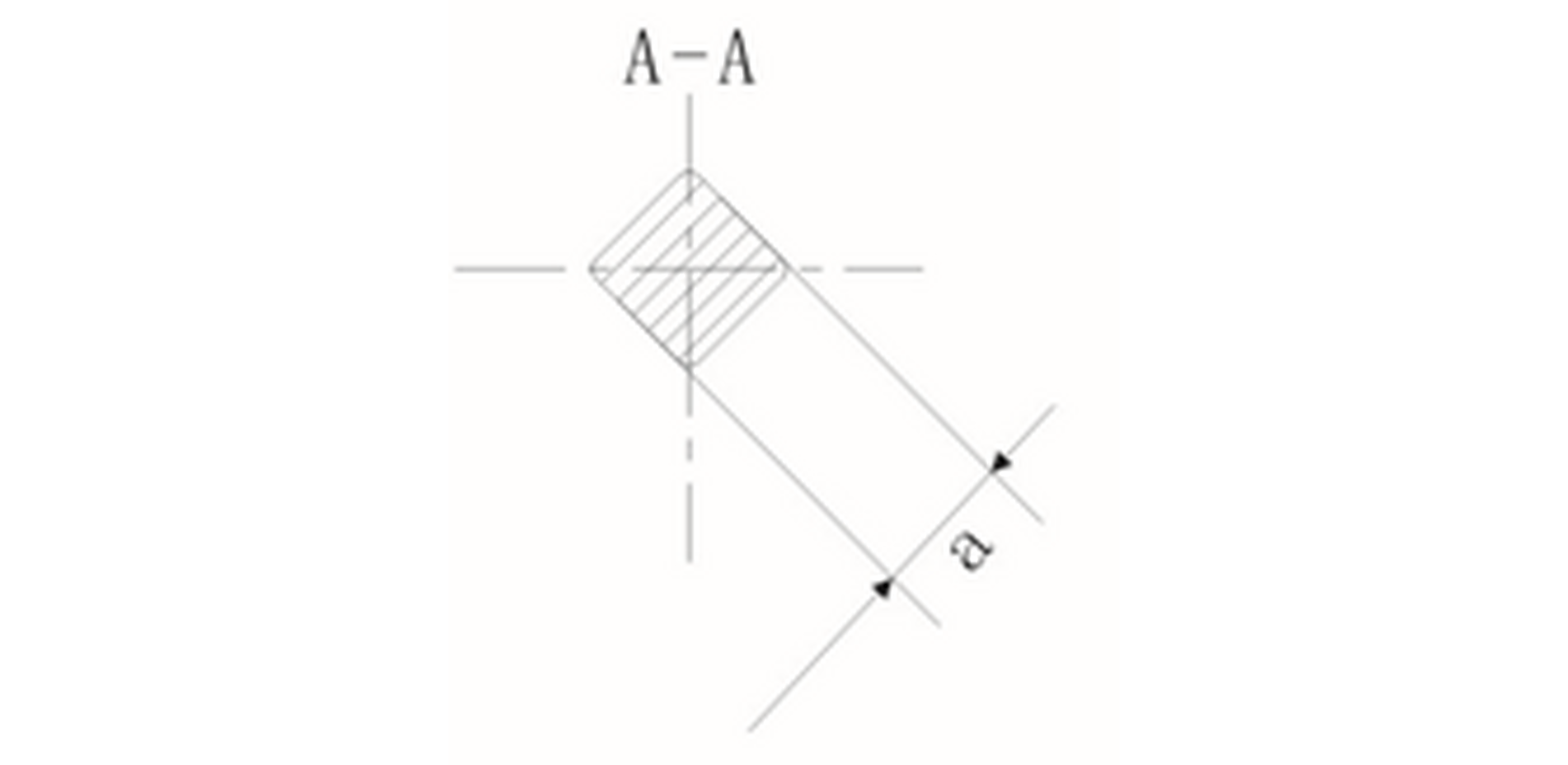

1. Square shank design: Compatible with tap wrenches and machine holders, supports both hand tapping and machine tapping.

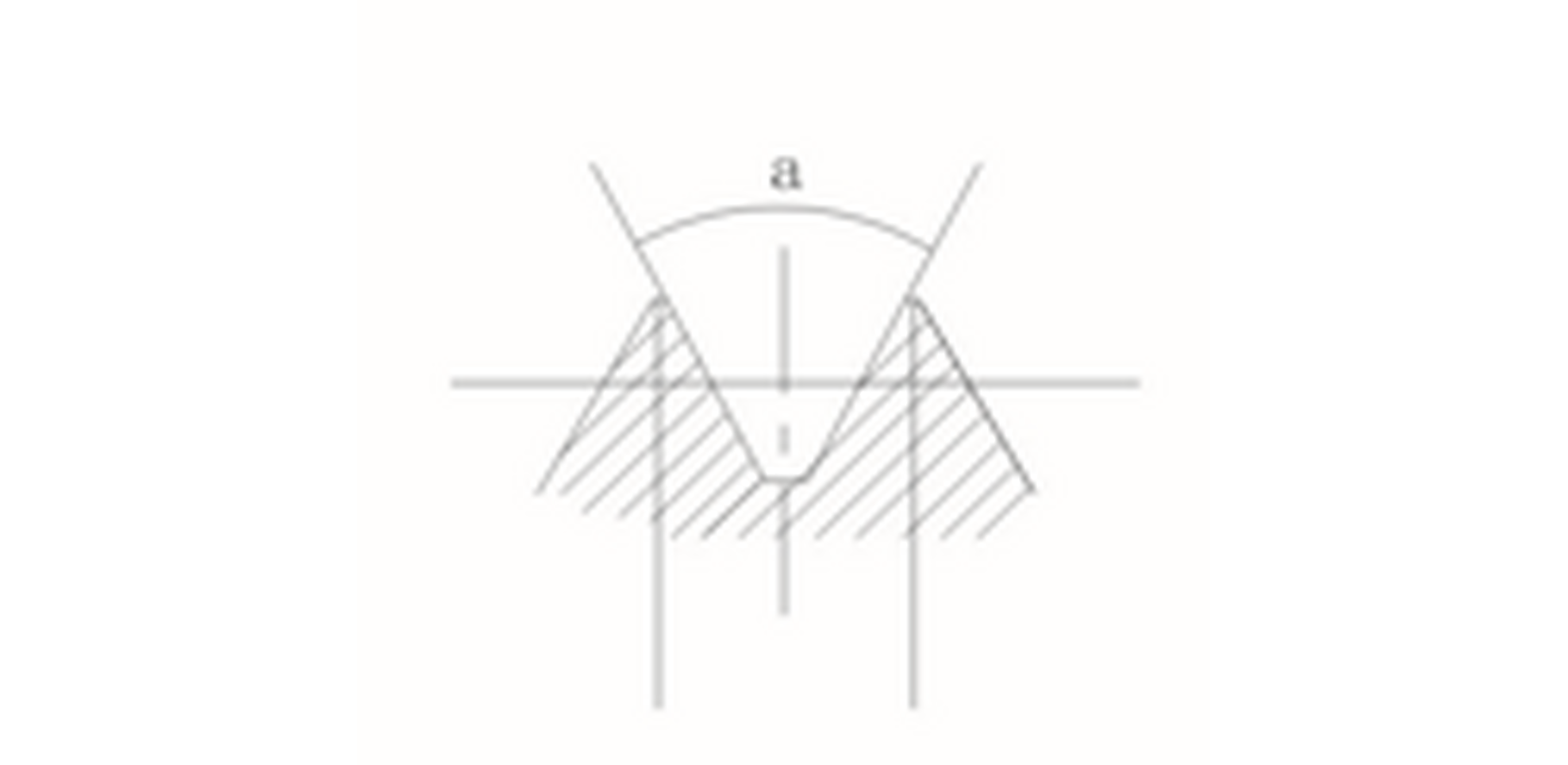

2. Multiple thread angle options: Available with 60° / 70° / 75° thread angles to match diverse building sleeve connector demands.
3. 3‑flute / 4‑flute configuration: Stable chip evacuation for construction‑related thread machining.

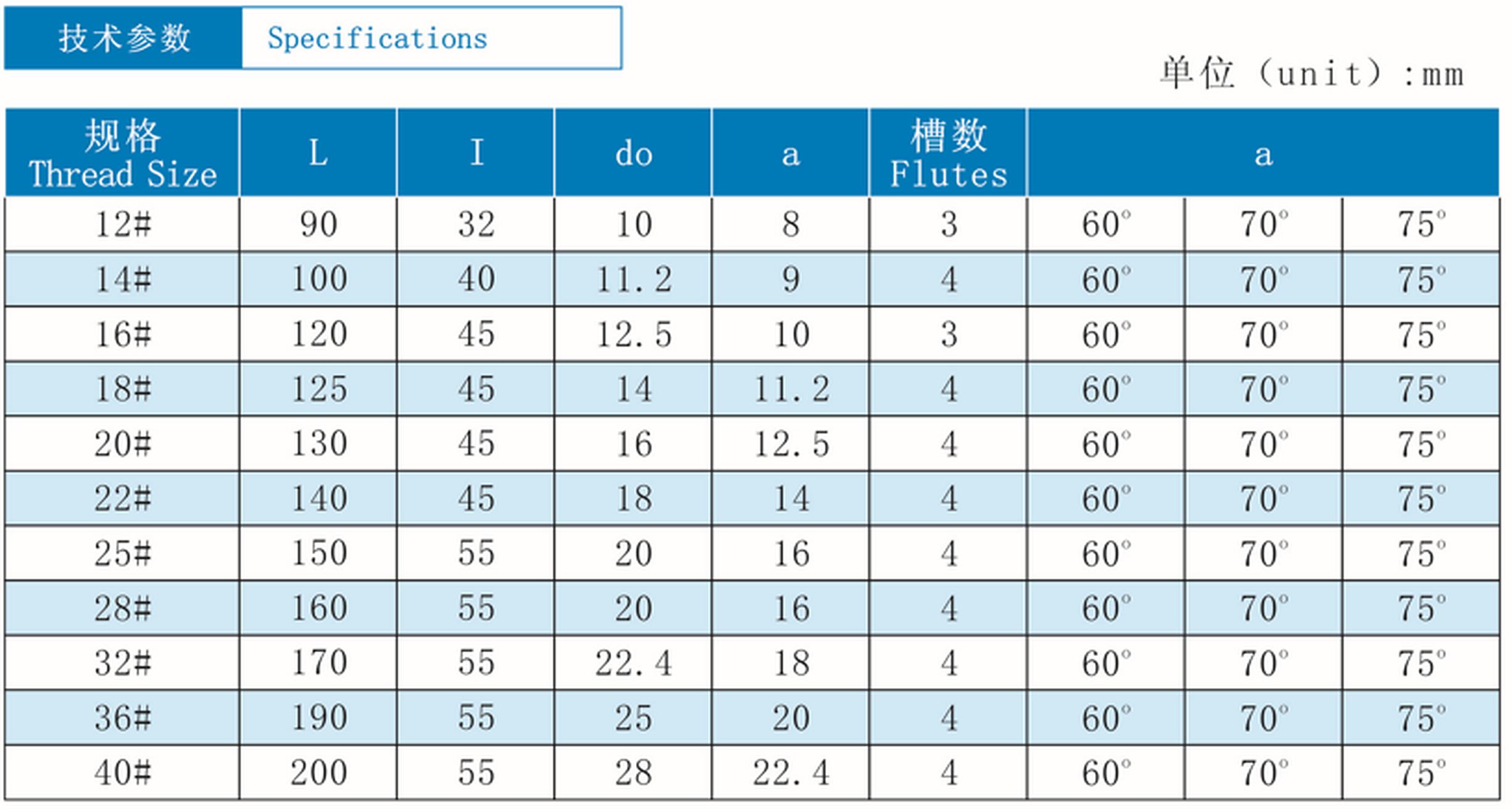

4. Wide size coverage: Sizes from 12# to 40#, meet various construction casing pipe connector processing needs.
