Fine Thread Ordinary Thread Machine Tap

GB/T 3464-83
REGARDING PRODUCTS
For machine‑tool processing of metric fine‑pitch ordinary internal threads.
  • Thread Forming Accuracy
    4.6
  • Wear-Resistance & Durability
    3.9
  • Chip Evacuation Performance
    4
  • Machining Stability
    4.2
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

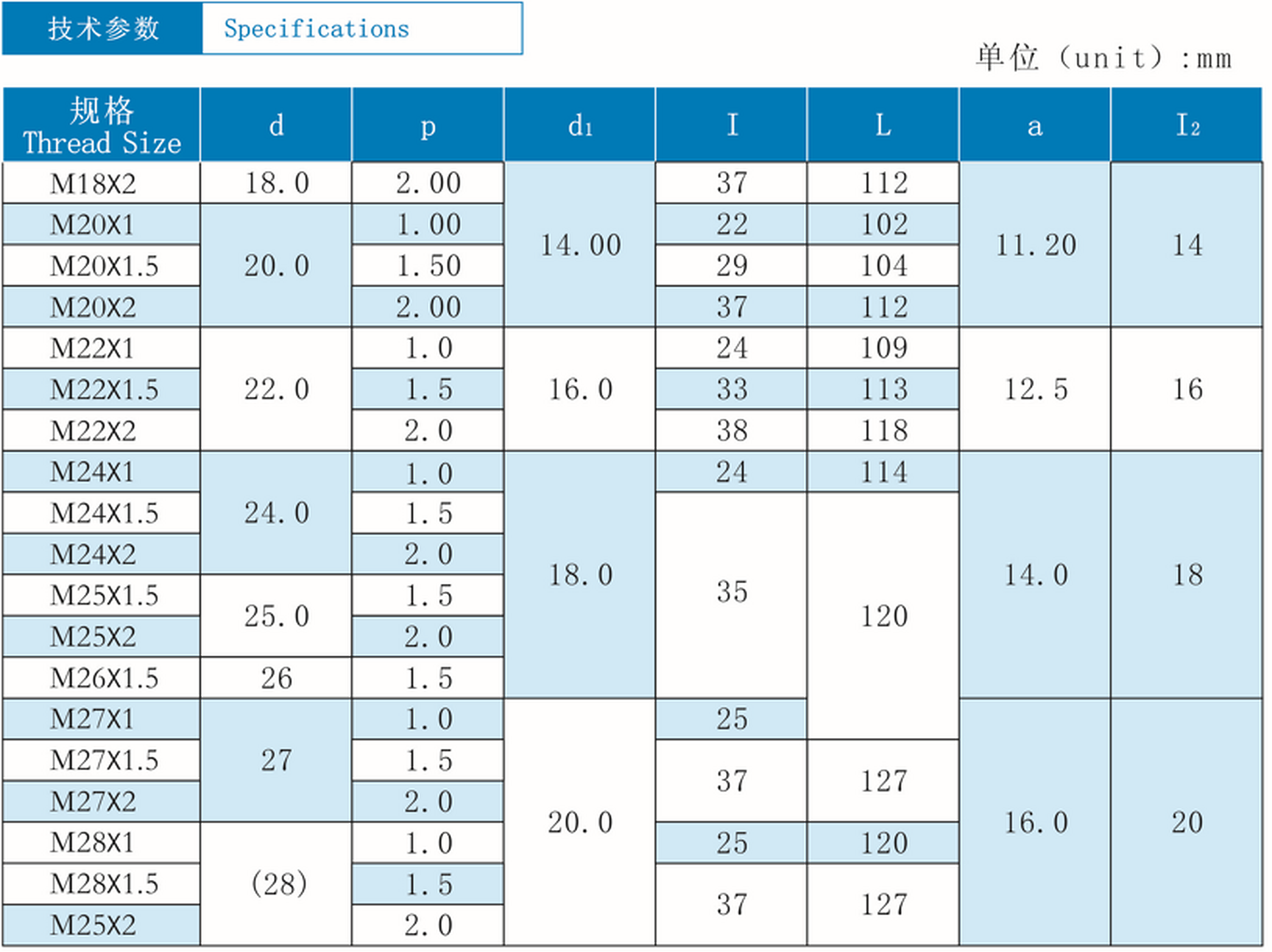

Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    GB/T 3464-83
  • Thread Size
    M18X2-M25X2
  • Workpiece Material
    For machine‑tool processing of metric fine‑pitch ordinary internal threads.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

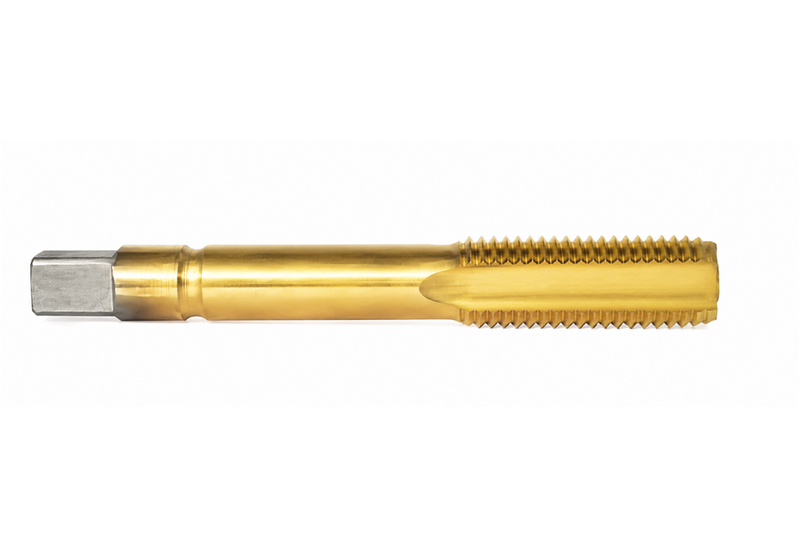

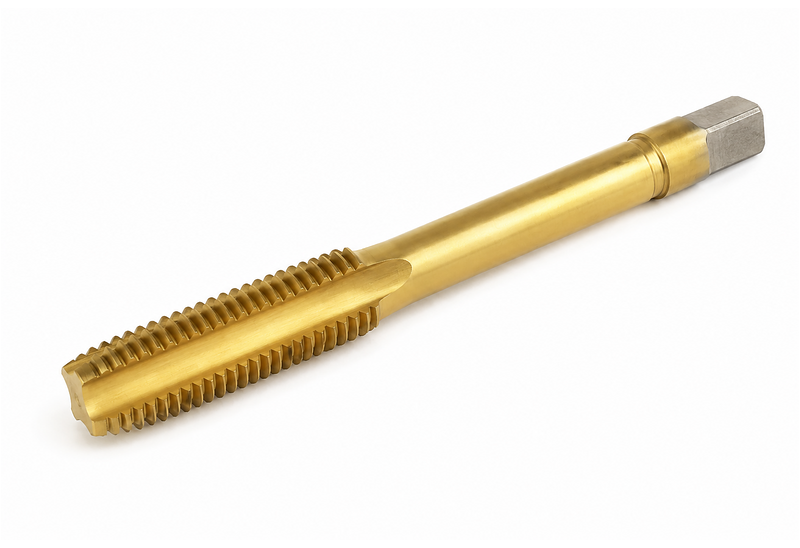

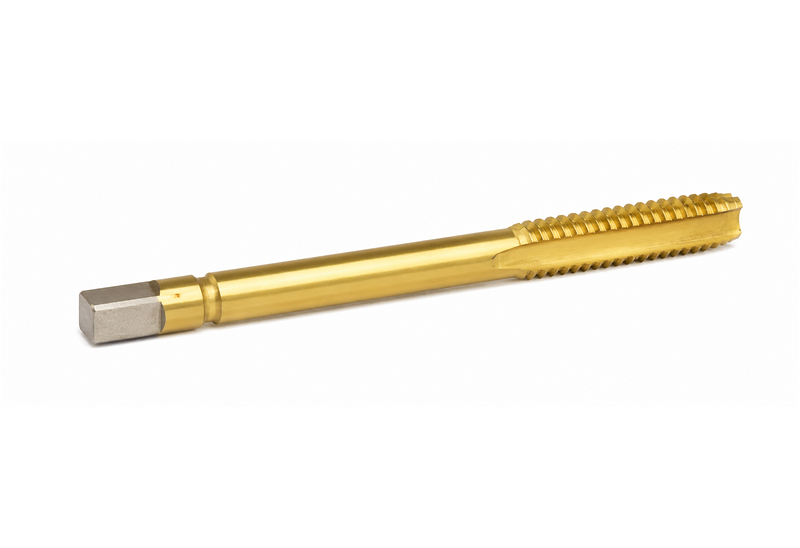

Fine Thread Ordinary Thread Machine Tap

Product Overview

Fine Thread Ordinary Thread Machine Tap complies with GB/T 3464‑83 standard. Square‑shank machine‑tap structure, for machine‑tool processing of metric fine‑pitch internal threads.

Compliance Standards

‑ GB/T 3464‑83

Product Features

  1. Square shank design: Fits machine tool holders, supports high‑efficiency machine tapping.
  2. Metric fine‑pitch thread: Meets GB/T 3464‑83 requirements for fine‑tooth internal thread machining.
  3. Optimized flute geometry: Smooth chip evacuation, stable cutting performance for steel workpieces.
  4. Wide range of sizes & pitches: Covers M18×2‑M25×2, multiple pitch options for various fine‑thread machining demands.
