Taper Thread Tap For Gas Cylinder

GB 8335-2011
REGARDING PRODUCTS
It is used for processing internal threads of steel cylinder ports such as oxygen, acetylene, liquefied petroleum gas, carbon dioxide, etc.
  • Thread Forming Accuracy
    4.7
  • Wear-Resistance & Durability
    4
  • Chip Evacuation Performance
    4.2
  • Machining Stability
    3.8
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

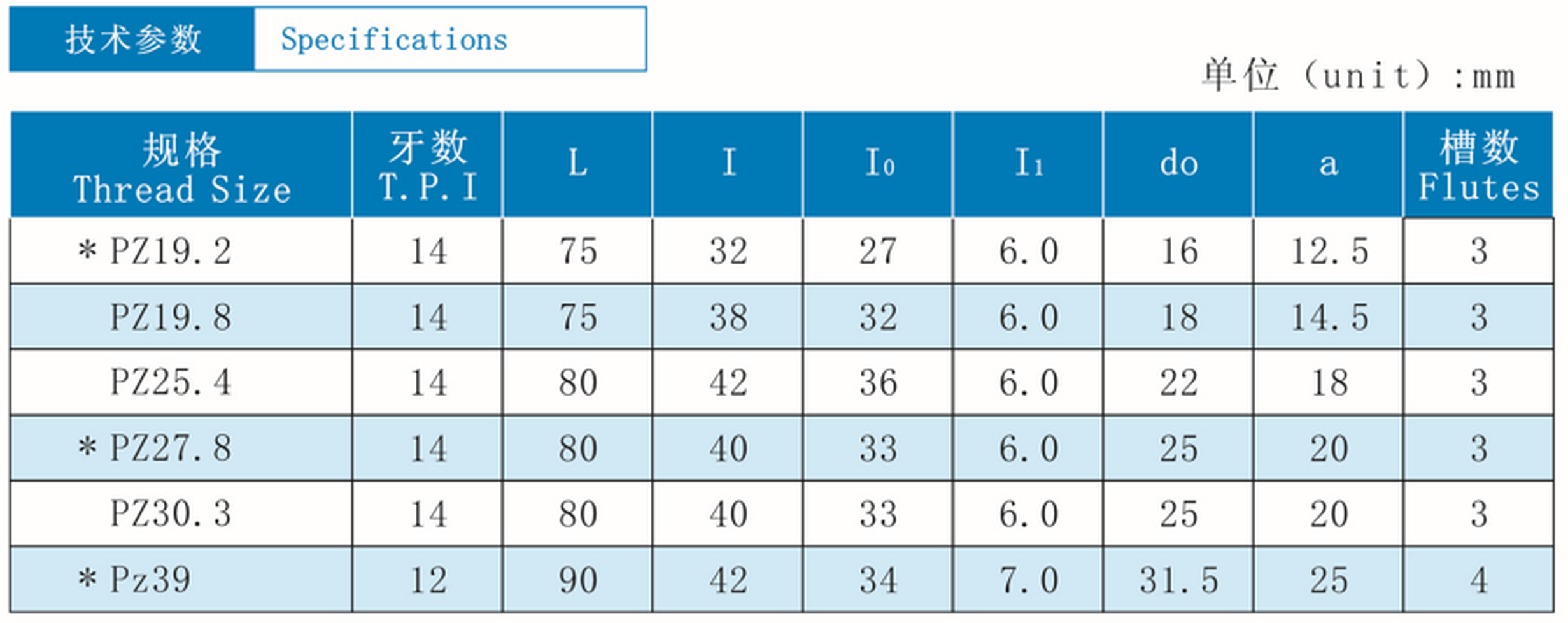

Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    GB 8335-2011
  • Thread Size
    * PZ19.2-* Pz39
  • Workpiece Material
    It is used for processing internal threads of steel cylinder ports such as oxygen, acetylene, liquefied petroleum gas, carbon dioxide, etc.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

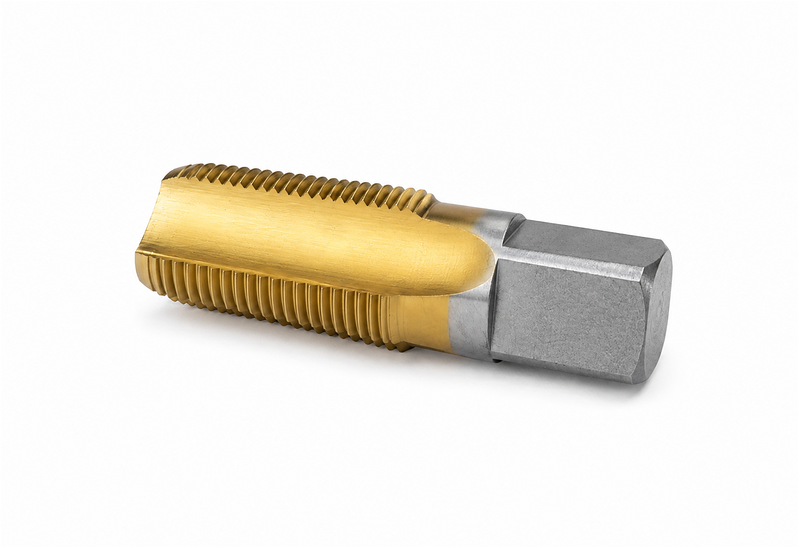

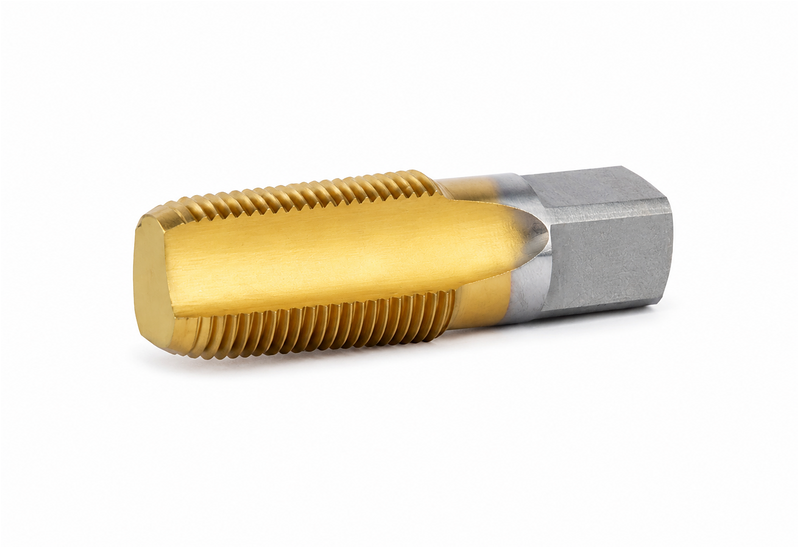

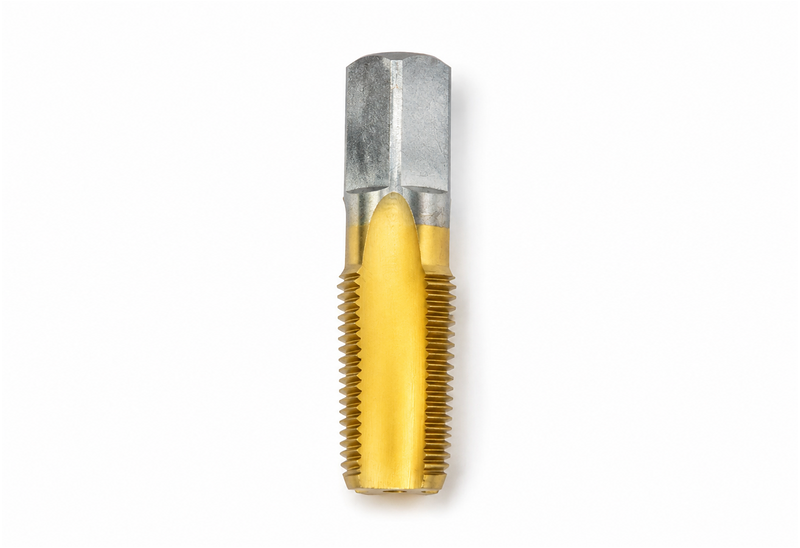

Taper Thread Tap For Gas Cylinder

Product Overview

Taper Thread Tap For Gas Cylinder complies with GB 8335‑2011 standard. Square‑shank taper‑thread tap, specially designed for machining internal threads on gas cylinder ports.

Compliance Standards

‑ GB 8335‑2011

Product Features

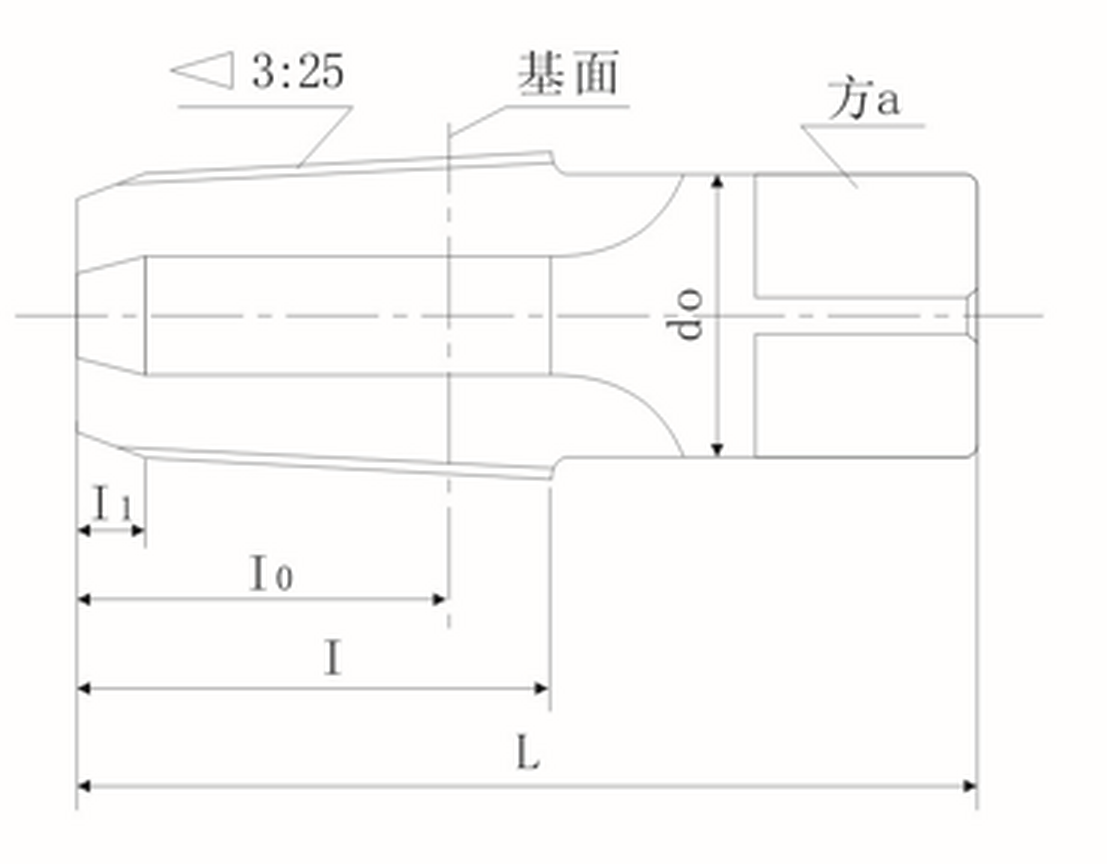

  1. Square shank design: Suitable for manual and machine tapping operations.
  2. 3:25 taper thread: Matches gas cylinder port thread requirements, for oxygen, acetylene, LPG, carbon‑dioxide steel cylinders.
  3. 3‑flute / 4‑flute structure: Optimized chip removal for high‑strength steel cylinder material processing.
  4. Complete PZ series sizes: Covers PZ19.8‑PZ39, meets processing demands for various gas cylinder valve ports.
