ANPT Taper Pipe Thread Taps

MIL-P-7105B
REGARDING PRODUCTS
For strict thread sealing products, American aviation standard thread.
  • Thread Forming Accuracy
    3.9
  • Wear-Resistance & Durability
    4.1
  • Chip Evacuation Performance
    4.3
  • Machining Stability
    4.1
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.
Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    MIL-P-7105B
  • Thread Size
    1/8-27ANPT-2-111/2ANPT
  • Workpiece Material
    For strict thread sealing products, American aviation standard thread.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

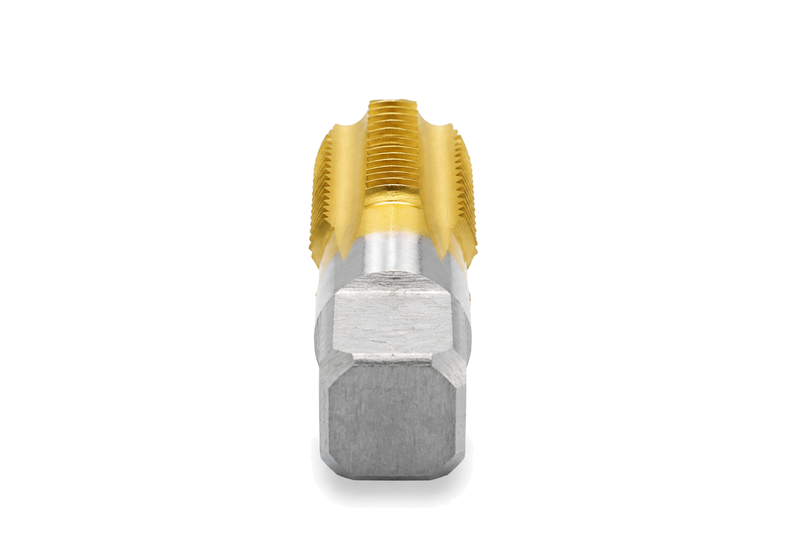

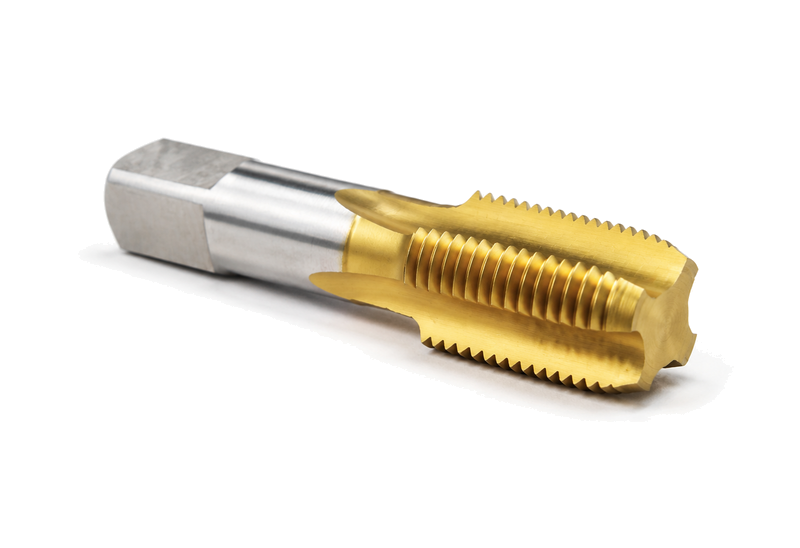

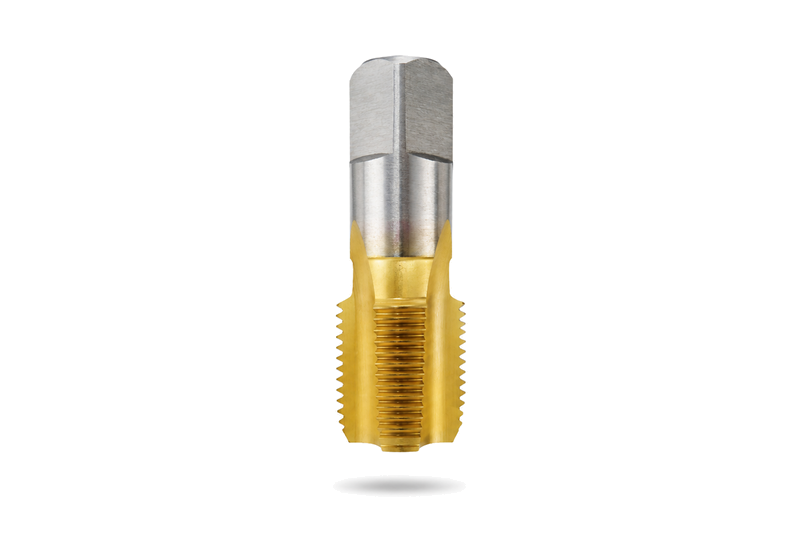

ANPT Taper Pipe Thread Taps

Product Overview

ANPT taper pipe thread taps are high‑precision threading tools for American aviation standard ANPT threads. Following MIL‑P‑7105B military specification, it features 60° thread angle and 1:16 taper ratio, designed for applications requiring strict, reliable thread sealing, widely used in aviation and high‑grade sealing component manufacturing.

Compliance Standard

•MIL‑P‑7105B

Product Features

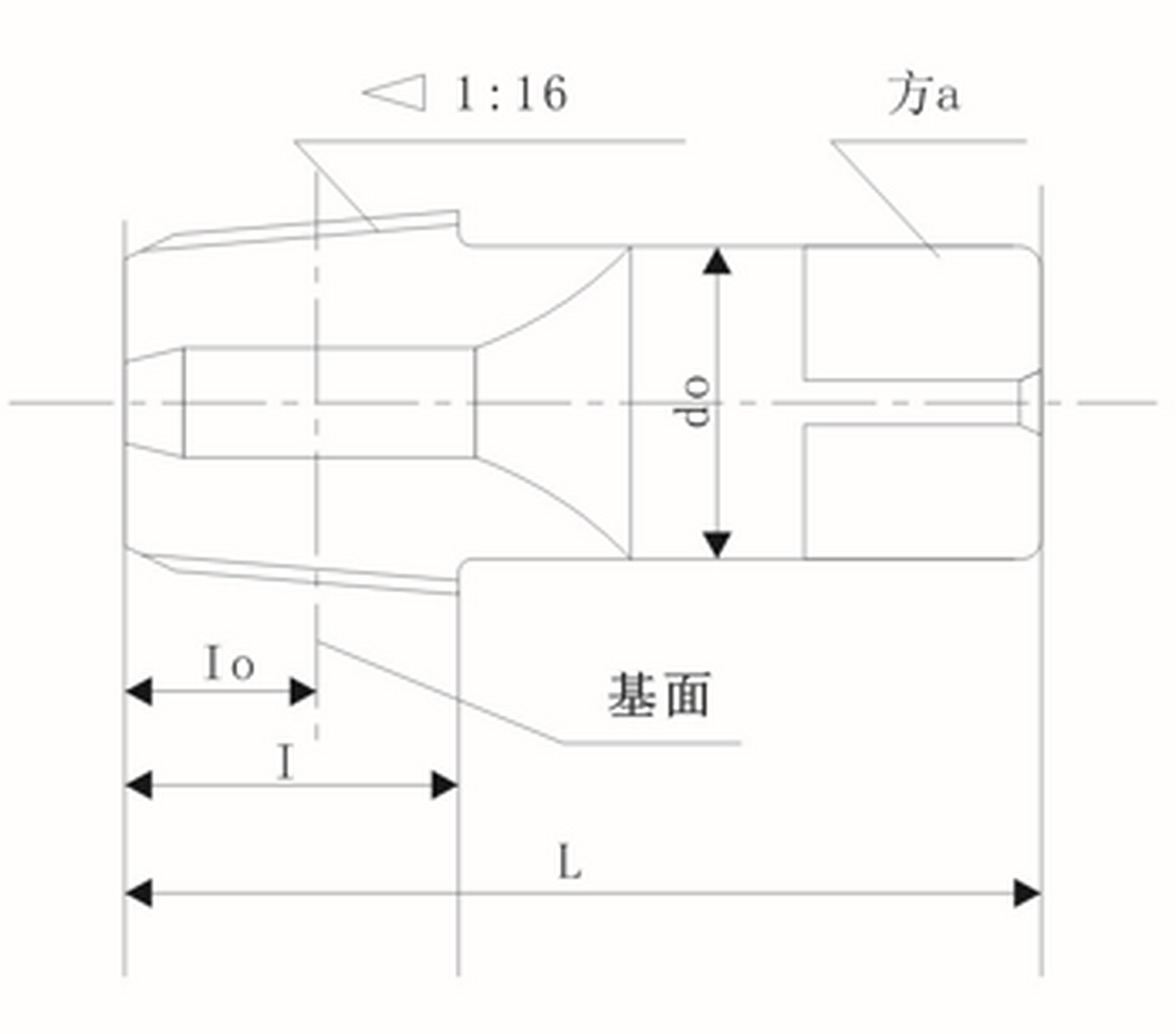

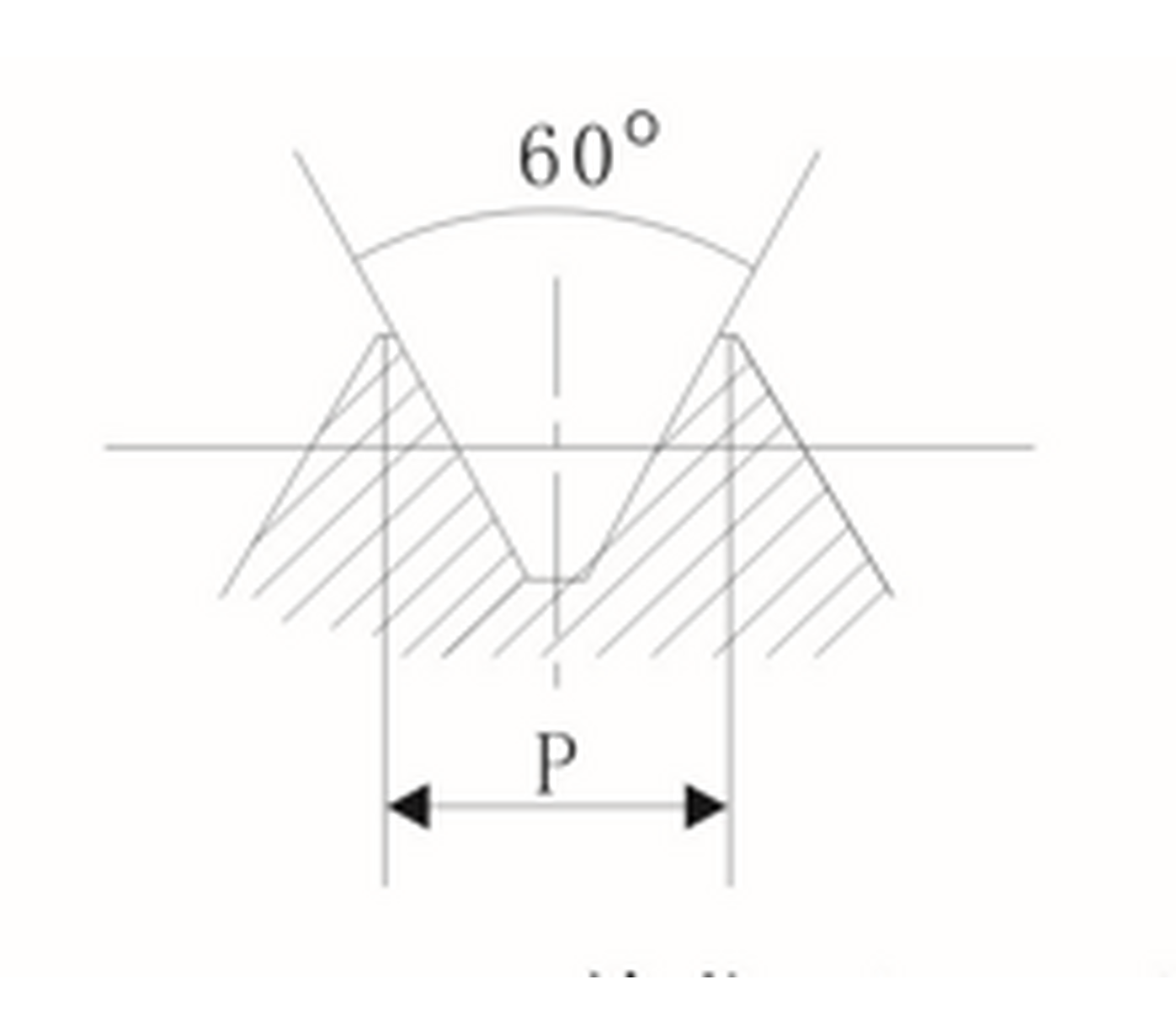

1.60° thread angle with 1:16 taper: Manufactured in accordance with US aviation military standard, achieves superior tight‑sealing performance for critical sealing parts.

2.4‑flute & 6‑flute structure: Optimized flute geometry for stable chip removal, guarantees precise thread profile for high‑demand aviation‑grade tapping.

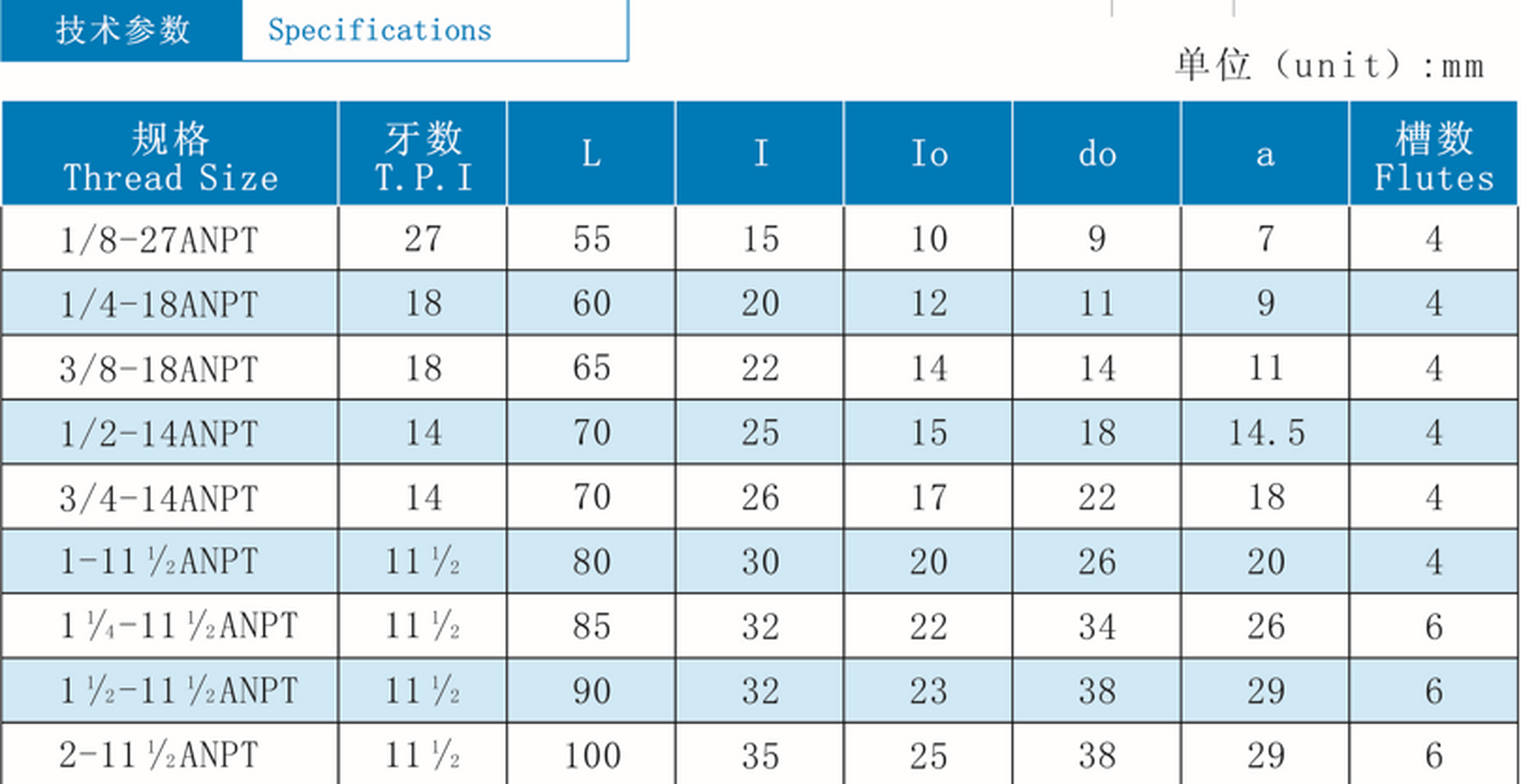

3.Full ANPT size coverage: Sizes range from 1/8‑27ANPT to 2‑11½ANPT, covers mainstream aviation‑standard pipe thread specifications.

4.High‑precision machining: Strict dimensional tolerances to meet the rigorous sealing requirements of aerospace‑level threaded parts.


Worry-free Service
  • Formulation & Laboratory Analysis
    Conduct laboratory analysis of material and cutting performance, with professional testing and evaluation for raw materials, heat treatment and cutting parameters.
  • Product Development
    Custom R&D is available according to actual working conditions of customers.
  • Brand Logo Design
    Provide exclusive brand logo design to build your unique brand image for tap products.
  • End‑to‑End Quality Control
    Covering raw materials, processing and finished‑goods inspection to guarantee consistent product quality.
