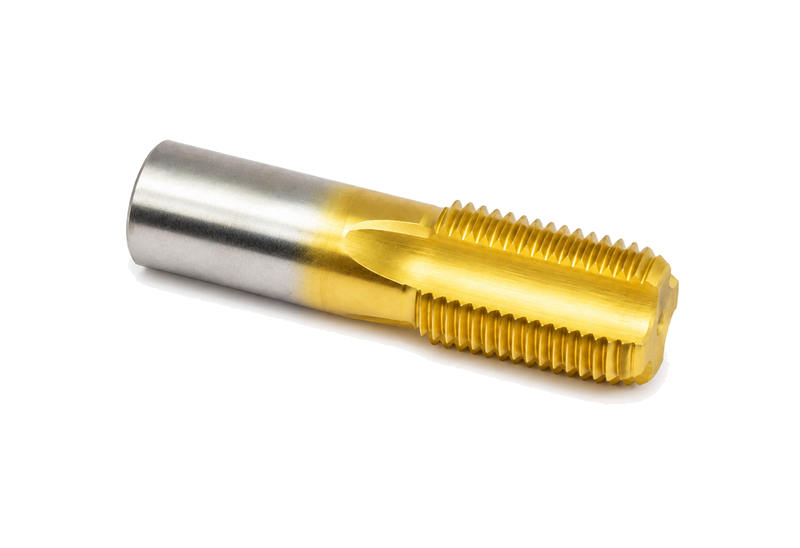

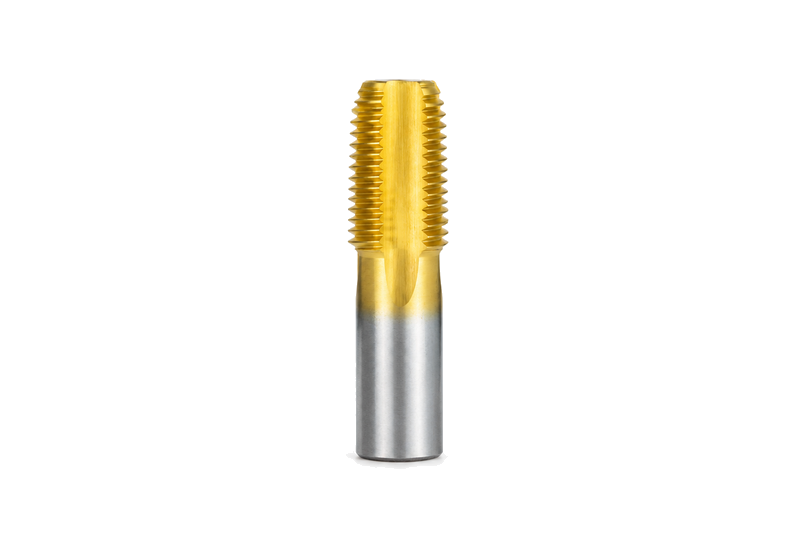

55°Taper Pipe Thread Tap With Cylinder Shank with Key‑Slot (TiN coated)

Product Overview

55° Taper Pipe Thread Tap with Cylindrical Key‑Slot Shank adopts titanium nitride (TiN) surface coating. It complies with GB/T7306.2 and ISO 7‑1:1994 standards. The cylindrical shank with key‑slot design enables stable clamping on special machine tools. Built for tapping internal threads on high‑temperature and high‑pressure pipeline connectors requiring thread sealing.

Compliance Standards

•GB/T7306.2

•ISO 7‑1:1994

Product Features

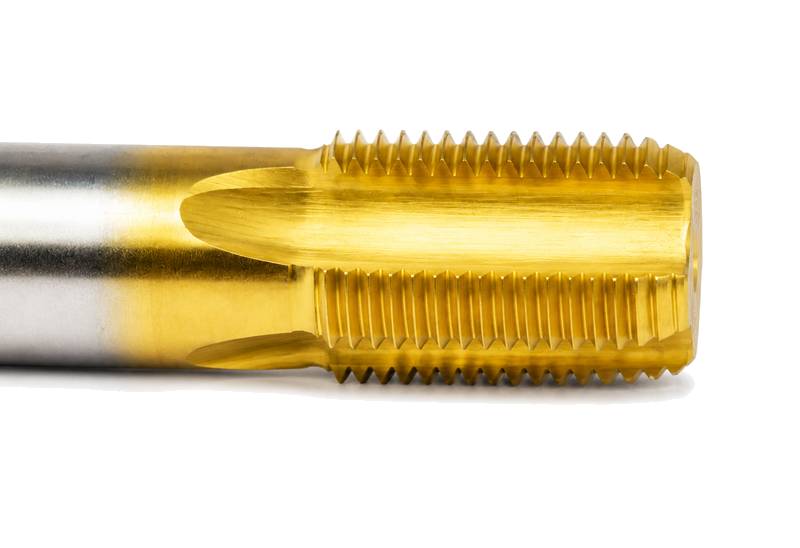

1.TiN Titanium‑Nitride Coating: Golden surface treatment, improves surface hardness, wear resistance and tool service life, suitable for heavy‑duty high‑temp & high‑pressure working conditions.

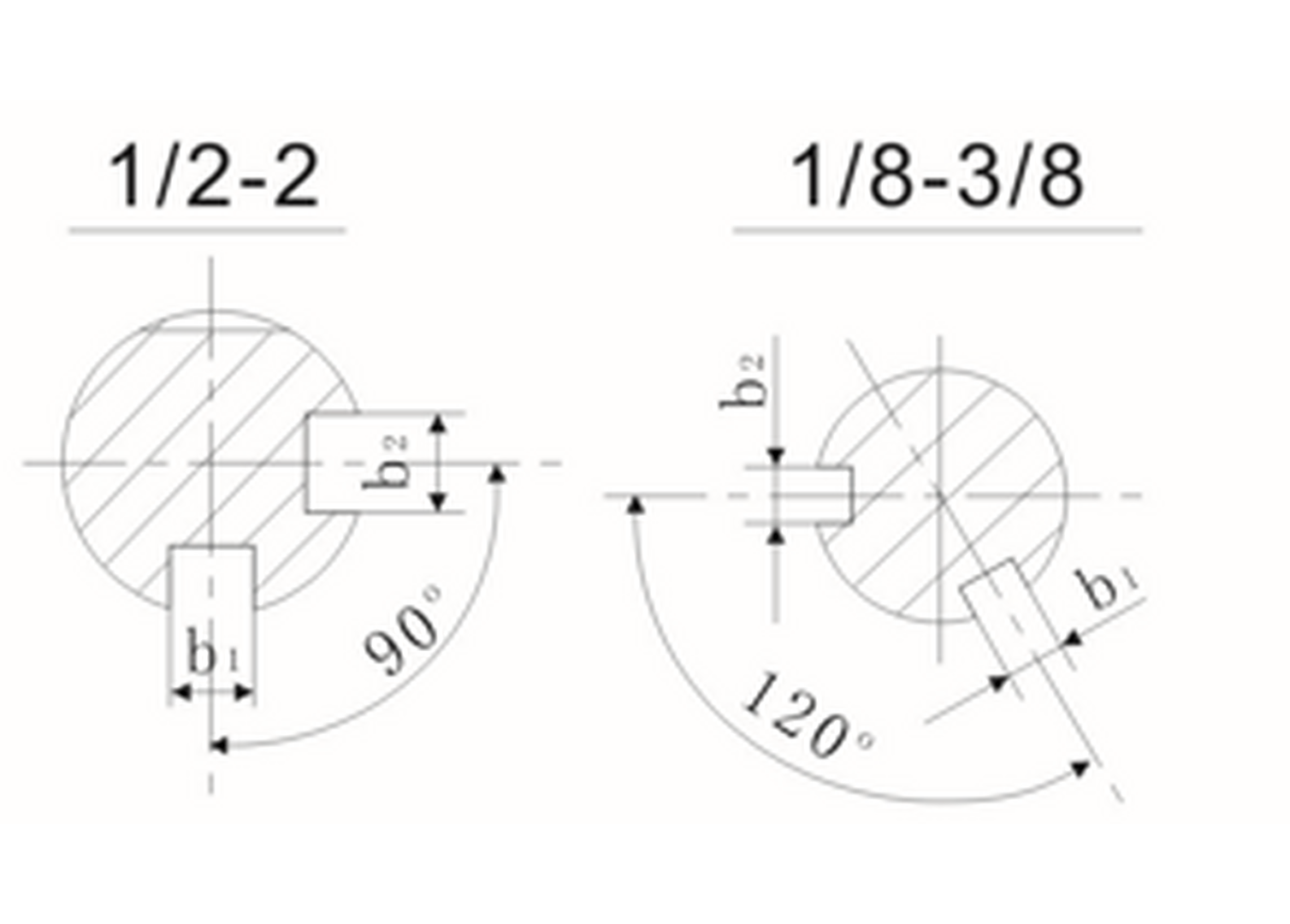

2.Cylindrical shank with key‑slot: Key‑slot cylindrical shank structure, anti‑slip torque transmission, perfect fit for special machine tool holders, avoids shank slipping during high‑torque tapping.

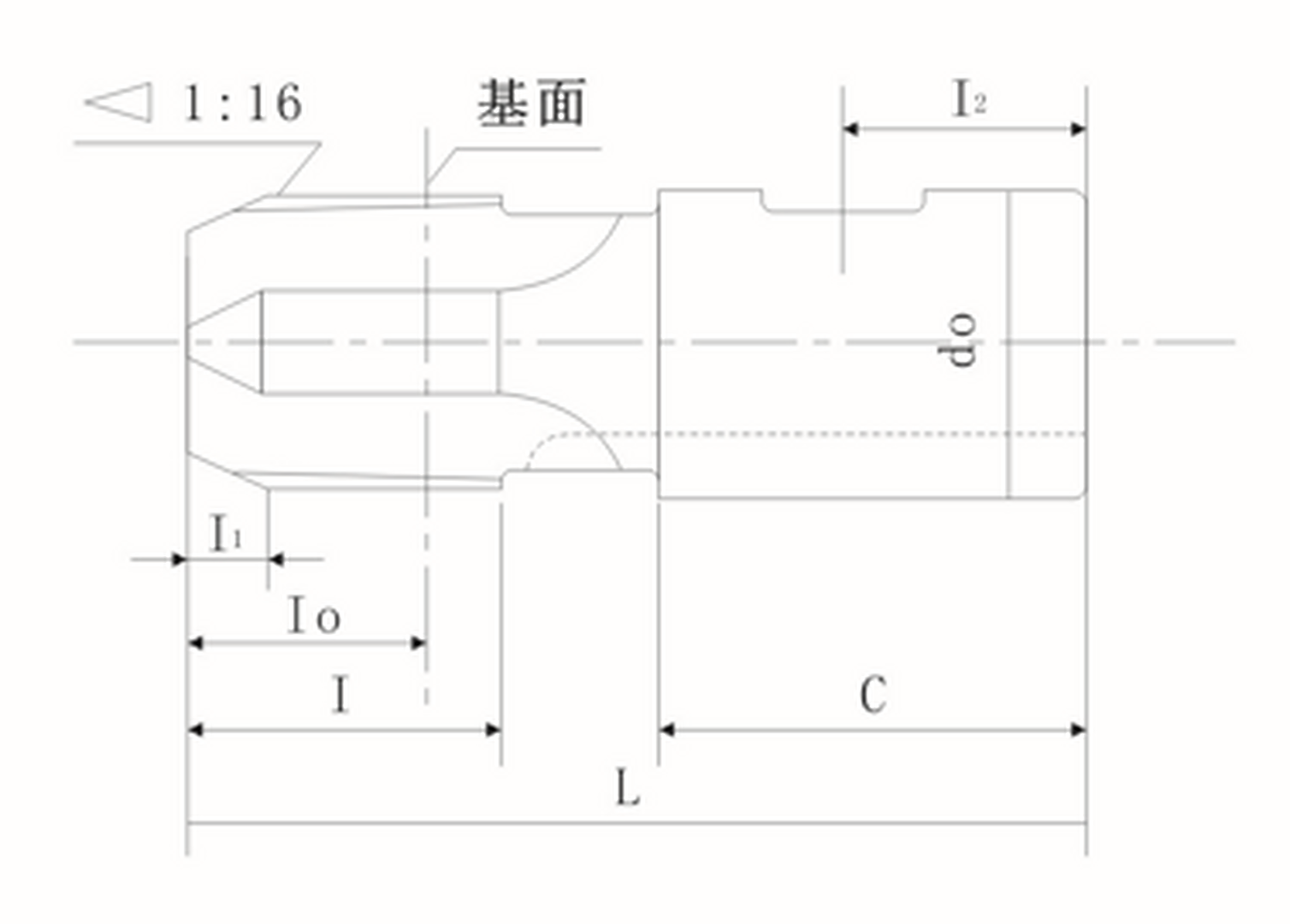

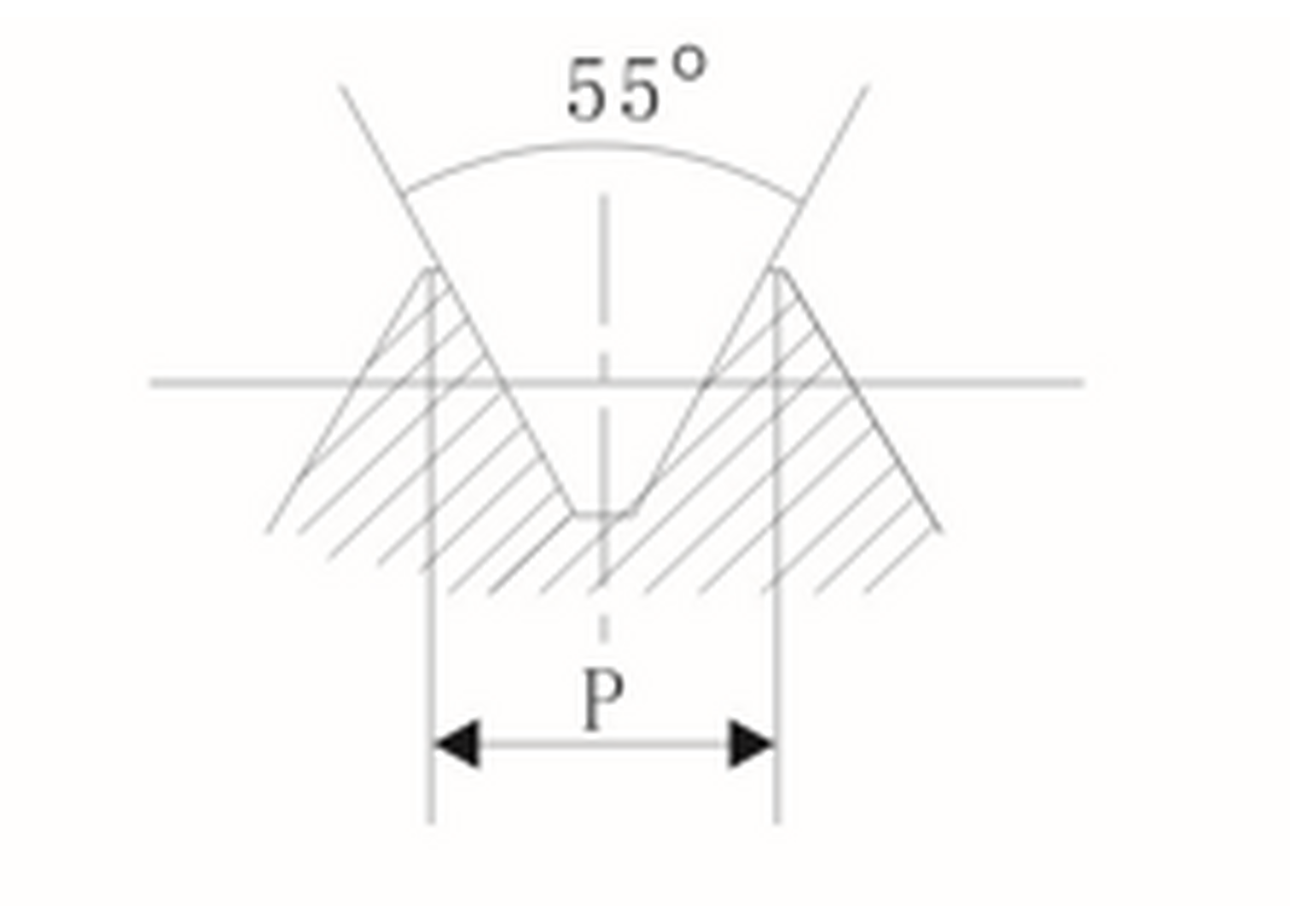

3.55° thread angle,1:16 taper: Conforms to British 55‑degree pipe thread standard, delivers reliable self‑sealing performance for pipe joints.

4.Multiple flute options: 3‑flute,4‑flute,6‑flute configurations, stable chip evacuation for high‑pressure pipeline fitting production.

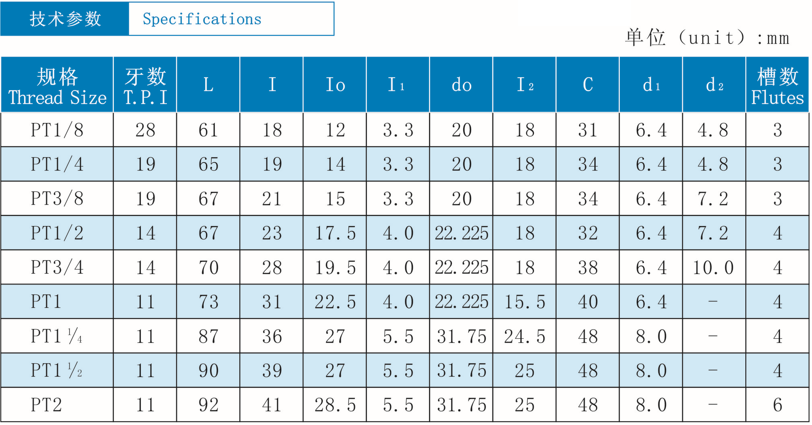

5.Full‑size range: Covers PT1/8 ~ PT2, meets diverse high‑temperature high‑pressure connector machining requirements.
