Home Products list 55°Taper Pipe Thread Stainless Steel Taps

55°Taper Pipe Thread Stainless Steel Taps

GB/T17306.2
REGARDING PRODUCTS
It is used for processing surface coating treatment of internal thread of stainless steel pipe.
  • Thread Forming Accuracy
    4.9
  • Wear-Resistance & Durability
    4.8
  • Chip Evacuation Performance
    4
  • Machining Stability
    3.8
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.

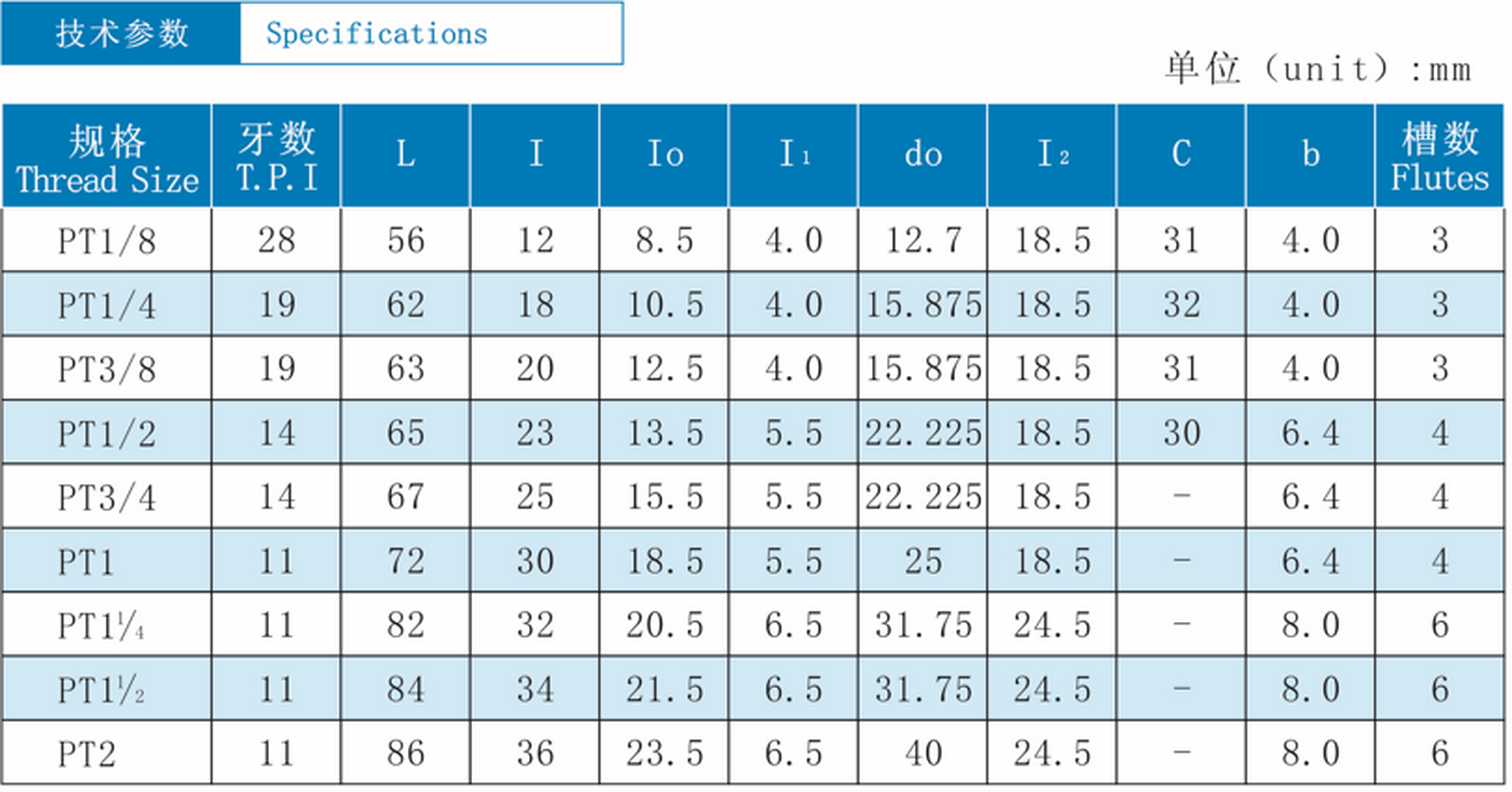

Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    GB/T17306.2 IS07-1:1994
  • Thread Size
    PT1/8-PT2
  • Workpiece Material
    It is used for processing surface coating treatment of internal thread of stainless steel pipe.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

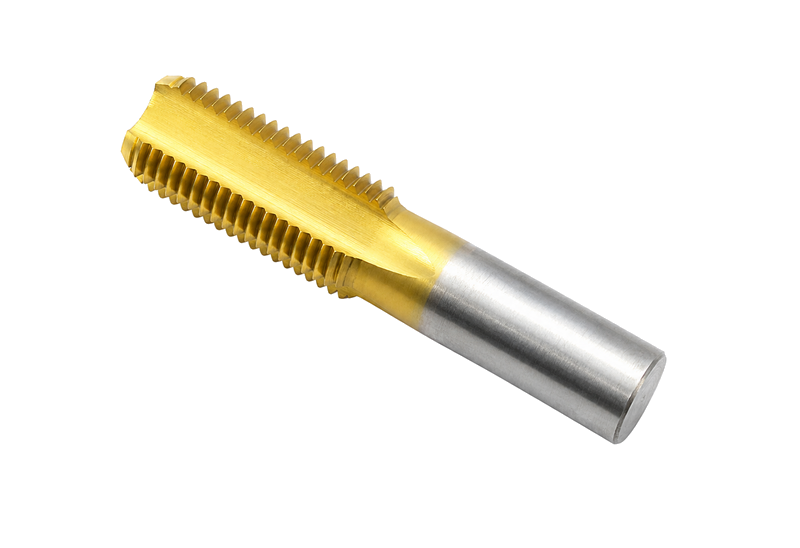

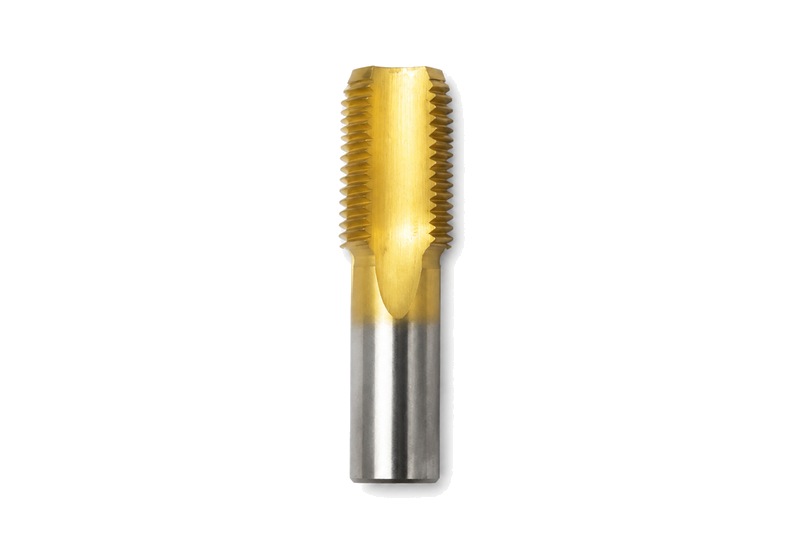

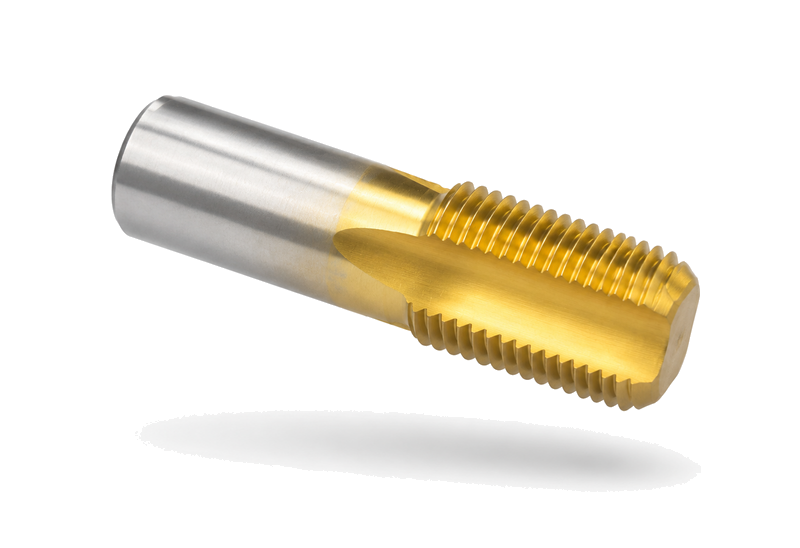

55°Taper Pipe Thread Stainless Steel Taps

Product Overview

55° Taper Pipe Thread Stainless Steel Taps are specially‑optimized threading tools for tapping stainless steel pipe materials. It complies with GB/T17306.2 and ISO7‑1:1994 standards. Special surface coating treatment effectively solves the sticking problem when machining stainless steel, delivers stable performance for internal thread processing of stainless‑steel pipes.

Compliance Standards

‑ GB/T17306.2
‑ ISO7‑1:1994

Product Features

  1. Special surface coating: Optimized coating for stainless‑steel processing, reduces chip adhesion, prevents built‑up edge, improves thread finish and tool service life.

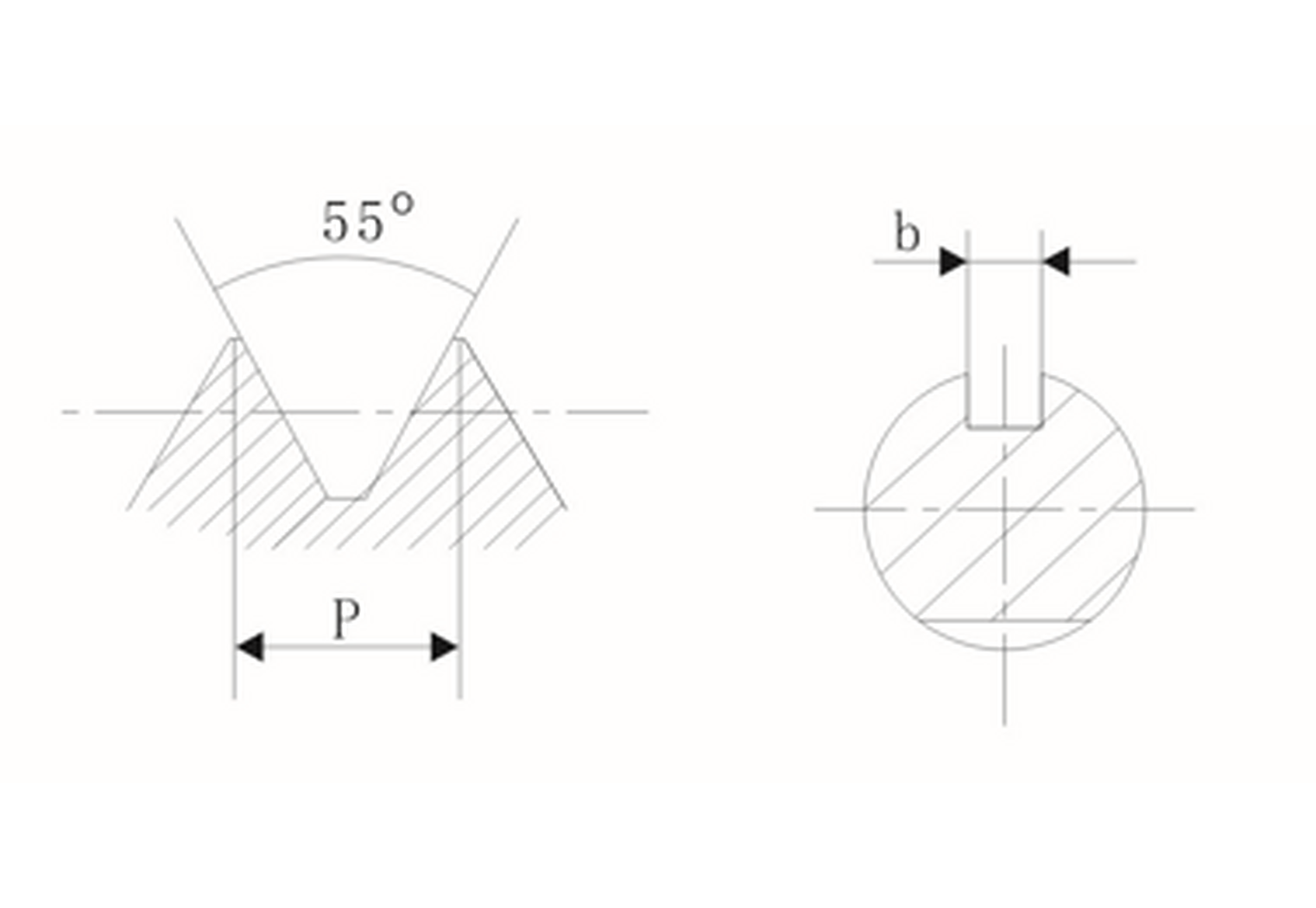

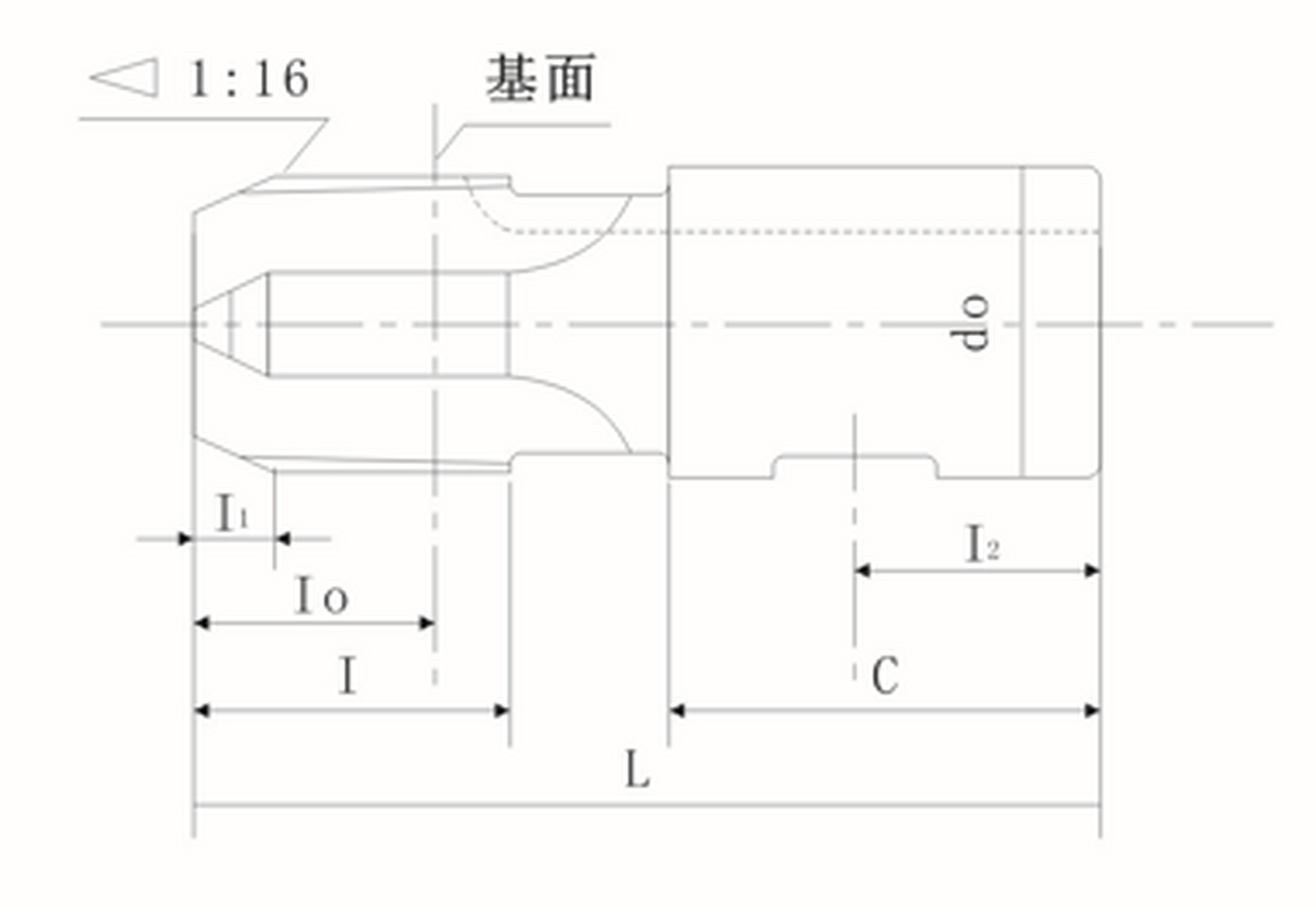

  2. 55° thread angle with 1:16 taper: Conforms to British PT pipe thread specification, achieves reliable sealing for stainless‑steel pipe joints.
  3. Optimized flute geometry: 3‑flute,4‑flute and 6‑flute options, good chip removal performance for tough stainless‑steel material.
  4. Complete size range: Covers PT1/8 ~ PT2, meets diverse stainless‑steel pipe threading production requirements.

Worry-free Service
  • Formulation & Laboratory Analysis
    Conduct laboratory analysis of material and cutting performance, with professional testing and evaluation for raw materials, heat treatment and cutting parameters.
  • Product Development
    Custom R&D is available according to actual working conditions of customers.
  • Brand Logo Design
    Provide exclusive brand logo design to build your unique brand image for tap products.
  • End‑to‑End Quality Control
    Covering raw materials, processing and finished‑goods inspection to guarantee consistent product quality.
