60°Taper Pipe Thread Stainless Steel Taps

GB/T12176-2002
REGARDING PRODUCTS
It is used for processing surface coating treatment of internal thread of stainless steel pipe.
  • Thread Forming Accuracy
    4
  • Wear-Resistance & Durability
    4.2
  • Chip Evacuation Performance
    4.6
  • Machining Stability
    4.5
REGARDING PRODUCTS
Support product research and development improvement Support packaging design Support logo design
Special Note
Sample charge applies for all trial samples, Non‑standard customization and test documents are available.
Technical Specifications
  • Tool Type
    Machine Tap
  • Tool Material
    HSS High‑Speed Tool Steel W6Mo5Cr4V2
  • Coating
    TiN Titanium Nitride
  • Standard
    GB7306.2-2000 IS07-1:1994
  • Thread Size
    Rc1/8S-Rc2S，PT1/8-PT2
  • Workpiece Material
    It is used for processing surface coating treatment of internal thread of stainless steel pipe.
  • Machining Type
    Through Hole / Blind Hole
  • Packaging Options
    Paper Box / Custom Packaging

Product Introduction

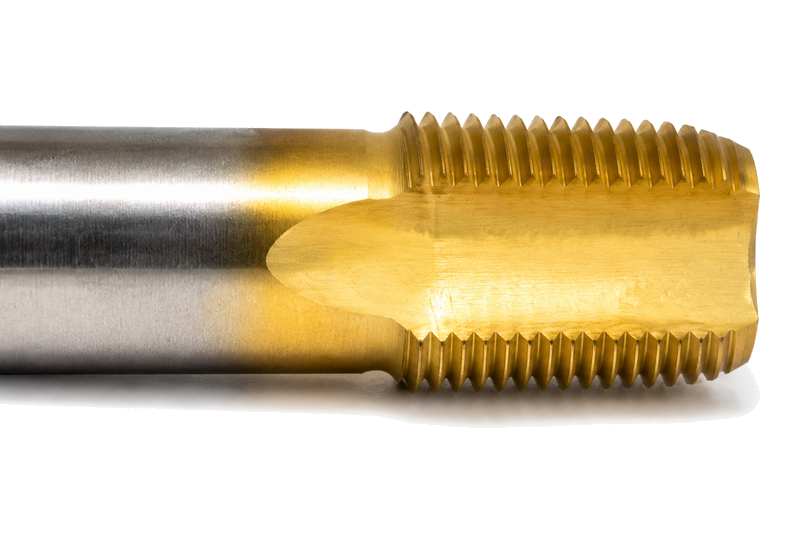

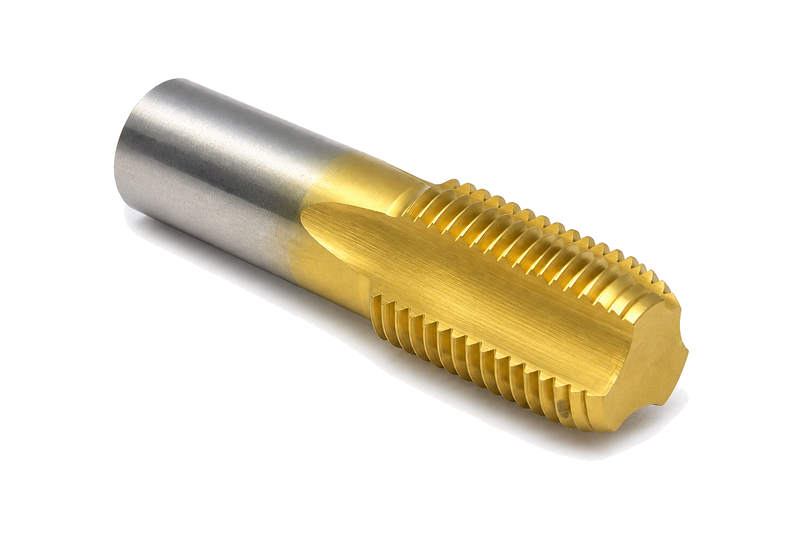

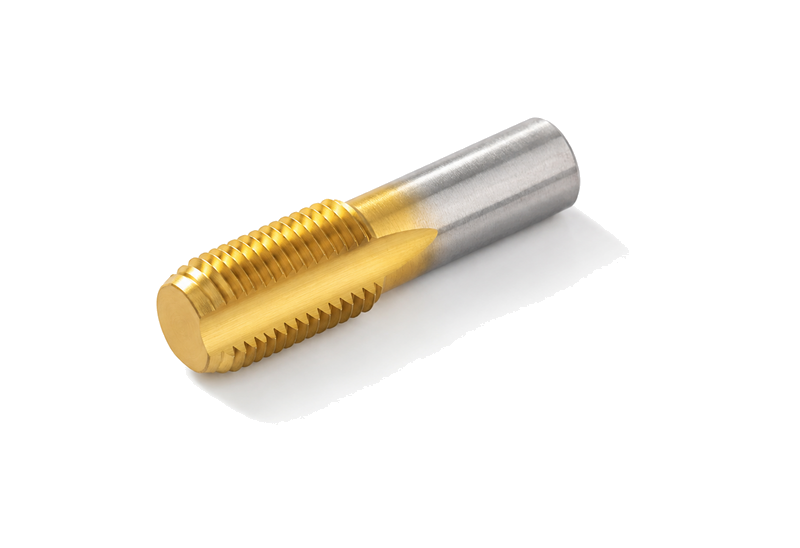

60°Taper Pipe Thread Stainless Steel Taps

Product Overview

60° Taper Pipe Thread Stainless Steel Taps are special‑purpose taps for NPT stainless‑steel pipe threading. Compliant with GB/T12176‑2002 and ASME B1.20.1‑1983 standards. Adopting professional surface coating treatment, it effectively solves chip‑welding and sticking issues when machining stainless steel, delivering stable performance for internal thread production of NPT stainless‑steel pipe fittings.

Compliance Standards

  • GB/T12176‑2002
  • ASME B1.20.1‑1983

Product Features

  1. Special surface coating: Optimized coating for stainless‑steel cutting, reduces built‑up edge and chip adhesion, improves thread surface finish and extends tool service life.

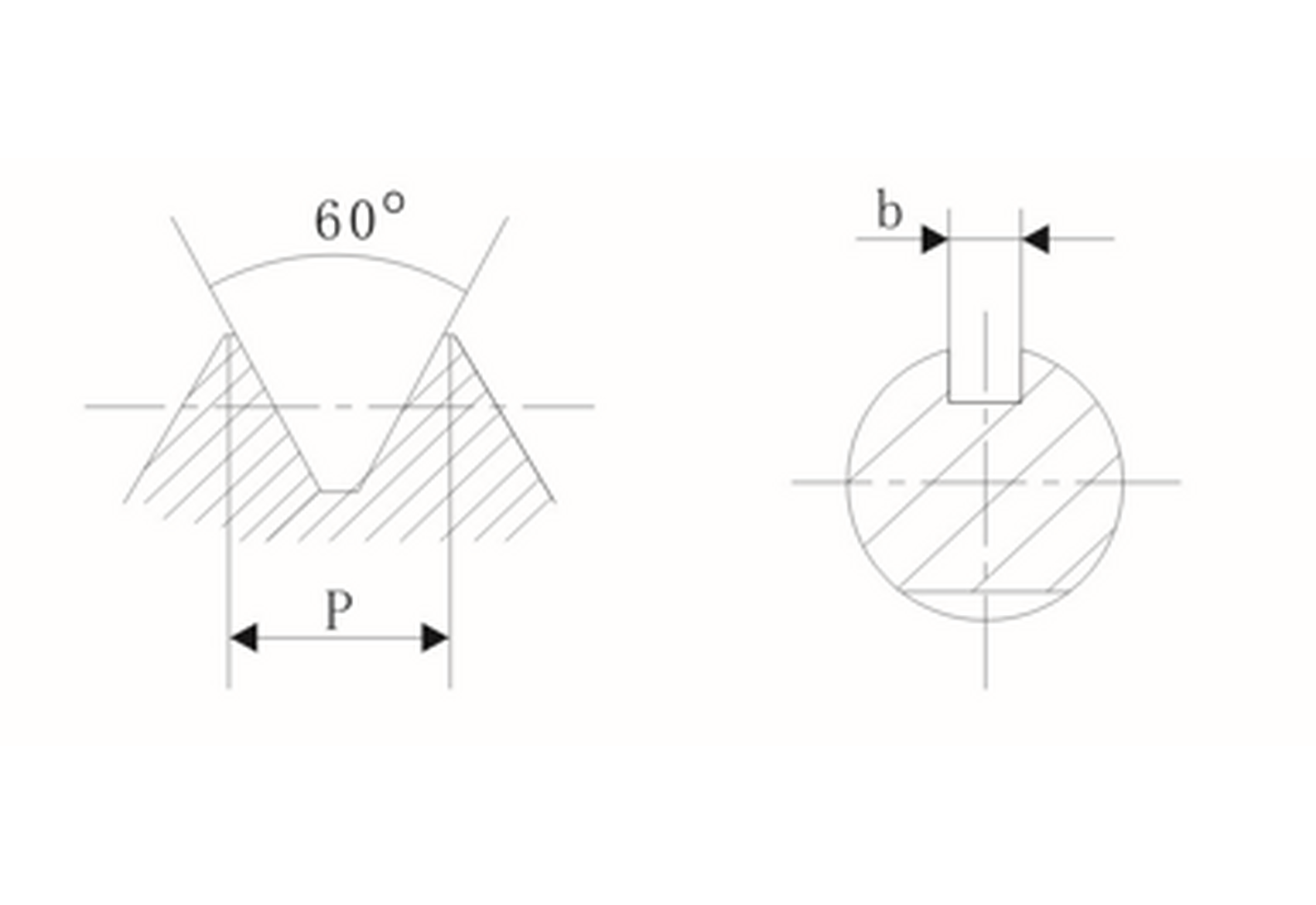

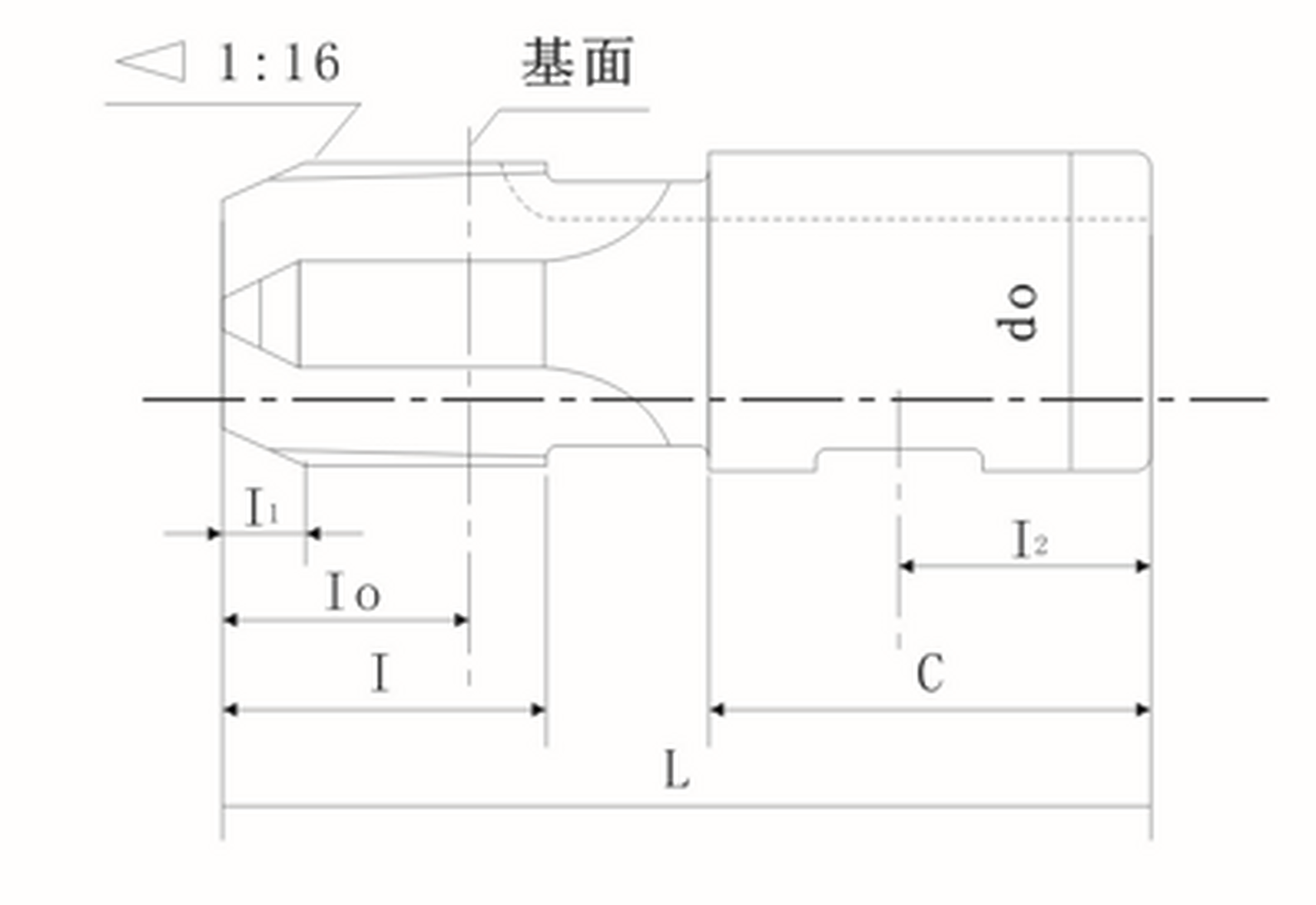

  2. 60° thread angle,1:16 taper: Strictly follows American NPT pipe‑thread specification, ensures self‑sealing performance for stainless‑steel pipeline joints.
  3. Optimized flute structure: 3‑flute,4‑flute,6‑flute options, good chip evacuation for tough stainless‑steel material.

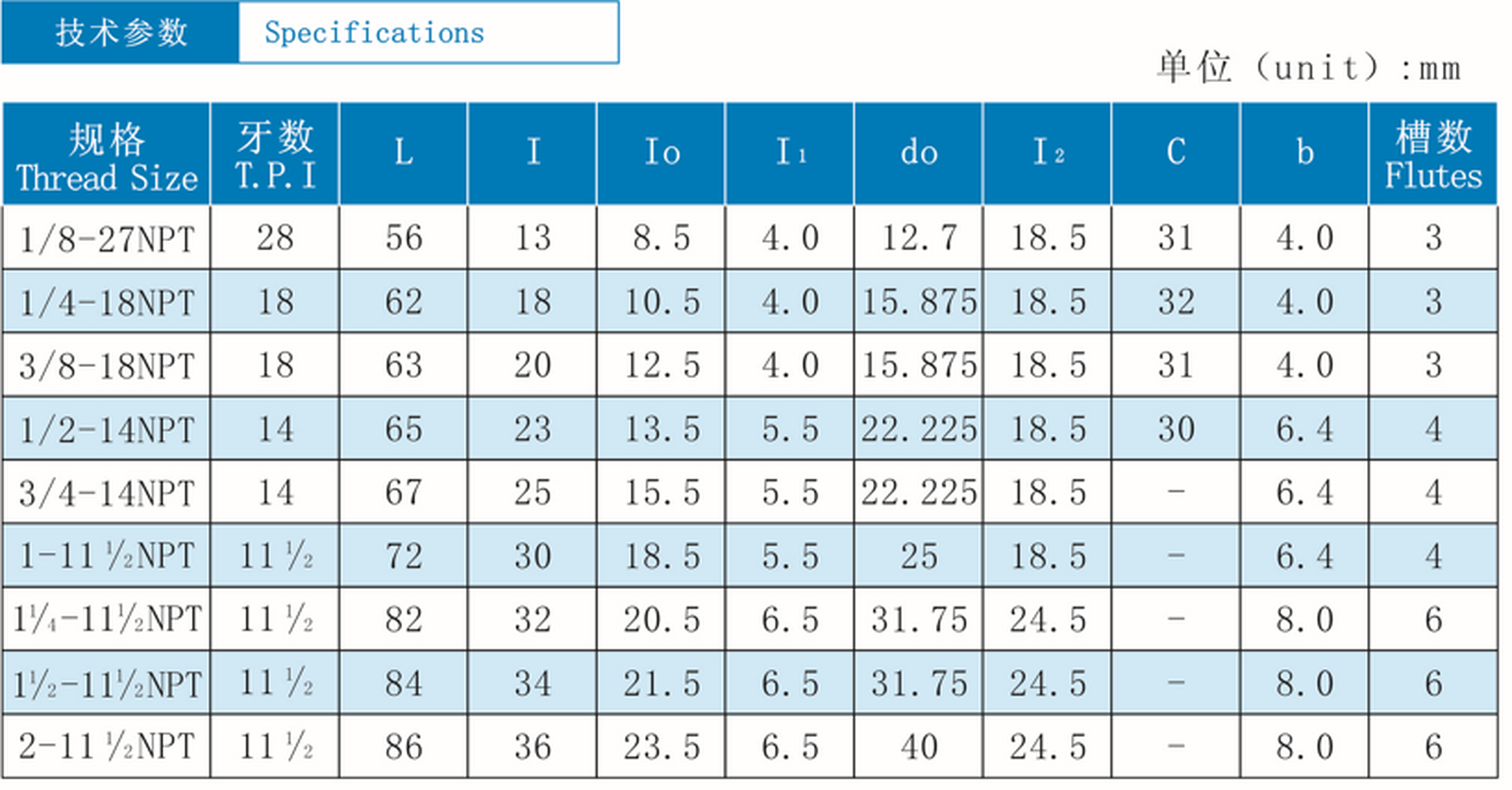

  4. Full‑range NPT sizes: From 1/8‑27NPT to 2‑11½NPT, covers mainstream specifications for stainless‑steel pipe fitting mass production.

Worry-free Service
  • Formulation & Laboratory Analysis
    Conduct laboratory analysis of material and cutting performance, with professional testing and evaluation for raw materials, heat treatment and cutting parameters.
  • Product Development
    Custom R&D is available according to actual working conditions of customers.
  • Brand Logo Design
    Provide exclusive brand logo design to build your unique brand image for tap products.
  • End‑to‑End Quality Control
    Covering raw materials, processing and finished‑goods inspection to guarantee consistent product quality.
